1.Compatible with 14-18AWG wires
2.Compatible with crimp terminals
3.Connection type: Wire-to-wire
4.Connector positions: 2-pin
5.Rated voltage: 500V AC/DC, Rated current: 16A
6.Removable terminals

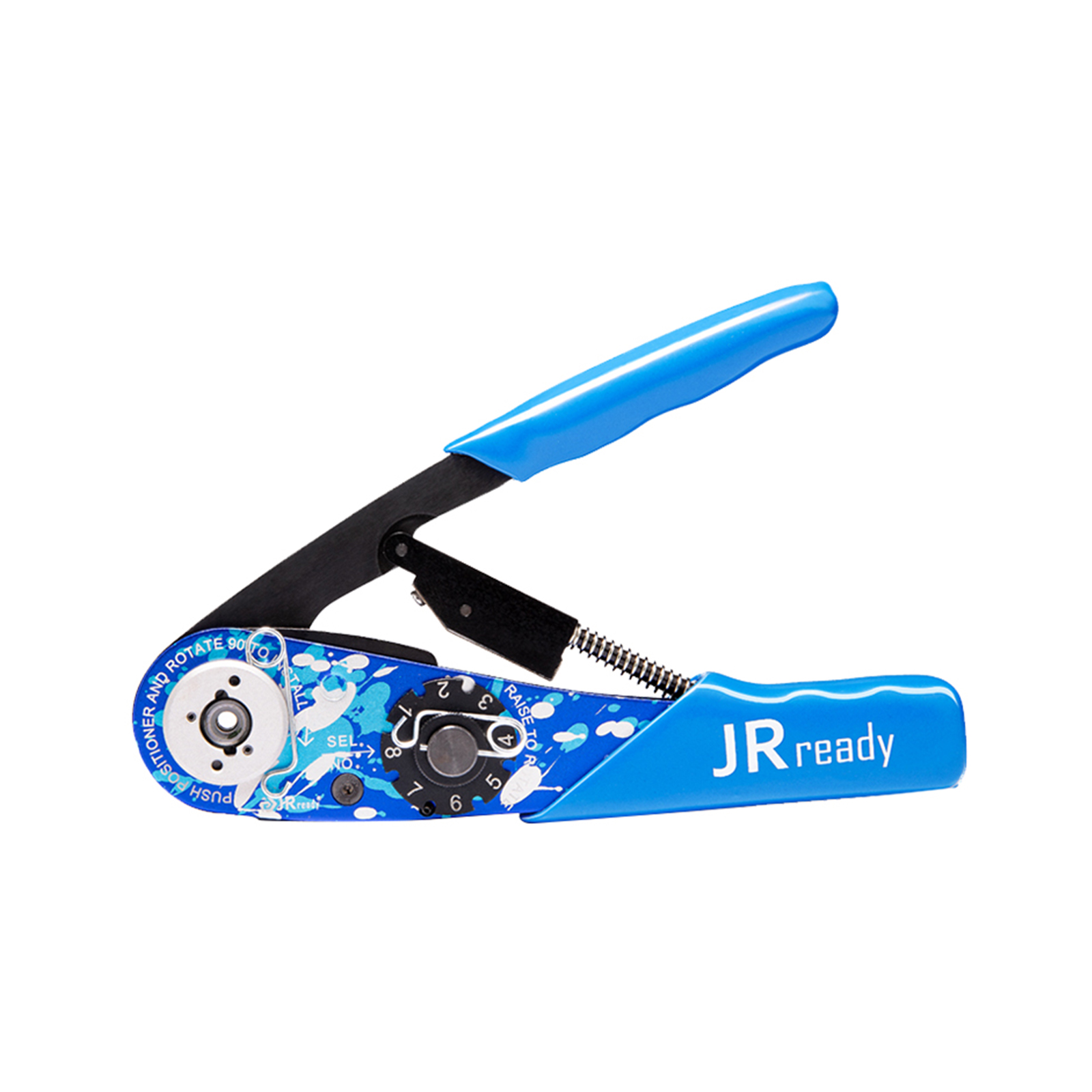

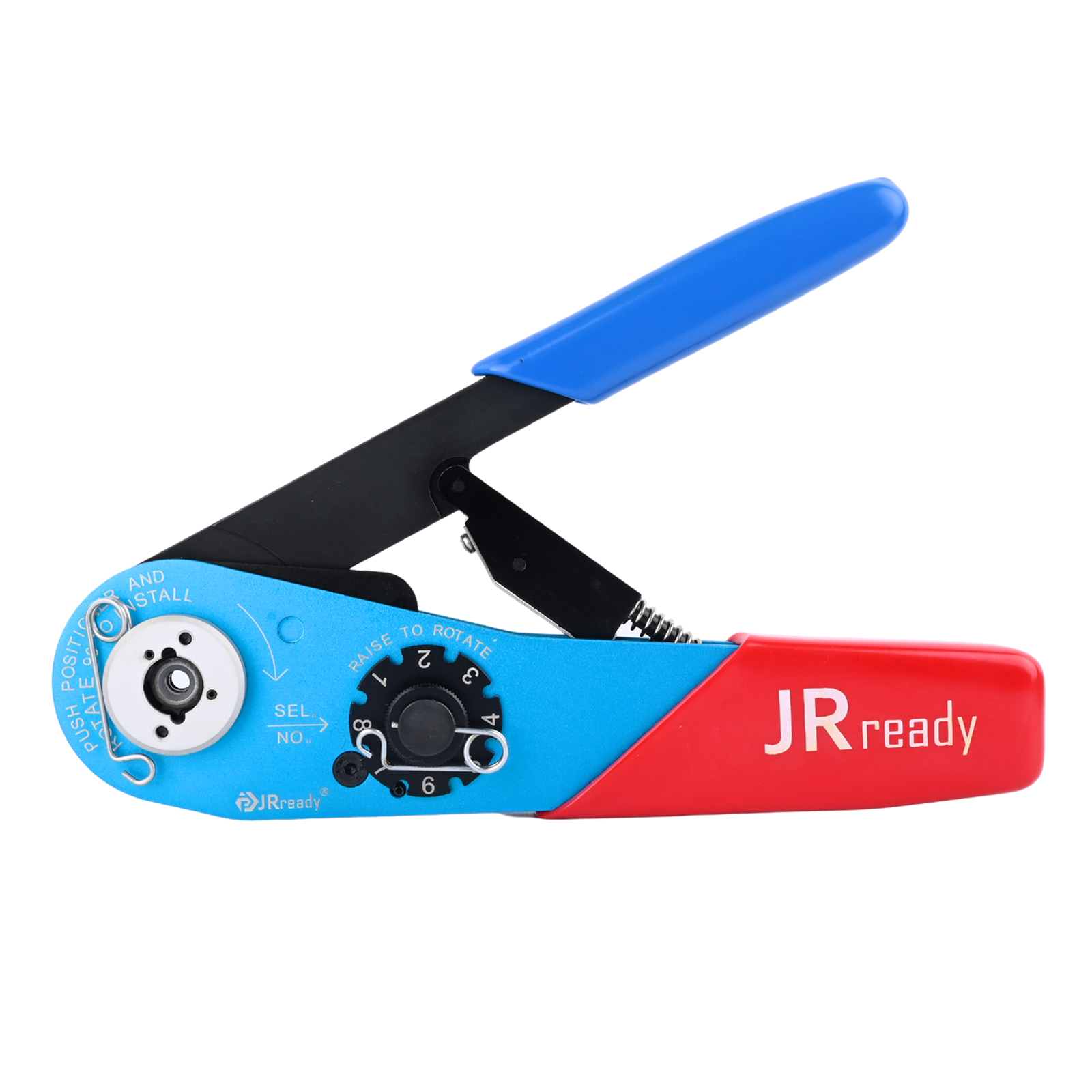

1. Designed in accordance with the US military standard M22520/1-01 specification;
2. Applicable to the crimping of 12#, 16#, and 20# round terminals in US military standard connectors;
3. Applicable to the crimping of 10A and 16A round terminals in heavy-duty connectors;
4. Applicable to the crimping of round terminals in automotive connectors, communication connectors, industrial connectors, and aerospace connectors;
5. Applicable to the crimping of disposable biopsy forceps, disposable snares

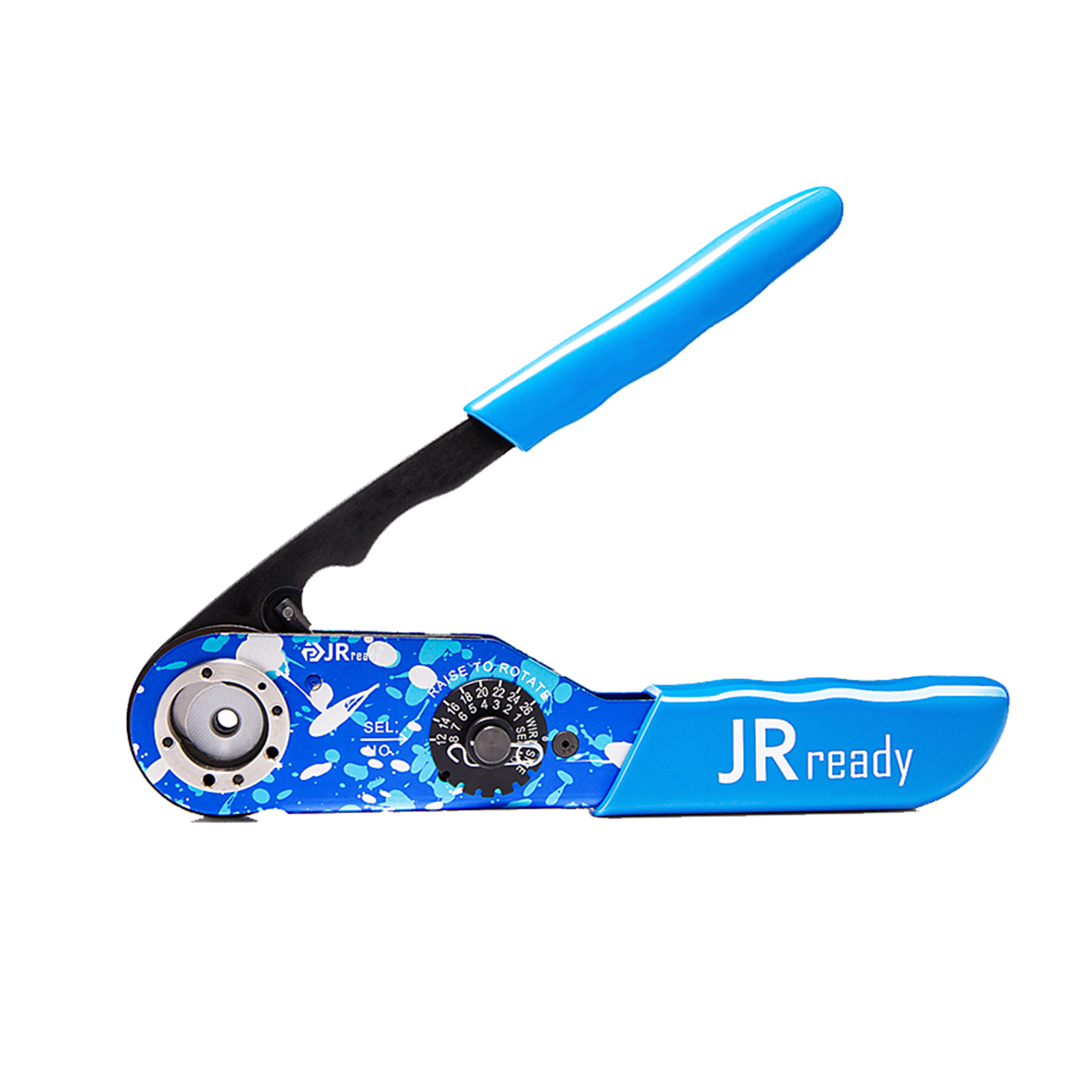

1. Crimping tool designed according to the MIL standard MIL-C-22520/1-01 crimping specification;
2. Suitable for crimping 10A and 16A terminals in HARTING, TE, and WAIN heavy-duty connectors;
3. Applicable wire range: 26-12AWG (0.128-4.0mm²);
4 .Applicable to M22520/1 series positioners;

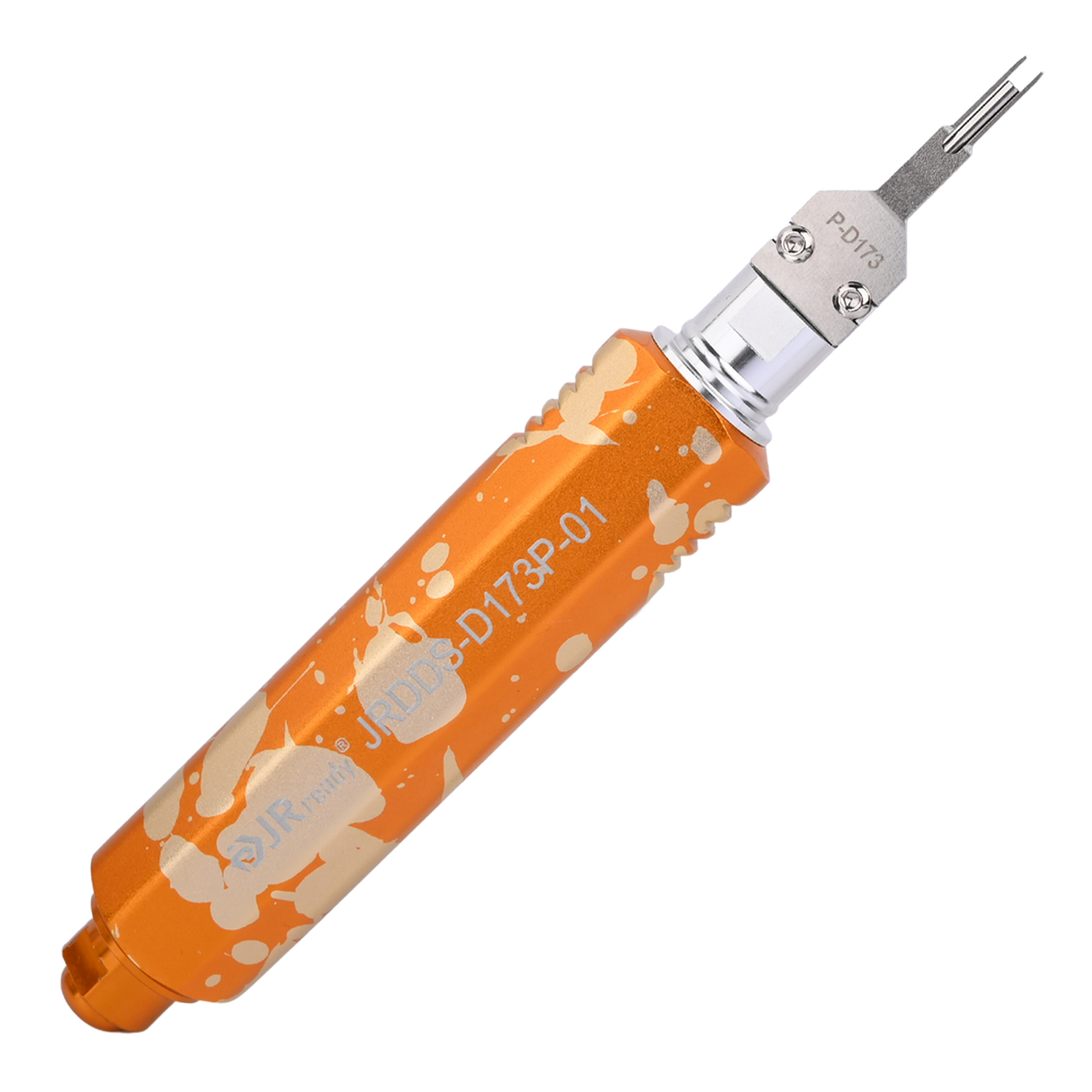

1. Push rod type Dual-Pin Extractor Tool
2.Handle with Attachable Protective Sleeve (Guards Needle Tips)
3.Interchangeable Needle Tips (Identical Specifications & Models)
4. Suitable for 5557/5559 4.2mm Pitch Connectors & 5556/5558 Terminals

1. Compatible wire range​​: 20-14AWG (0.5-2.0mm)
2.​​ Brass with nickel plating - tin surface finish​​
3. ​​Rated current​​: 13.5A

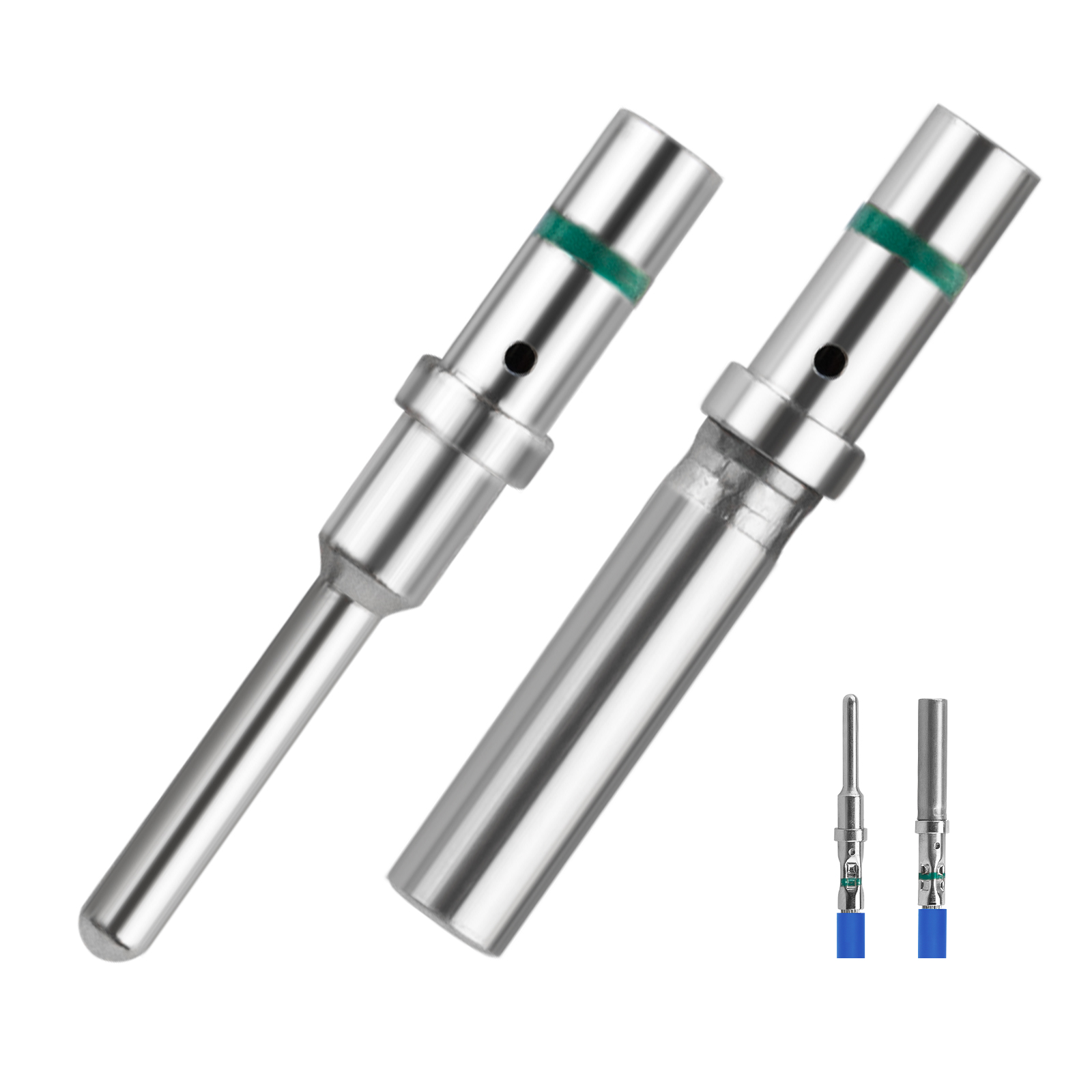

1. Wire Range: 20-14AWG (0.5-2.0mm²)
2. Nickel-plated with Green Identification Ring
3. Rated Current: 13A

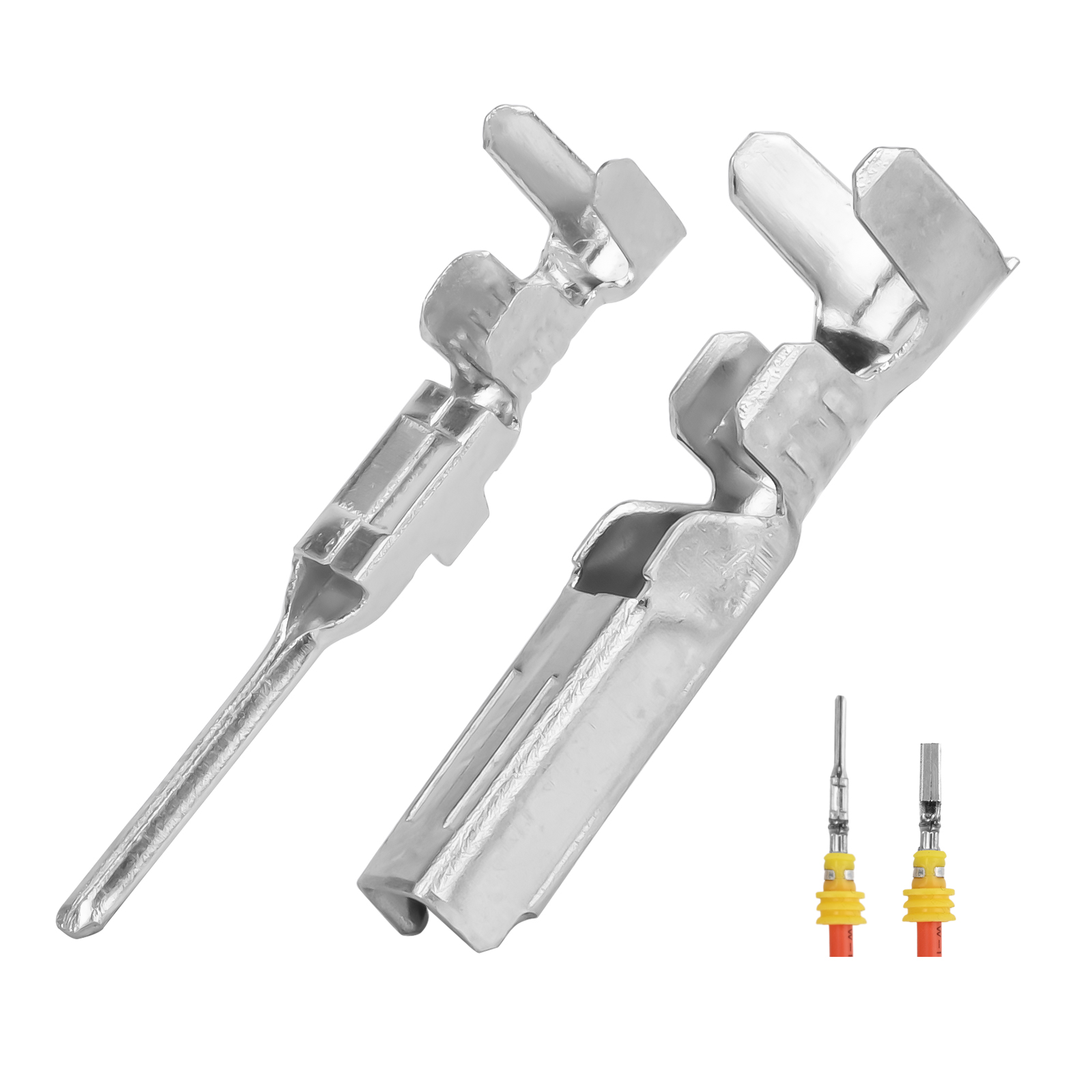

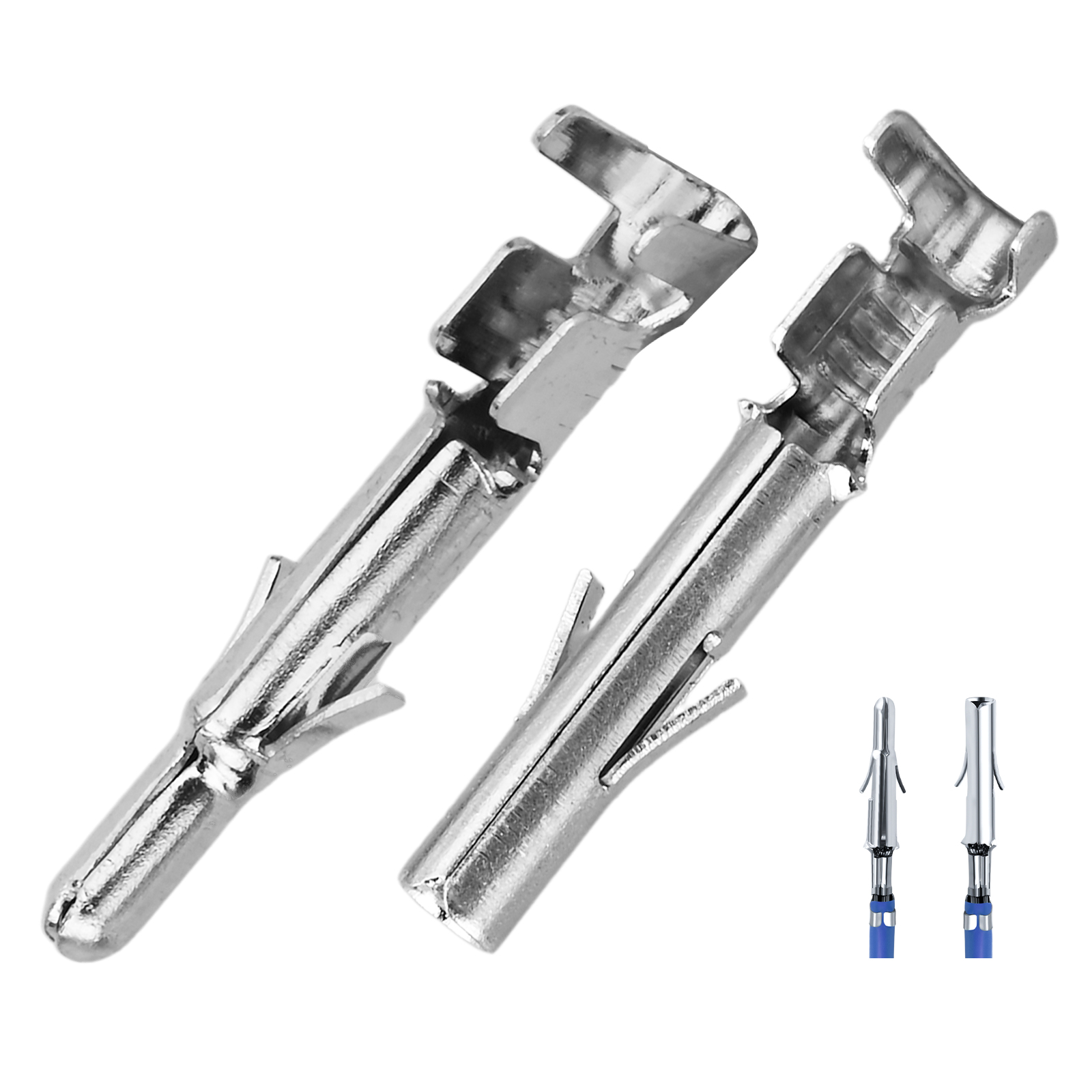

1. Wire Range: 18-16 AWG (0.75-1.50mm²);
2. Brass, Nickel-Plated Surface;
3. Rated Current: 14A

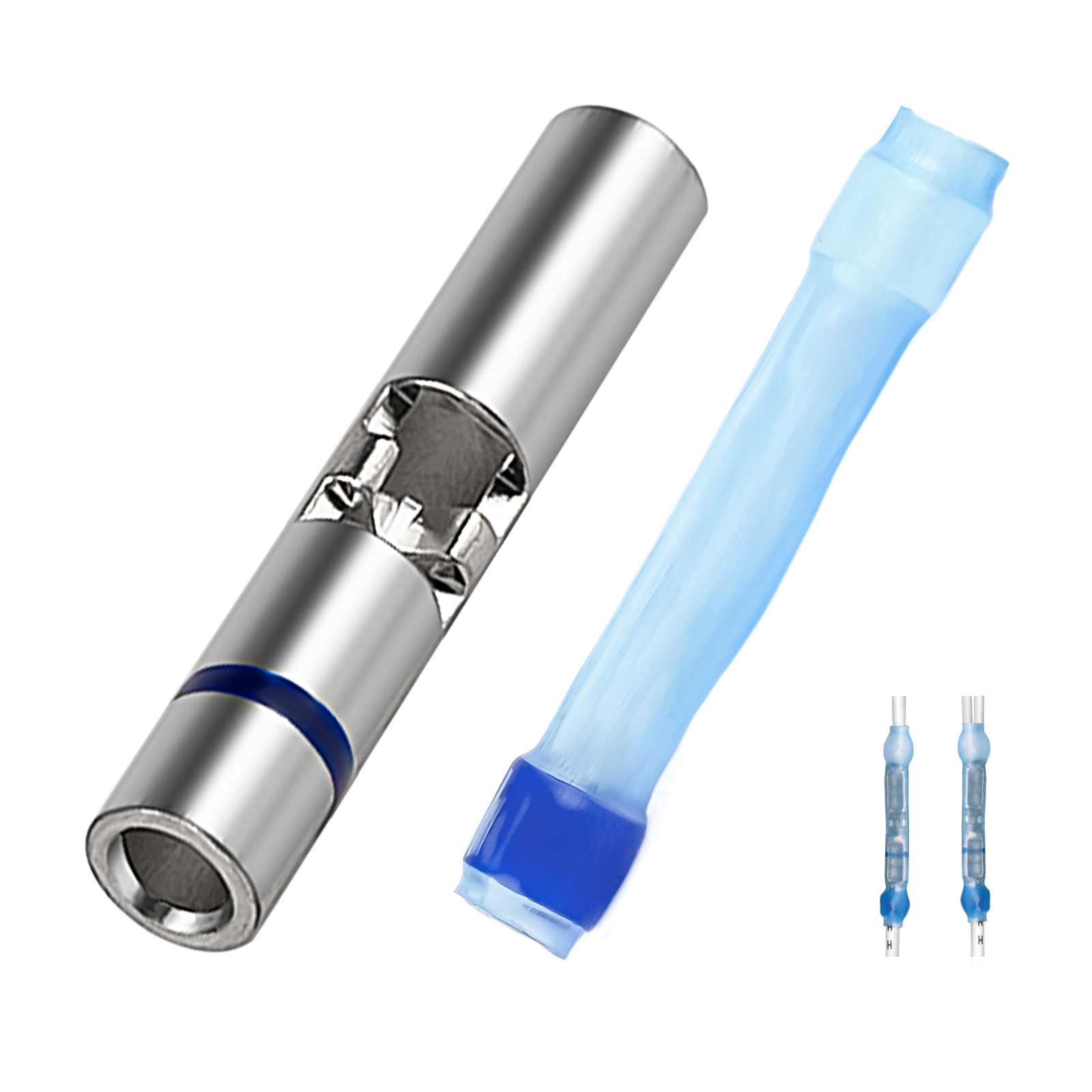

1. Designed according to MIL-M81824/1-1 standard
2. Compatible with 16-20AWG wires
3.​​Operating temperature range: -55°C to +150°C;​​
4.​​Waterproof grade: IP68;​​
5. Suitable for on-site wire connection, electrical maintenance, etc

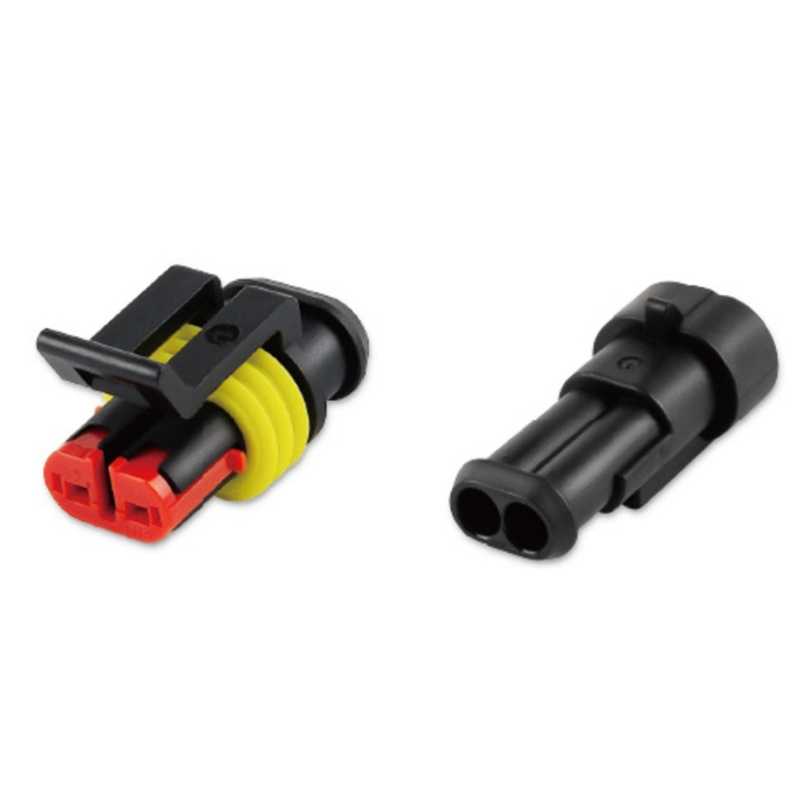

1. IP67-rated, enhanced waterproof performance;
2. Connector positions: 2-pin;
3. Compatible with stamped terminals: 282403-1/282110-1/282466-1; 282404-1/282109-1/282465-1;
4. Wire range: 0.35-2.50mm²;
5. Interchangeable with market-standard equivalents.

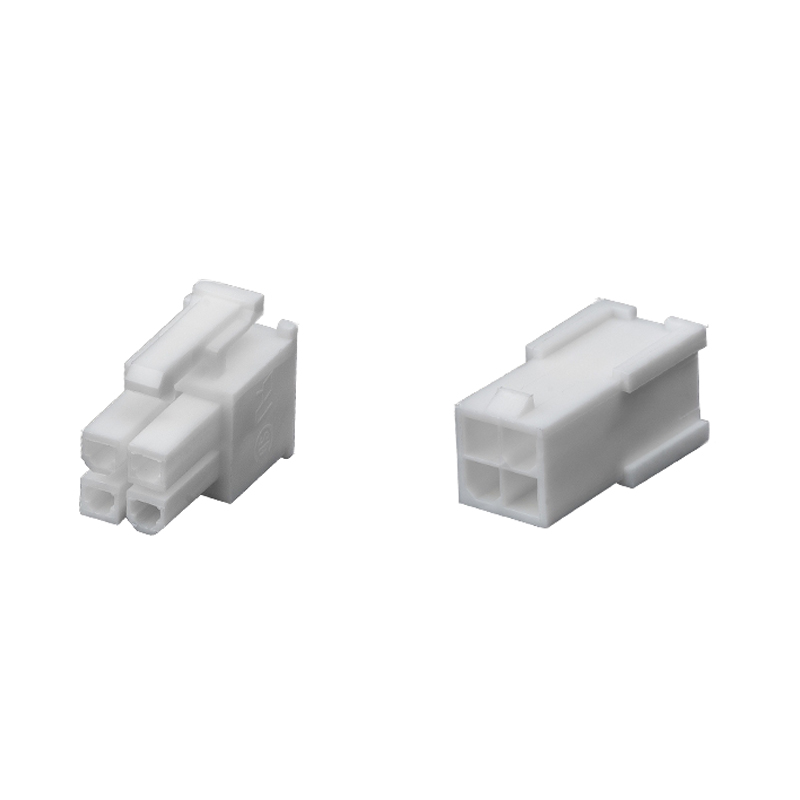

1. Compatible wire range: 16-28AWG;
2. Supports stamped sockets;
3. Connection type: Wire-to-wire;
4. Number of positions: 4;
5. Rated voltage: 250V AC/DC, rated current: 9A;
6. Compatible with market-standard products of the same specification.

1.Compatible with 14-18AWG wires
2.Compatible with crimp terminals
3.Connection type: Wire-to-wire
4.Connector positions: 2-pin
5.Rated voltage: 500V AC/DC, Rated current: 16A
6.Removable terminals

1. Compatible with 14-20AWG wire；
2. Compatible with 16 AWG ring terminals and stamped terminals；
3. Connection Type : Wire to Wire；
4. Number of Positions : 2 positions；
5. Rated Voltage ：250V AC/DC，Rated Current ：13A；
6. Market Compatibility​​: Compatible with products of the same specifications on the market.

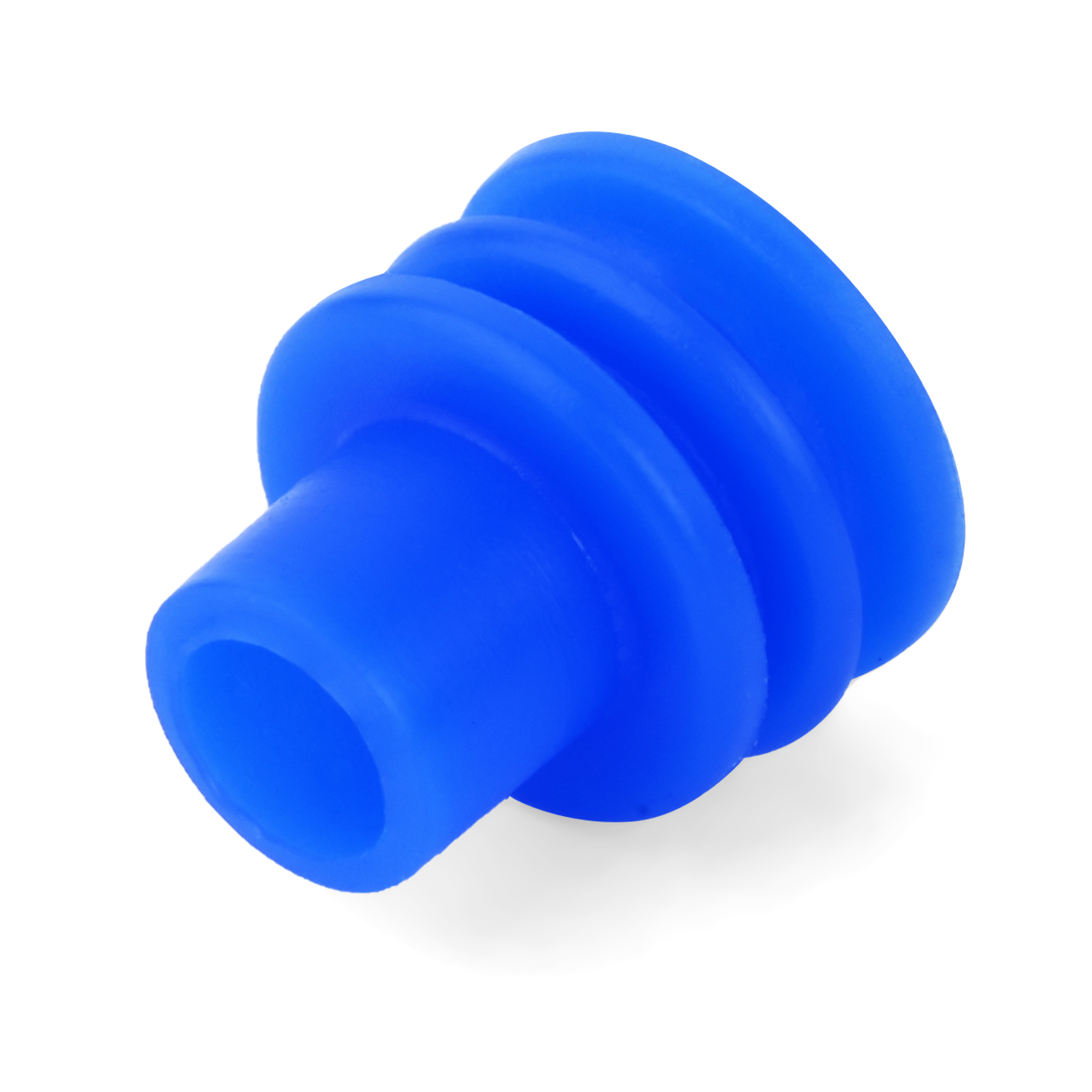

1、Sealing Ring​
2、Compatible with wire insulation outer diameter: φ3.45-φ4.30mm​
3、Suitable for Weather-Pack Series Connectors
4、Interchangeable with industry-standard equivalents

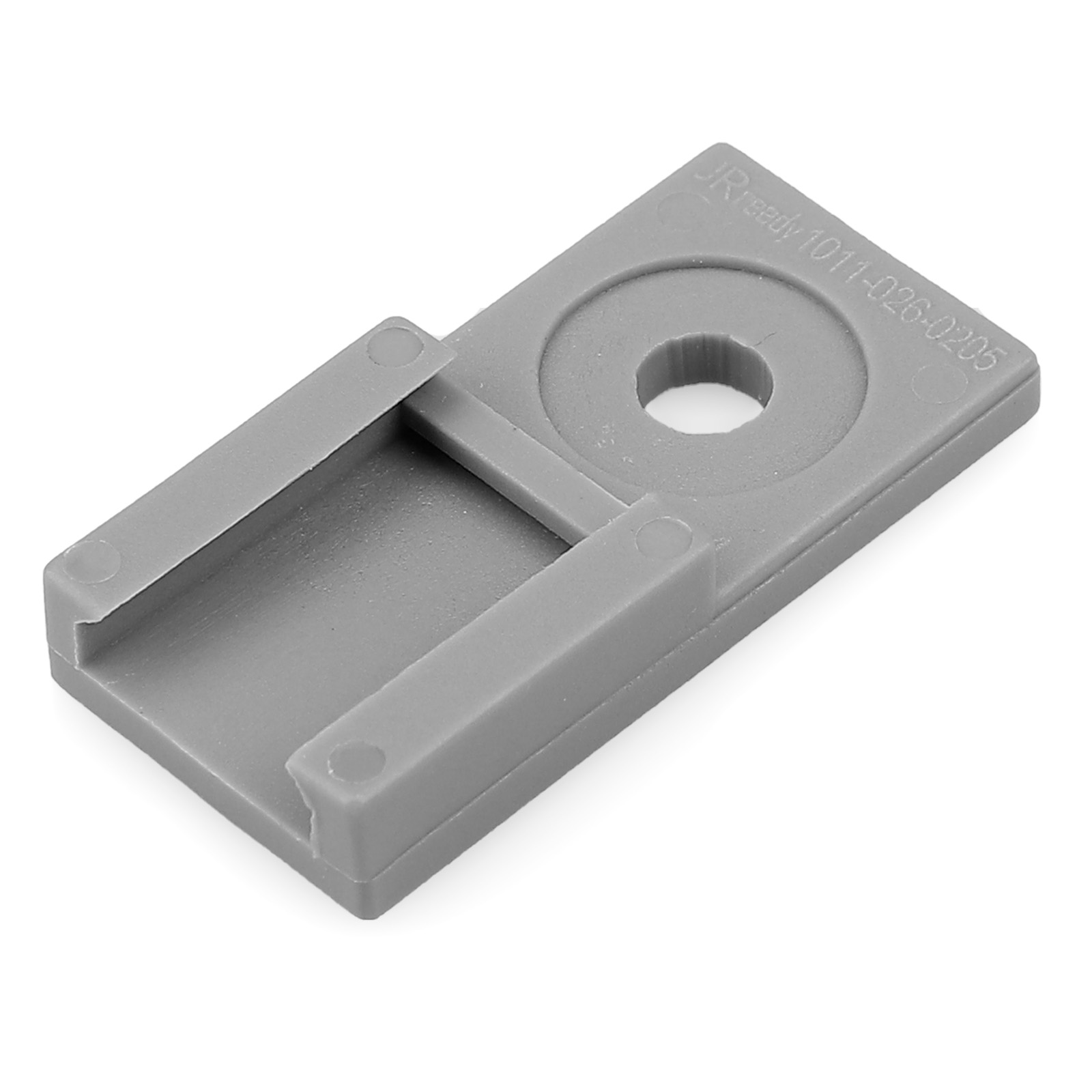

1. Connector Housing Mounting Clip​
2.​​ Compatible with DTM, DTP, DT (excluding DT 8-position), and DTHD series connectors​​
3.​​ Compatible with products of the same specifications on the market.

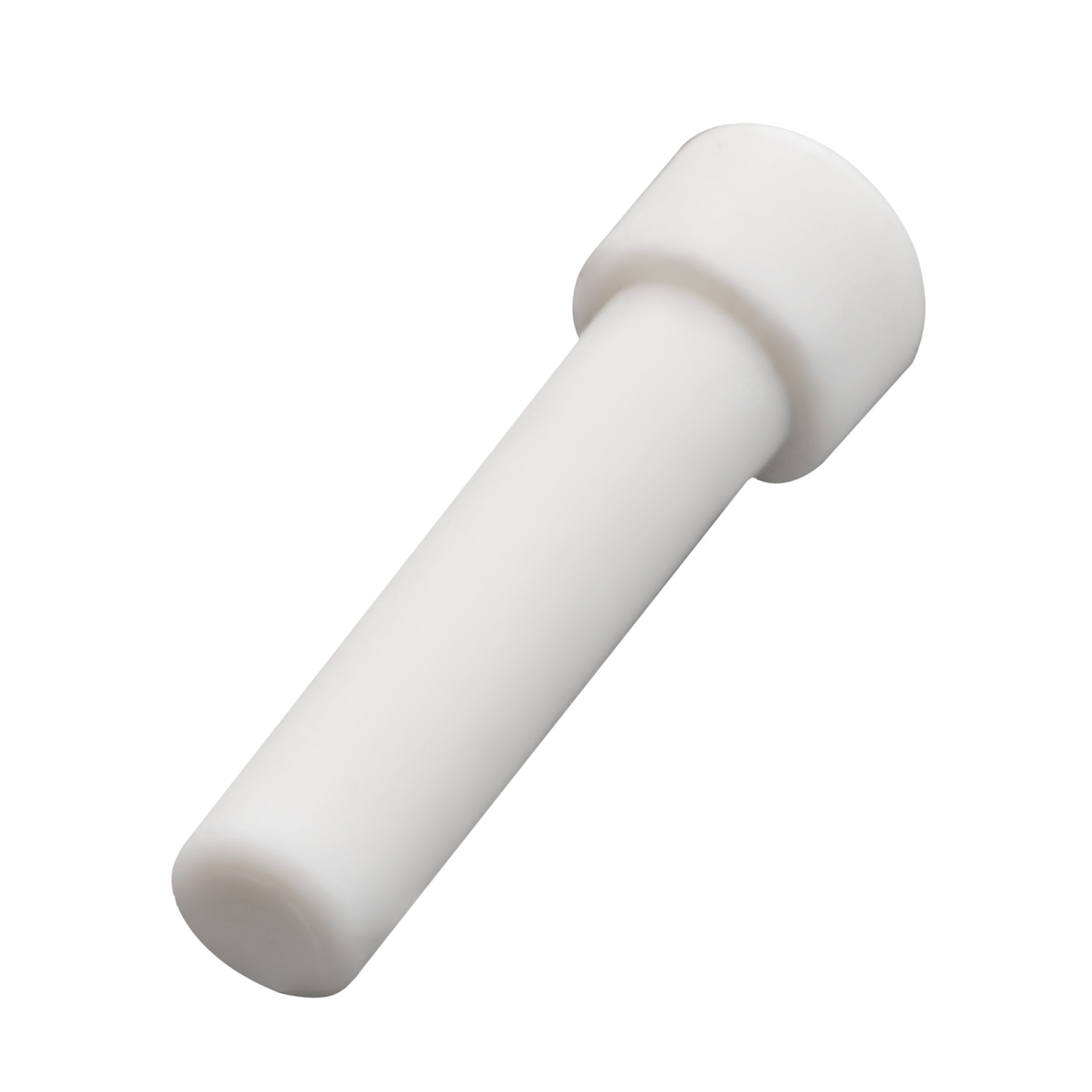

1. DT Series Connector Housing Sealing Plug​​.
2. ​​Compatible with DT and DTP series connectors​​.
3.​​ Compatible with products of the same specifications on the market.

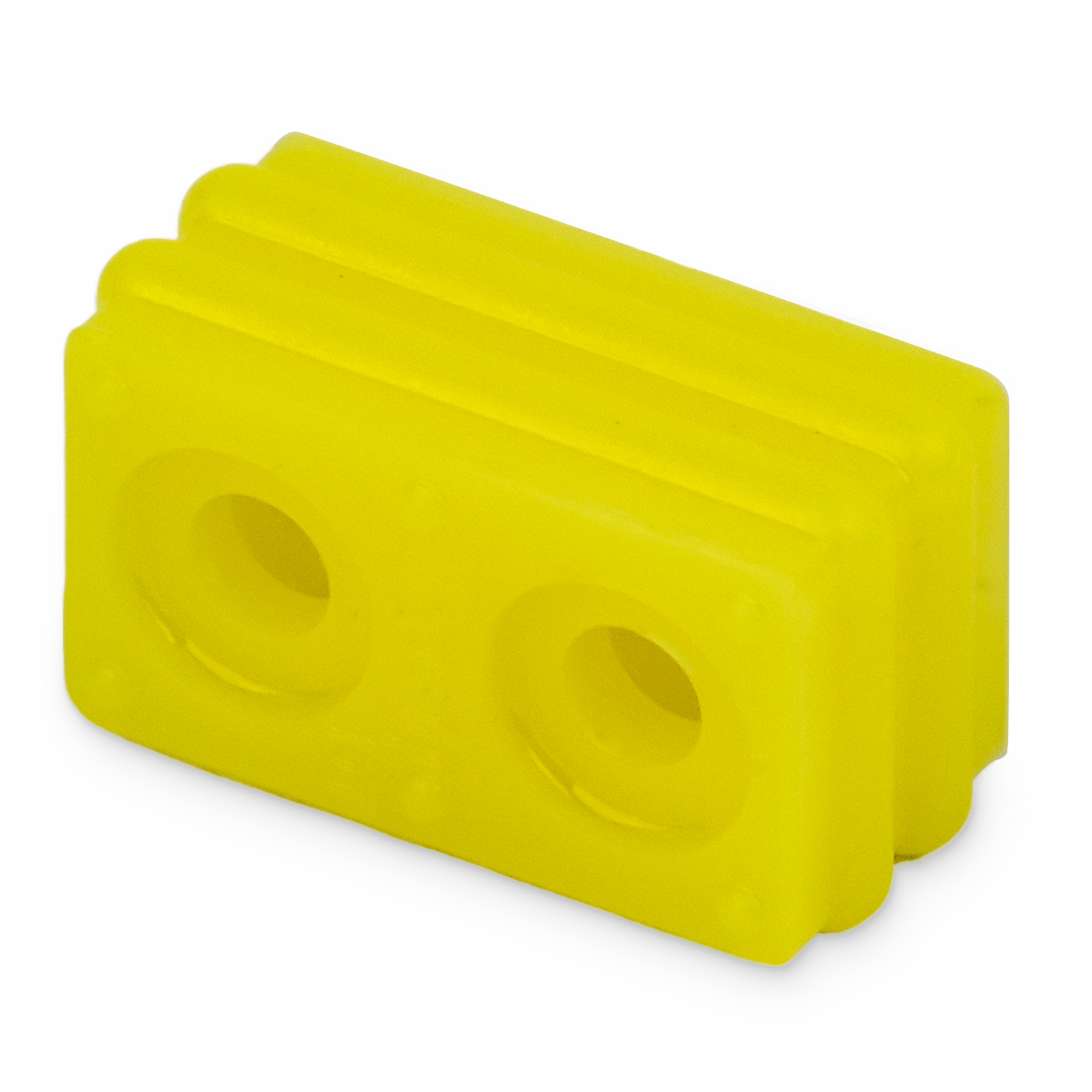

1. Compatible with DT Series 2-pin connectors
2. Oil-exuding silicone rubber material
3. Compatible with OEM seals

1. Designed with reference to DEUTSCH HDT-48-00;
2. Applicable wire range: 12-22AWG (0.32-3.33mm2);
3. Applicable to crimping of 12#, 16#, 20# round terminals in DEUTSCH connectors;
4. Applicable to crimping of round terminals in automotive connectors, communication connectors, industrial connectors, and aerospace connectors;
5. Integrated design of positioner
6. Compatible with similar crimping tools and supporting products on the market;

1. Designed with reference to the US military standard M22520/2-01;
2. Suitable for crimping 20#, 22#, 22M#, 22D# round terminals in US military standard connectors;
3. Suitable for wire range 20-32AWG (0.52-0.032mm²);
4. Suitable for K, KA, SK2/2 series positioners;
5. Applicable to crimping round terminals in automotive connectors, communication connectors, industrial connectors, and aerospace connectors;
6. Applicable to crimping disposable biopsy forceps, disposable snares, and disposable ce

1. Designed in accordance with the US military standard M22520/1-01 specification;
2. Applicable to the crimping of 12#, 16#, and 20# round terminals in US military standard connectors;
3. Applicable to the crimping of 10A and 16A round terminals in heavy-duty connectors;
4. Applicable to the crimping of round terminals in automotive connectors, communication connectors, industrial connectors, and aerospace connectors;
5. Applicable to the crimping of disposable biopsy forceps, disposable snares

1. Compatible with U.S. Military Standard M22520/2-01 crimping tools;​​
2.​​ Suitable for crimping 20#, 22#, 22M#, and 22D# solid contacts in MIL-Spec connectors;​​
​​3. Wire range: 20-32 AWG (0.52-0.032 mm²);​​
4.​​ Compatible with K, KA, and SK2/2 series positioners;​​
5.​​ Suitable for crimping solid contacts in automotive, telecommunication, industrial, and aerospace connectors;​​
6.​​ Suitable for crimping disposable biopsy forceps, snares, and cytology brushes in minimally invasive medical

1. Suitable for crimping 12#, 16#, 20# round terminals in DEUTSCH connectors;
2. Applicable wire range: 12-22AWG (0.32-3.33mm²);
3. Suitable for crimping round terminals in automotive connectors, communication connectors, industrial connectors, and aerospace connectors;
4. One-piece design of positioner;
5. Compatible with similar crimping tools and supporting products on the market.

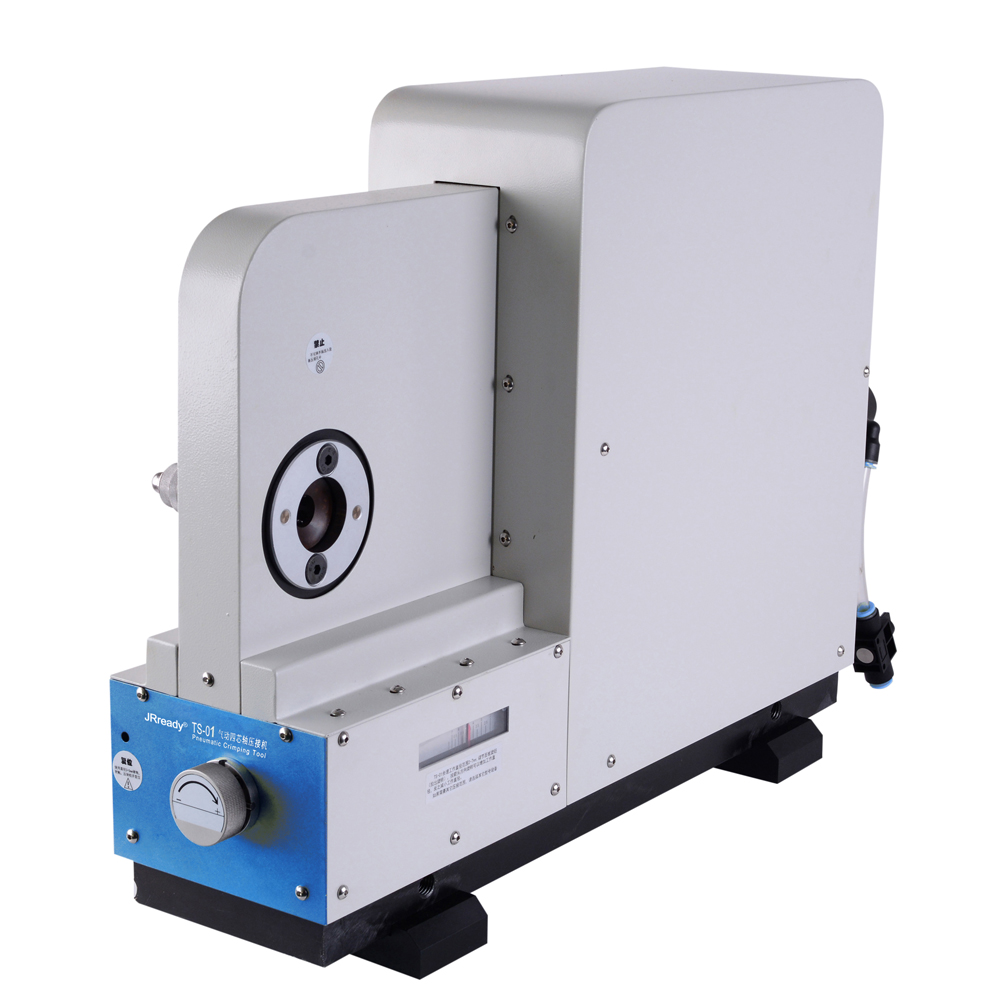

1. Applicable to the crimping of large square cables of new energy charging piles and charging guns;
2. Applicable to the crimping of DT and DTG series copper noses;
3. Applicable to the crimping of US military standard 4# and 8# round terminals;
4. Applicable to the crimping of 4# and 8# round terminals in DT connectors;
5. Applicable crimping range 3.0-35mm²;
6. Standard TS-T screw adjustable positioner.

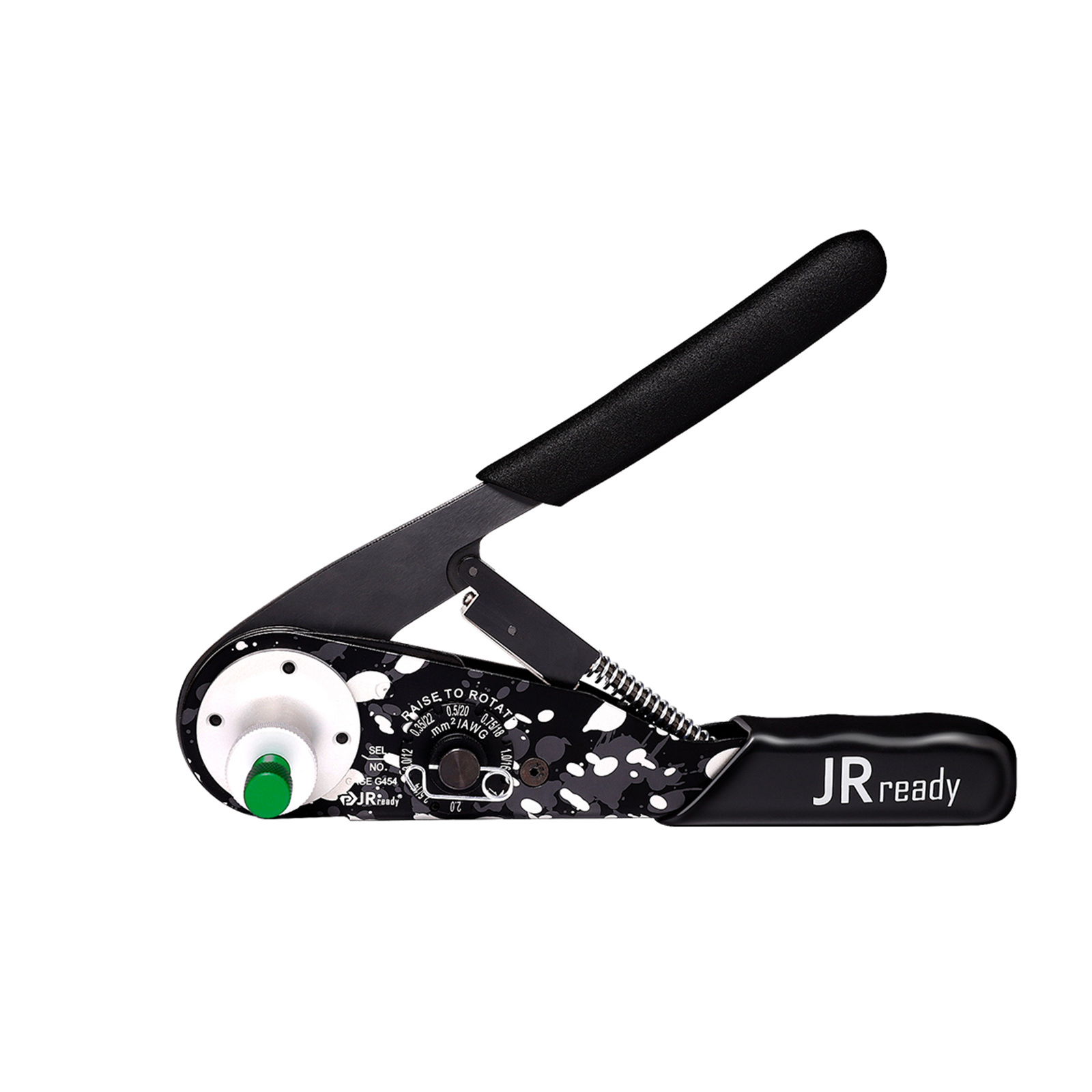

1. Designed in compliance with U.S. Military Standard MIL-DTL-22520/2-01.
2. Applicable Wire Range:​​ 20-32 AWG (0.032-0.52 mm²)
3. For crimping of 20#, 22#, 22M#, 22D# solid contacts in US military standard connectors & Chinese Military Standards J599/J598 series connectors, For crimping for disposable biopsy forceps, snares, and cell brushes in minimally invasive medical device
4. For crimping of solid contacts in automotive connectors, communication connectors, industrial connectors

1. Crimping tool designed according to the MIL standard MIL-C-22520/1-01 crimping specification;
2. Suitable for crimping 10A and 16A terminals in HARTING, TE, and WAIN heavy-duty connectors;
3. Applicable wire range: 26-12AWG (0.128-4.0mm²);
4 .Applicable to M22520/1 series positioners;

1.Compatible with​​:JRready: JRN009-TBM/JRN009-TBF；CJ: C3030M-TP/C3030F-TP-A, C3030M-GP/C3030F-GP-A；Molex: 4303*-001/4303*-002/4303*-003/4303*-0007/4303*-0008/4303*-0009；​​NOTE​​: When * = 0, P/N is ​​SOCKET contact​​; when * = 1, P/N is ​​PIN contact​​.
​​2.2 die openings​​, compatible wire range: ​​20AWG ~ 24AWG​​.
3.​​Ratcheting mechanism​​ for one-step crimping, ensuring consistent crimp quality.
4.TPR handles​​ for ergonomic grip and durability.

1. Designed with reference to the US military standard M22520/5-01; compatible with M22520/5 series crimp dies;
2. Crimp type: hexagonal, B-shaped, etc.;
3. Suitable for most coaxial and triaxial connectors and contacts of MIL-DTL-39012, AS39029 and many proprietary configurations;
4. Suitable for MIL-C-81511 series I, II; MIL-DTL-26482 series II; MIL-DTL-81703 series III connectors.

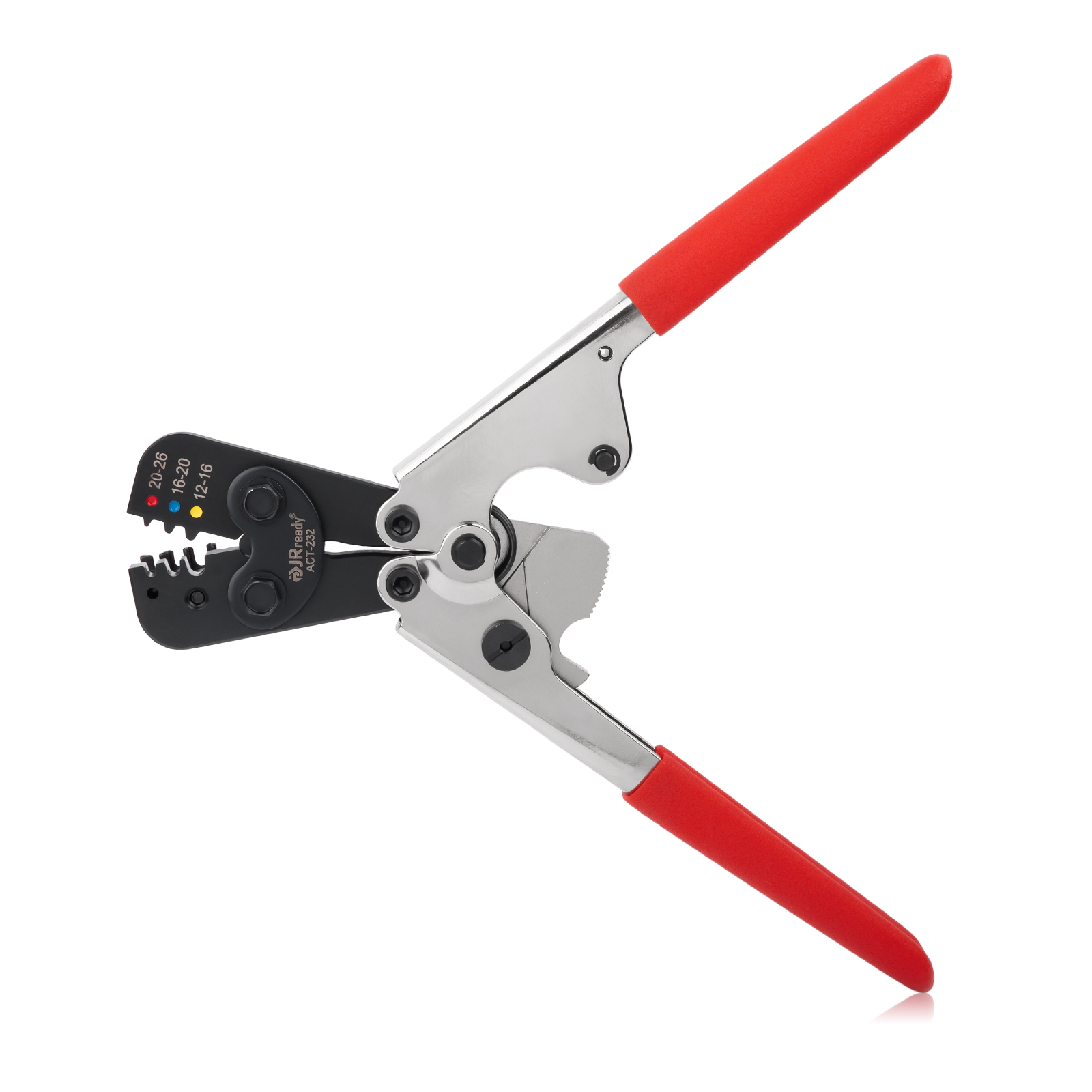

1. Designed in compliance with U.S. Military Standard M22520/37-01​​
2.​​ Compatible with M81824/1,6,7,8,9,10,11,13,14 series heat-shrink splice connectors
3.​​ Wire range: 12-26 AWG (0.128-4.0 mm²)​​
4.​​ 3 color-coded dies: Red/Yellow/Blue for 12# (Yellow), 16# (Blue), 20# (Red) splice sleeves​​
5.​​ Integrated positioner ensures crimping position consistency​​
6.​​ Built-in ratchet crimping cycle system guarantees uniform crimp quality​​
7.​​ Applications: Automotive, aerospace, rail, marine,

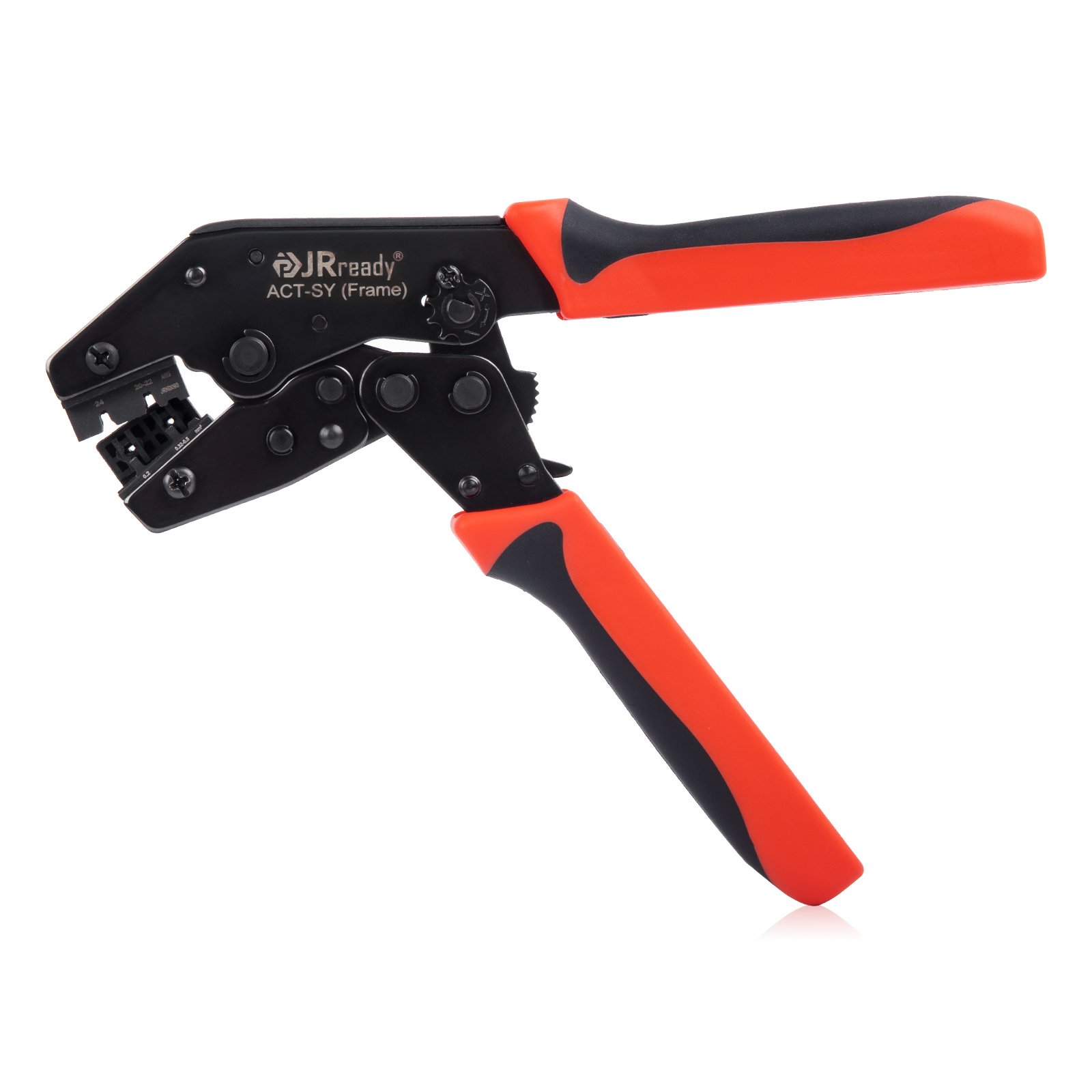

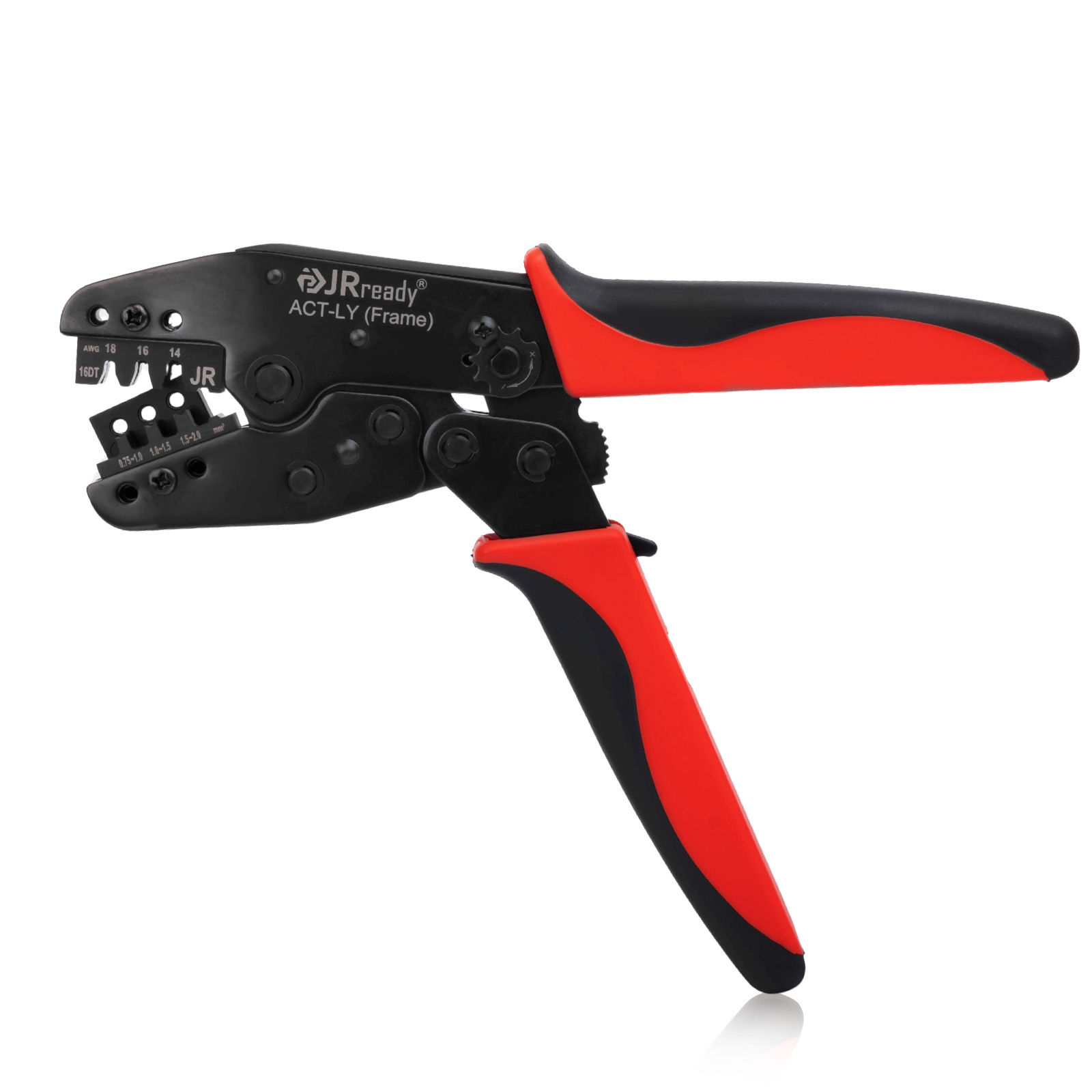

1. Compatible with 16# stamped terminals in JRready/Deutsch DT connectors.
2、For crimping 16# stamped terminals in Amphenol AT, ATV, AHD-9, ARC, DuraMate, and PanelMate connectors.
3、Equipped with 3 dies, compatible with wire range: 2.0mm²/14AWG,1.5mm²/16AWG,0.75mm²/1.0mm²/18AWG；
4、Equipped with a ratchet mechanism for single-stroke operation, ensuring consistent crimp quality；
5、TPR handle, comfortable and durable.

1. Push rod type Tubular Terminal Extraction Tool​
2. Handle equipped with a protective sleeve
3. Interchangeable replacement tips with same specifications
4. Suitable for AMP .062" Commercial Series Male/Female Terminals; Molex Standard .062" 1625 Series Male/Female Terminals; 4.5mm Pitch Tamiya-Style Male/Female Terminals; Molex 3.68mm Pitch (5500/5600 Series) Male/Female Terminals; C3681 & C3682 3.8mm Pitch Male/Female Terminals (Made-in-China); Molex 8980 Series Male Terminals; Domestic Larg

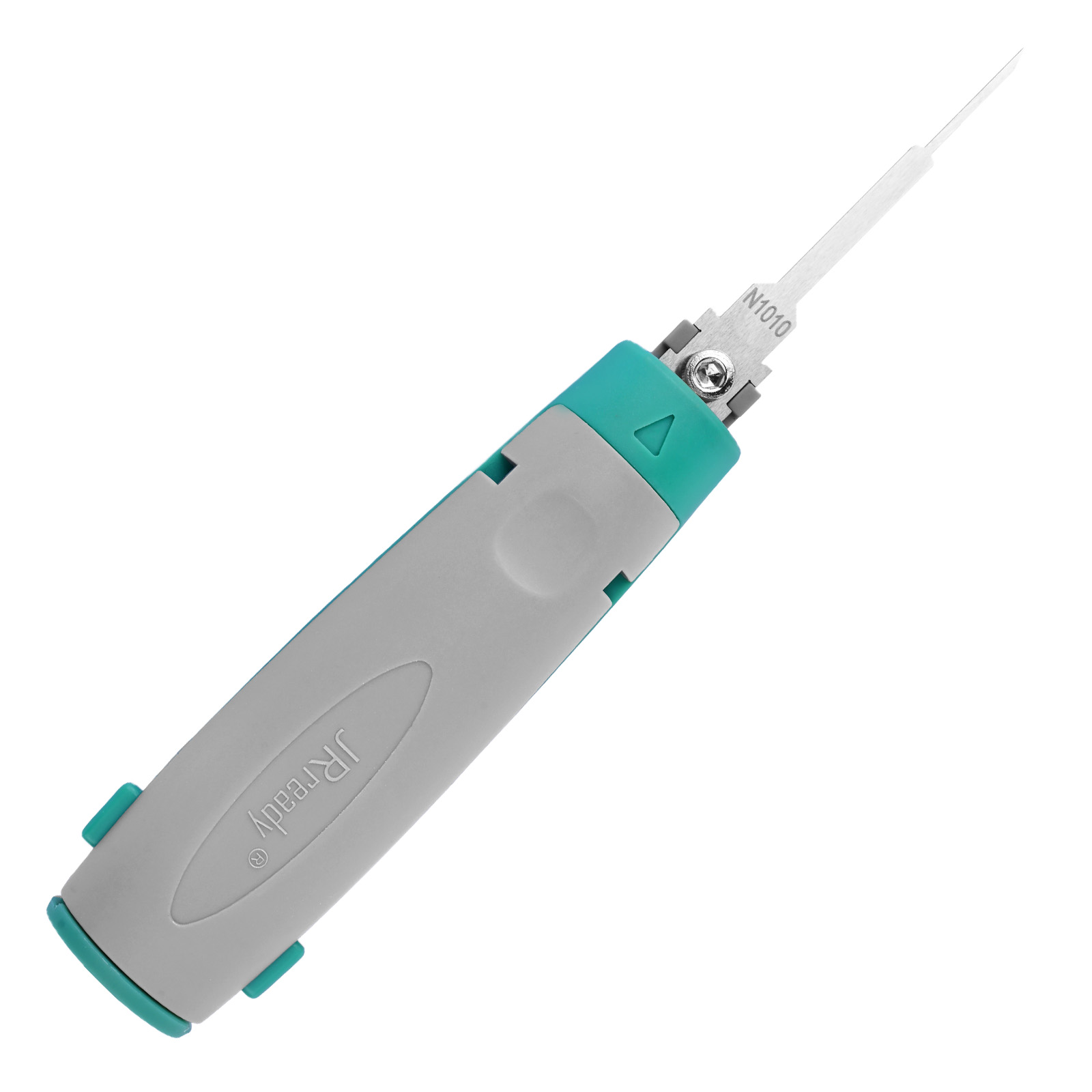

1. Handle equipped with a protective sleeve
2. Storage function for flat blade replacement tips (total thickness ≤6mm)
3. Interchangeable with various types of flat blade replacement tips
4. Applicable to various small single spring terminals or internal spring terminals

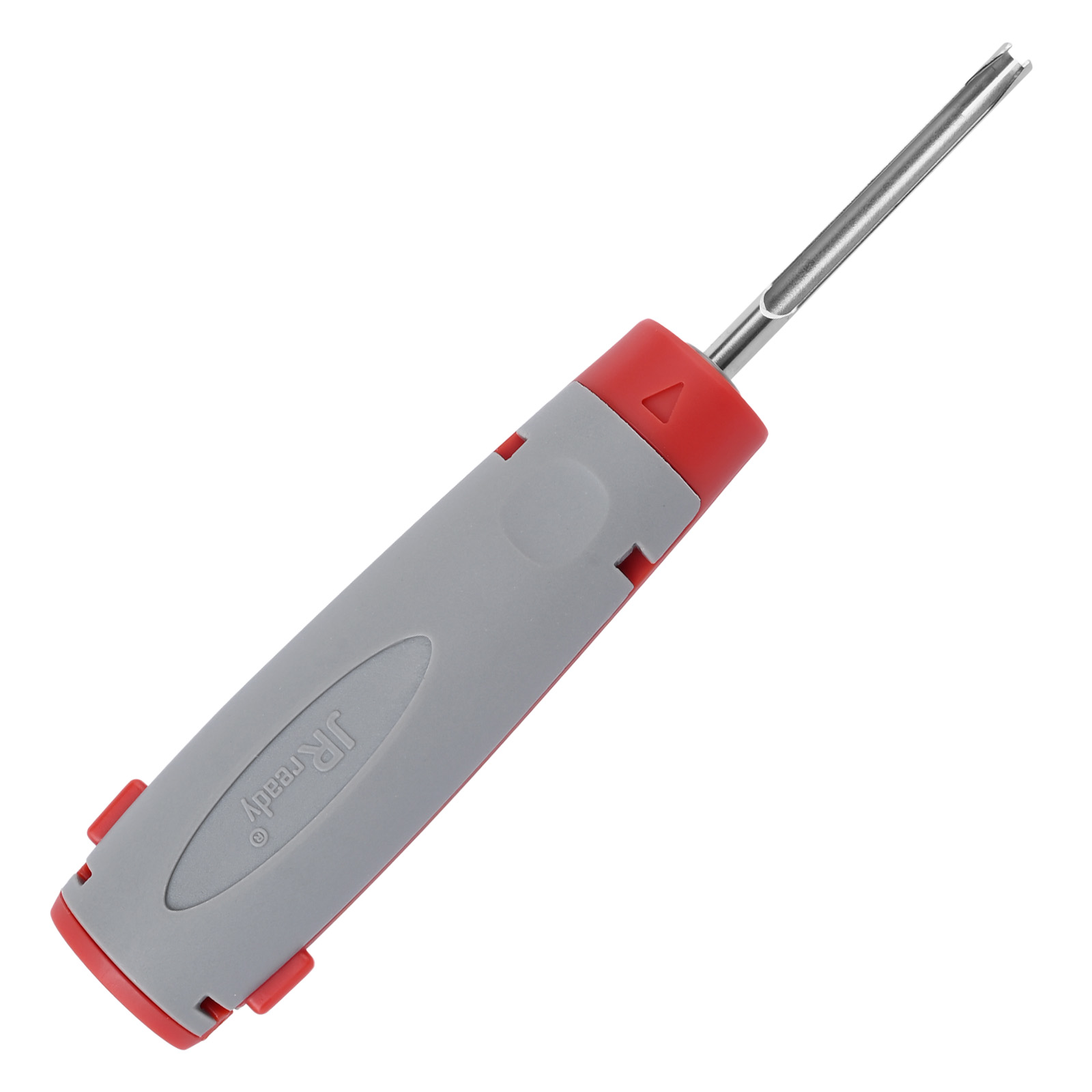

1. Handle with Integrated Sliding Protective Sleeve
2. Applicable to DT, DRC, HDP, Jiffy Splice series 16# terminals

1. Push rod type Dual-Pin Extractor Tool
2.Handle with Attachable Protective Sleeve (Guards Needle Tips)
3.Interchangeable Needle Tips (Identical Specifications & Models)
4. Suitable for 5557/5559 4.2mm Pitch Connectors & 5556/5558 Terminals
