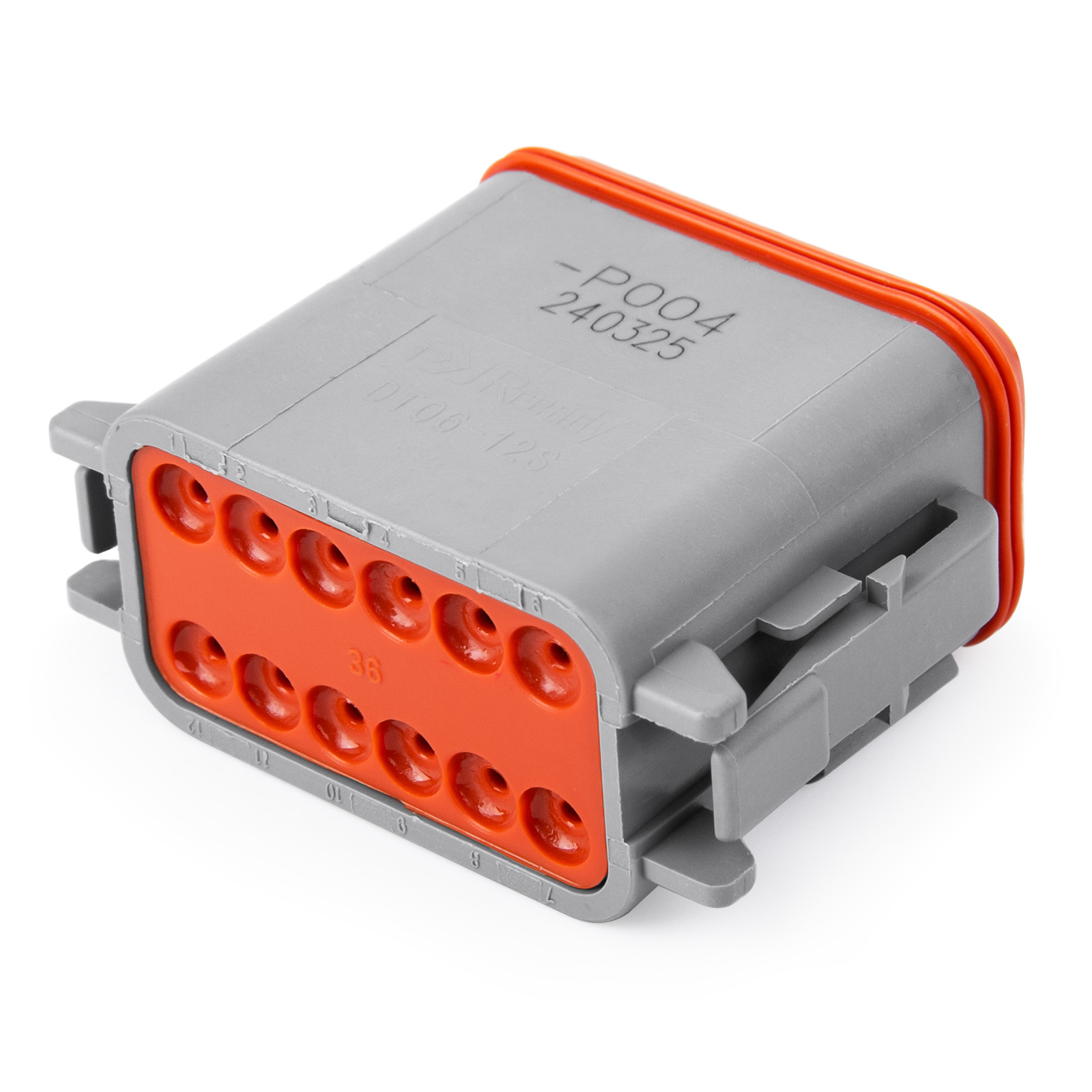

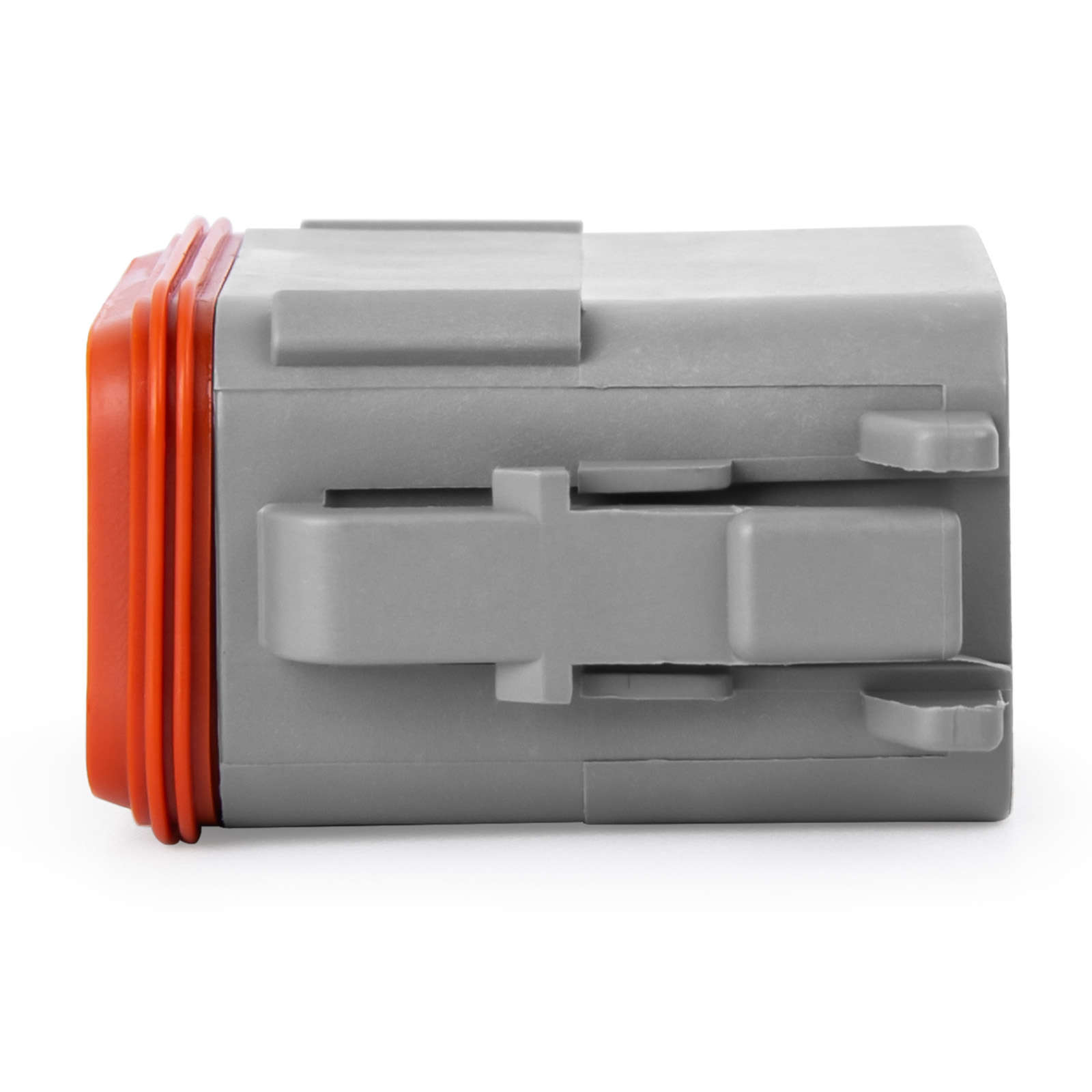

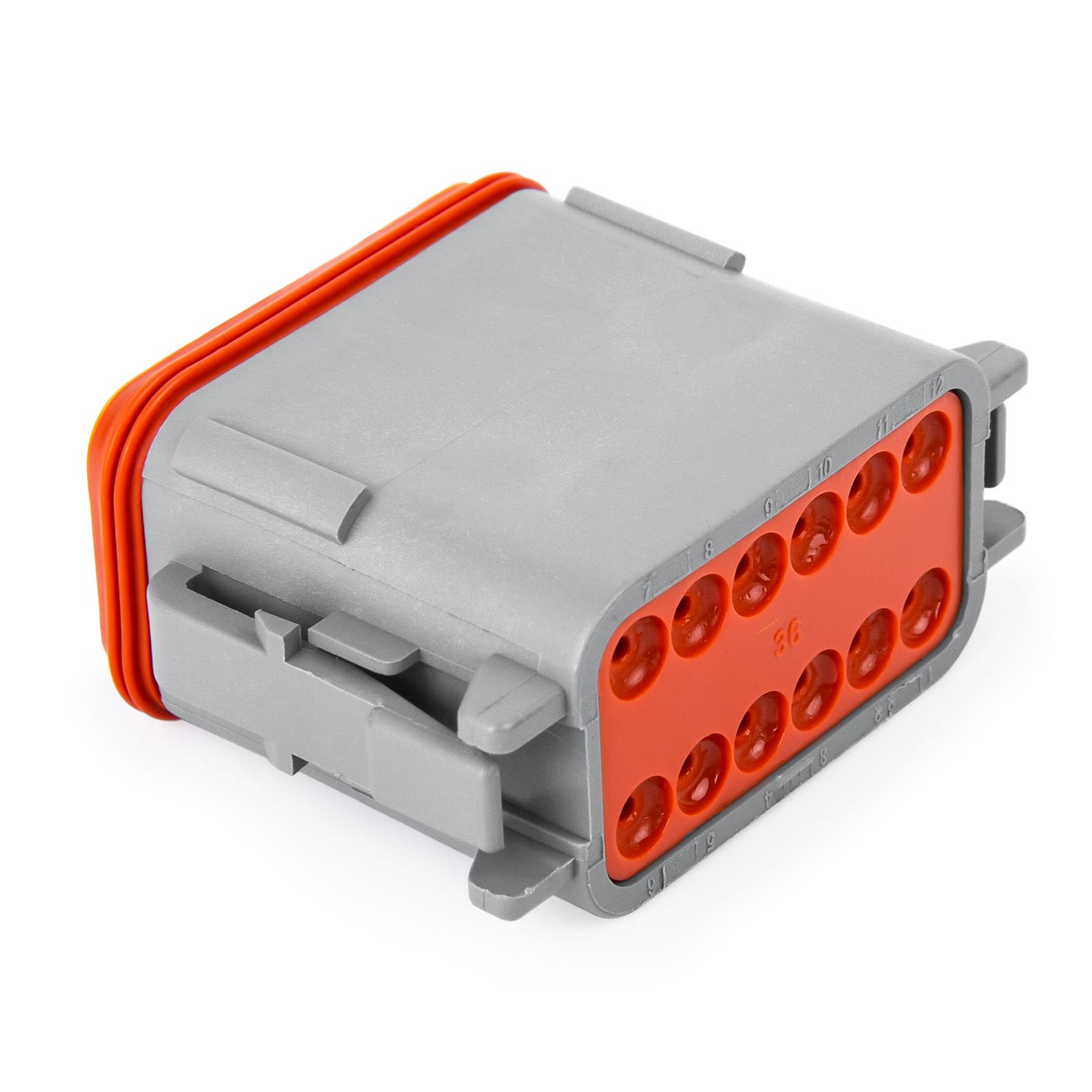

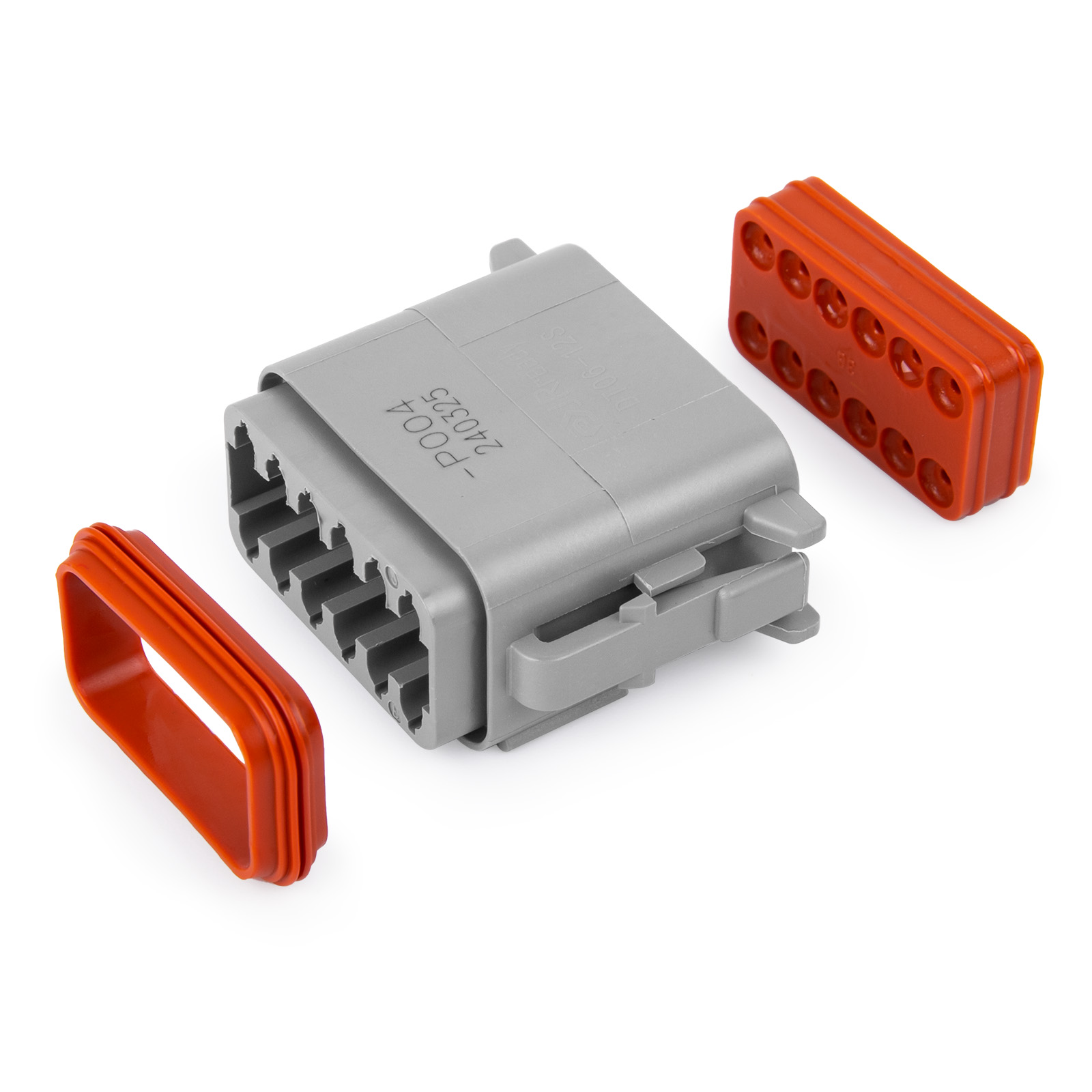

JRready DT06-12SA-P004 Waterproof Connector
1. Wire compatibility: 14-20 AWG
2. Contact compatibility: 16# round and stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 12
5. Rated voltage: 250V AC/DC, Rated current: 13A
6. Compatible with products of the same specifications on the market.
2. Contact compatibility: 16# round and stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 12
5. Rated voltage: 250V AC/DC, Rated current: 13A
6. Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DT06-12SA-P004 |
| Category | DT Series Connector | Colour | |

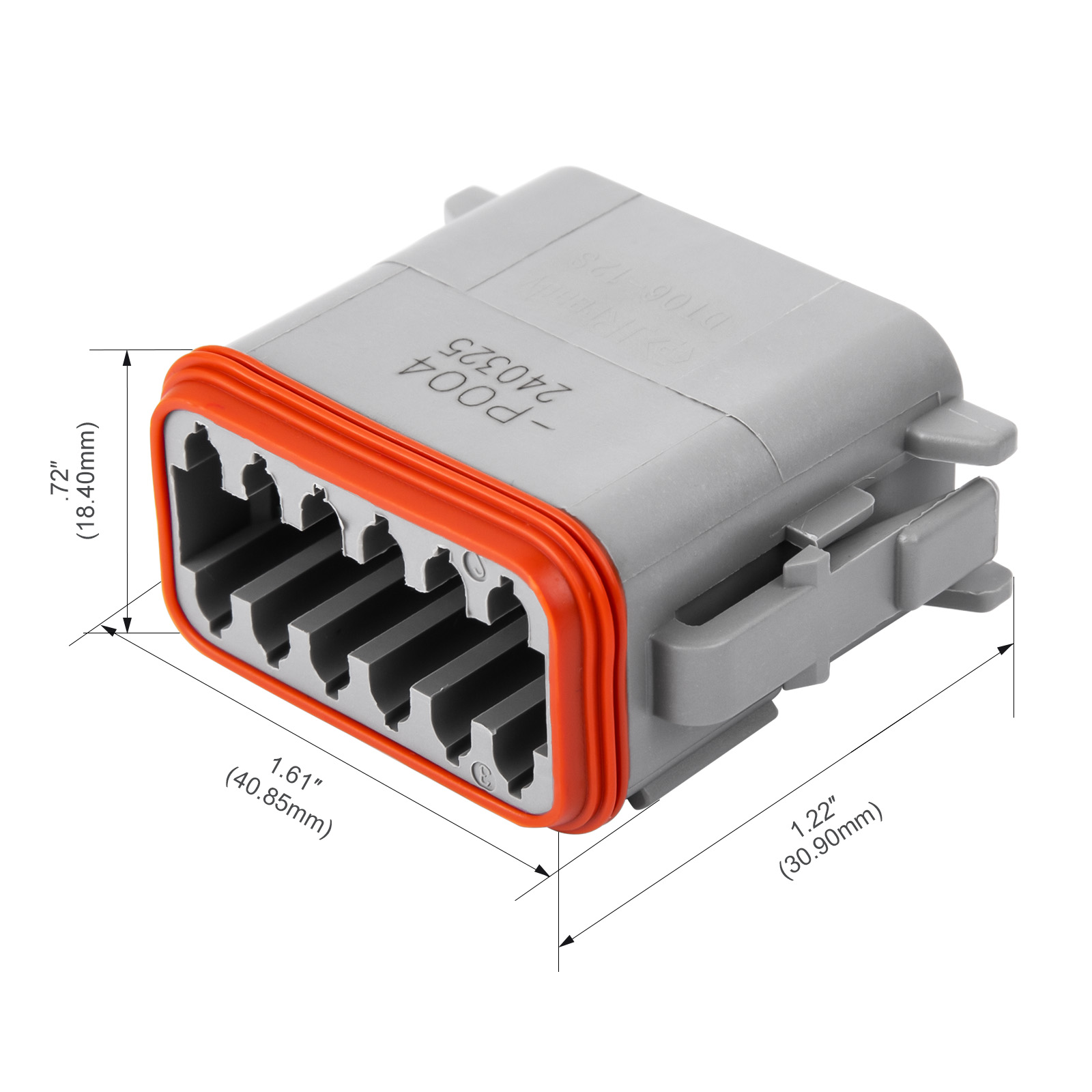

| Material | PA66 | Dimension | 30.90*40.85*18.40mm |
| Country of Origin | China | Weight | 15.3g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 13A |
