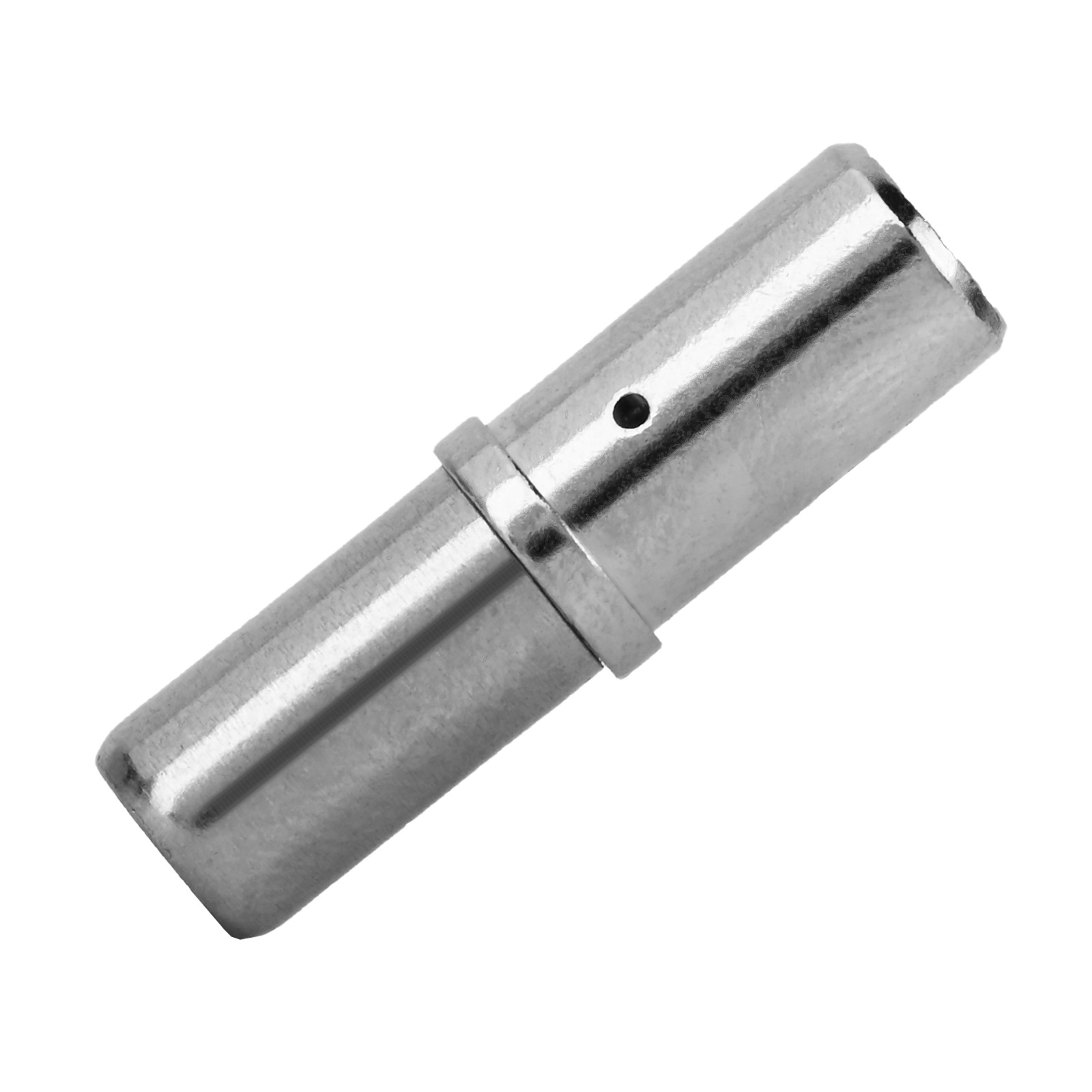

JRready 0462-203-08141 8# Socket Terminal
1. Wire Range: 10-8 AWG (5.0-8.0 mm²)
2. Mates with Machined Pin 0460-204-08141
3. Full Nickel Plating
4. Rated Current: 60A
2. Mates with Machined Pin 0460-204-08141
3. Full Nickel Plating
4. Rated Current: 60A
| Brand | JRready | Part Number | 0462-203-08141 |
| Category | DT Series | Colour | Silver-White |

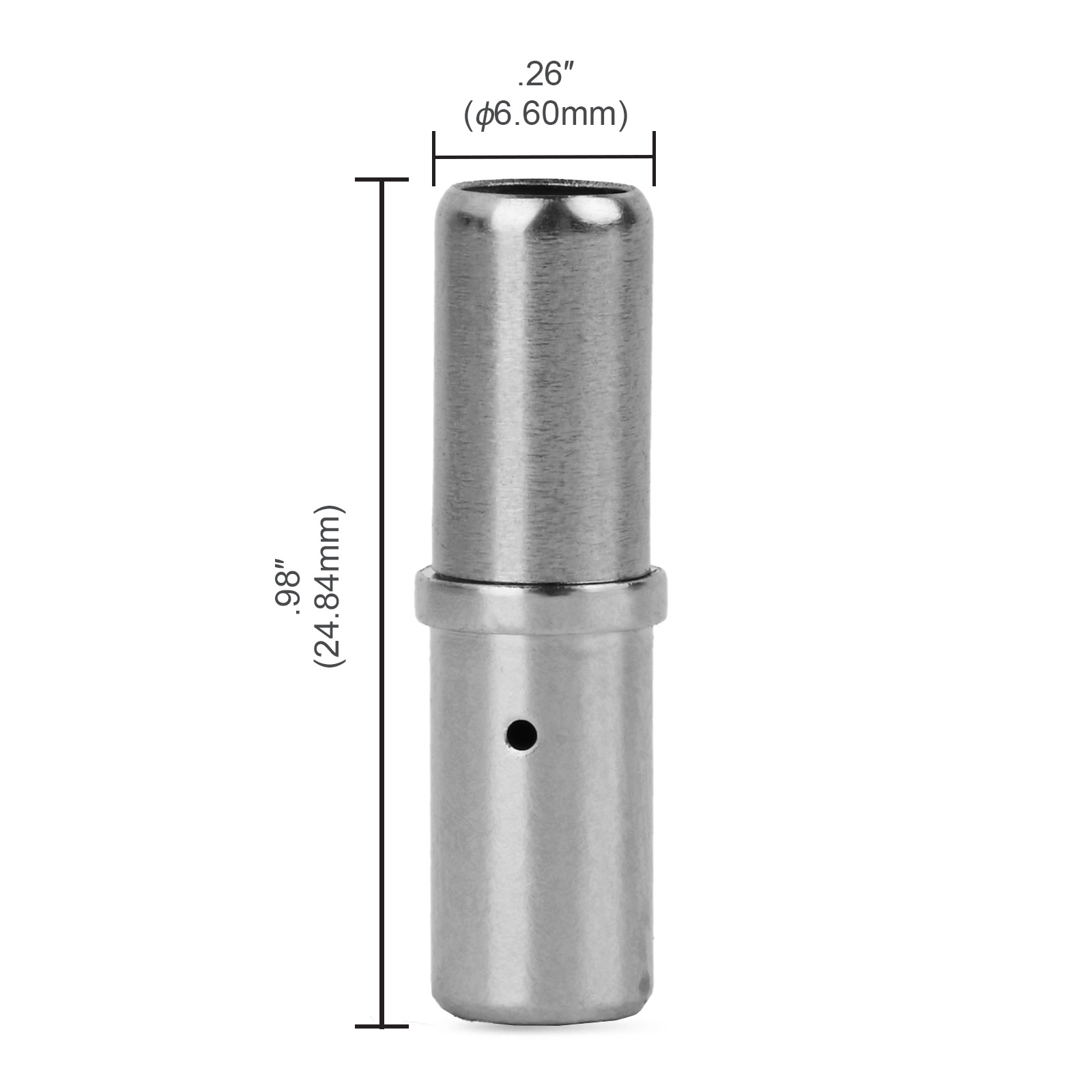

| Material | Tin Bronze | Dimension | 24.84*6.6mm |
| Country of Origin | China | Weight | 4.4g |
| Application | Compatible with DTHD, HDP20, HD30, DRB Series | ||
| Working Temperature | -40°C -125°C | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 60A |
