JRready G125(M22520/3-1) Go/No-Go Gauge

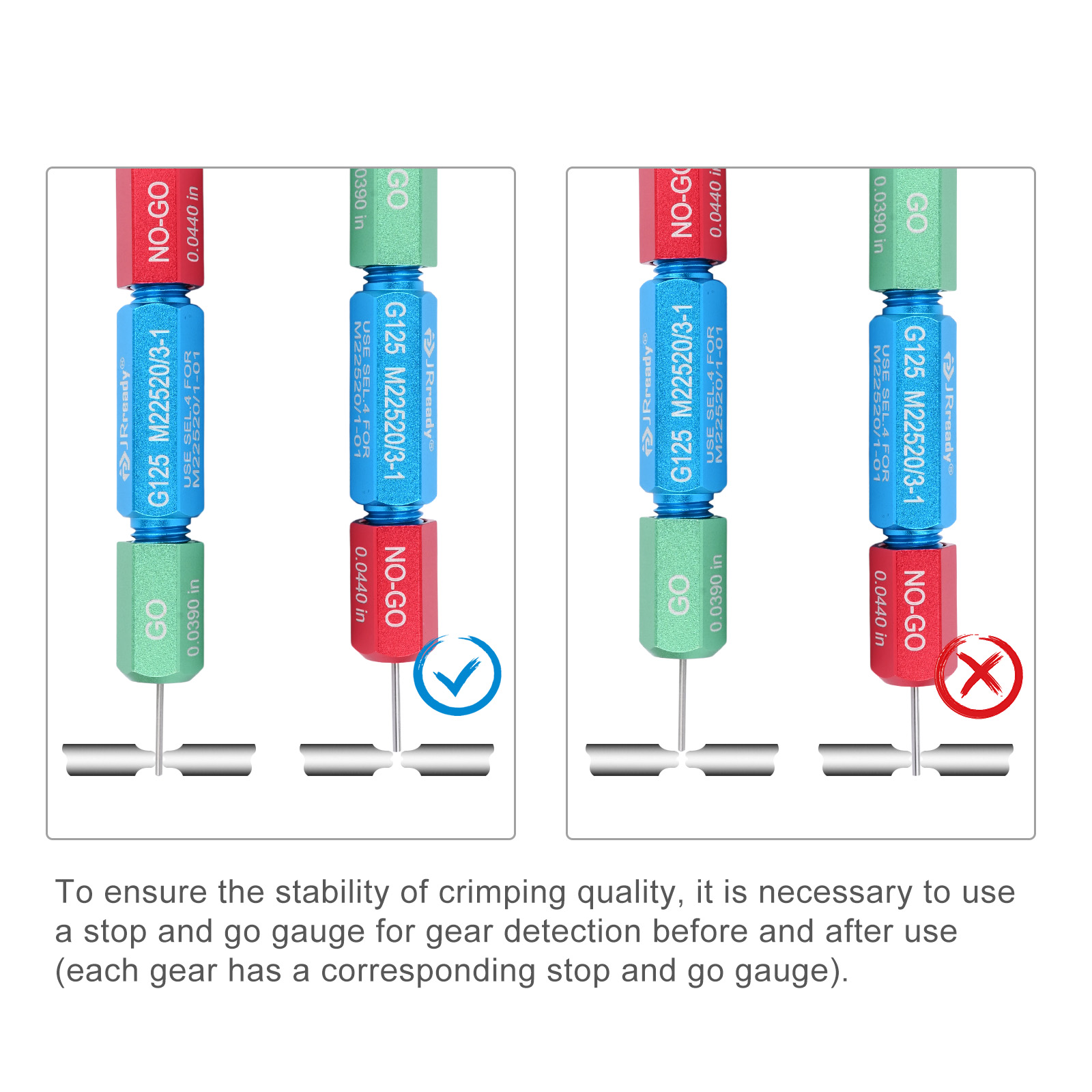

1. Designed with reference to the US military standard M22520/3-1;
2. Applicable to the go-nogo gaging limits measurement of the M22520/2 series YJQ-W1A, NEW-AS2, ACT-M101, YJQ-W1Q (No.8 Selector);
3. Applicable to the go-nogo gaging limits measurement of the M22520/1 series YJQ-W2A, JRD-AF8, JRD-FT8, ACT-M201, NEW-ASF1, YJQ-W2Q (No.4 Selector);

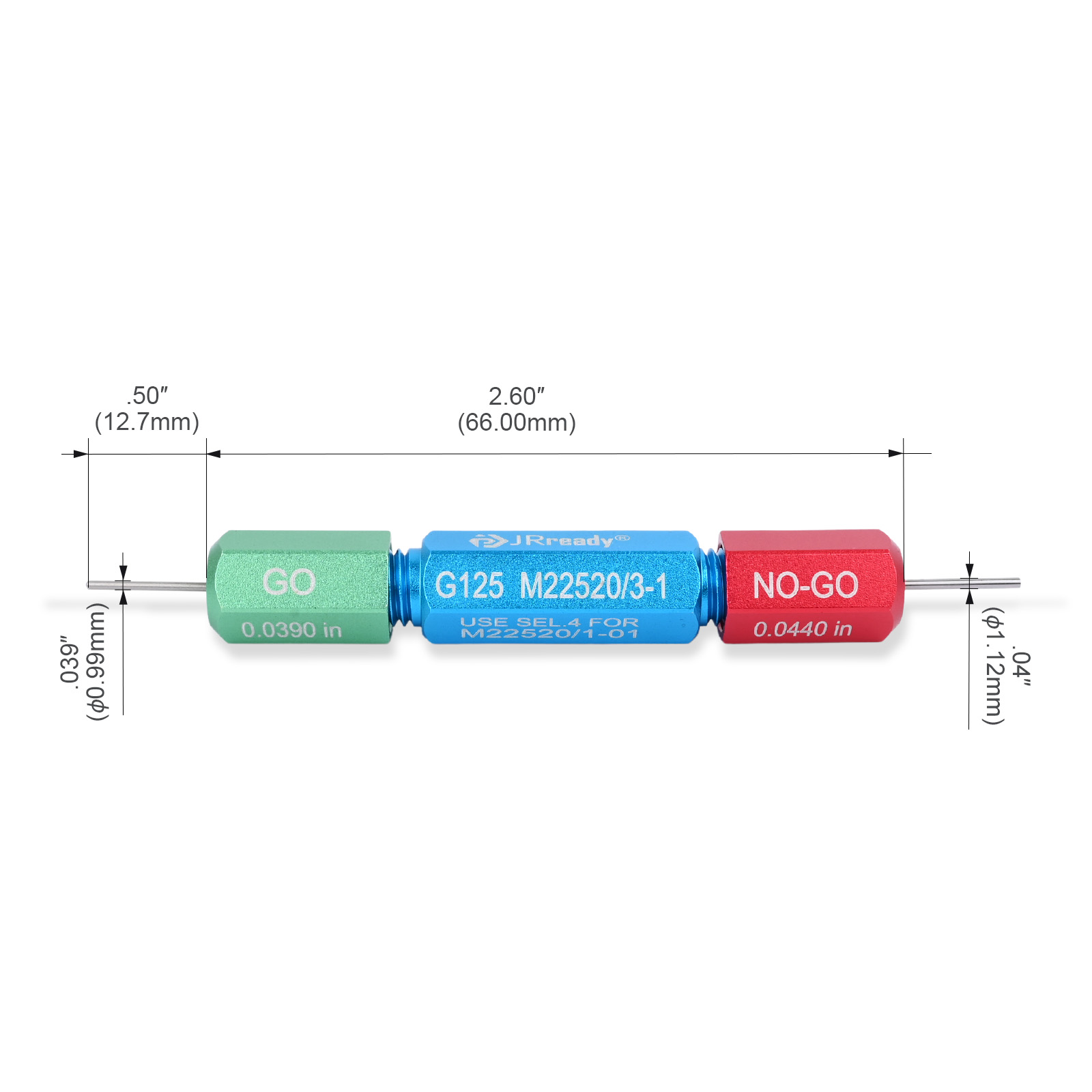

4. Go gauge 0.99, NO-GO gauge 1.12.
Contact Us
Brand JRready Part Number G125
Category Measuring Tool Colour Green/Blue/Red
Material Bearing Steel Dimension 91.4mm
Country of Origin China Weight 14.4g
Application Applicable to the go-nogo gaging limits measurement of the M22520/2 series YJQ-W1A, NEW-AS2, ACT-M101, YJQ-W1Q (No.8 Selector);
Applicable to the go-nogo gaging limits measurement of the M22520/1 series YJQ-W2A, JRD-AF8, JRD-FT8, ACT-M201, NEW-ASF1, YJQ-W2Q (No.4 Selector);

Product Introduction
