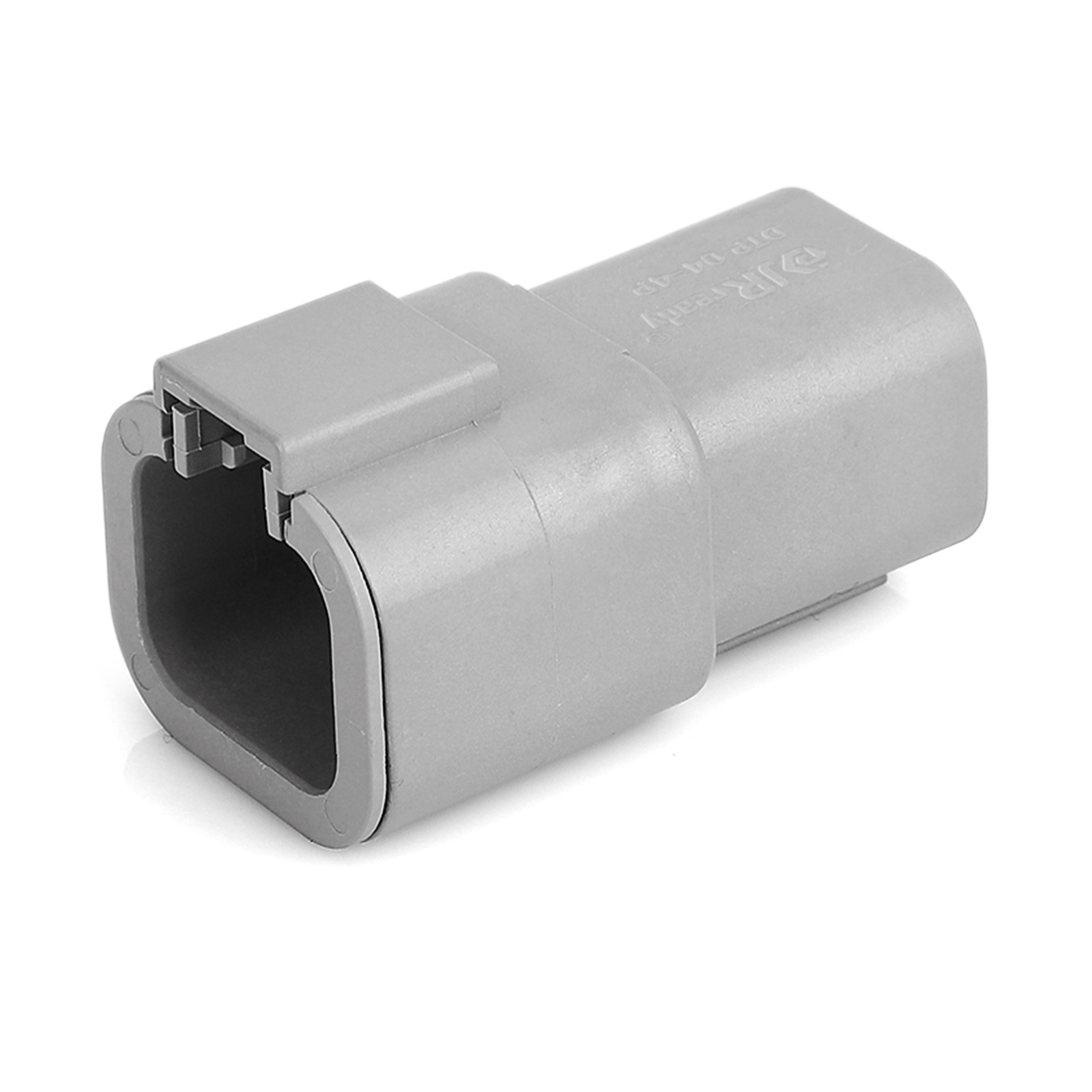

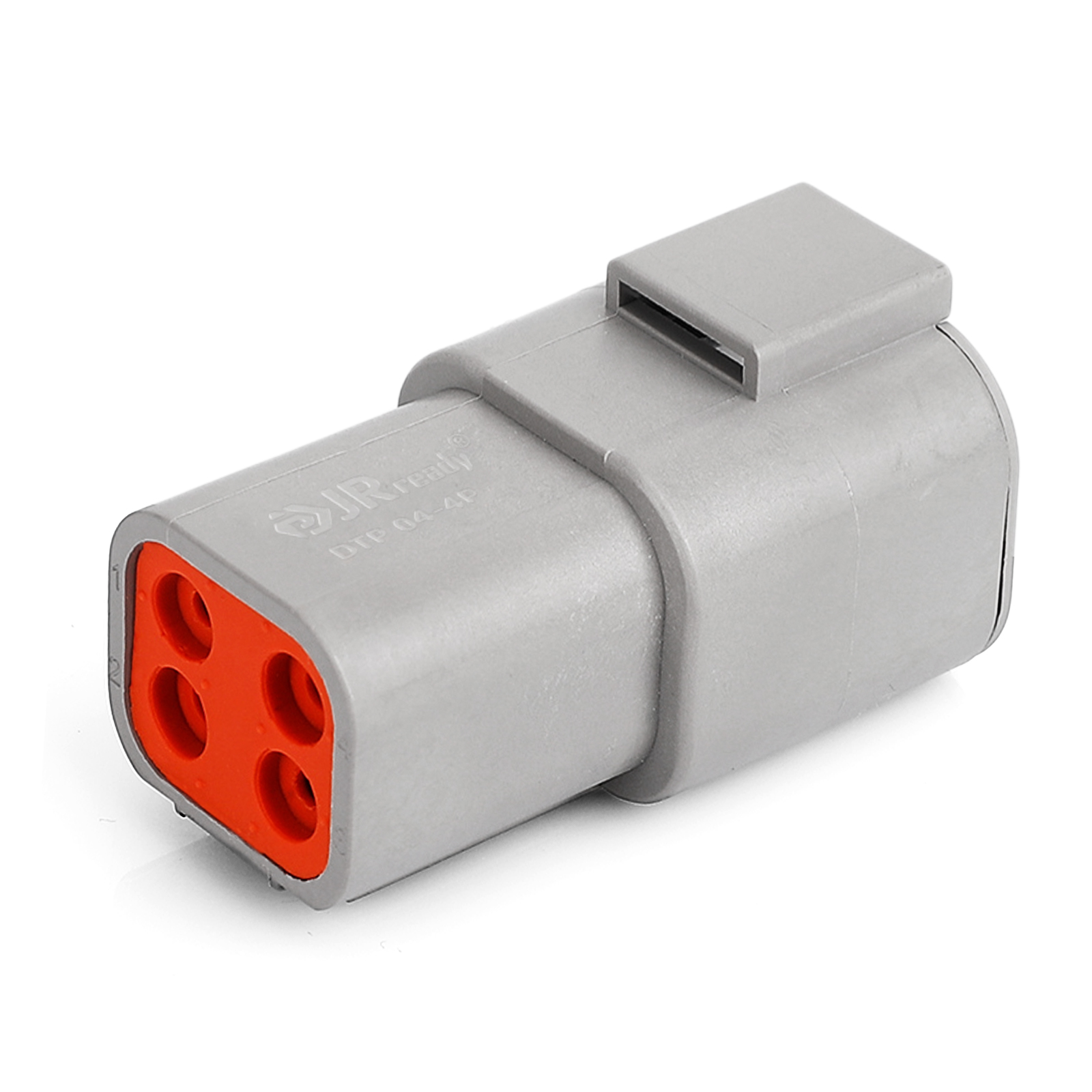

JRready DTP04-4P Waterproof Connector
"1. Compatible with 12-16AWG wire；
2. Compatible with 12# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 4 Cavities；
5. Rated Voltage: 250V AC/DC，Rated Current: 25A；
6. Market Compatibility: Compatible with products of the same specifications on the market."
2. Compatible with 12# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 4 Cavities；
5. Rated Voltage: 250V AC/DC，Rated Current: 25A；
6. Market Compatibility: Compatible with products of the same specifications on the market."
| Brand | JRready | Part Number | DTP04-4P |
| Category | DT Series Connector | Colour | Gray |

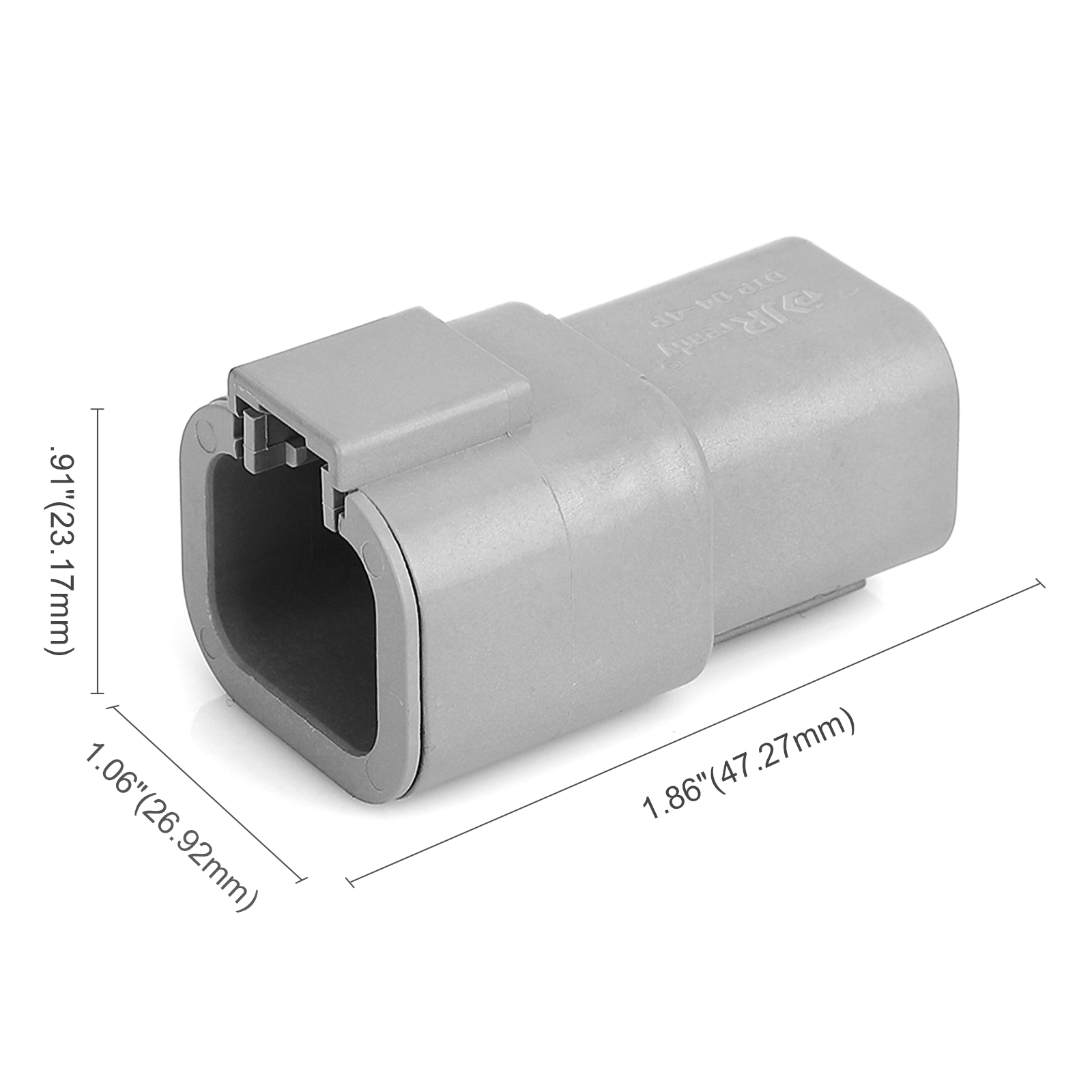

| Material | PA66 | Dimension | 47.27*23.17*26.92mm |
| Country of Origin | China | Weight | 18.91g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
