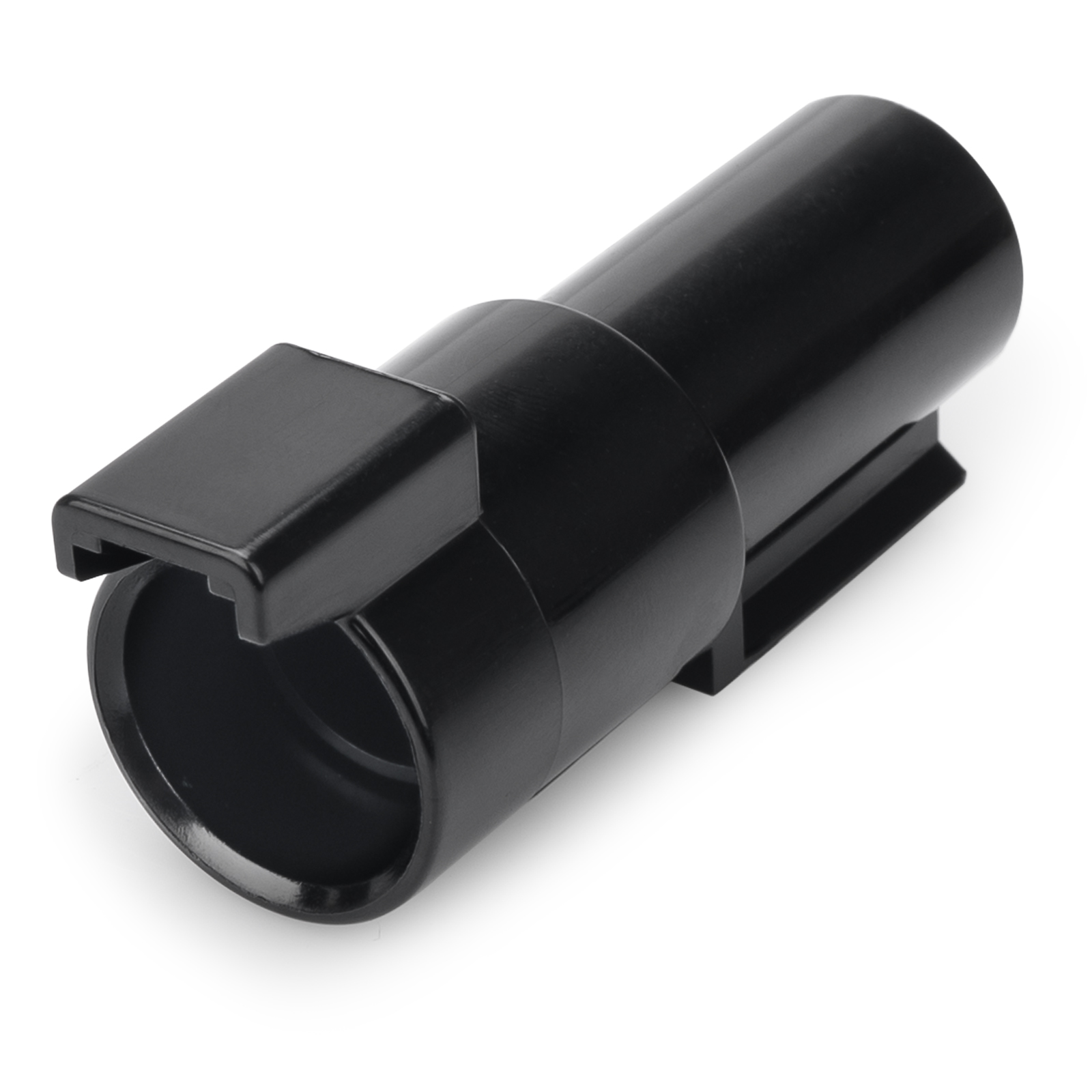

JRready DTHD04-1-12P Waterproof Connector
1. Compatible wire range: 12-14 AWG
2. Supports 12-gauge round and stamped pins
3. Connection type: Wire-to-wire
4. Number of Positions: 1-position
5. Rated voltage: 250V AC/DC | Rated current (max): 25A
6. Waterproof Rating: IP67
7. Compatible with products of the same specifications on the market.
2. Supports 12-gauge round and stamped pins
3. Connection type: Wire-to-wire
4. Number of Positions: 1-position
5. Rated voltage: 250V AC/DC | Rated current (max): 25A
6. Waterproof Rating: IP67
7. Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTHD04-1-12P |
| Category | DT Series Connector | Colour | Black |
| Material | PE | Dimension | 52.53*21.59*18.03mm |
| Country of Origin | China | Weight | 8g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -55℃ -125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
