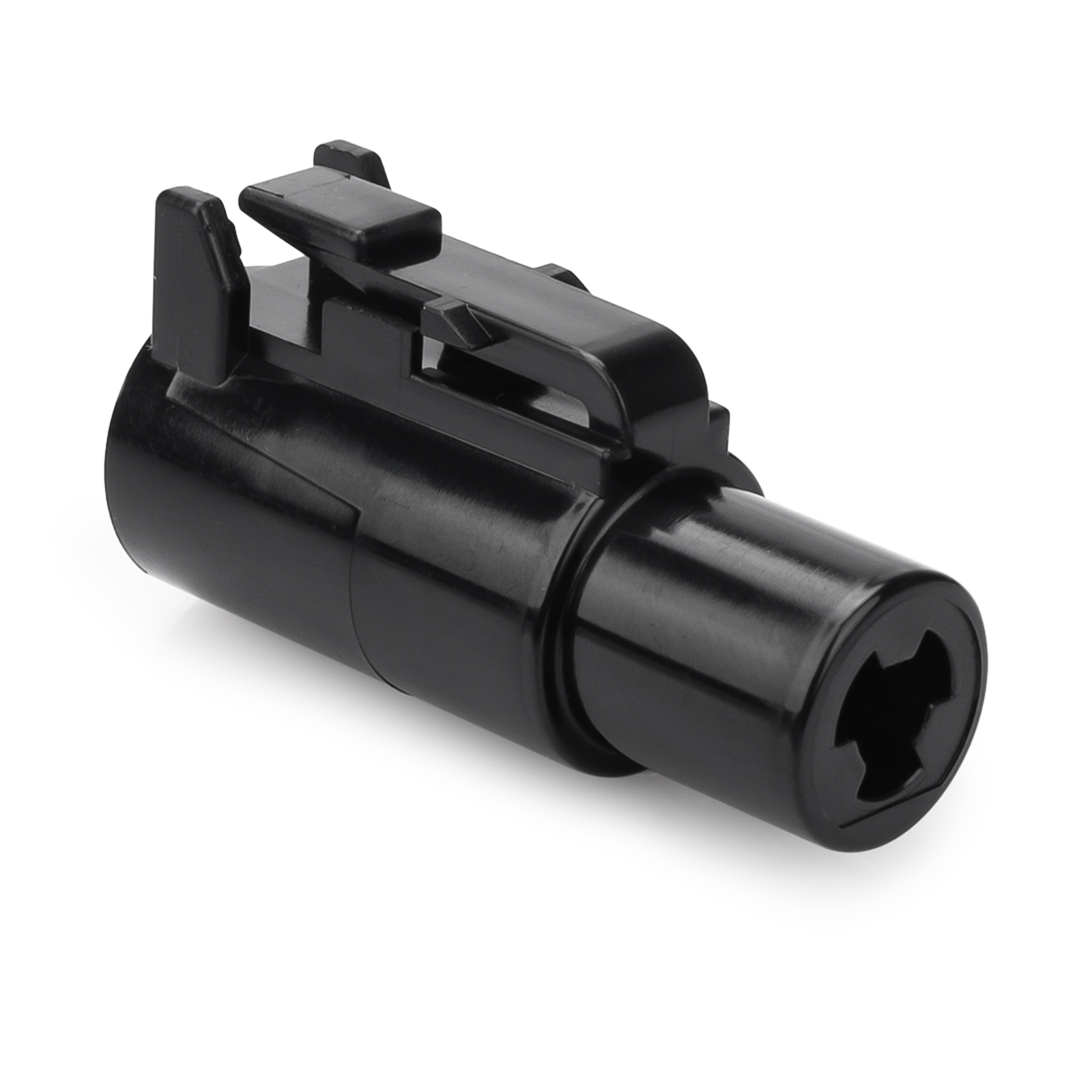

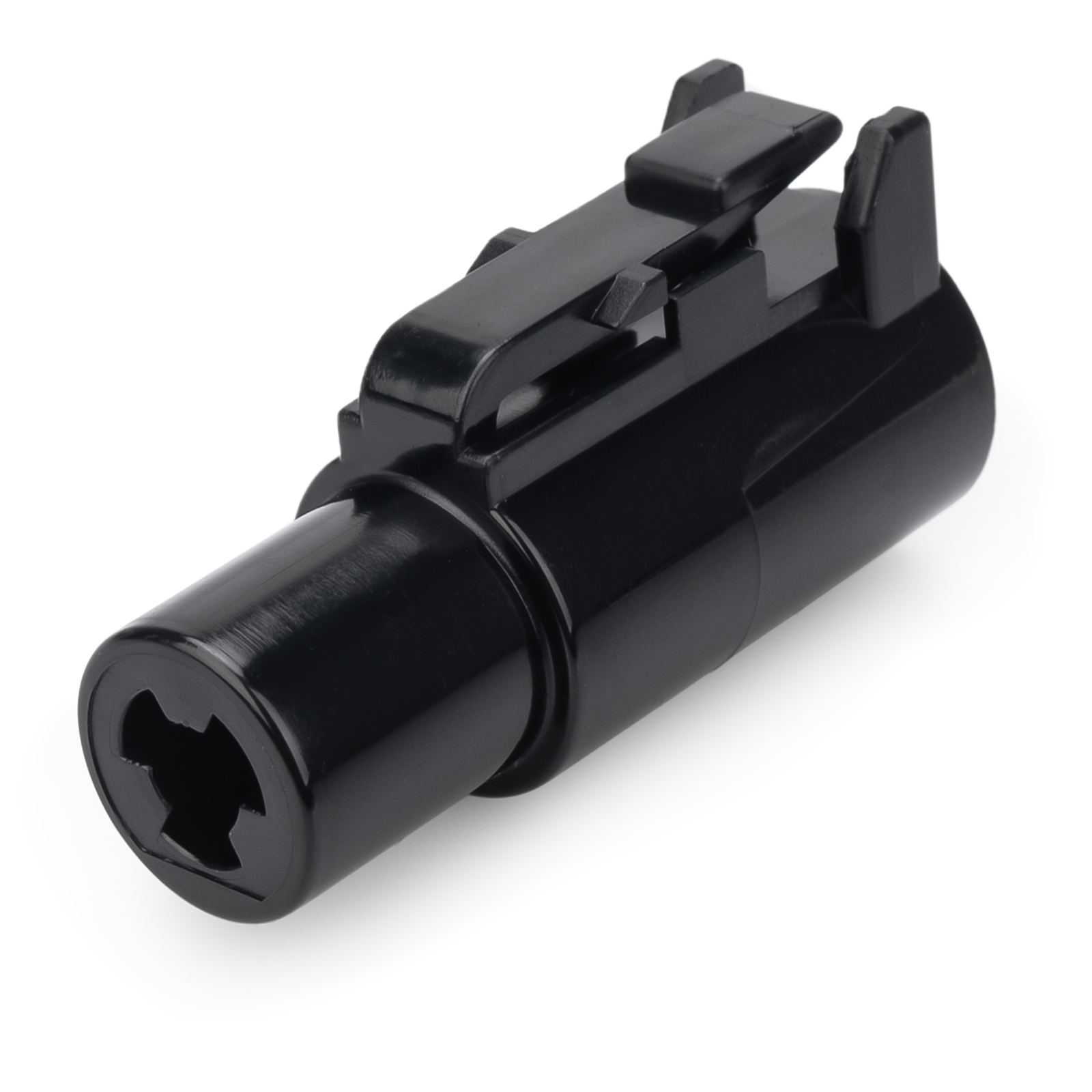

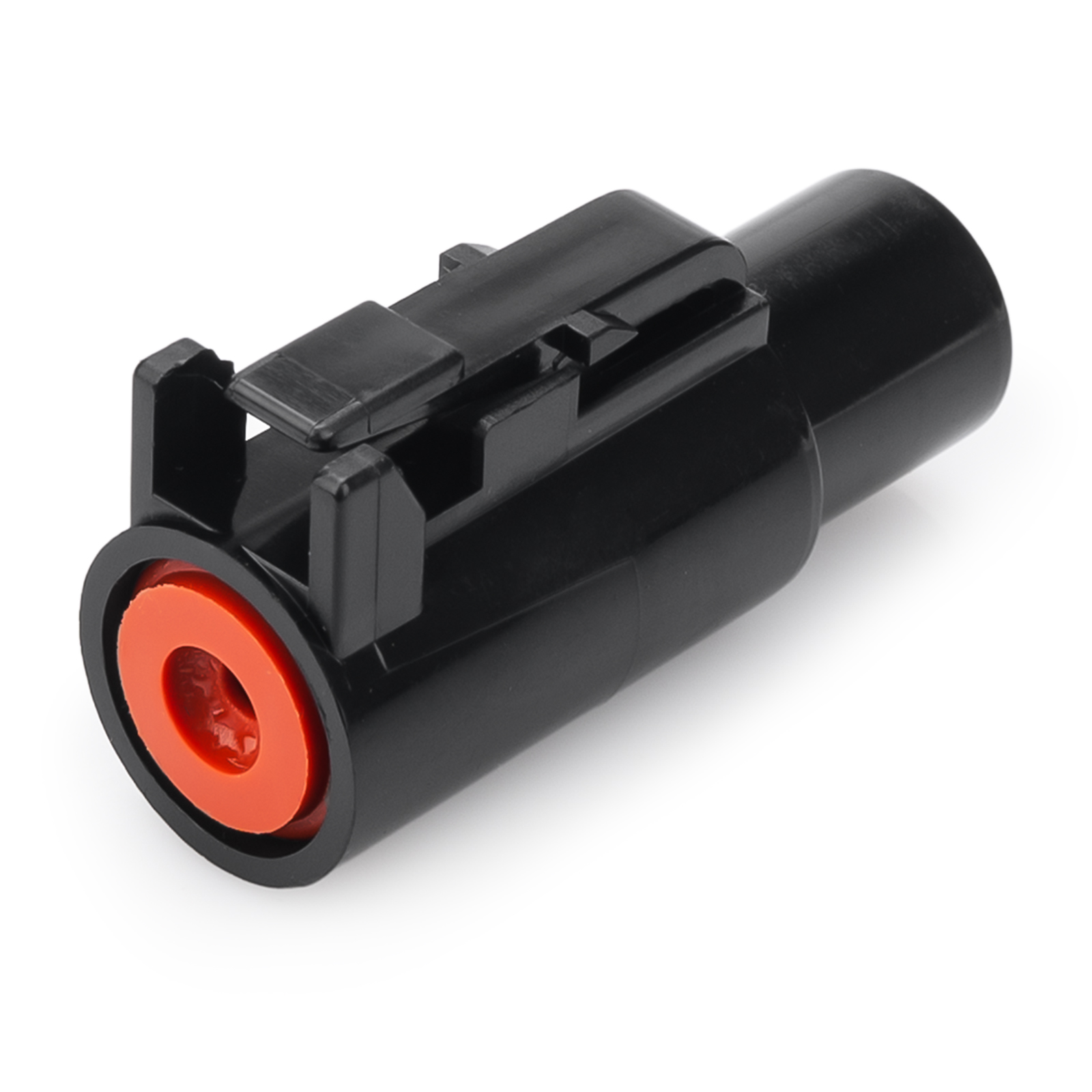

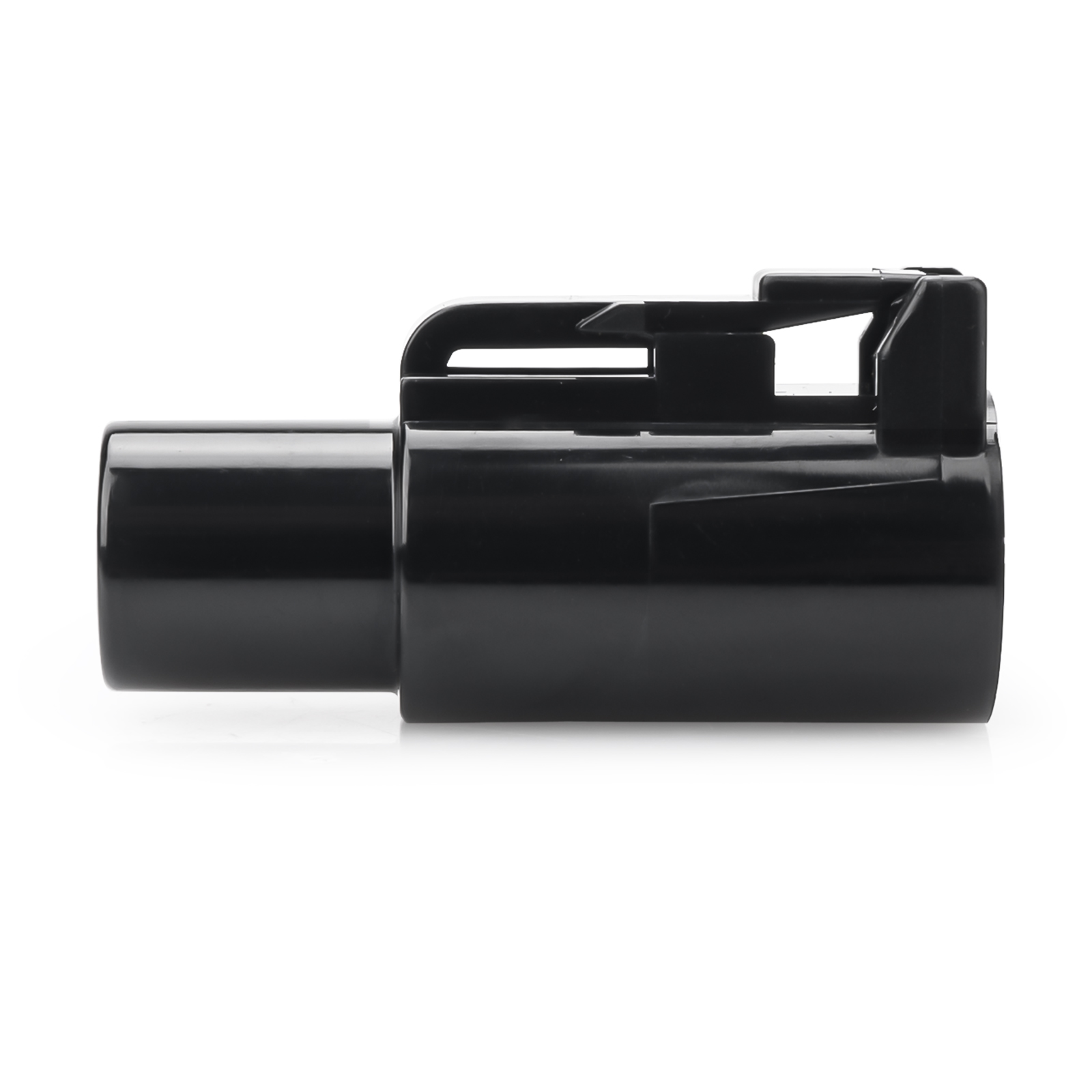

JRready DTHD06-1-12S Waterproof Connector
1. Wire compatibility: 12-14AWG
2. Contact compatibility: Accepts 12# solid and stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 1-position
5. Rated voltage: 250V AC/DC, Rated current (max): 25A
6. Waterproof rating: IP67 rated
7. Interchangeability: Compatible with products of the same specifications on the market.
2. Contact compatibility: Accepts 12# solid and stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 1-position
5. Rated voltage: 250V AC/DC, Rated current (max): 25A
6. Waterproof rating: IP67 rated
7. Interchangeability: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTHD06-1-12S |
| Category | DT Series Connector | Colour | Black |

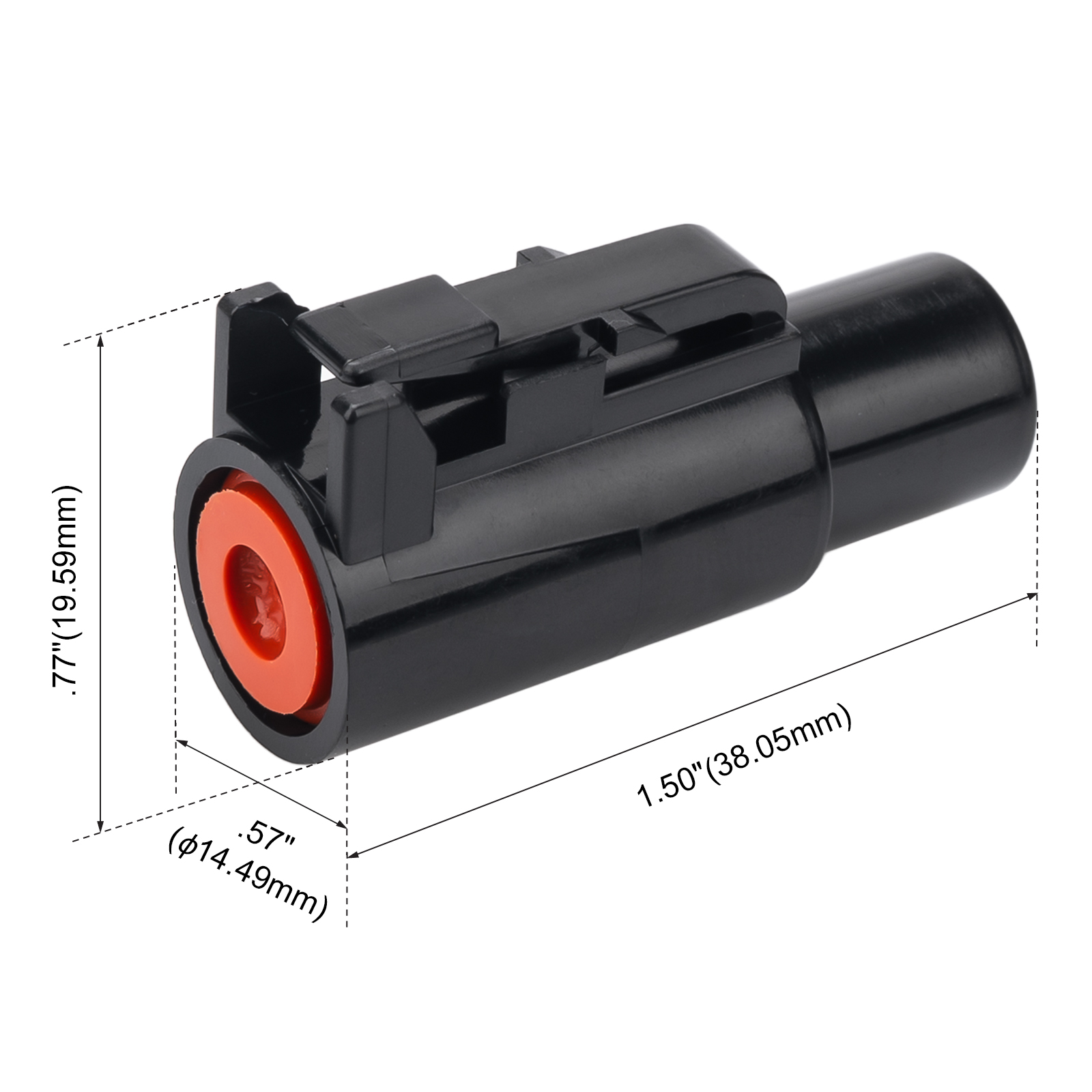

| Material | PE | Dimension | 38.05*19.59*14.49mm |
| Country of Origin | China | Weight | 6 g |
| Application | Heavy-duty, transportation, marine, energy alternatives, agriculture, and other applications requiring reliable connections in harsh environments | ||
| Working Temperature | -55-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
