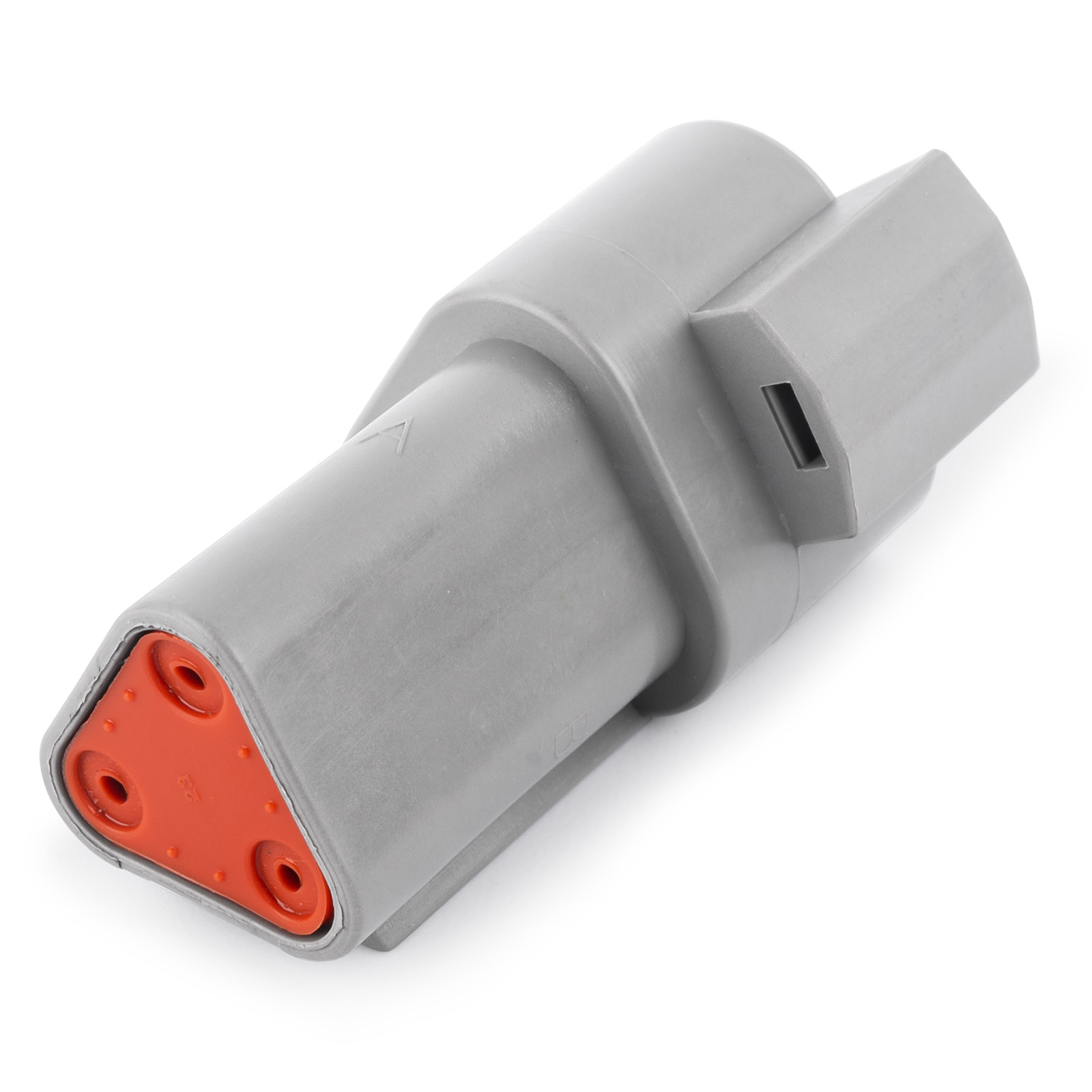

JRready DT04-3P Waterproof Connector
1. Compatible with 14-20AWG wire；
2. Compatible with 16# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Positions : 3 positions；
5. Rated Voltage: 250V AC/DC, Rated Current:13A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Compatible with 16# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Positions : 3 positions；
5. Rated Voltage: 250V AC/DC, Rated Current:13A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DT04-3P |
| Category | DT Series Connector | Colour | Gray |
| Material | PA66 | Dimension | 43.28*24.71mm |
| Country of Origin | China | Weight | 6.86g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 13A |
