JRready DTHD04-1-8P Waterproof Connector
1、Wire Range: 8-10 AWG
2、Compatible with 8# solid & stamped Pins
3、Connection Type: Wire-to-Wire
4、Number of Positions: 1 Pin
5、Rated Voltage: 250V AC/DC; Max Current: 60A
6、Waterproof Rating: IP67
7、Compatible with products of the same specifications on the market.
2、Compatible with 8# solid & stamped Pins
3、Connection Type: Wire-to-Wire
4、Number of Positions: 1 Pin
5、Rated Voltage: 250V AC/DC; Max Current: 60A
6、Waterproof Rating: IP67
7、Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTHD04-1-8P |
| Category | DT Series Connector | Colour | Black |

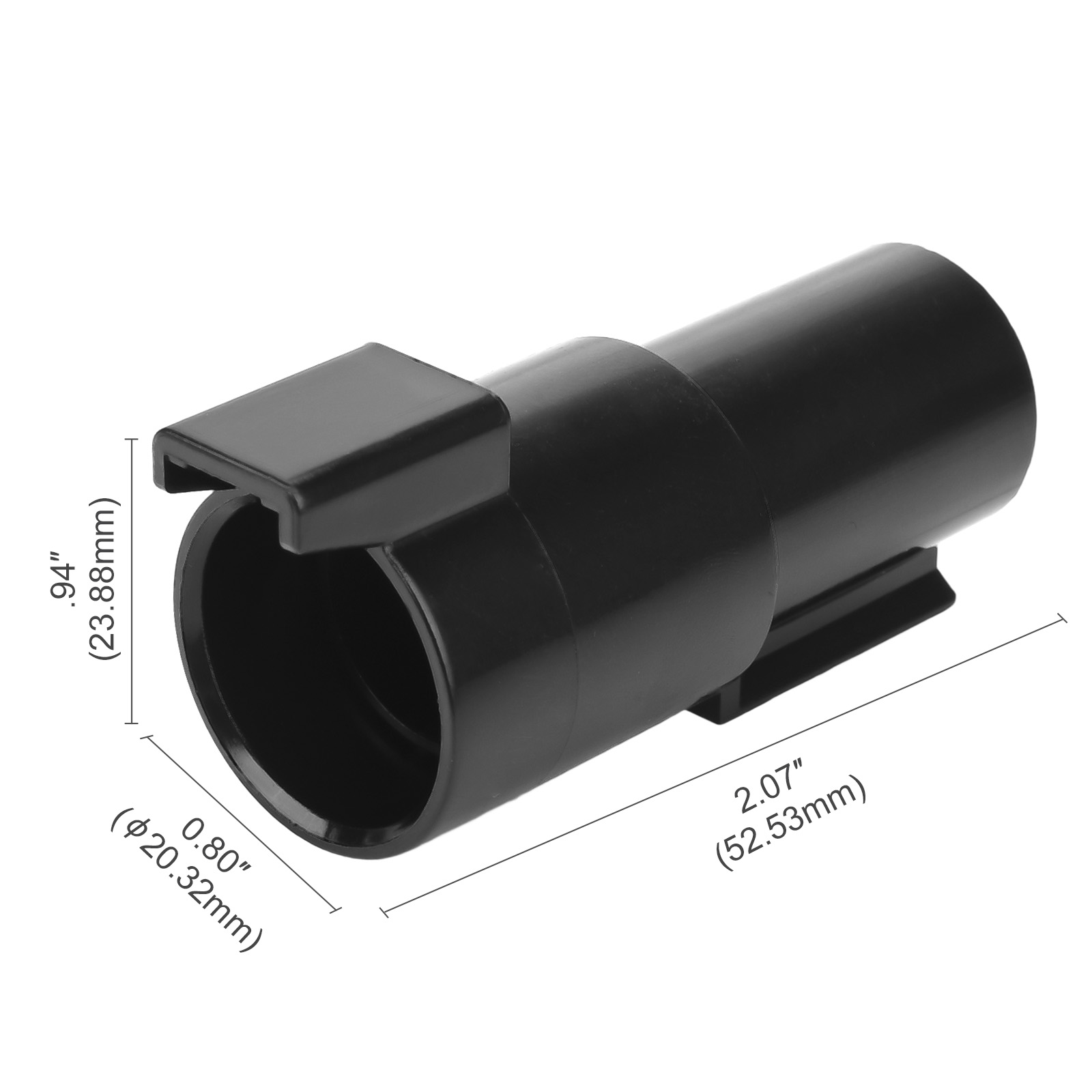

| Material | PE | Dimension | 52.53*23.88*20.32mm |
| Country of Origin | China | Weight | 8.97 g |
| Application | Heavy-Duty, Transportation, Marine, Renewable Energy, Agriculture, and other harsh-environment connections | ||
| Working Temperature | -55°C -125°C | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 60A |
