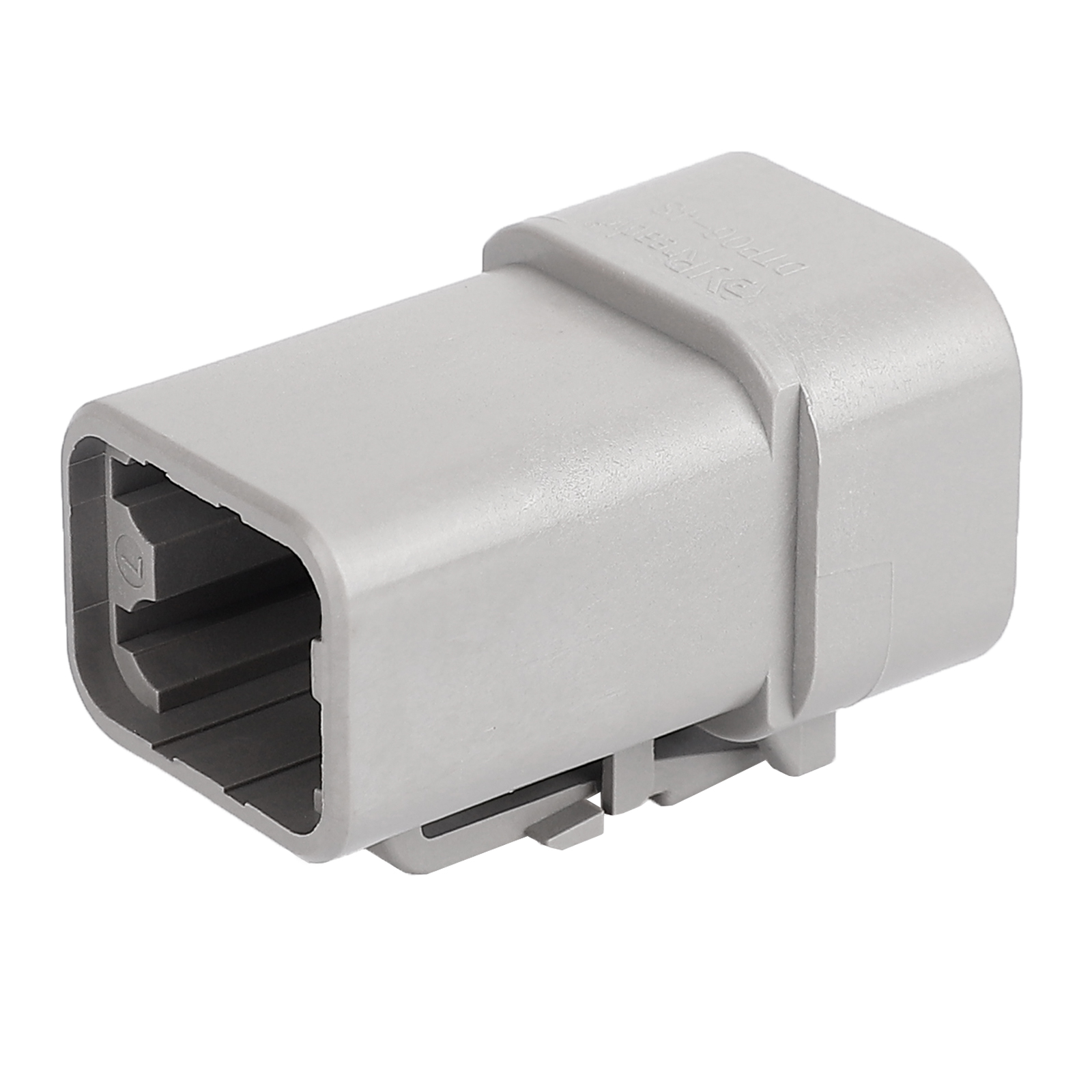

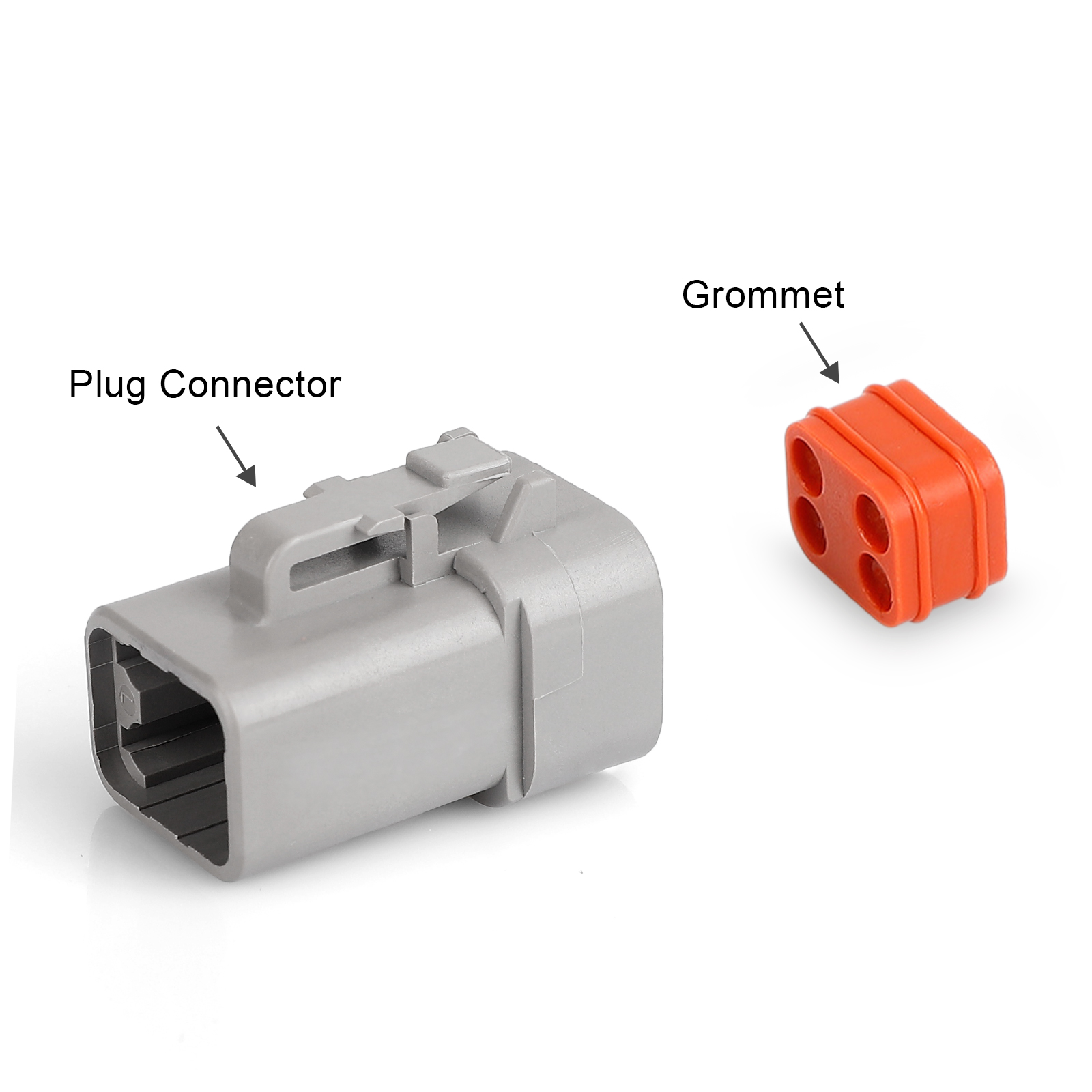

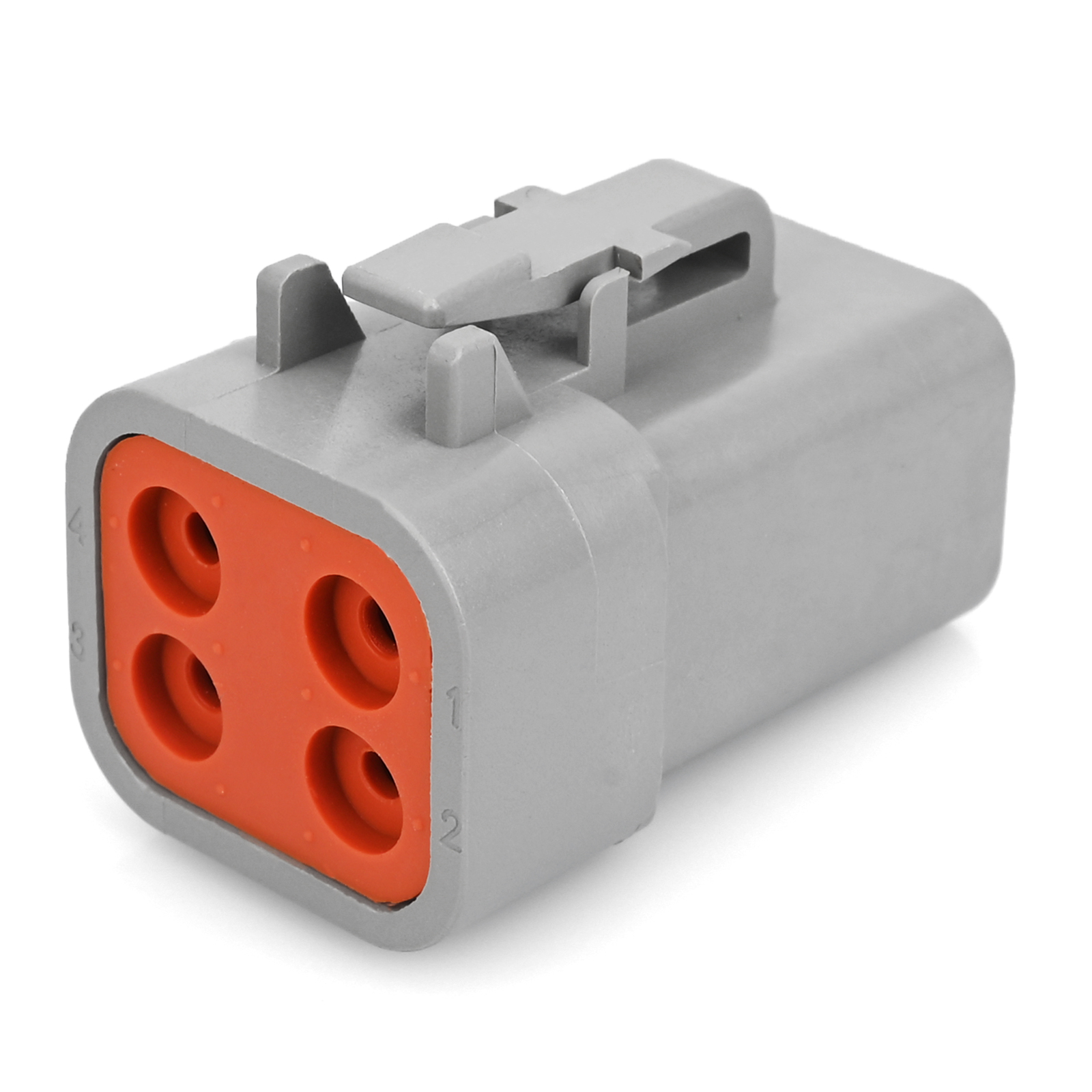

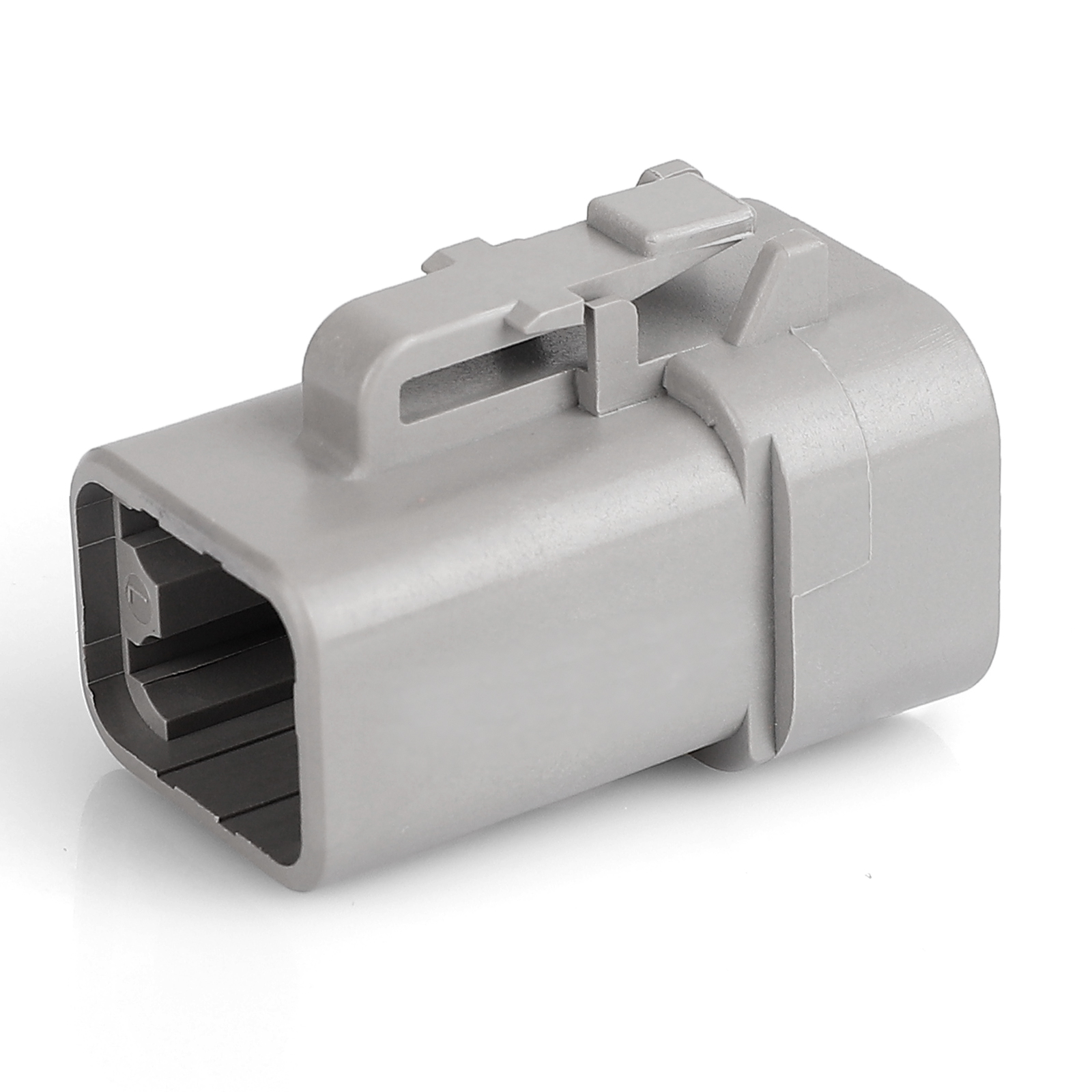

JRready DTP06-4S Waterproof Connector
1、Compatible with 16-22AWG wire；
2、Compatible with 20# solid sockets and stamped sockets；
3、Connection Type : Wire to Wire；
4、Number of Cavities : 4 Cavities；
5、Rated Voltage: 250V AC/DC, Rated Current: 7.5A；
6、Market Compatibility: Compatible with products of the same specifications on the market.
2、Compatible with 20# solid sockets and stamped sockets；
3、Connection Type : Wire to Wire；
4、Number of Cavities : 4 Cavities；
5、Rated Voltage: 250V AC/DC, Rated Current: 7.5A；
6、Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTP06-4S |
| Category | DT Series Connector | Colour | Gray |

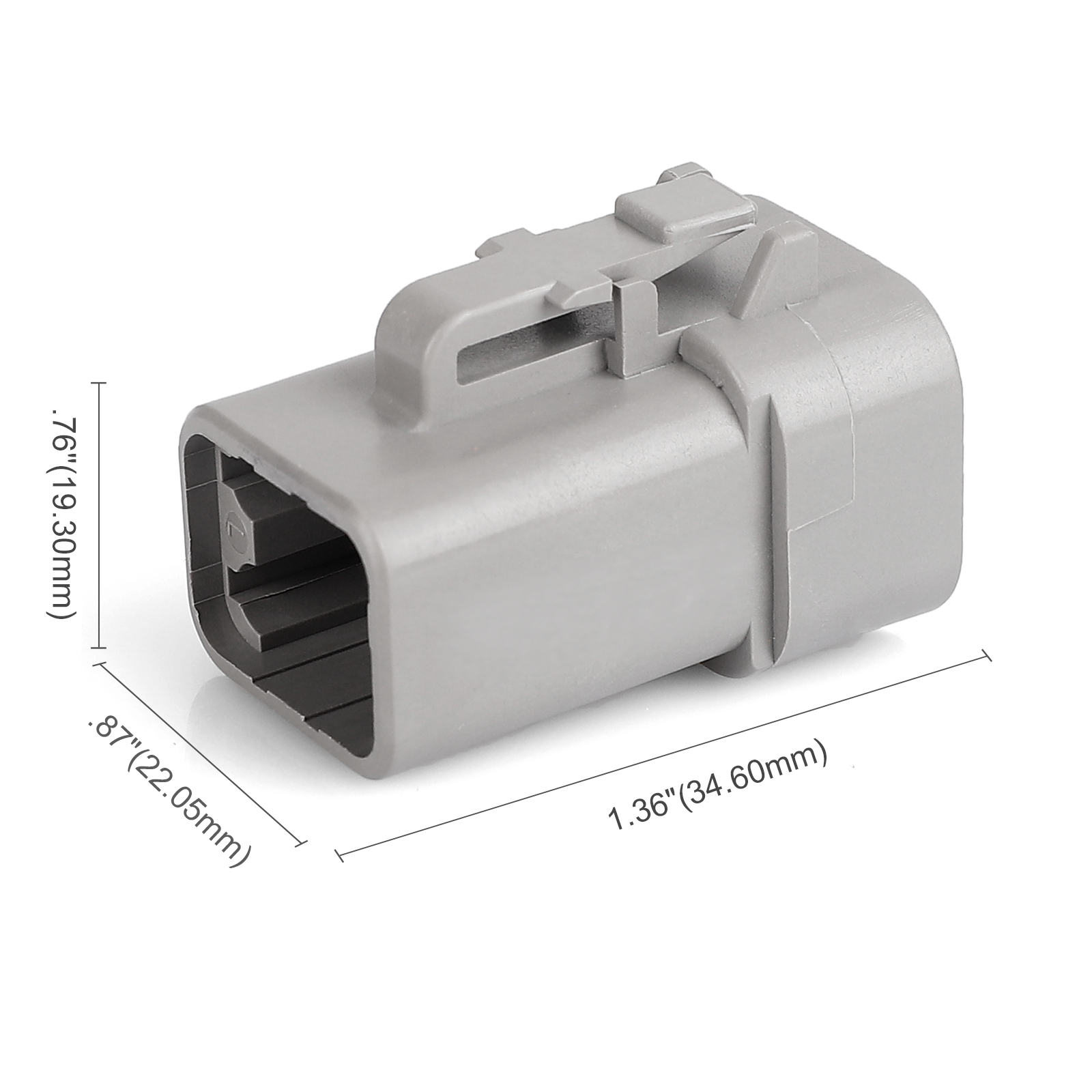

| Material | PA66 | Dimension | 34.65*22.05*19.30(mm) |
| Country of Origin | China | Weight | 9.10g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 25A |
