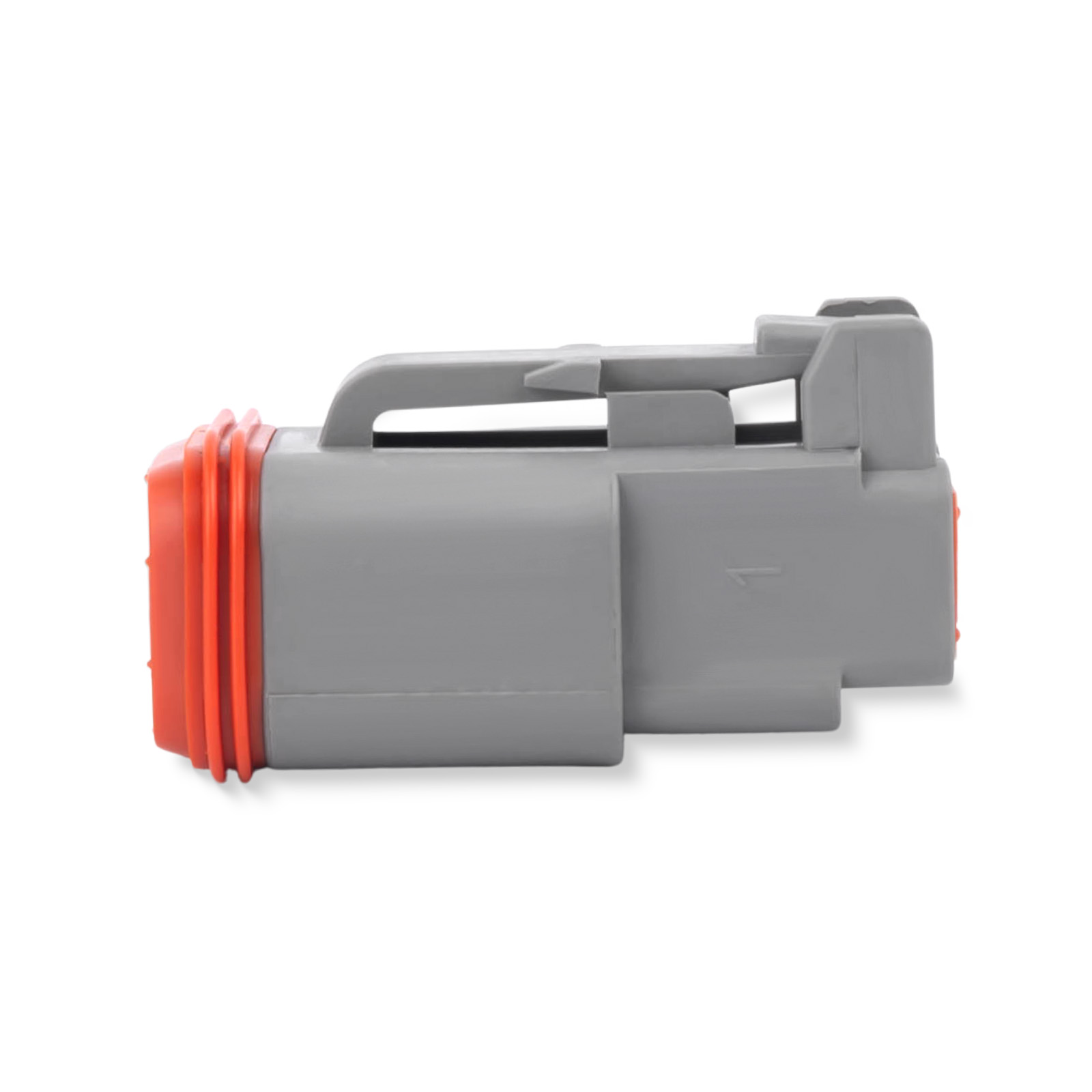

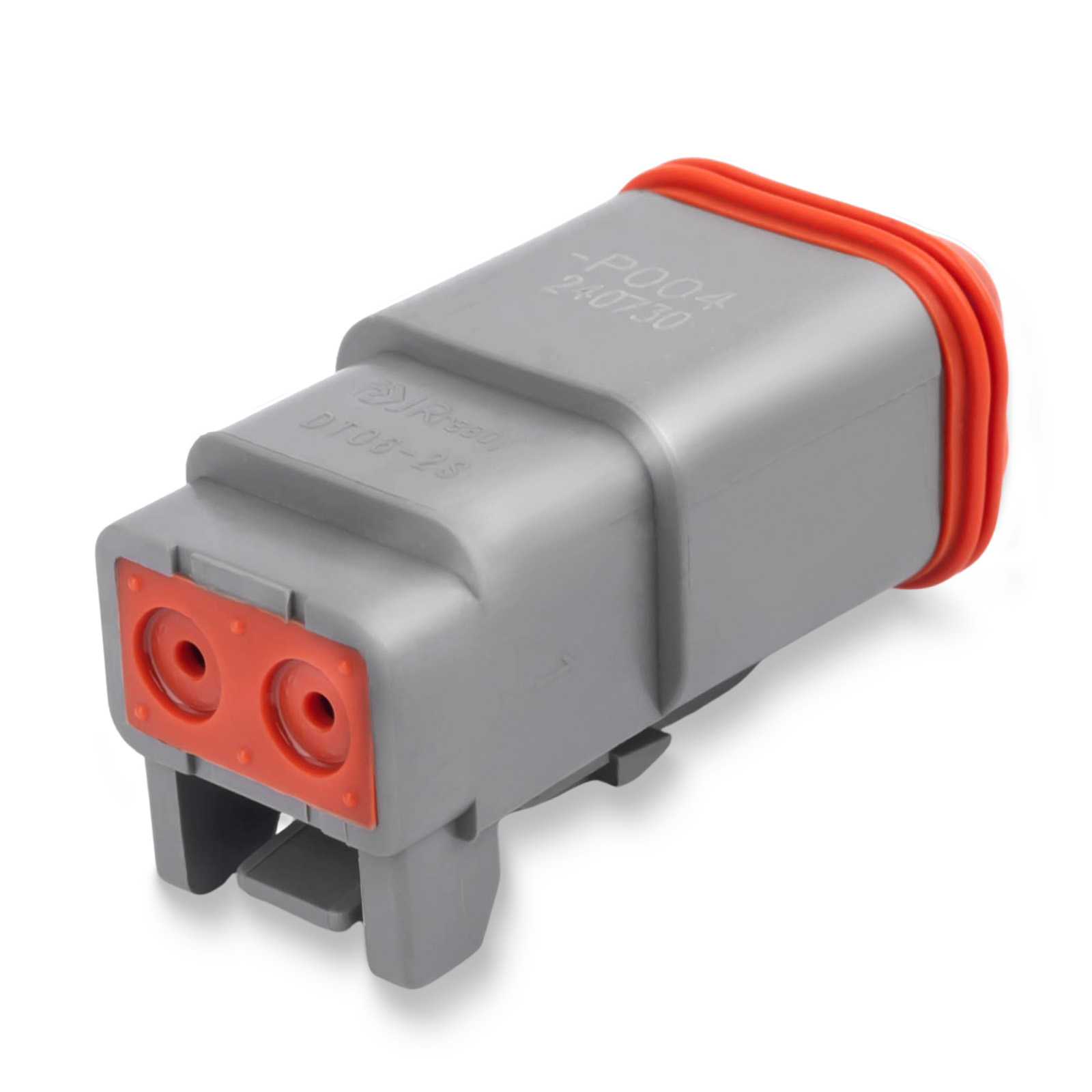

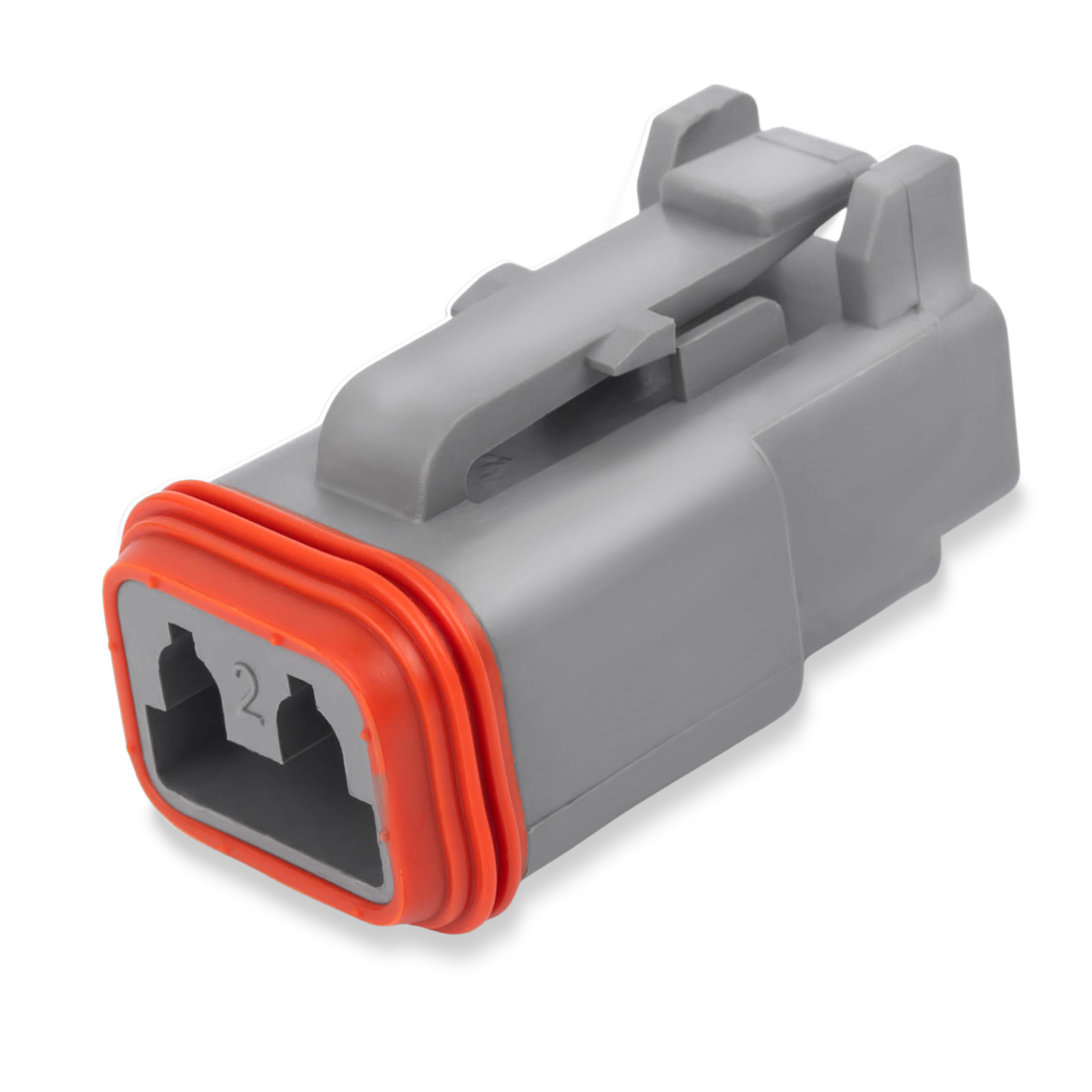

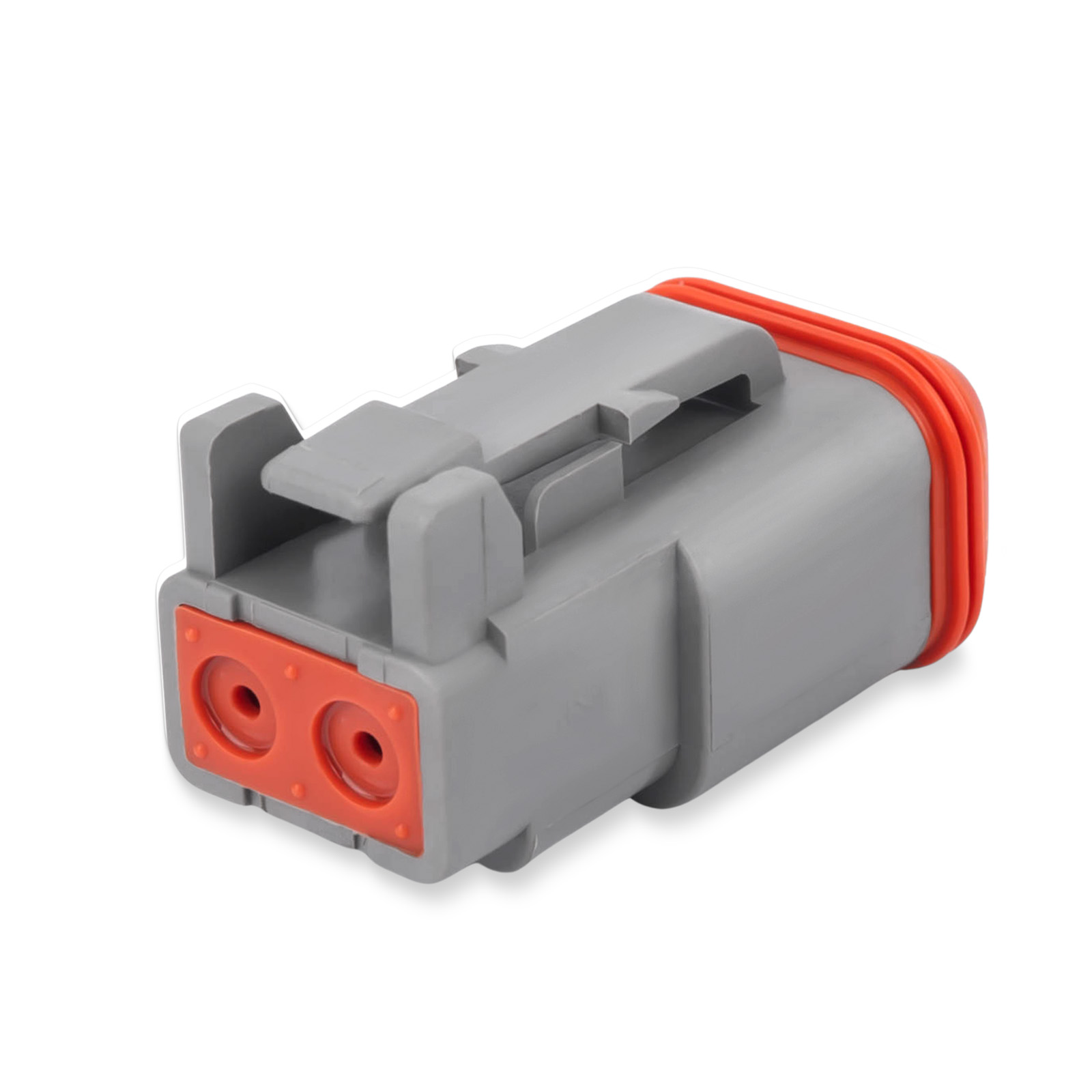

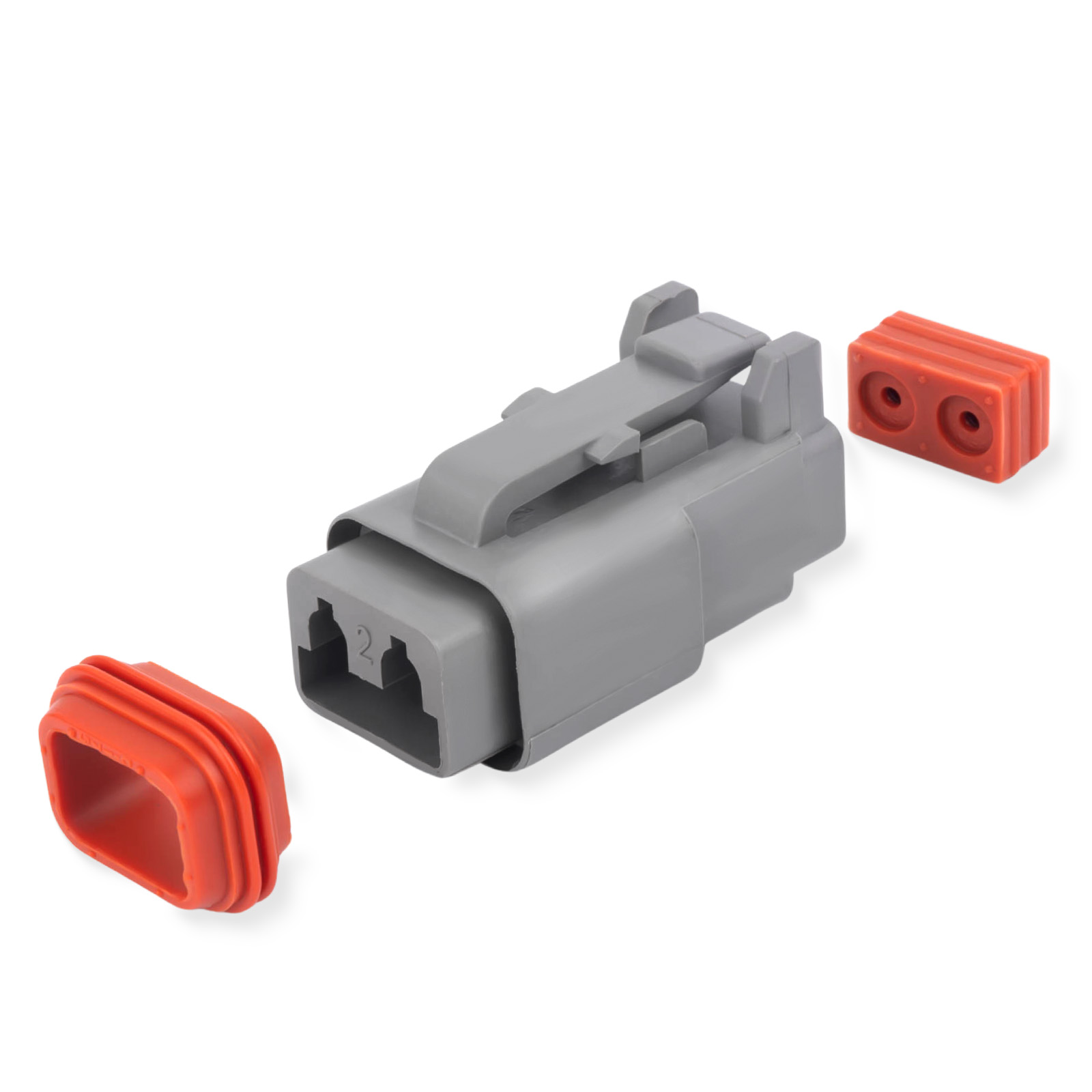

JRready DT06-2S-P004 Waterproof Connector
1、Compatible with 14-20AWG wire；
2、Compatible with 16# solid sockets and stamped sockets；
3、Connection Type : Wire to Wire；
4、Number of Positions : 2 positions；
5、Rated Voltage ：250V AC/DC，Rated Current ：13A；
6、Market Compatibility: Compatible with products of the same specifications on the market.
2、Compatible with 16# solid sockets and stamped sockets；
3、Connection Type : Wire to Wire；
4、Number of Positions : 2 positions；
5、Rated Voltage ：250V AC/DC，Rated Current ：13A；
6、Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DT06-2S-P004 |
| Category | DT Series Connector | Colour | Gray |
| Material | PA66 | Dimension | 28.4*15.01*15.77mm |
| Country of Origin | China | Weight | 4.4g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 13A |
