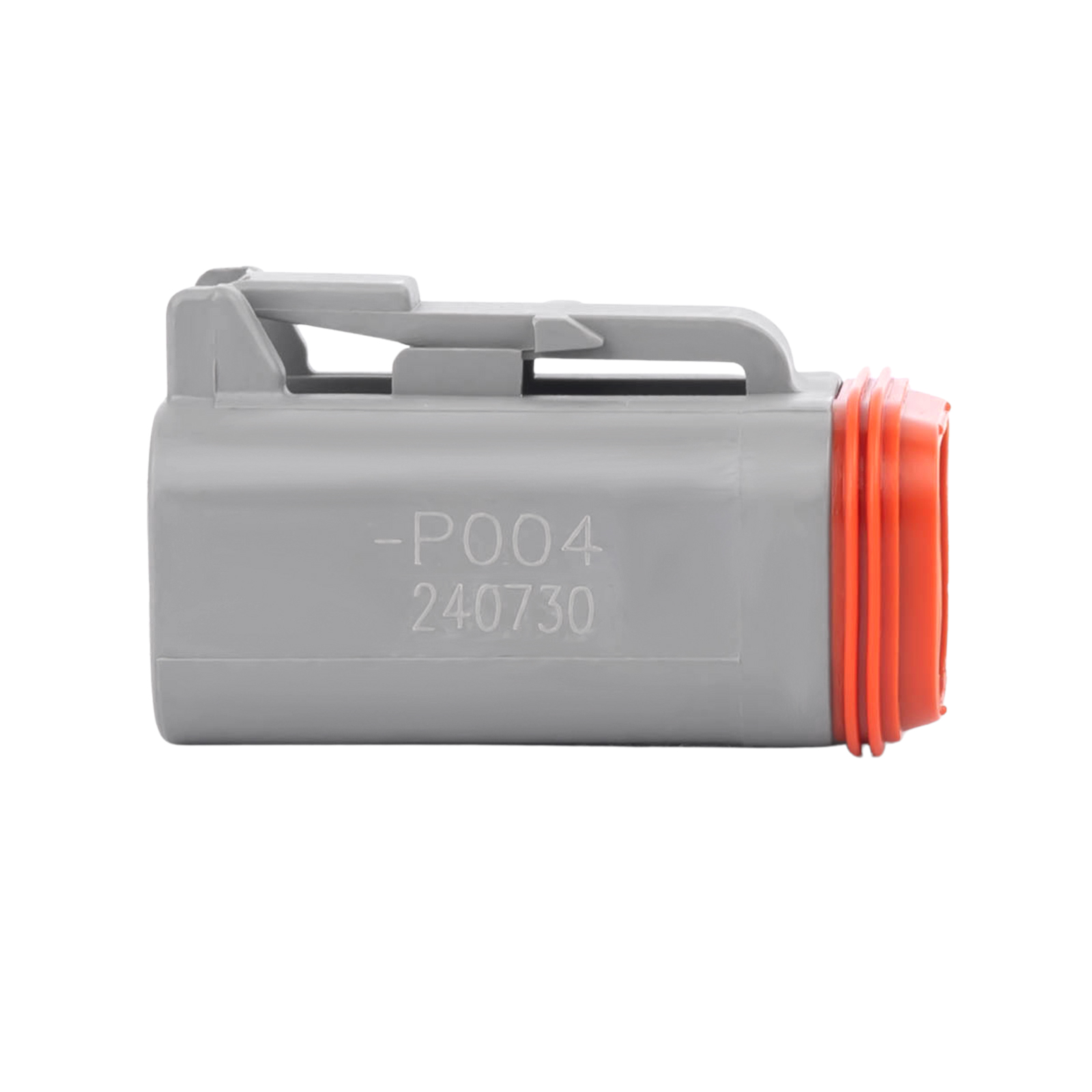

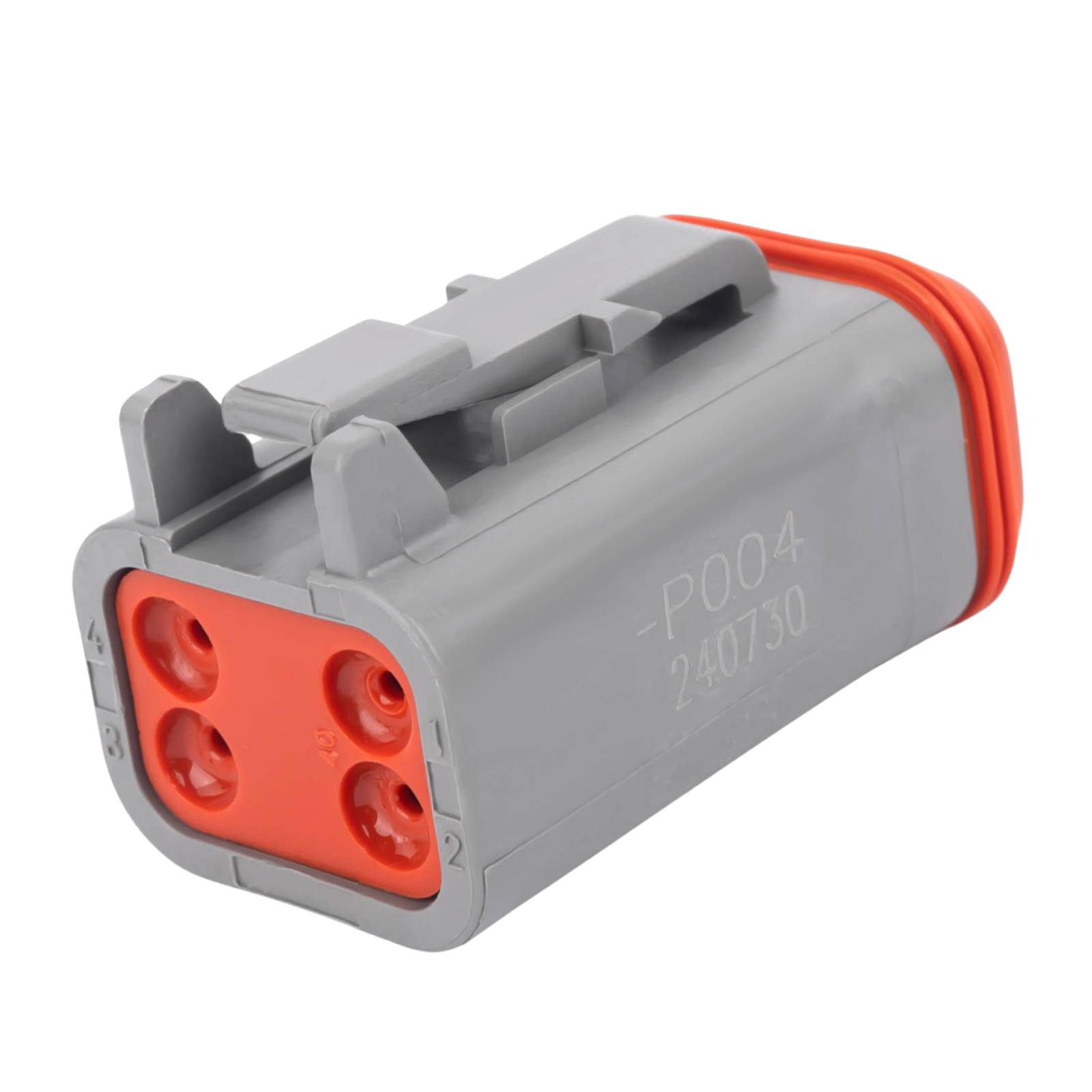

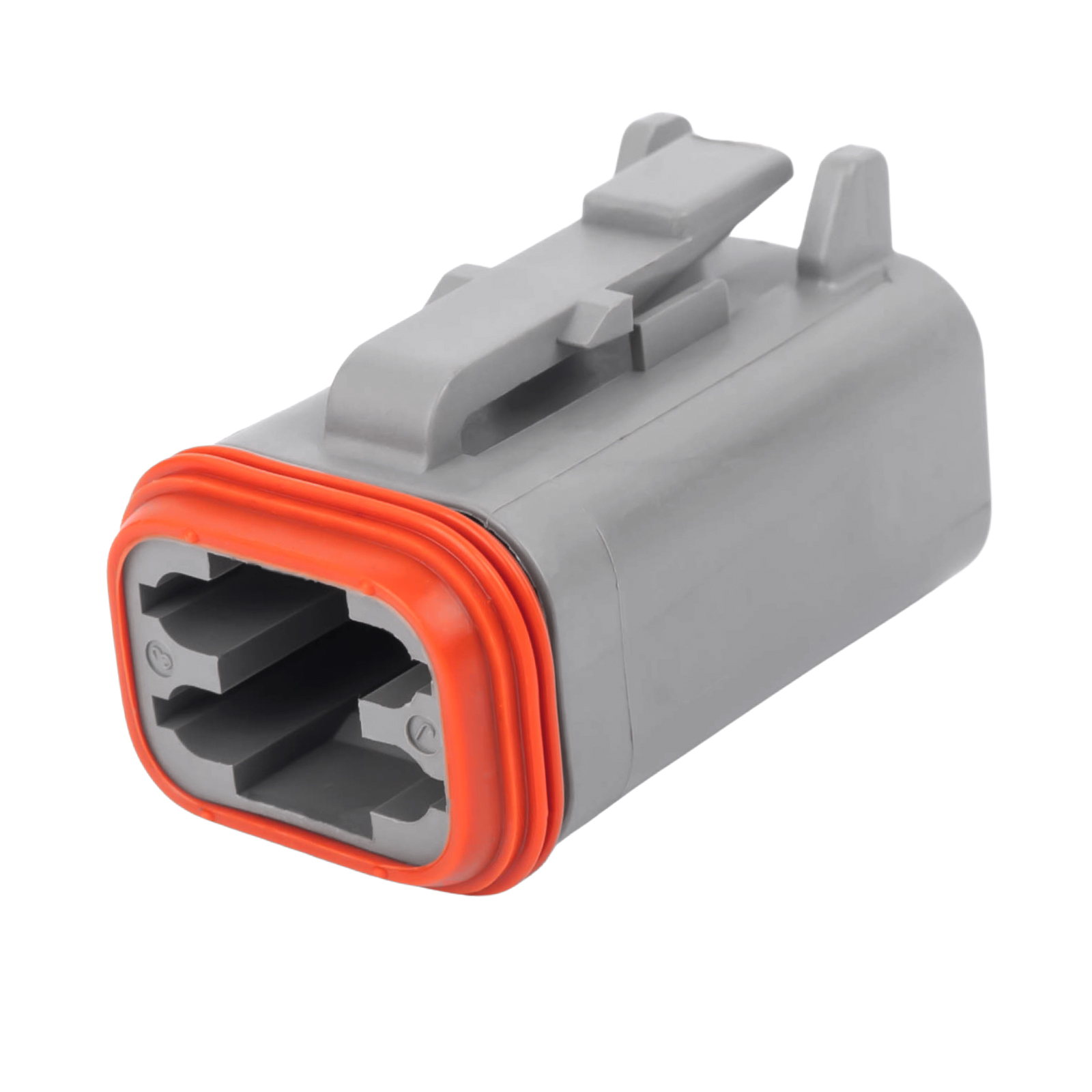

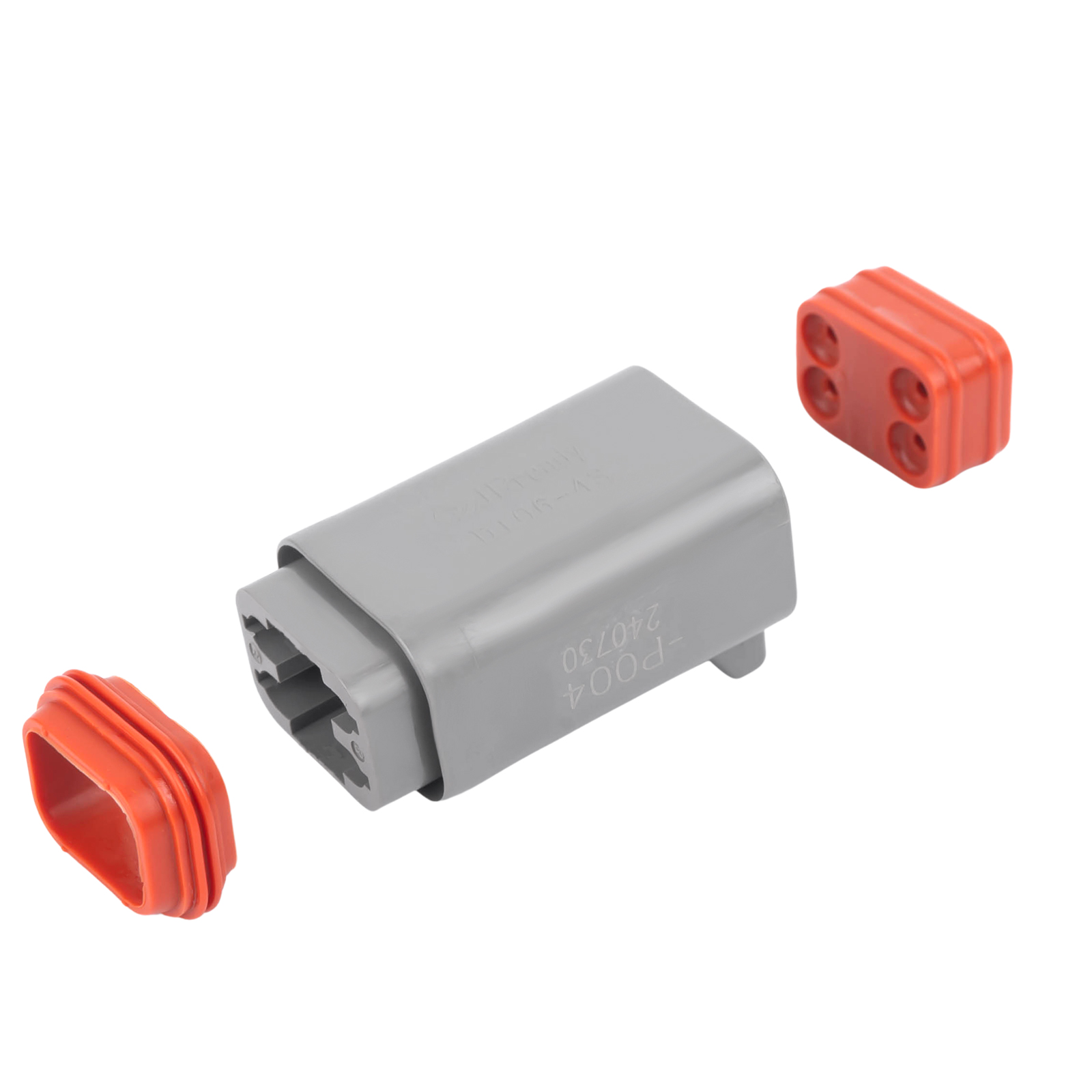

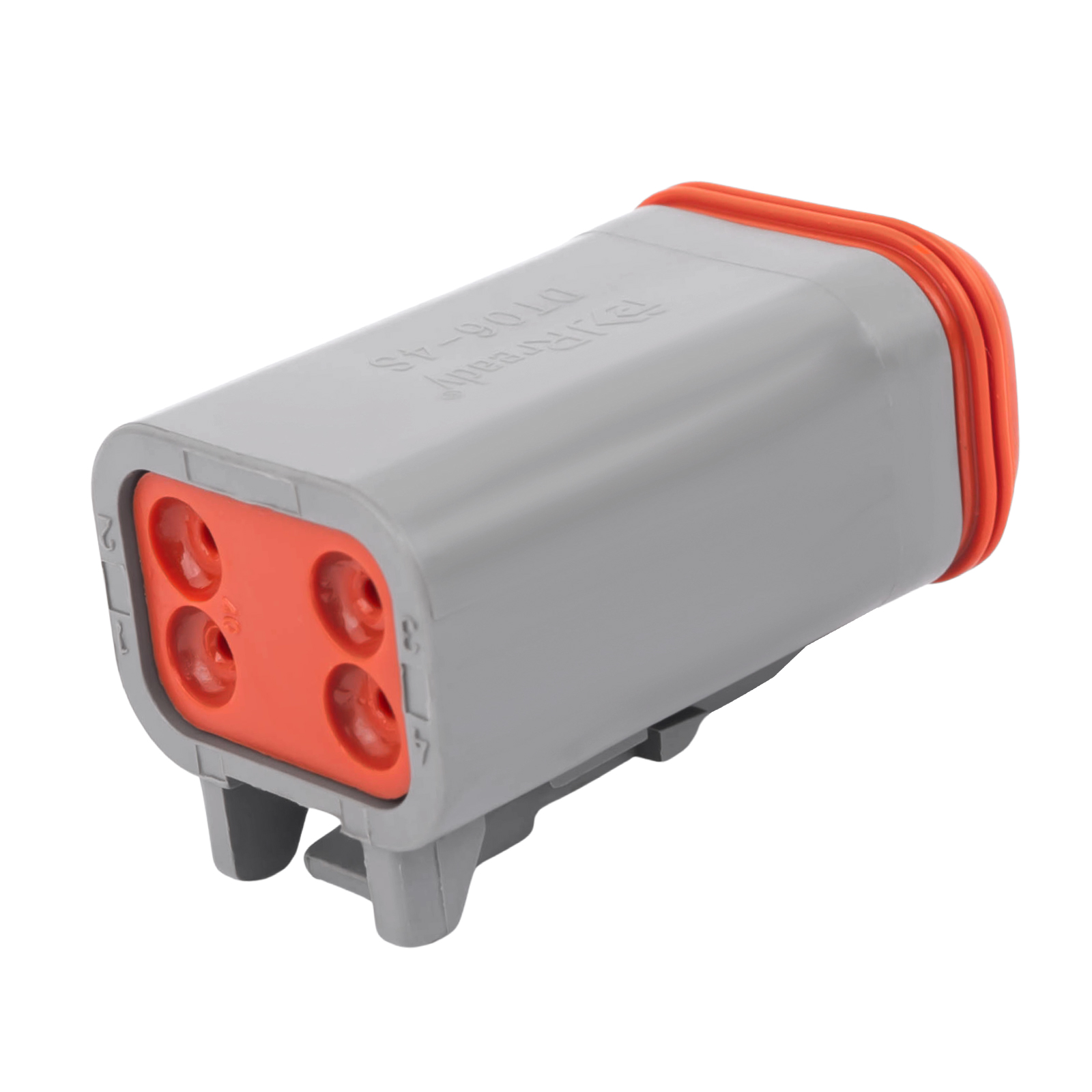

JRready DT06-4S-P004 Waterproof Connector
1. Compatible with 14-20AWG wire；
2. Compatible with 16# solid sockets and stamped sockets；
3. Connection Type: Wire to Wire；
4. Number of Positions: 4 positions；
5. Rated Voltage：250V AC/DC，Rated Current：13A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Compatible with 16# solid sockets and stamped sockets；
3. Connection Type: Wire to Wire；
4. Number of Positions: 4 positions；
5. Rated Voltage：250V AC/DC，Rated Current：13A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DT06-4S-P004 |
| Category | DT Series Connector | Colour | Gray |
| Material | PA66 | Dimension | 30.94*18.19*18.39mm |
| Country of Origin | China | Weight | 7.3g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 13A |
