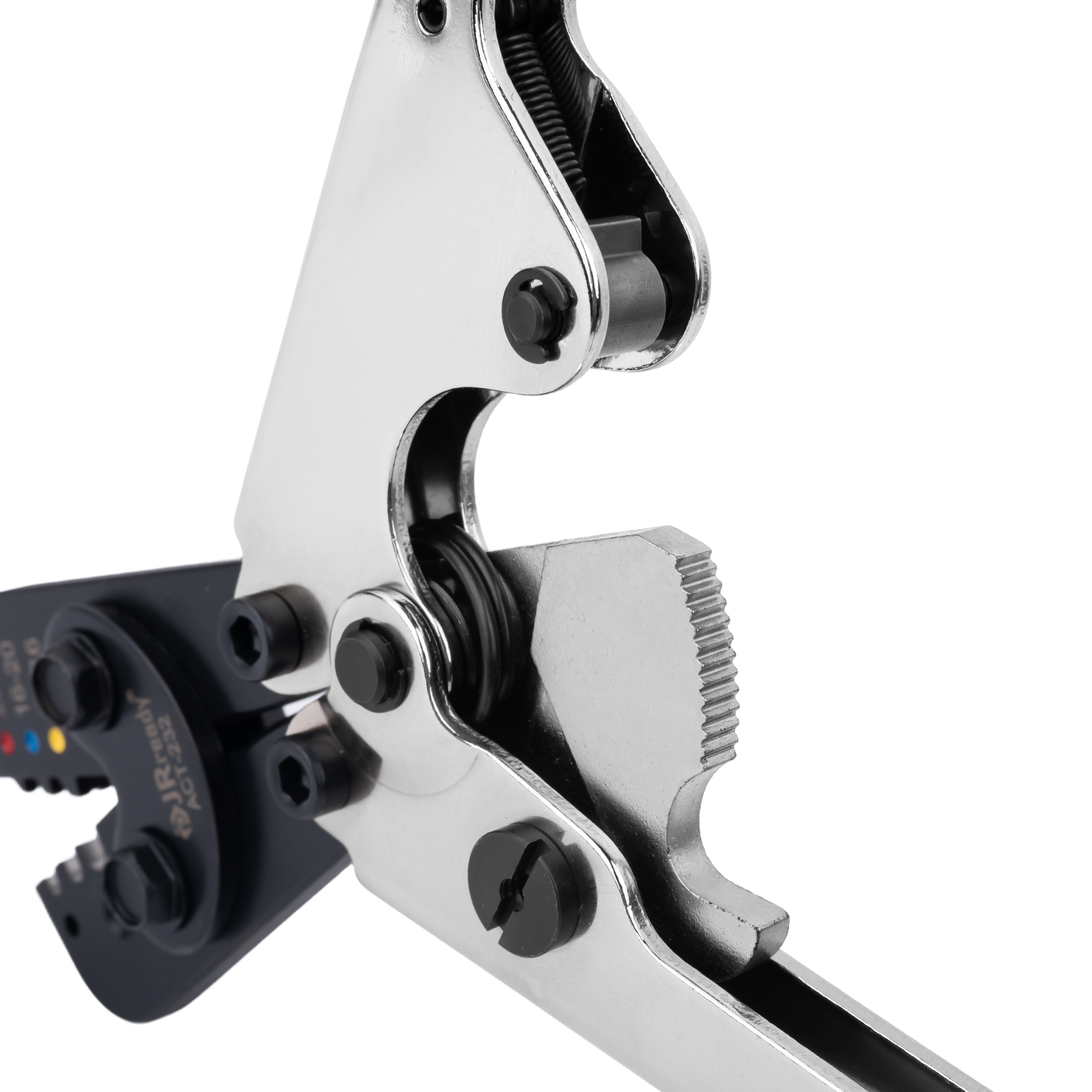

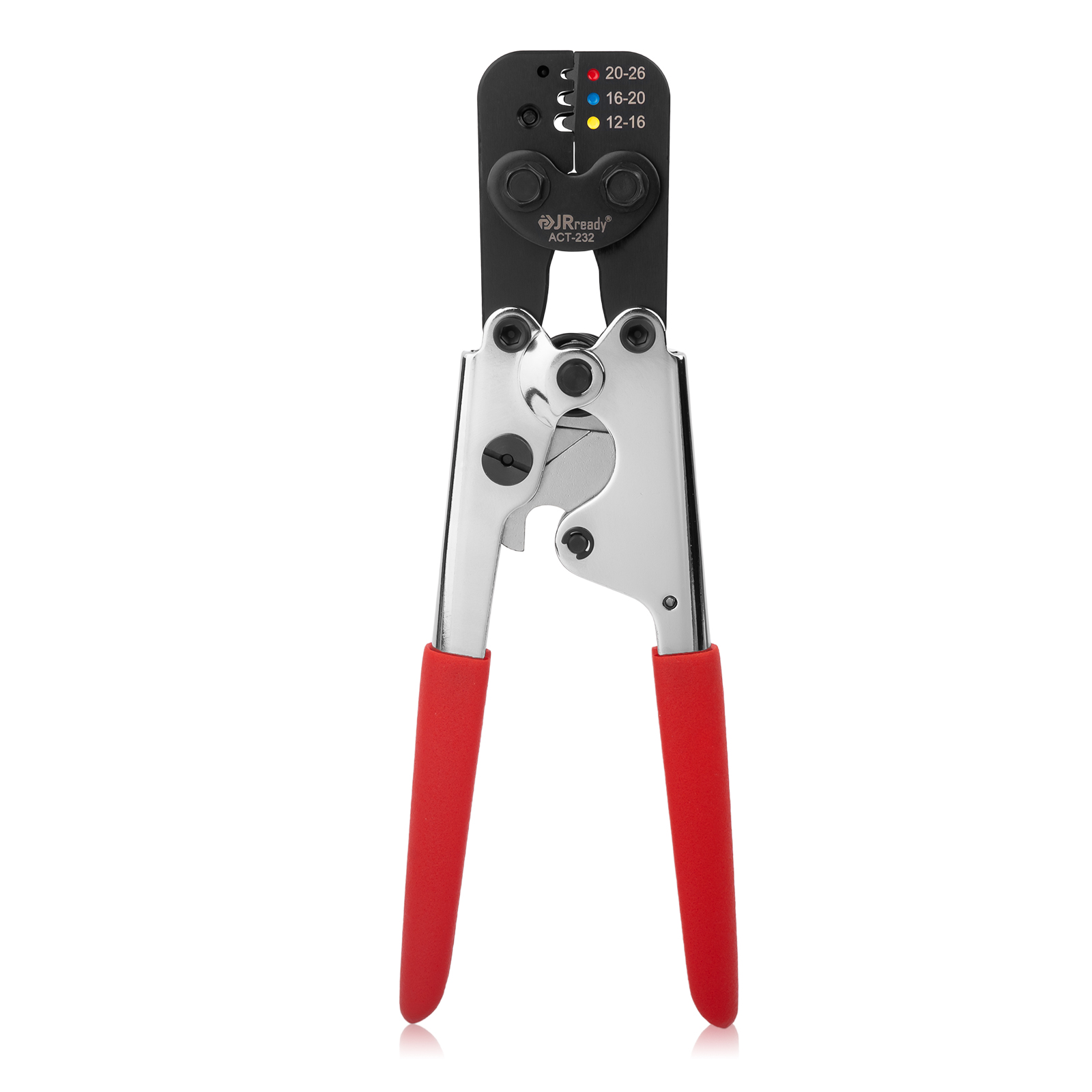

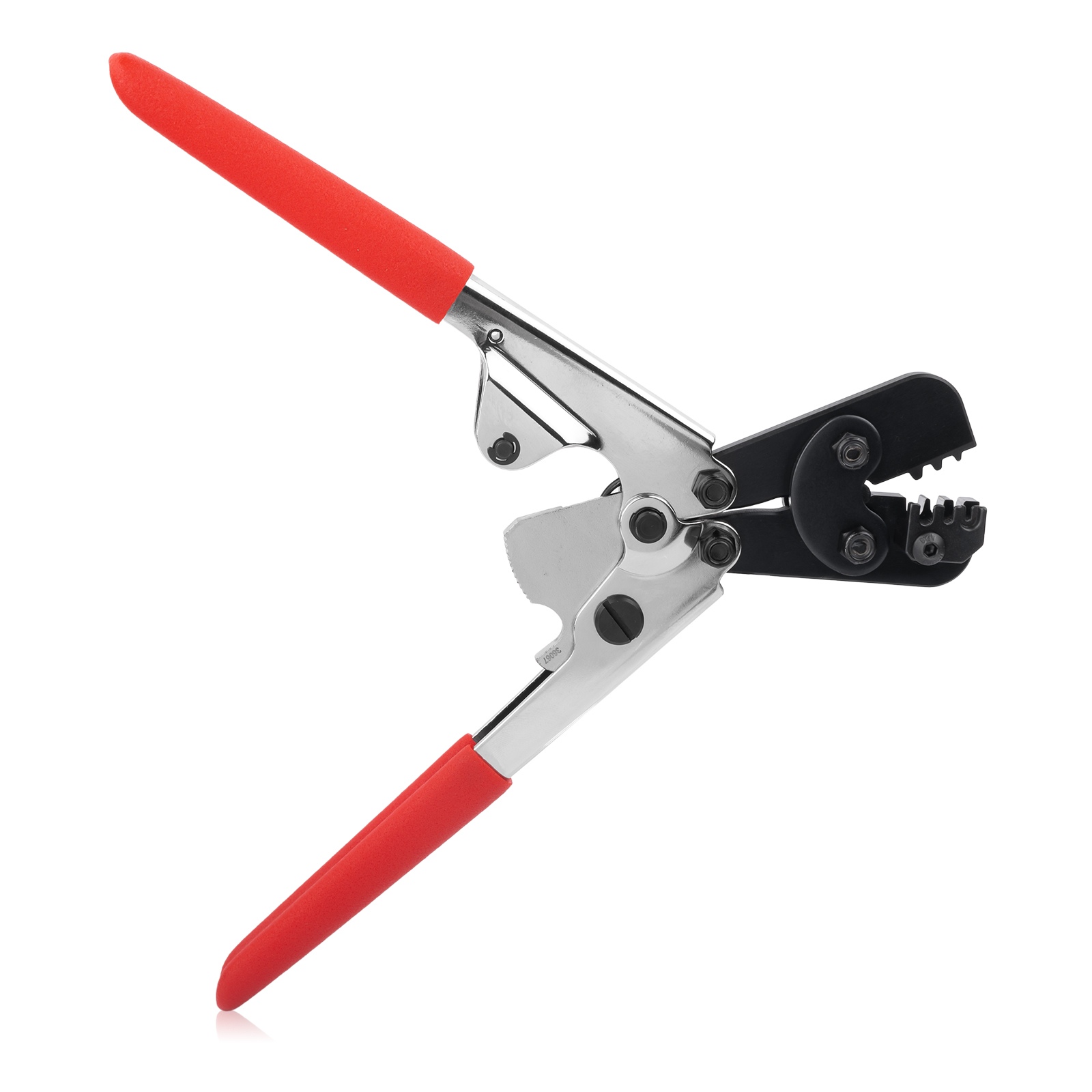

JRready ACT-232 Manual Open Frame Crimp Tool
1. Designed in compliance with U.S. Military Standard M22520/37-01
2. Compatible with M81824/1,6,7,8,9,10,11,13,14 series heat-shrink splice connectors
3. Wire range: 12-26 AWG (0.128-4.0 mm²)

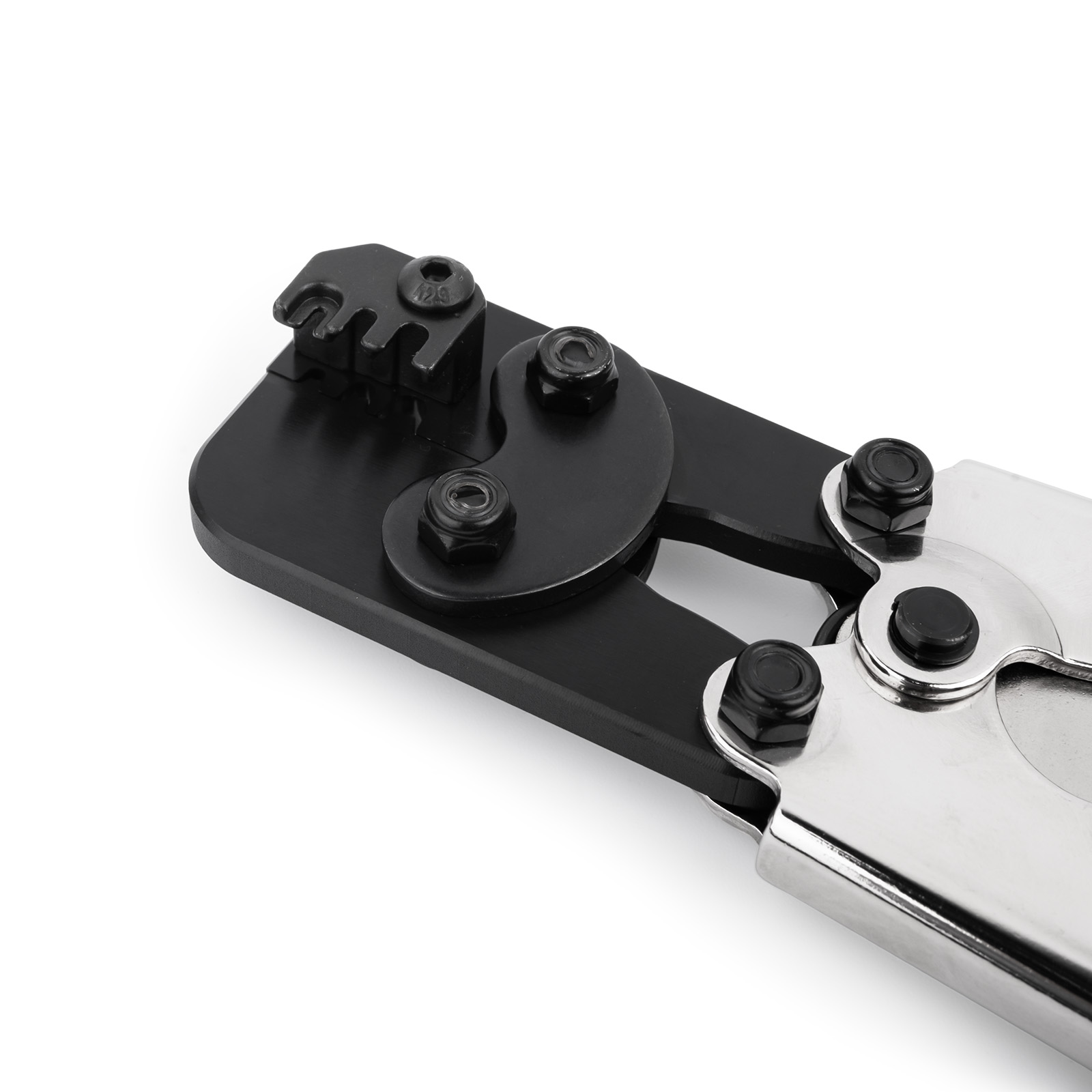

4. 3 color-coded dies: Red/Yellow/Blue for 12# (Yellow), 16# (Blue), 20# (Red) splice sleeves
5. Integrated positioner ensures crimping position consistency
6. Built-in ratchet crimping cycle system guarantees uniform crimp quality
7. Applications: Automotive, aerospace, rail, marine,
2. Compatible with M81824/1,6,7,8,9,10,11,13,14 series heat-shrink splice connectors
3. Wire range: 12-26 AWG (0.128-4.0 mm²)
4. 3 color-coded dies: Red/Yellow/Blue for 12# (Yellow), 16# (Blue), 20# (Red) splice sleeves
5. Integrated positioner ensures crimping position consistency
6. Built-in ratchet crimping cycle system guarantees uniform crimp quality
7. Applications: Automotive, aerospace, rail, marine,
| Brand | JRready | Part Number | ACT-232 |
| Category | Manual Open Frame Crimp Tool | Colour | Red |

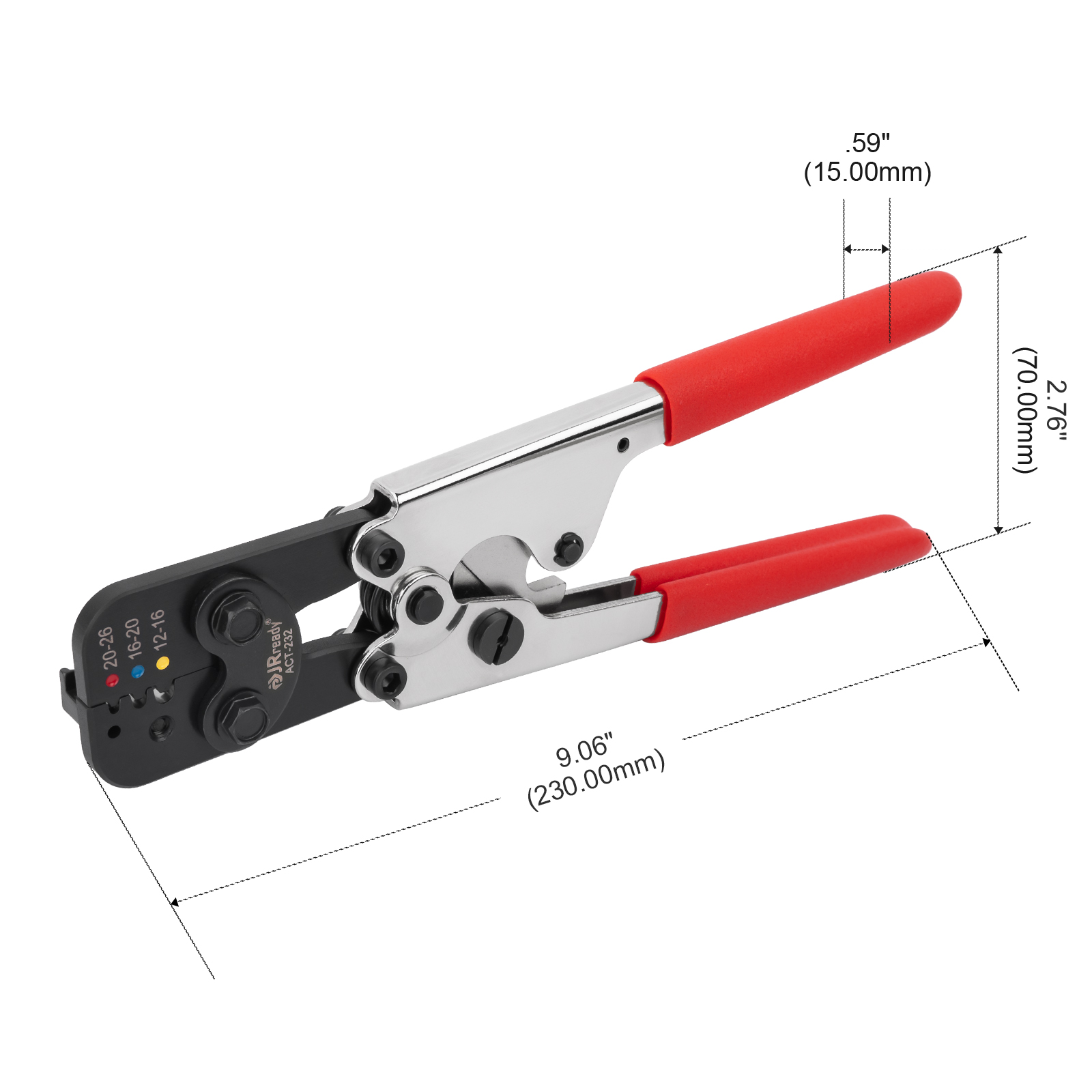

| Material | High-Carbon Steel | Dimension | 230*6*65mm |
| Country of Origin | China | Weight | 350g |
| Application | Compatible with M81824/1,6,7,8,9,10,11,13,14 series heat-shrink splice connectors (closed-end) | ||
