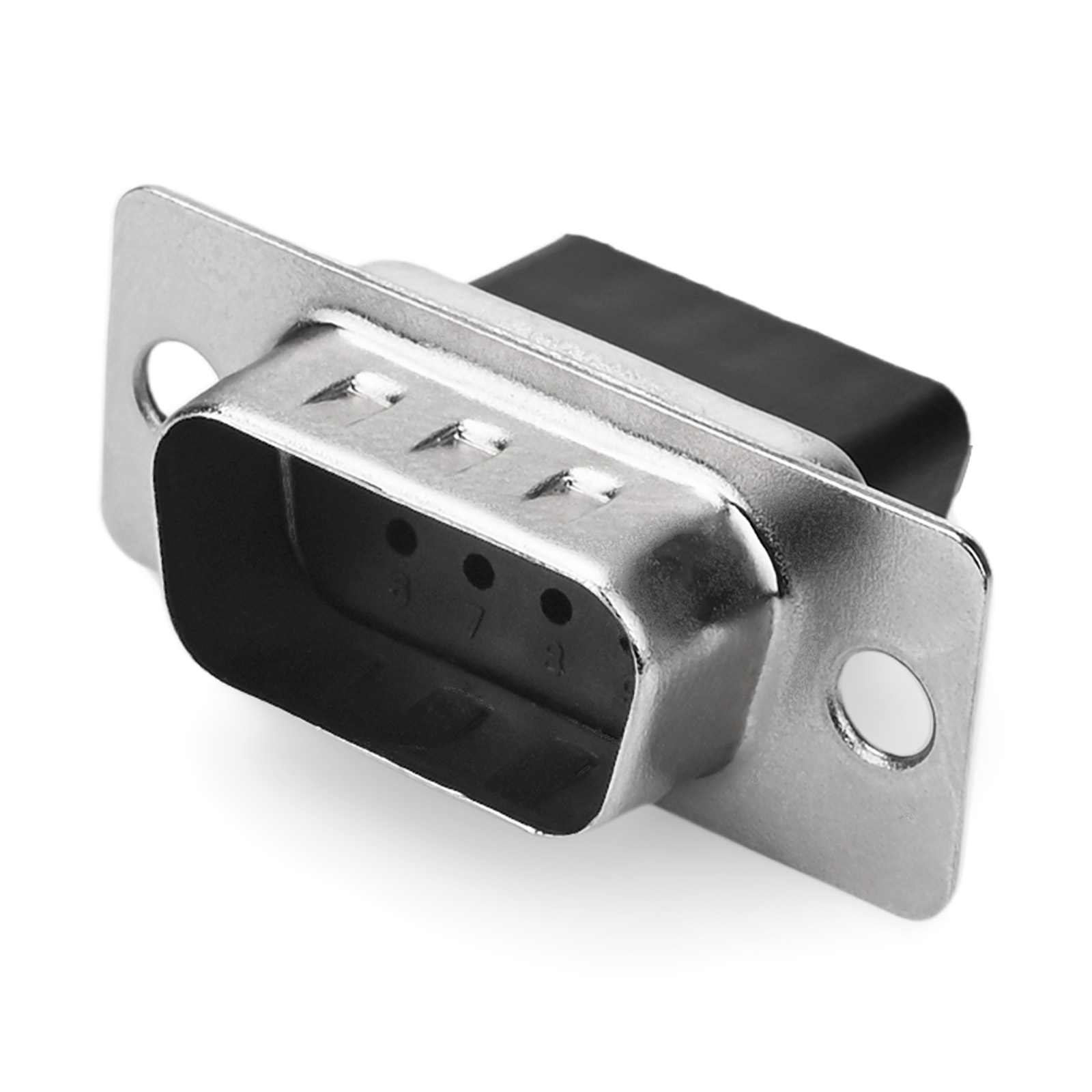

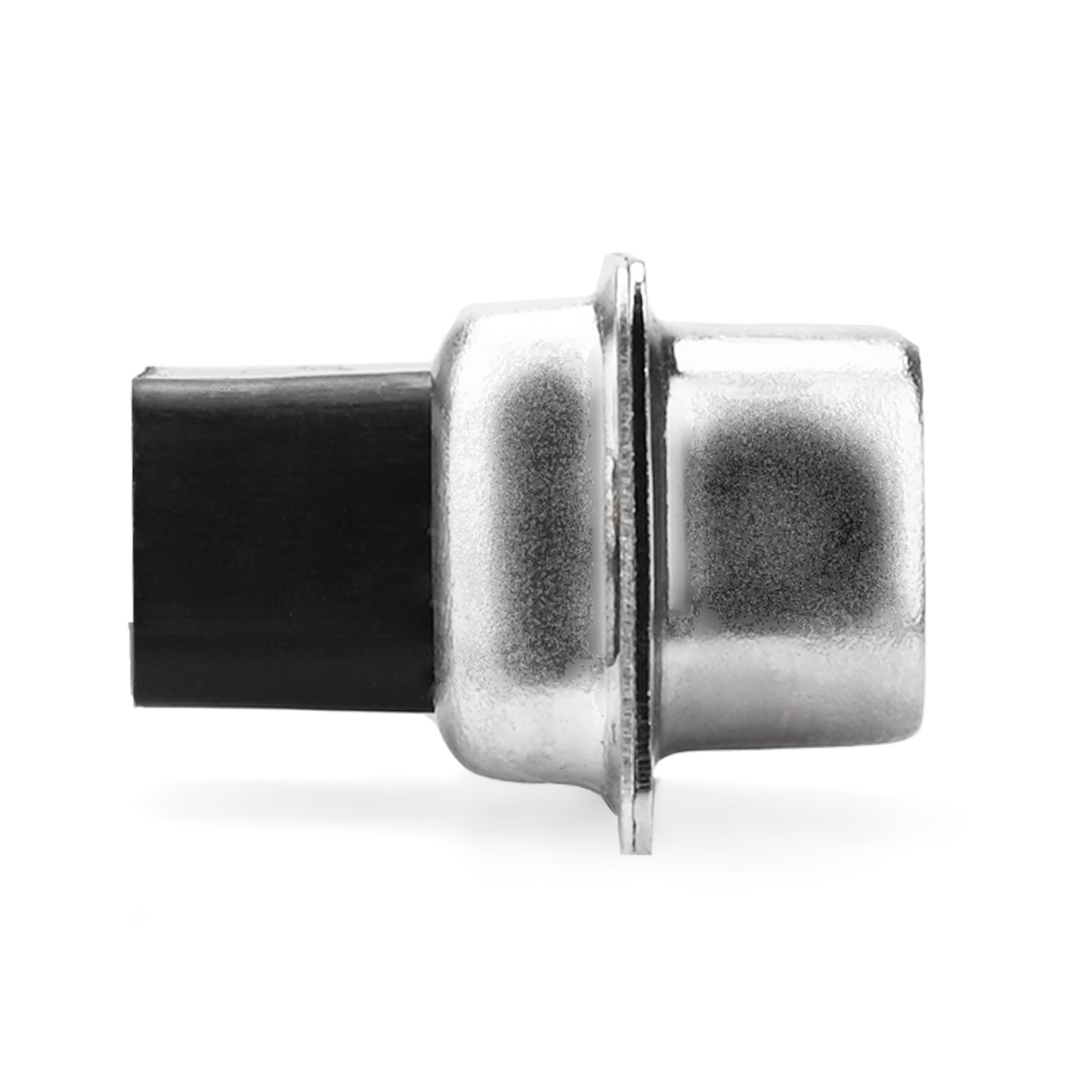

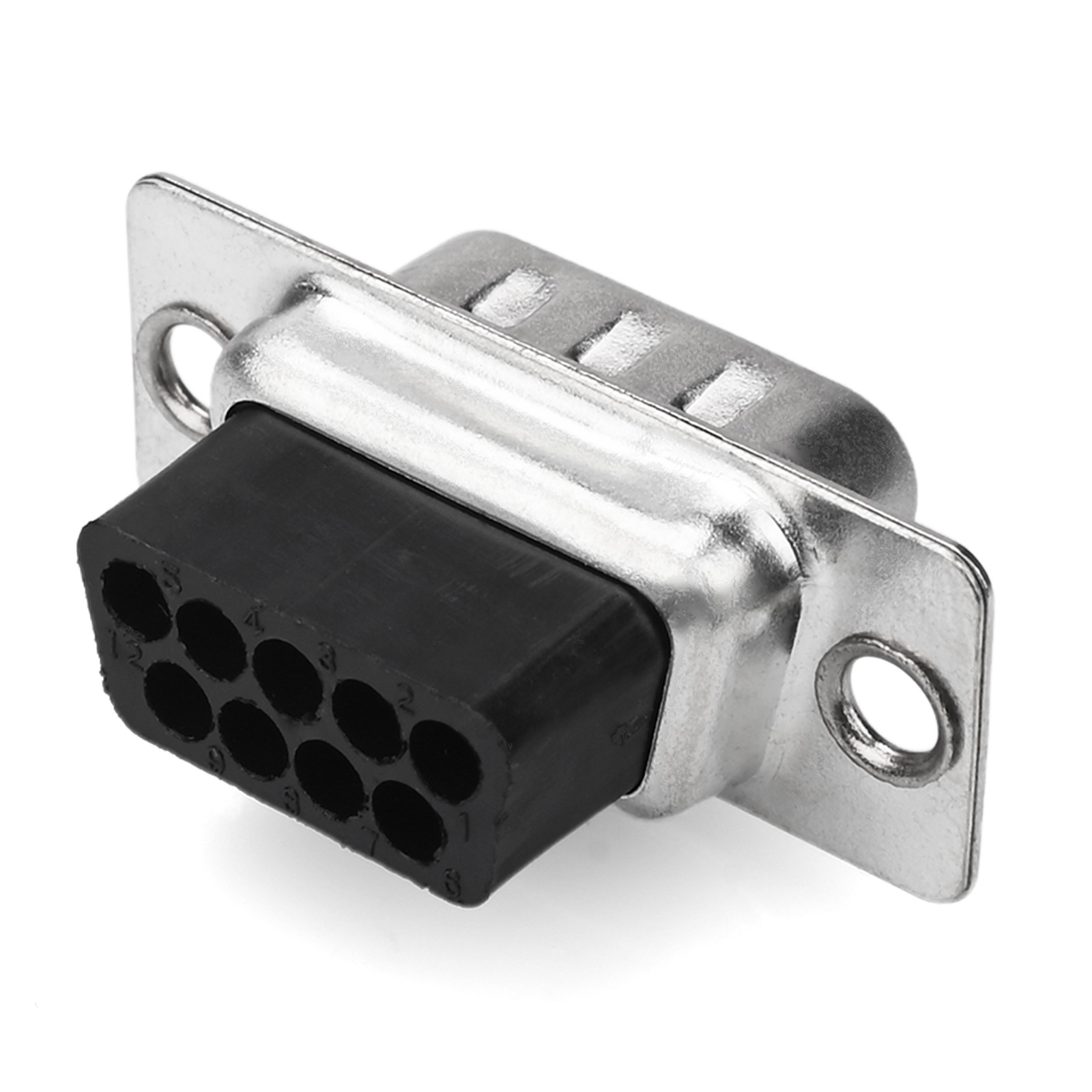

JRready DB9W-M Male Insert-C
1. Pin connector, black insulator, eco-friendly material
2. Compatible with MIL-DTL-24308 20# pin
3. Supports our DB9-1PC-SG and DB9-1PS-G-01 pin terminals
4. Positions: 9
5. Interchangeable with market-standard D-Sub series equivalents
2. Compatible with MIL-DTL-24308 20# pin
3. Supports our DB9-1PC-SG and DB9-1PS-G-01 pin terminals
4. Positions: 9
5. Interchangeable with market-standard D-Sub series equivalents
| Brand | JRready | Part Number | DB9W-M |
| Category | DB9 Series | Colour | Black |

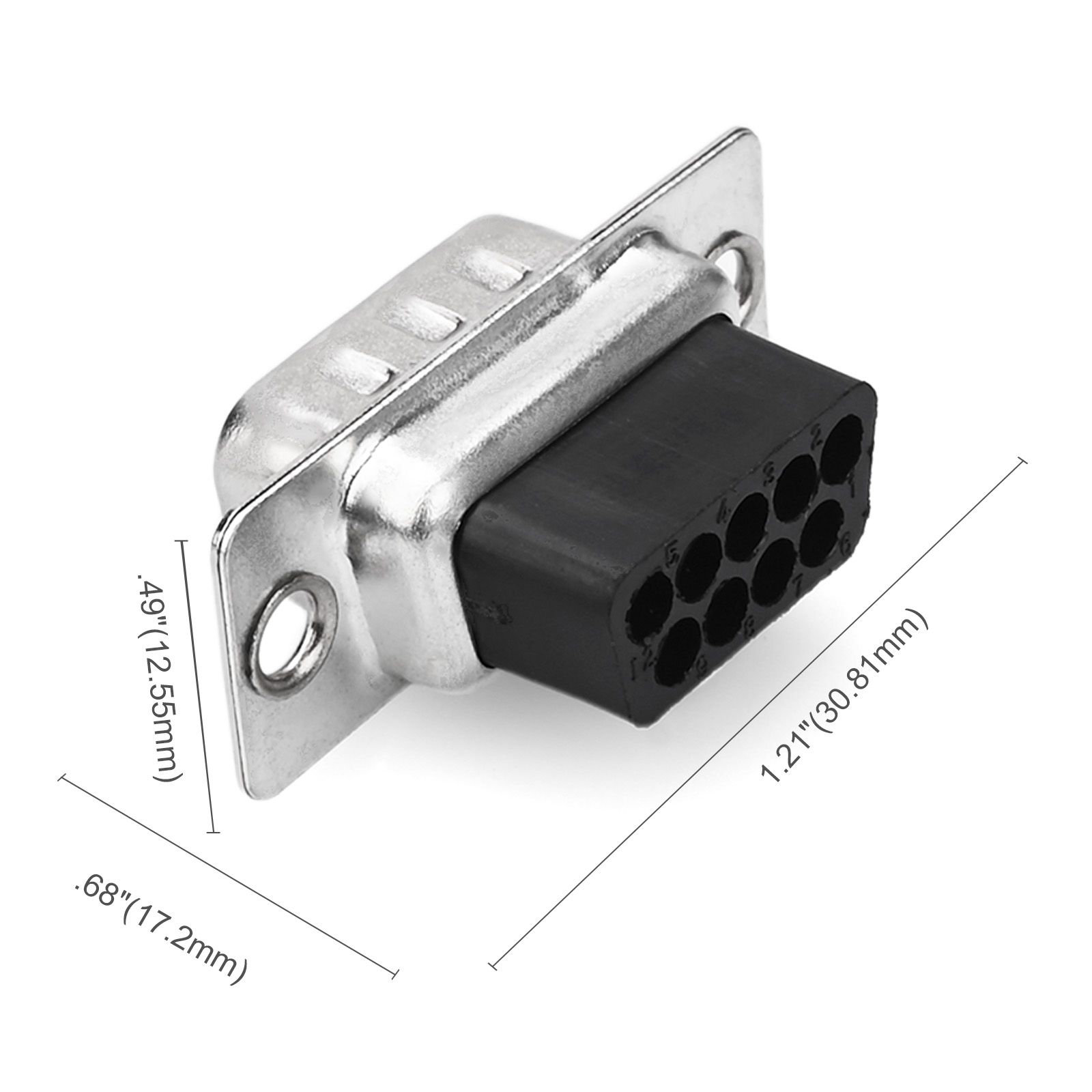

| Material | Plastic | Dimension | 17.2*30.81*12.55mm |
| Country of Origin | China | Weight | 3.6g |
| Application | For serial communication, instrument connections, industrial automation, and other connection applications | ||
| Working Temperature | -20-80℃ | Working Pressure | / |
| Rated Voltage | 300V | Rated Current | / |
