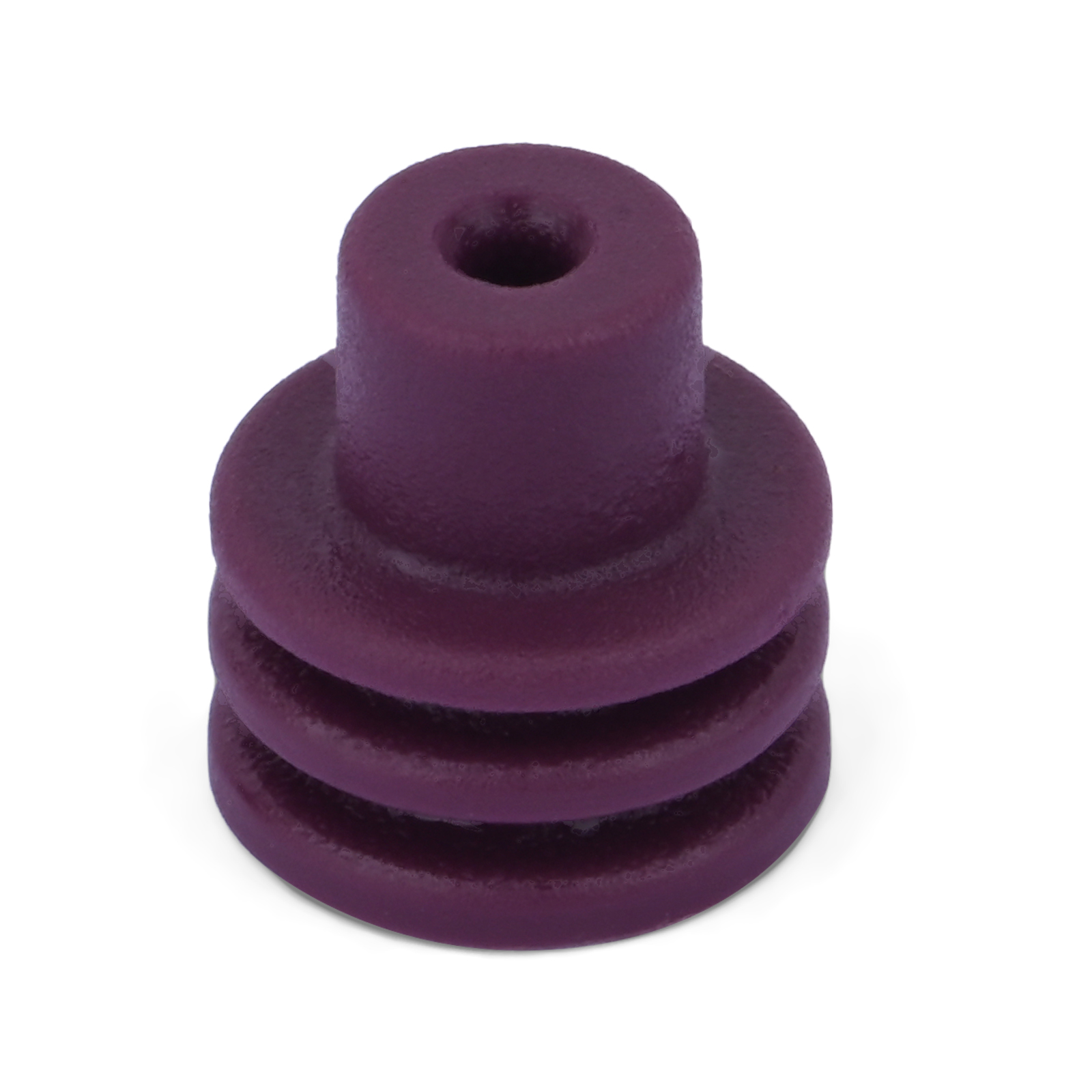

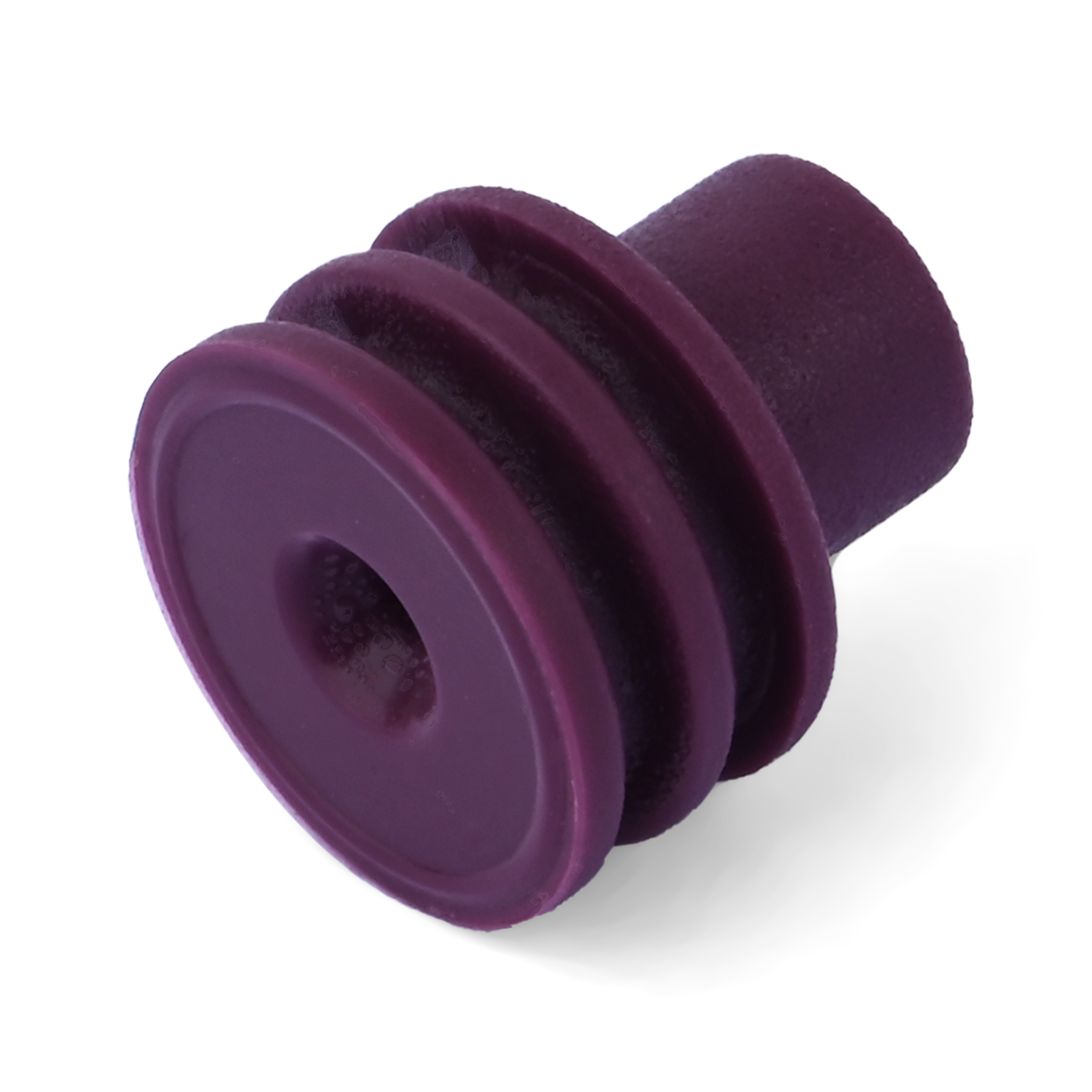

JRready 15324985 Sealing Ring
1、Sealing Ring
2、Compatible with conductor insulation outer diameter: φ1.60-φ2.15mm
3、Suitable for Weather-Pack Series Connectors
4、Interchangeable with industry-standard equivalents
2、Compatible with conductor insulation outer diameter: φ1.60-φ2.15mm
3、Suitable for Weather-Pack Series Connectors
4、Interchangeable with industry-standard equivalents
| Brand | JRready | Part Number | 15324985 |
| Category | Weather-Pack Series | Colour | Purple |

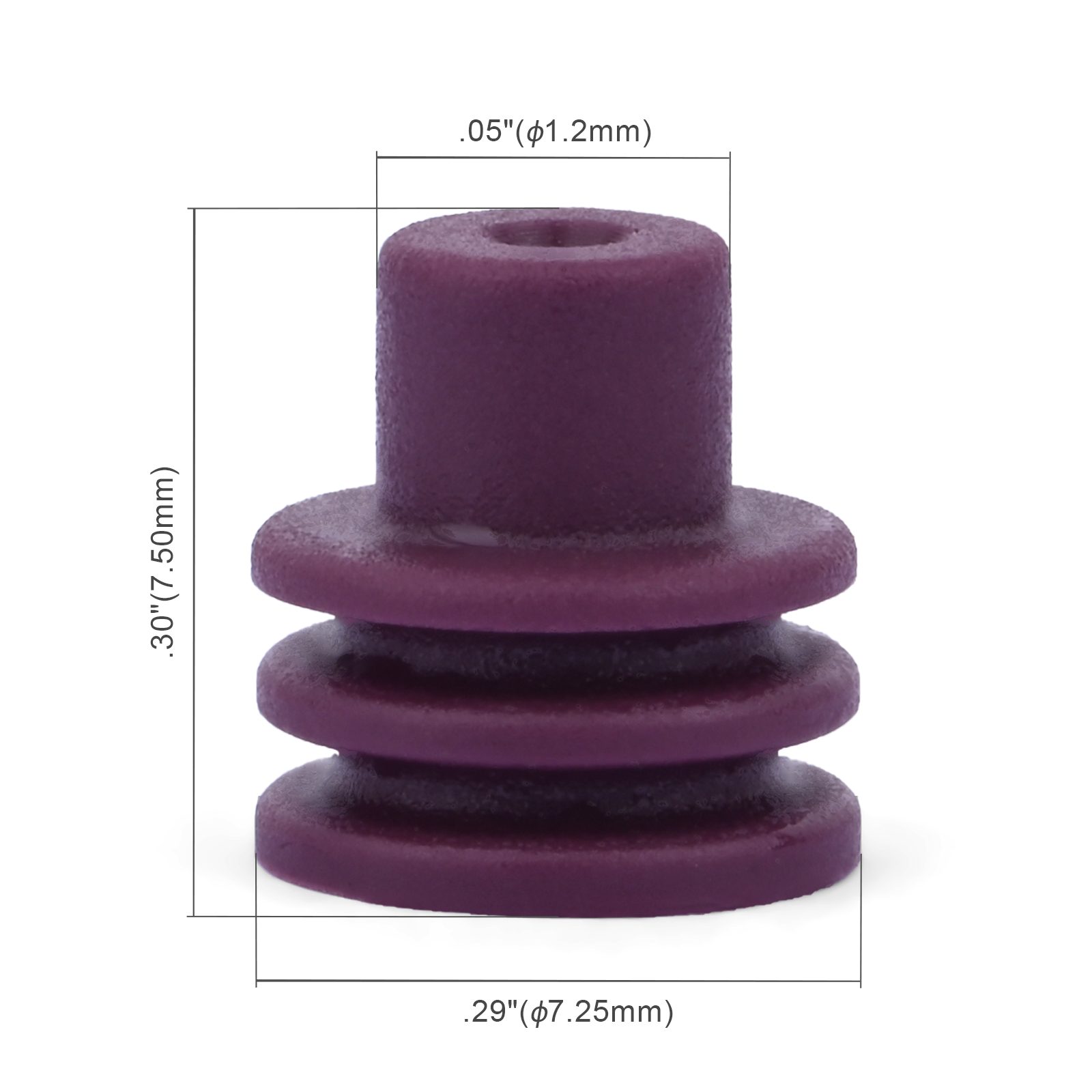

| Material | Silicone | Dimension | 7.5*7.25*1.2mm |
| Country of Origin | China | Weight | 0.17g |
| Application | Compatible with wire insulation outer diameter: φ1.60-φ2.15mm | ||
| Working Temperature | -40℃-125℃ | Working Pressure | / |
| Rated Voltage | 24V DC | Rated Current | 20A |
