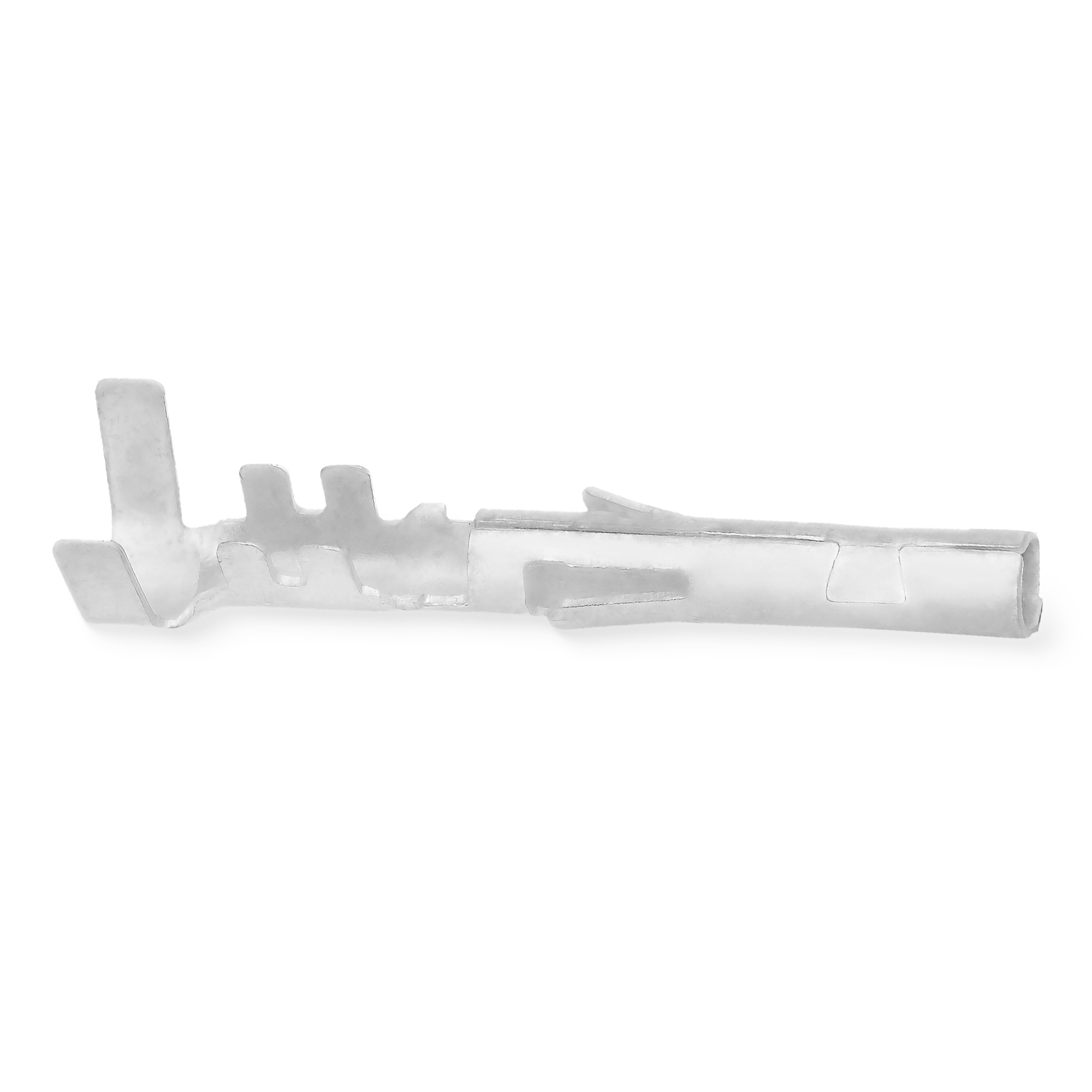

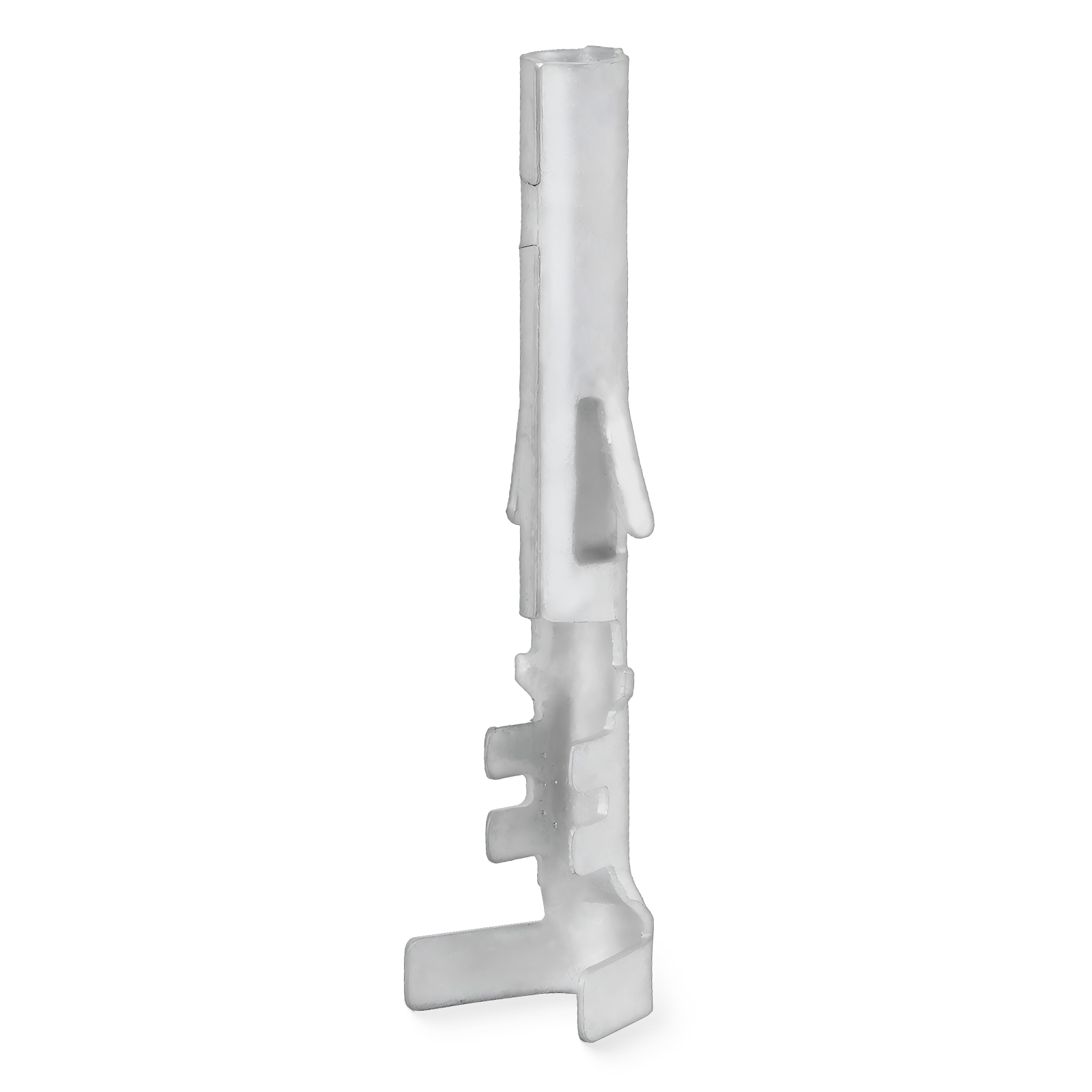

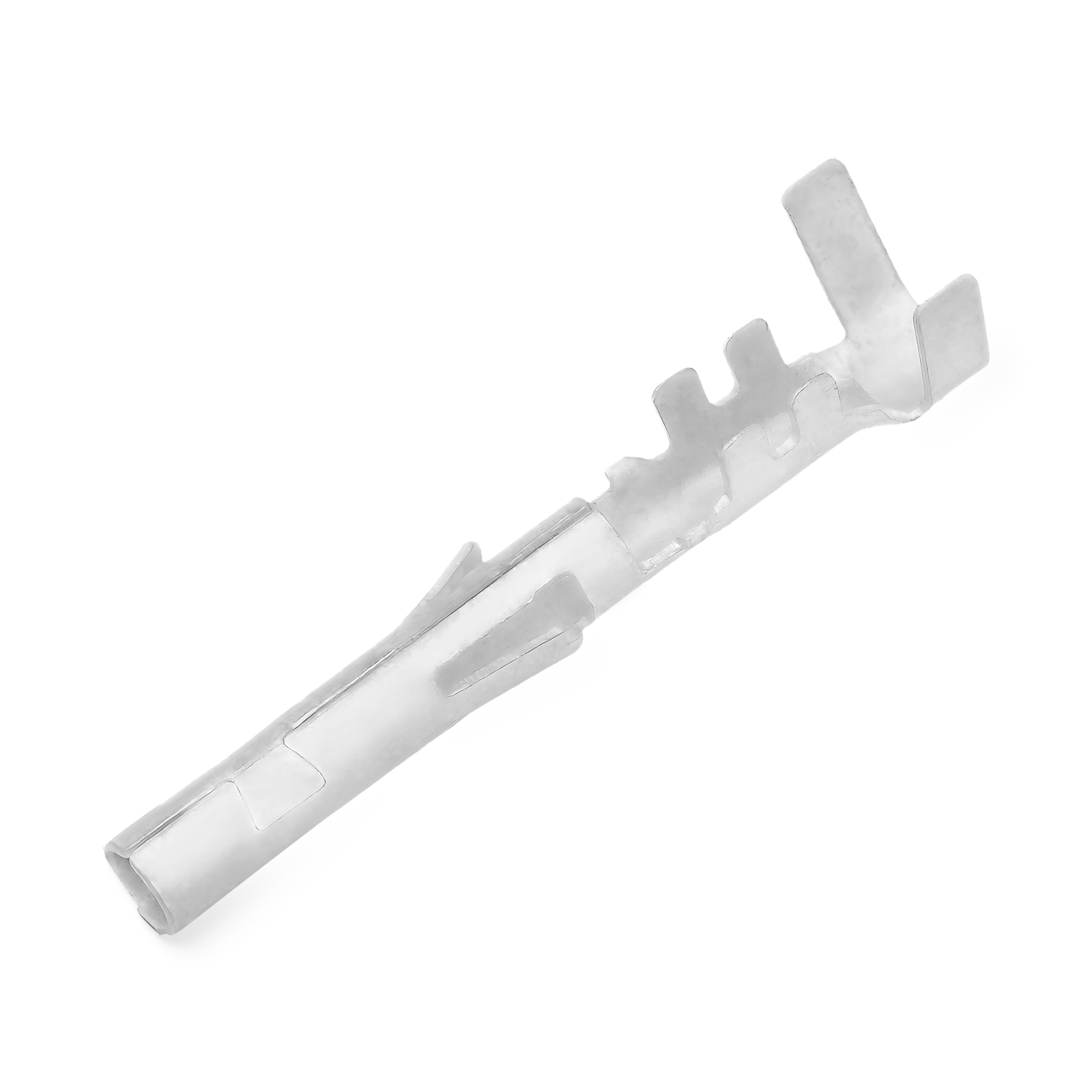

JRready 12124580 Formed & Stamped Socket Terminal
1、Wire Range: 17-14AWG (1.0-2.0mm²)
2、 Matches 12124582 Stamped Pin
3、Full Matte Tin Plating
4、Rated Current: 20A
5、Max Insulation Diameter: φ3.96mm
2、 Matches 12124582 Stamped Pin
3、Full Matte Tin Plating
4、Rated Current: 20A
5、Max Insulation Diameter: φ3.96mm
| Brand | JRready | Part Number | 12124580 |
| Category | Weather-Pack Series | Colour | Silver-White |

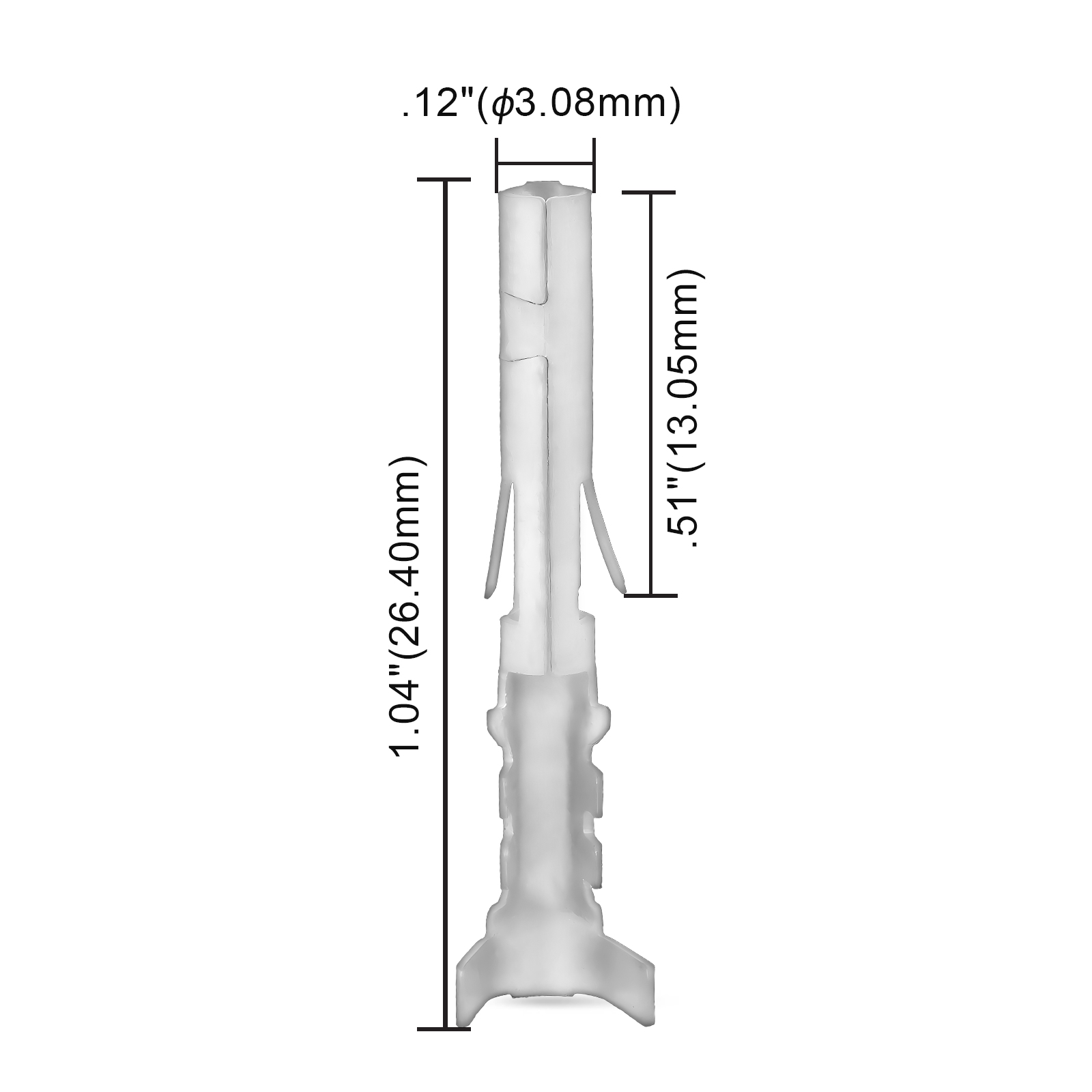

| Material | Brass | Dimension | 26.4*13.05*3.08mm |
| Country of Origin | China | Weight | 0.56g |
| Application | Suitable for Weather-Pack Series Connectors | ||
| Working Temperature | -40℃-125℃ | Working Pressure | / |
| Rated Voltage | 24V DC | Rated Current | 20A |
