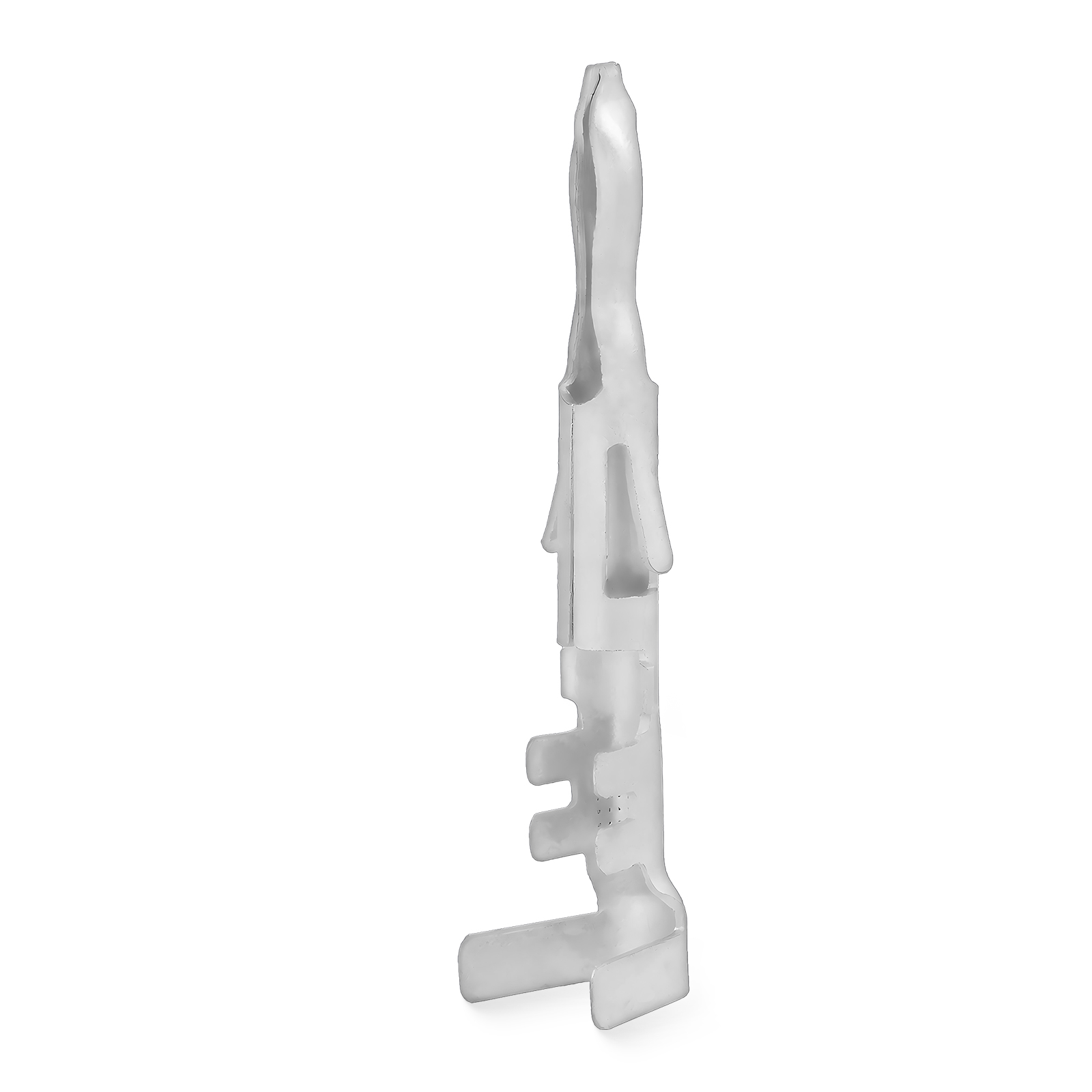

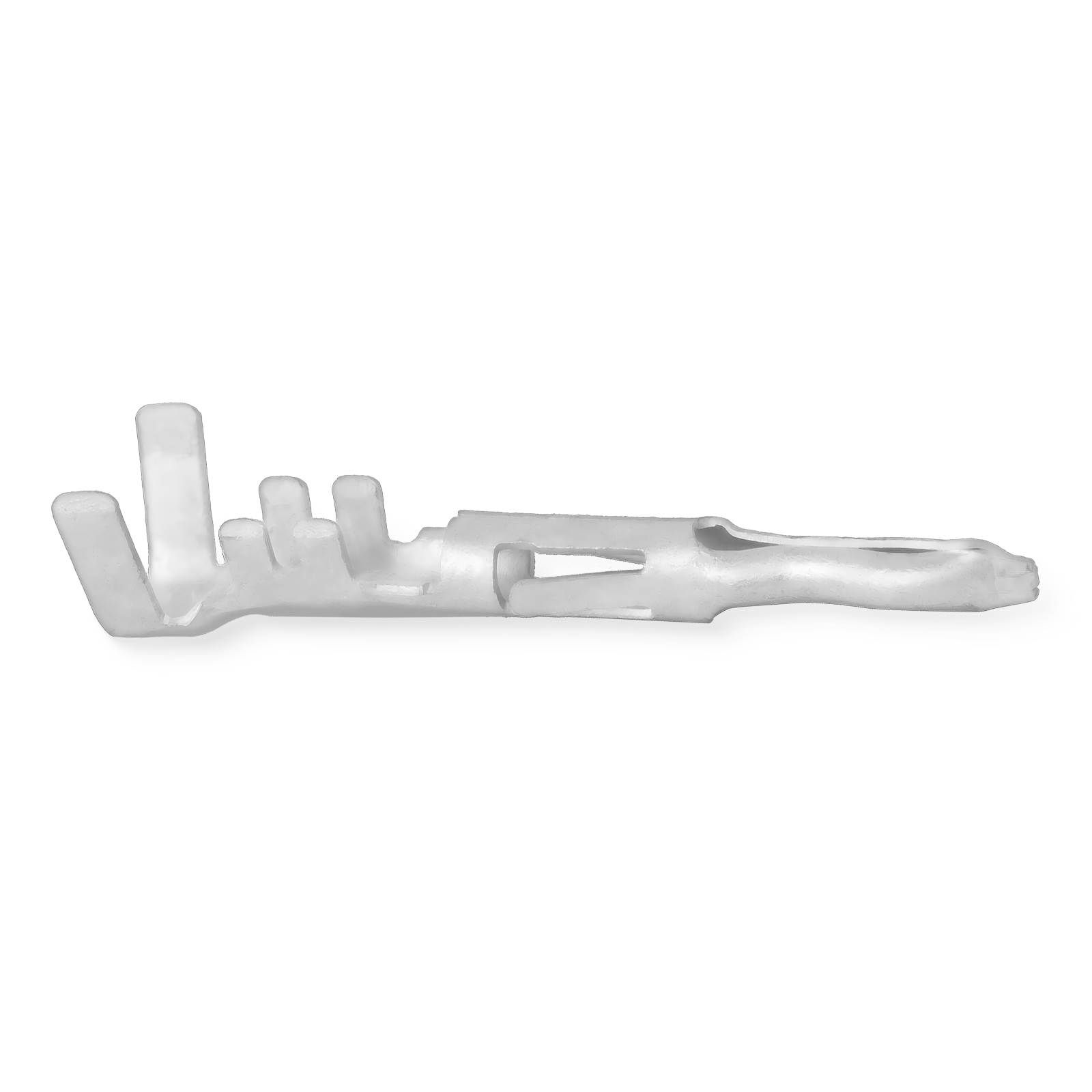

JRready 12124582 Stamped & Crimped Pin Terminal
1、Wire Range: 17-14AWG (1.0-2.0mm²)
2、Matches 12124580 Stamped Socket
3、 Full Matte Tin Plating
4、Rated Current: 20A
5、Max Insulation Diameter: φ3.96mm
2、Matches 12124580 Stamped Socket
3、 Full Matte Tin Plating
4、Rated Current: 20A
5、Max Insulation Diameter: φ3.96mm
| Brand | JRready | Part Number | 12124582 |
| Category | Weather-Pack Series | Colour | Silver-White |

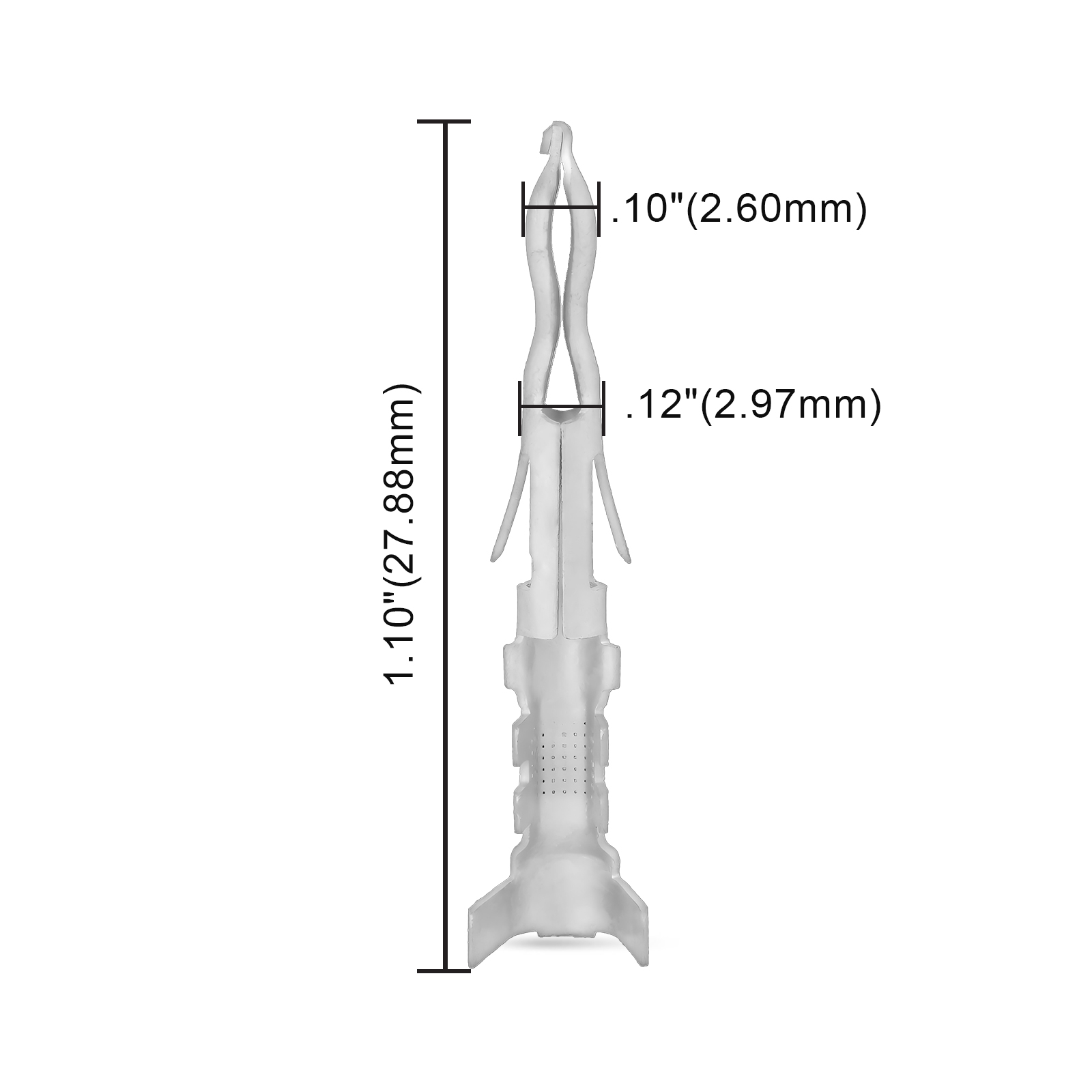

| Material | Brass | Dimension | 27.88*2.97*2.6mm |
| Country of Origin | China | Weight | 0.46g |
| Application | Suitable for Weather-Pack Series Connectors | ||
| Working Temperature | -40℃-125℃ | Working Pressure | / |
| Rated Voltage | 24V DC | Rated Current | 20A |
