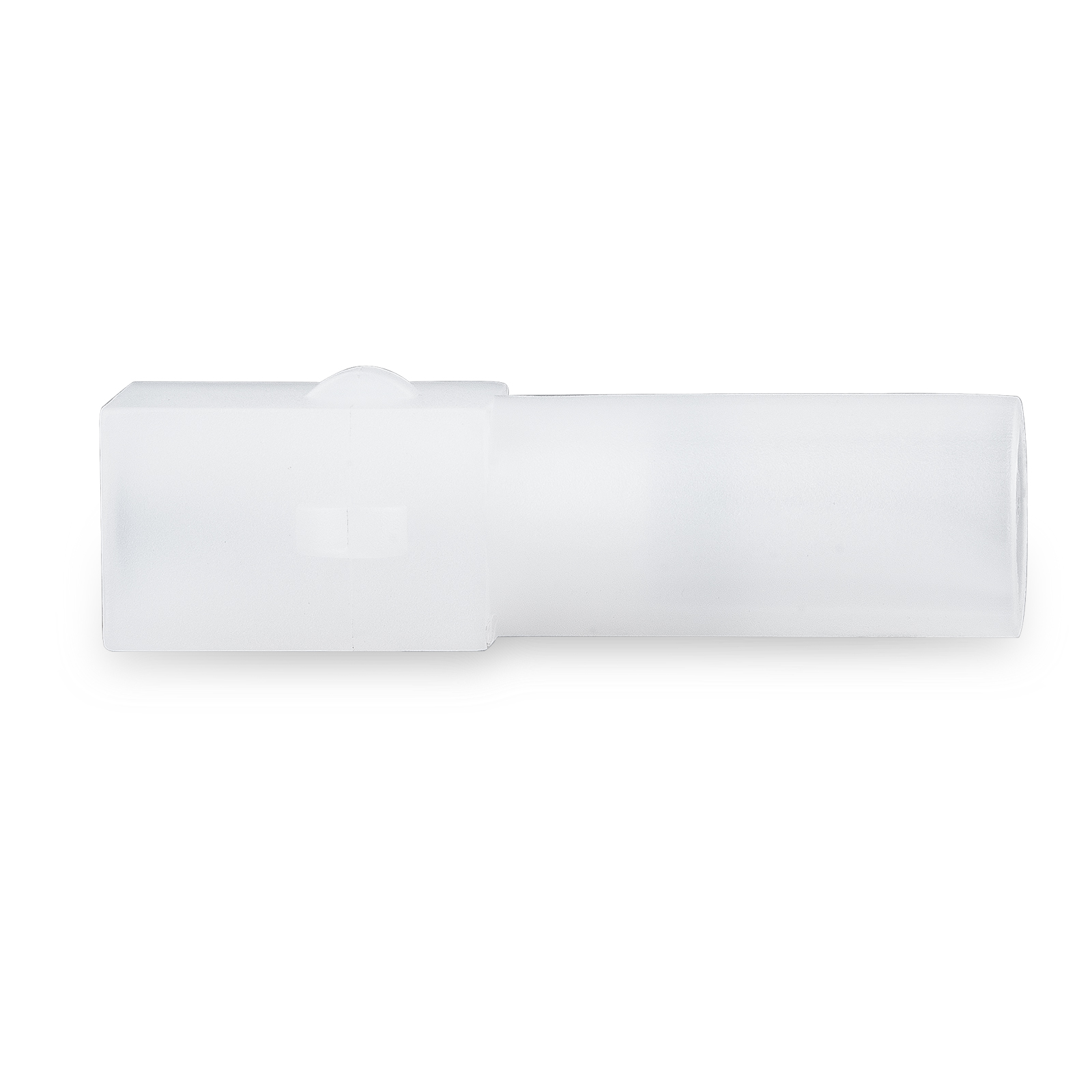

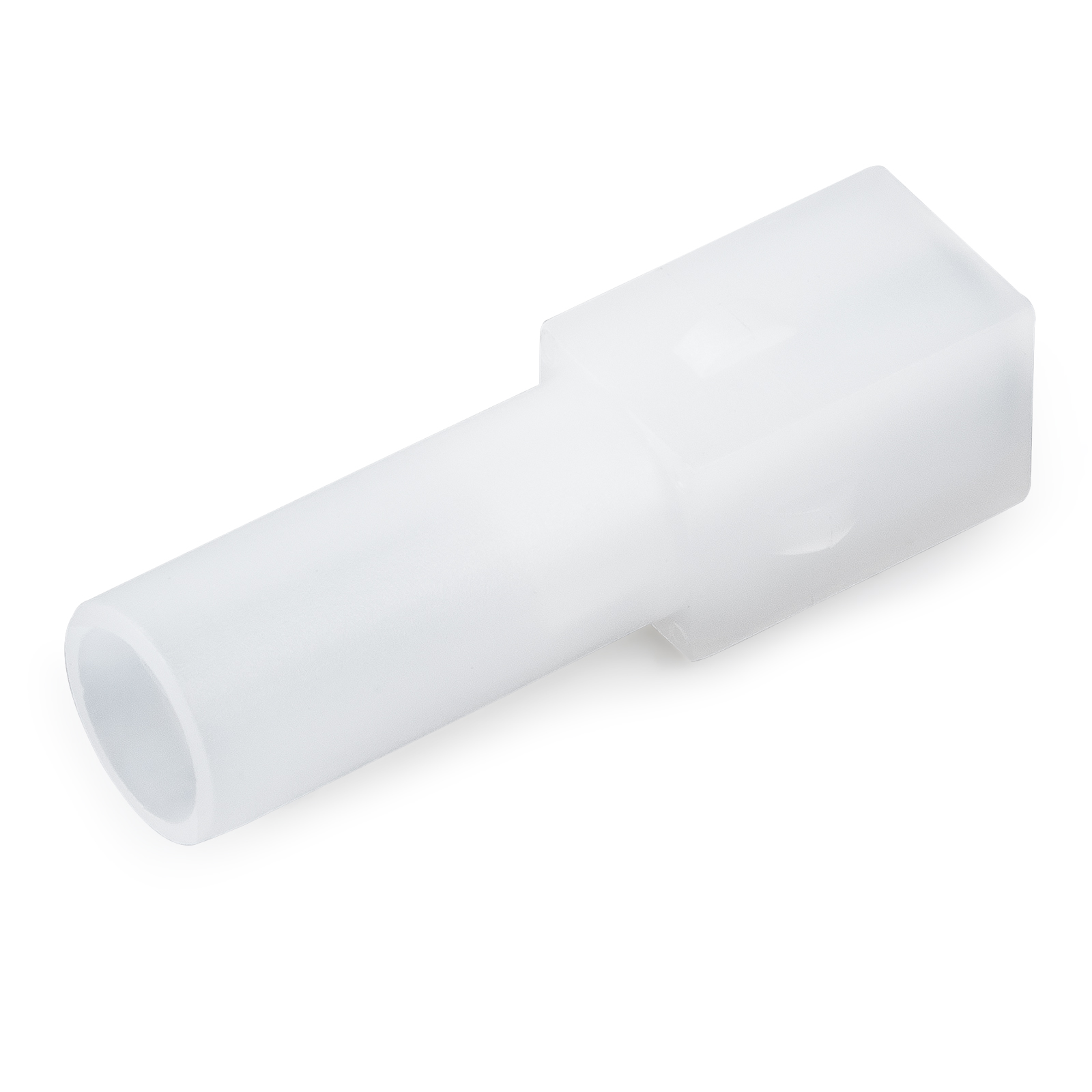

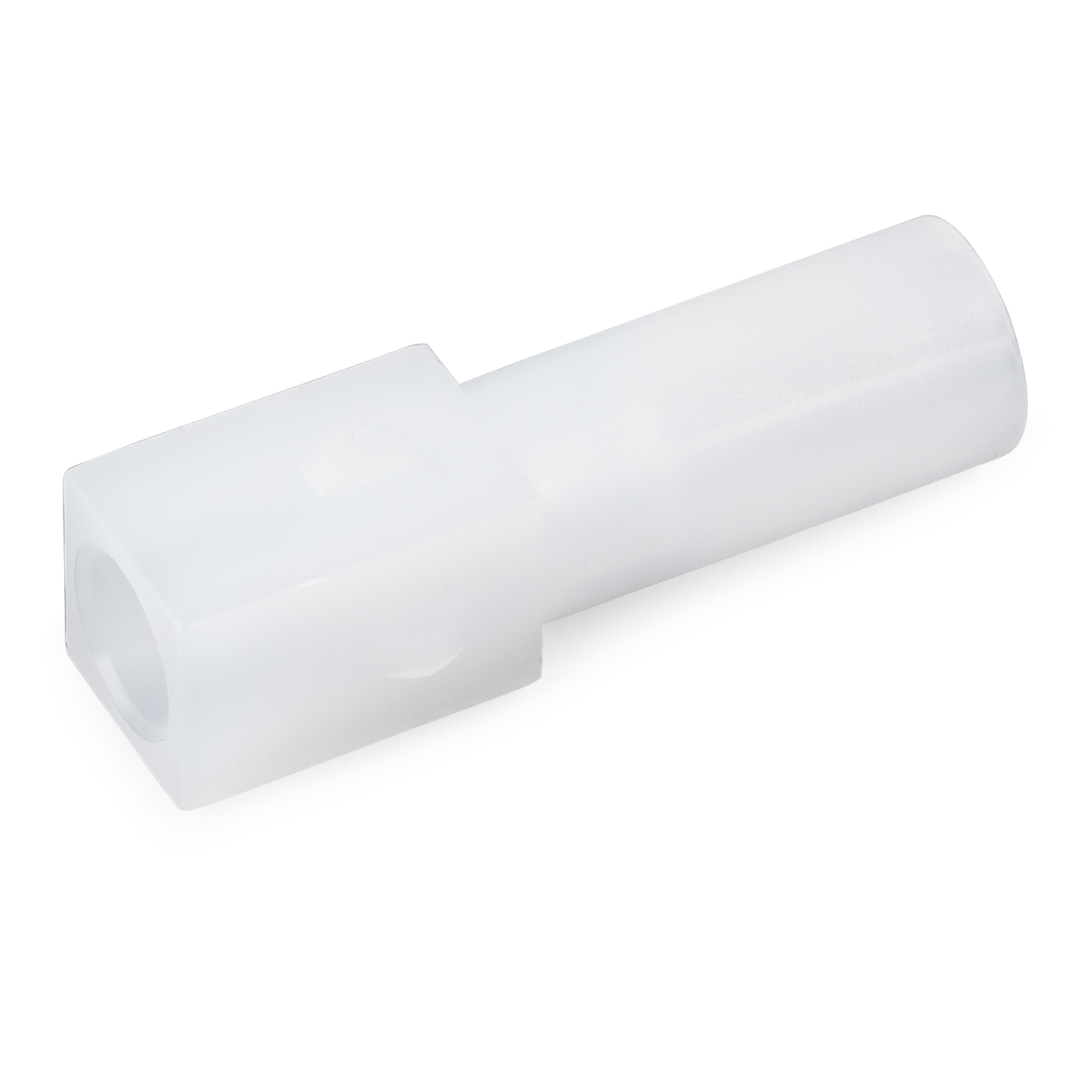

JRready JRN001-HF-01P Connector
1. Wire Compatibility: 12-24 AWG
2.Terminal Type: Compatible with stamped sockets
3.Connection Method: Wire-to-wire and wire-to-board
4.Number of Positions: 1-pin
5.Rated Voltage: 600V AC/DC, 13.5A
6.Market Compatibility: Compatible with products of the same specifications on the market.
2.Terminal Type: Compatible with stamped sockets
3.Connection Method: Wire-to-wire and wire-to-board
4.Number of Positions: 1-pin
5.Rated Voltage: 600V AC/DC, 13.5A
6.Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN001-HF-01P |
| Category | JRN001 (6.35) Series | Colour | White |

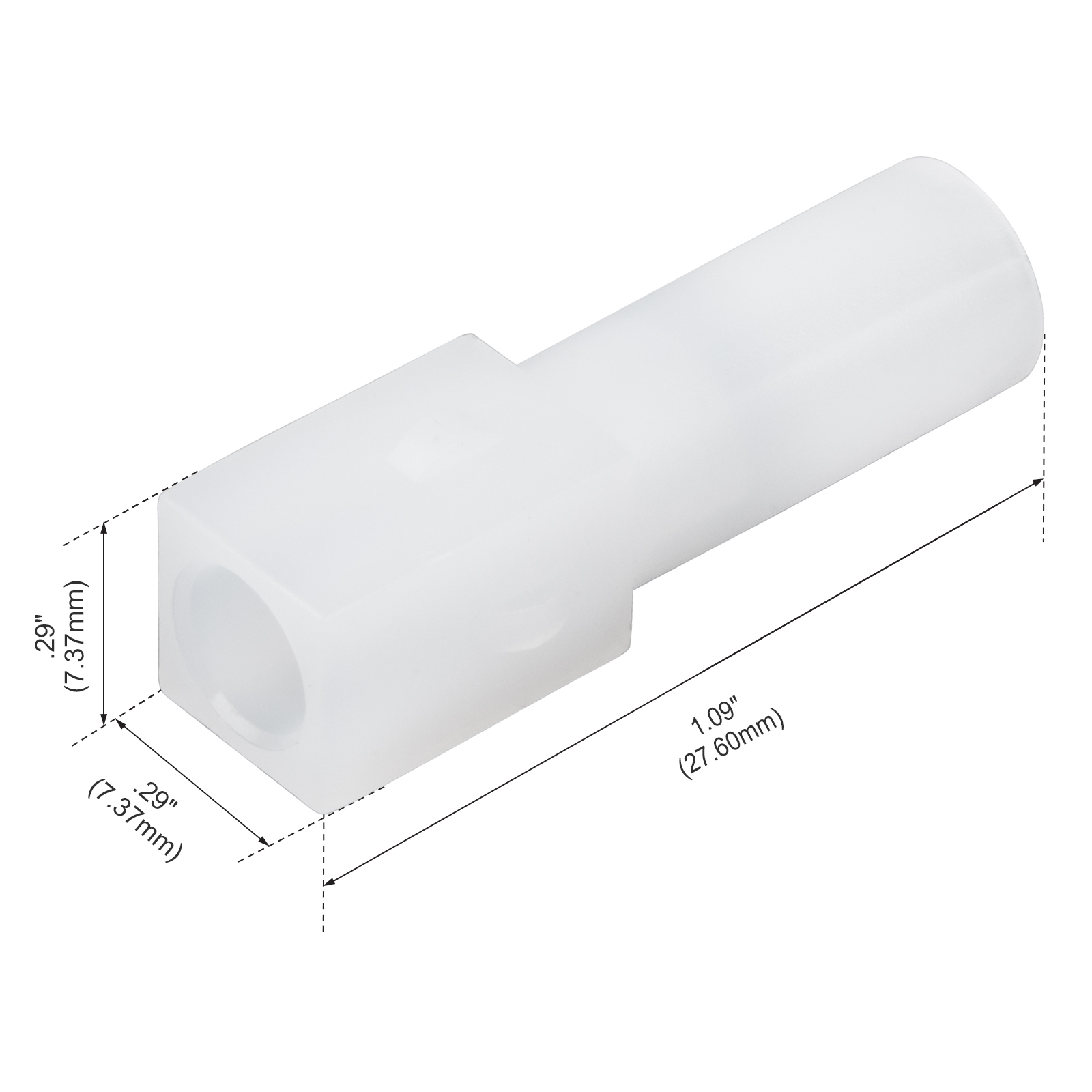

| Material | PA66 | Dimension | 27.60*7.37*7.37mm |
| Country of Origin | China | Weight | 0.83g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 600V | Rated Current | 13.5A |
