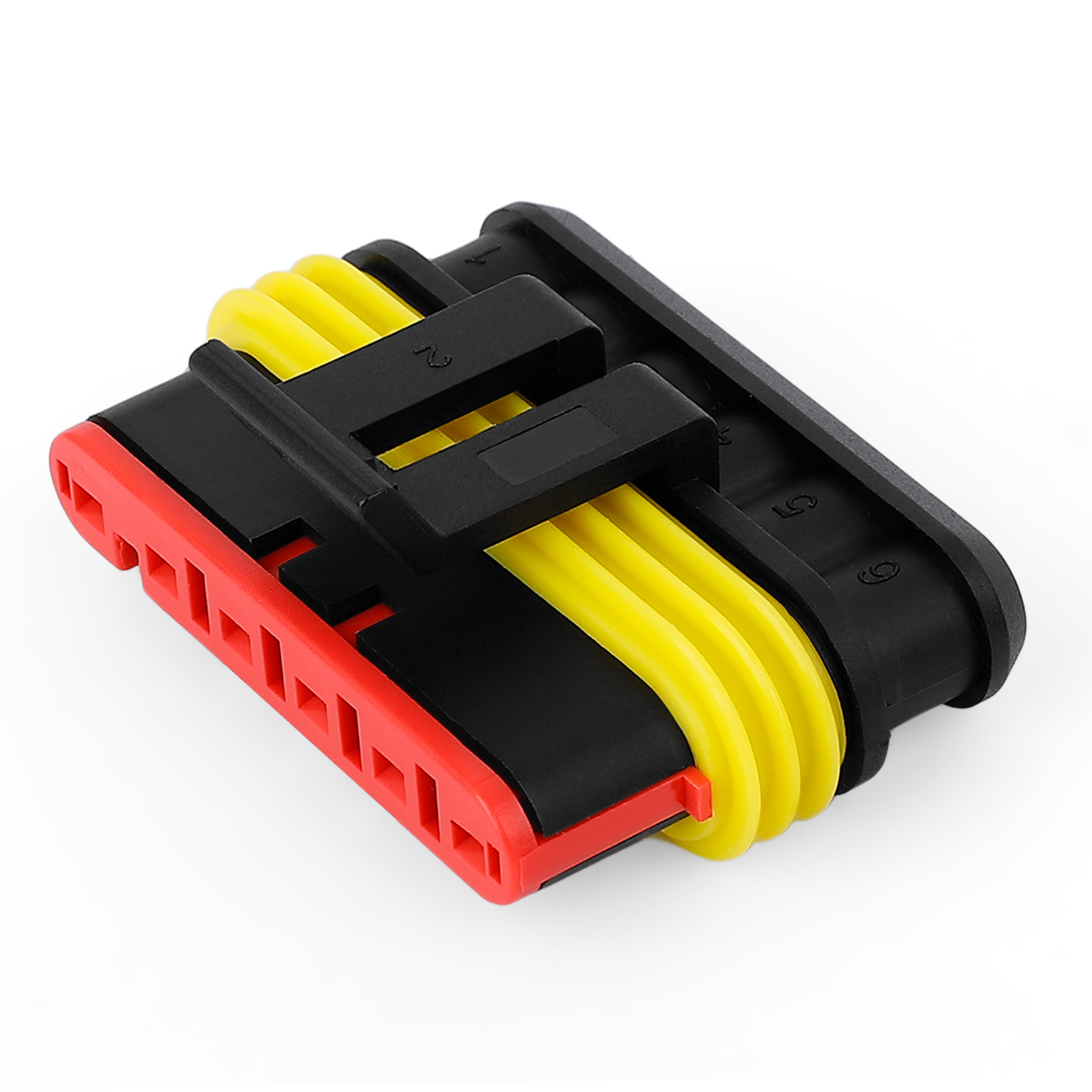

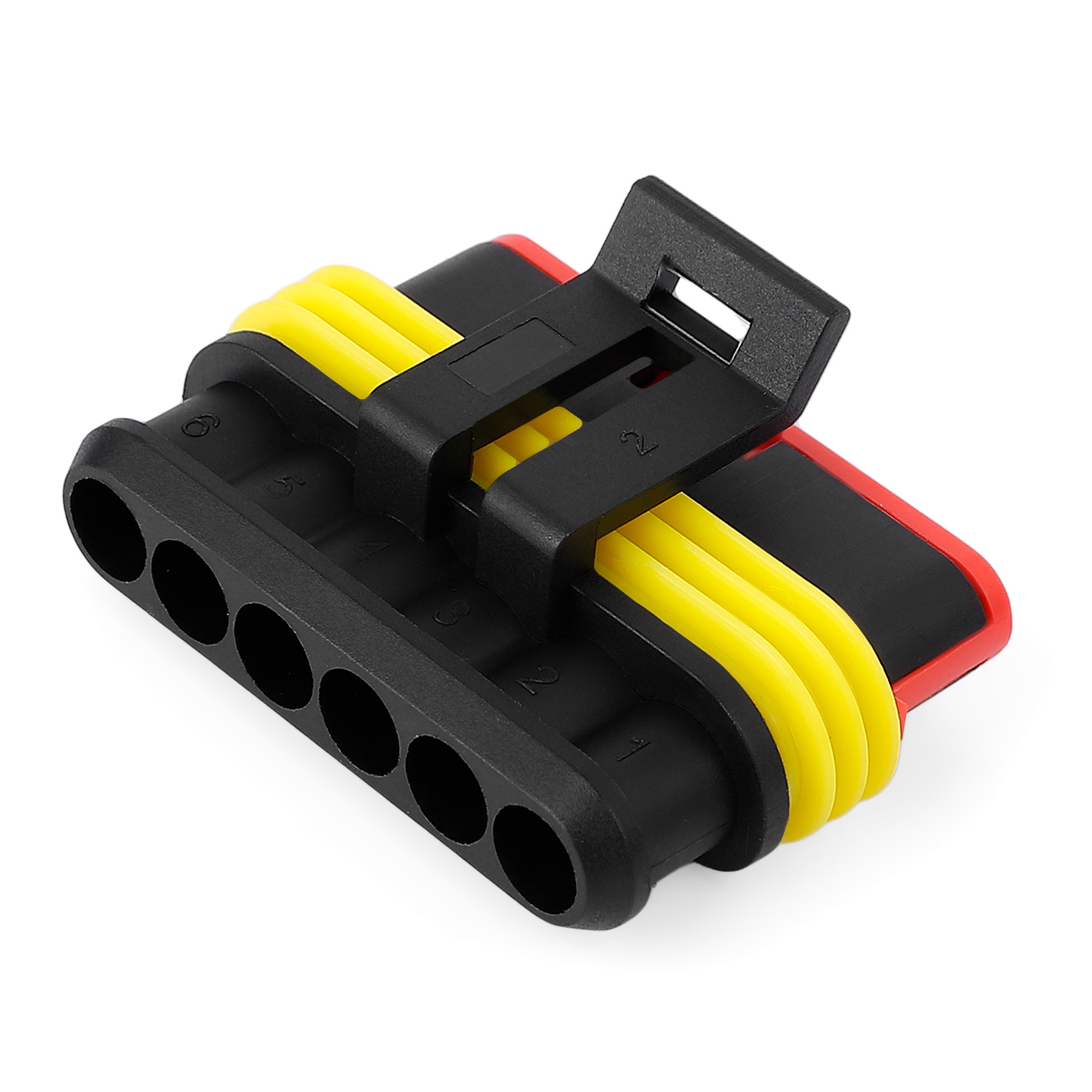

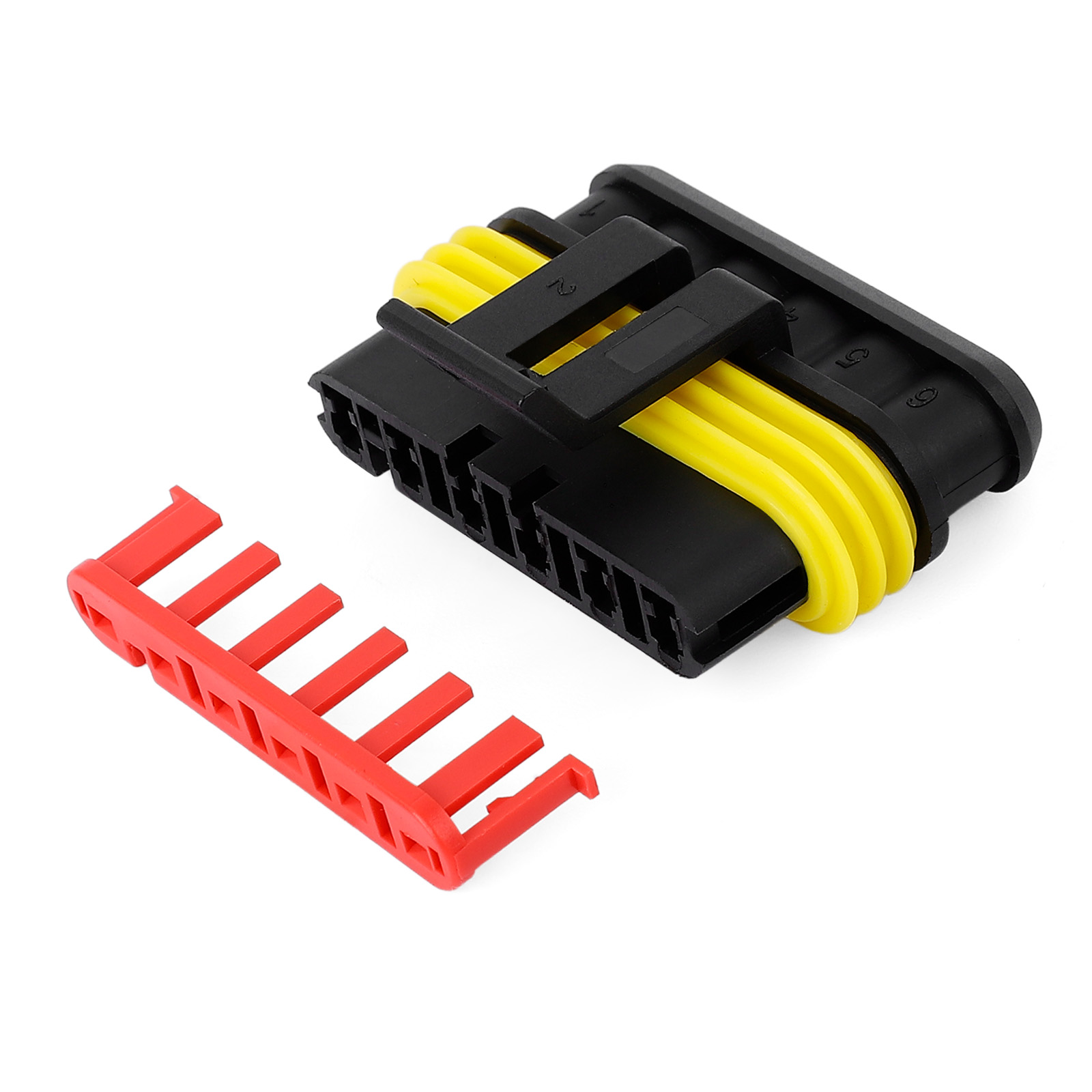

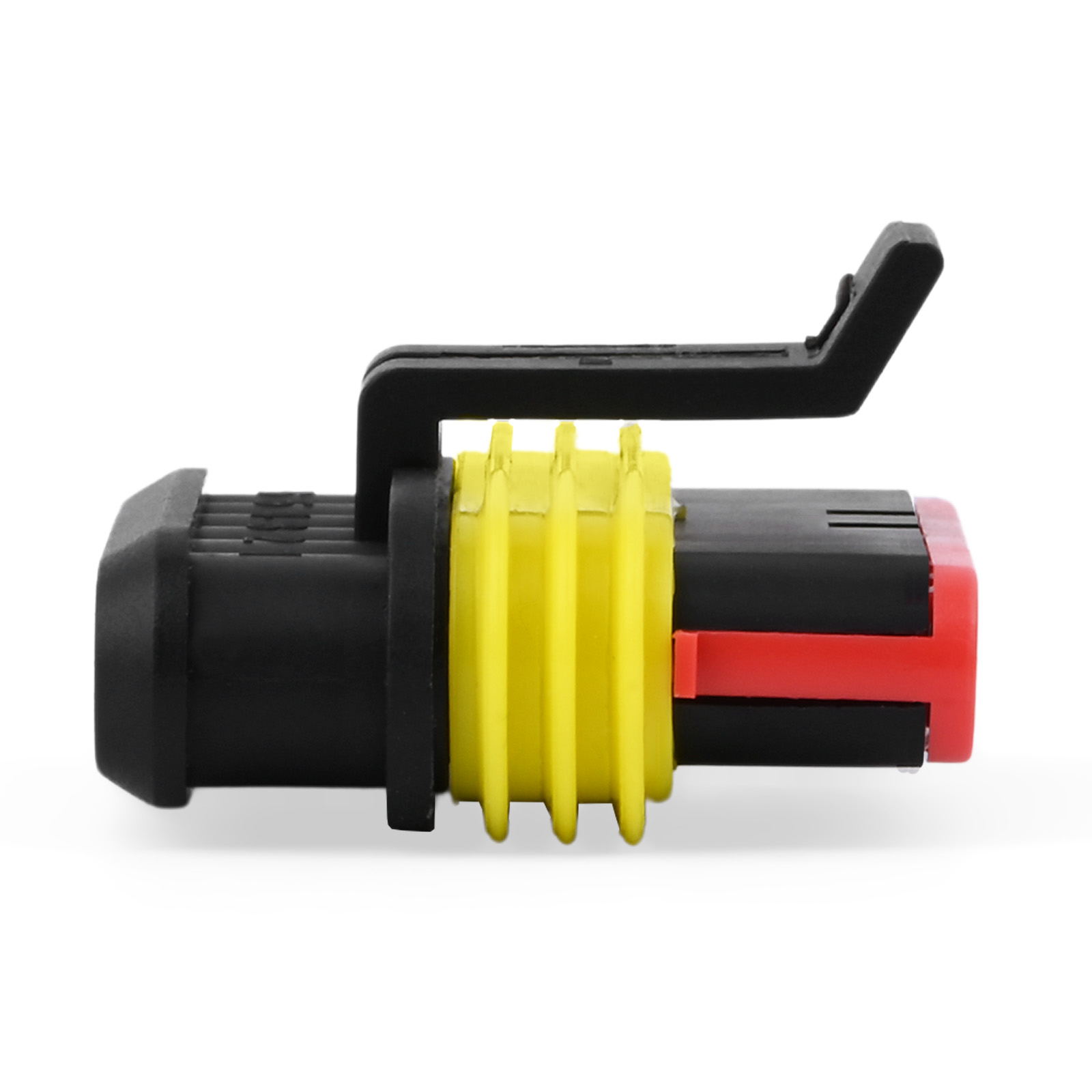

JRready SUPERSEAL 1.5 Series 282090-1 Waterproof Connector
1. IP67-rated, improved waterproof performance
2. Number of Cavities : 6 cavities；
3. Applied to the connection of electrical wiring harnesses under the engine hood of automobiles, trucks, buses, off-road vehicles, etc., or in sealed environments to solve the transmission of electrical performance of internal circuits in vehicles;
4. Wire Range: 0.35-2.50 mm²
2. Number of Cavities : 6 cavities；
3. Applied to the connection of electrical wiring harnesses under the engine hood of automobiles, trucks, buses, off-road vehicles, etc., or in sealed environments to solve the transmission of electrical performance of internal circuits in vehicles;
4. Wire Range: 0.35-2.50 mm²
| Brand | JRready | Part Number | 282090-1 |
| Category | JRready SUPERSEAL 1.5 Series | Colour | Black |

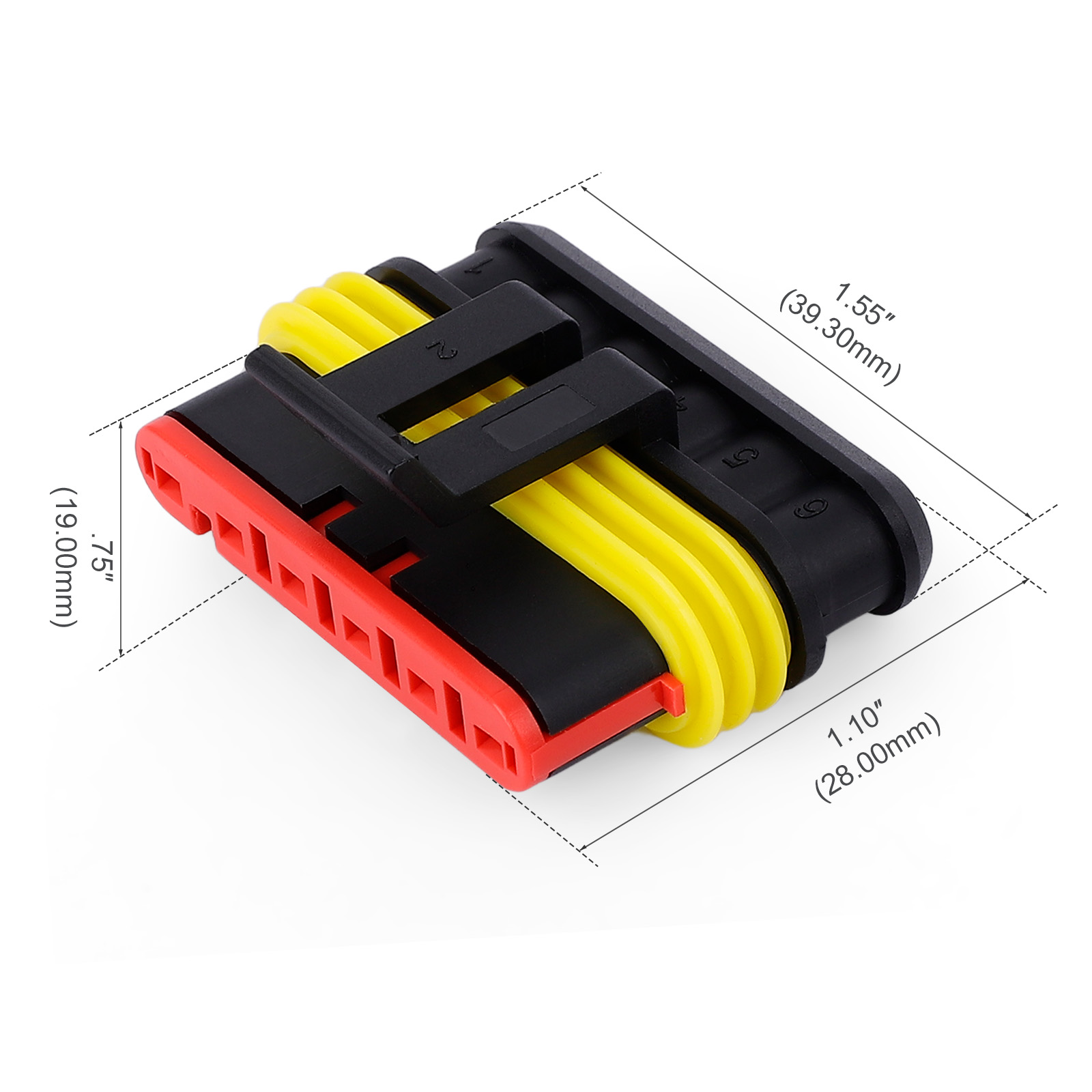

| Material | PA66 | Dimension | 28.0*19.0*39.3mm |
| Country of Origin | China | Weight | 6.55g |
| Application | Applied to the connection of electrical wiring harnesses under the engine hood of automobiles, trucks, buses, off-road vehicles, etc., or in sealed environments to solve the transmission of electrical performance of internal circuits in vehicles | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 24VDC | Rated Current | 14A(MAX) |
