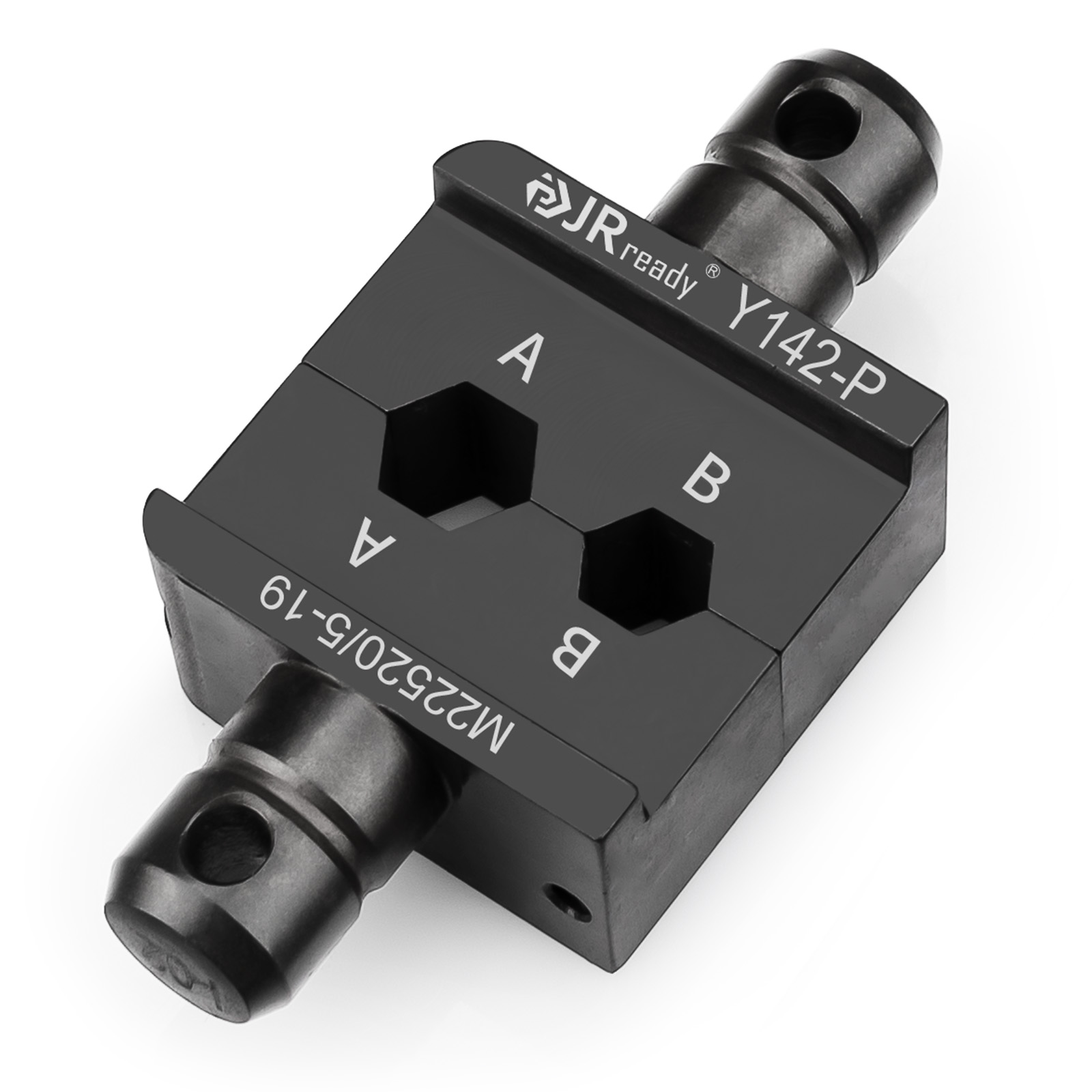

JRready Y142-P(M22520/5-19) Crimp Die

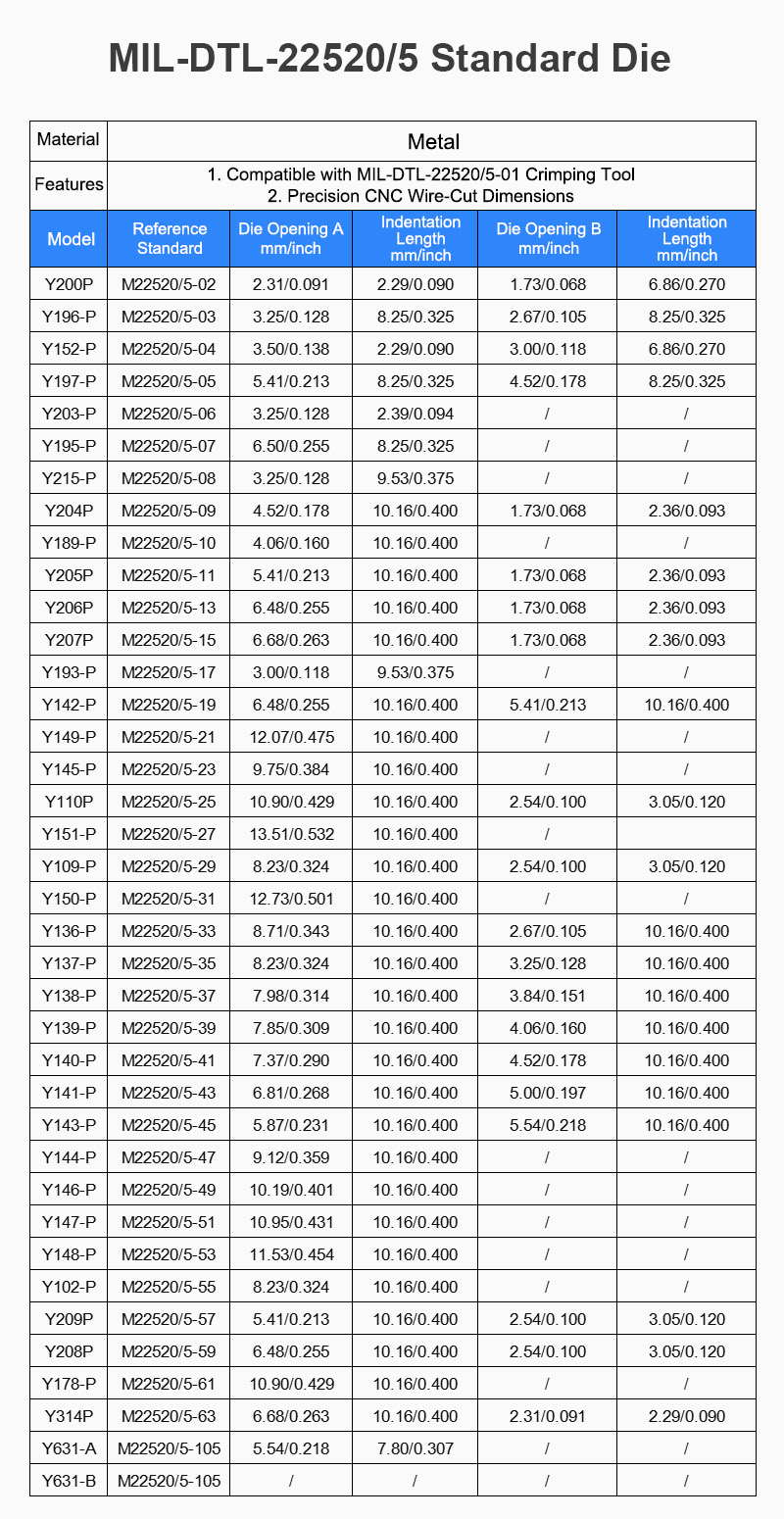

1. Designed according to U.S. Military StandardM22520/5-19;

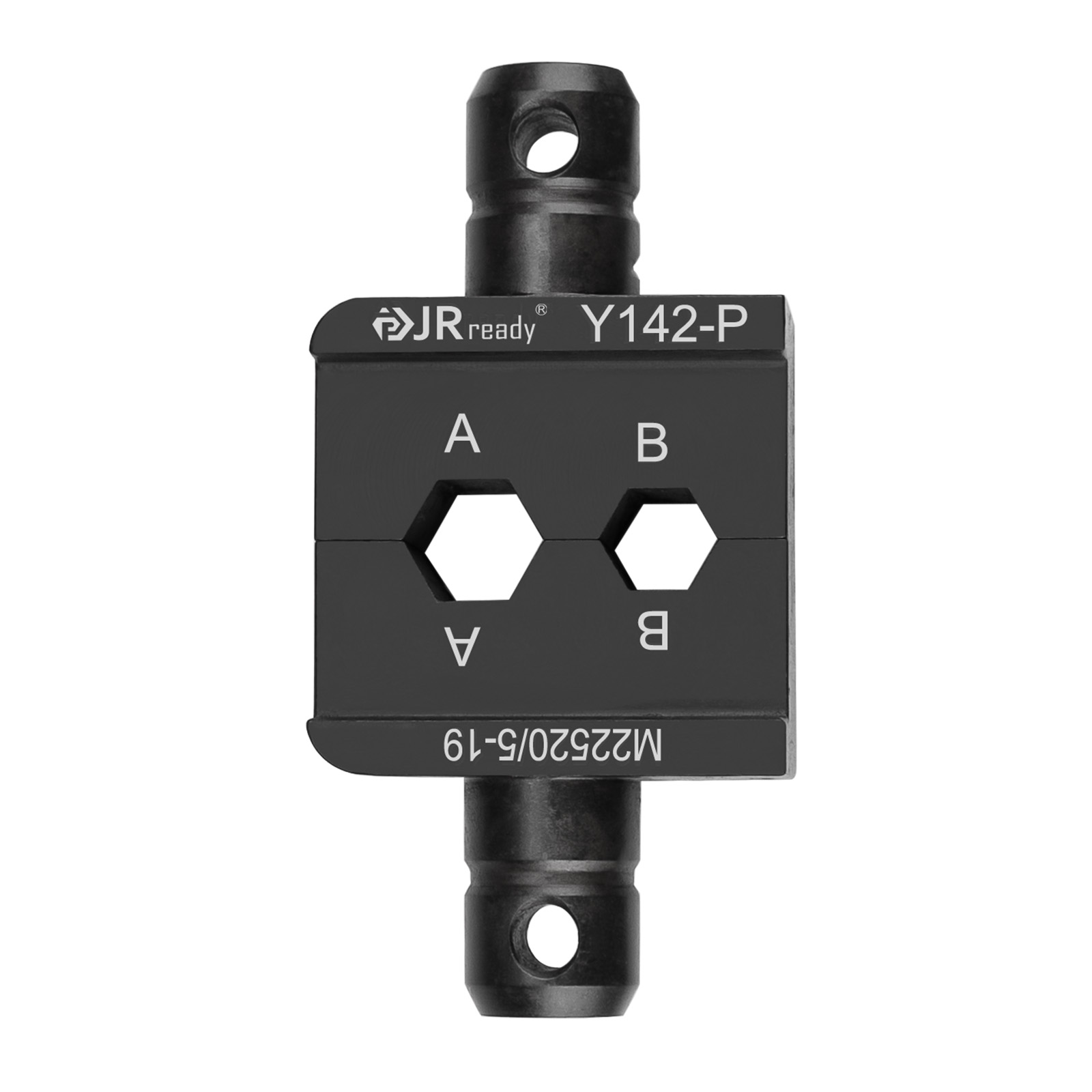

2. Cavity A: 6.48mm opening, 10.16mm indentation length; Cavity B: 5.41mm opening, 10.16mm indentation length;

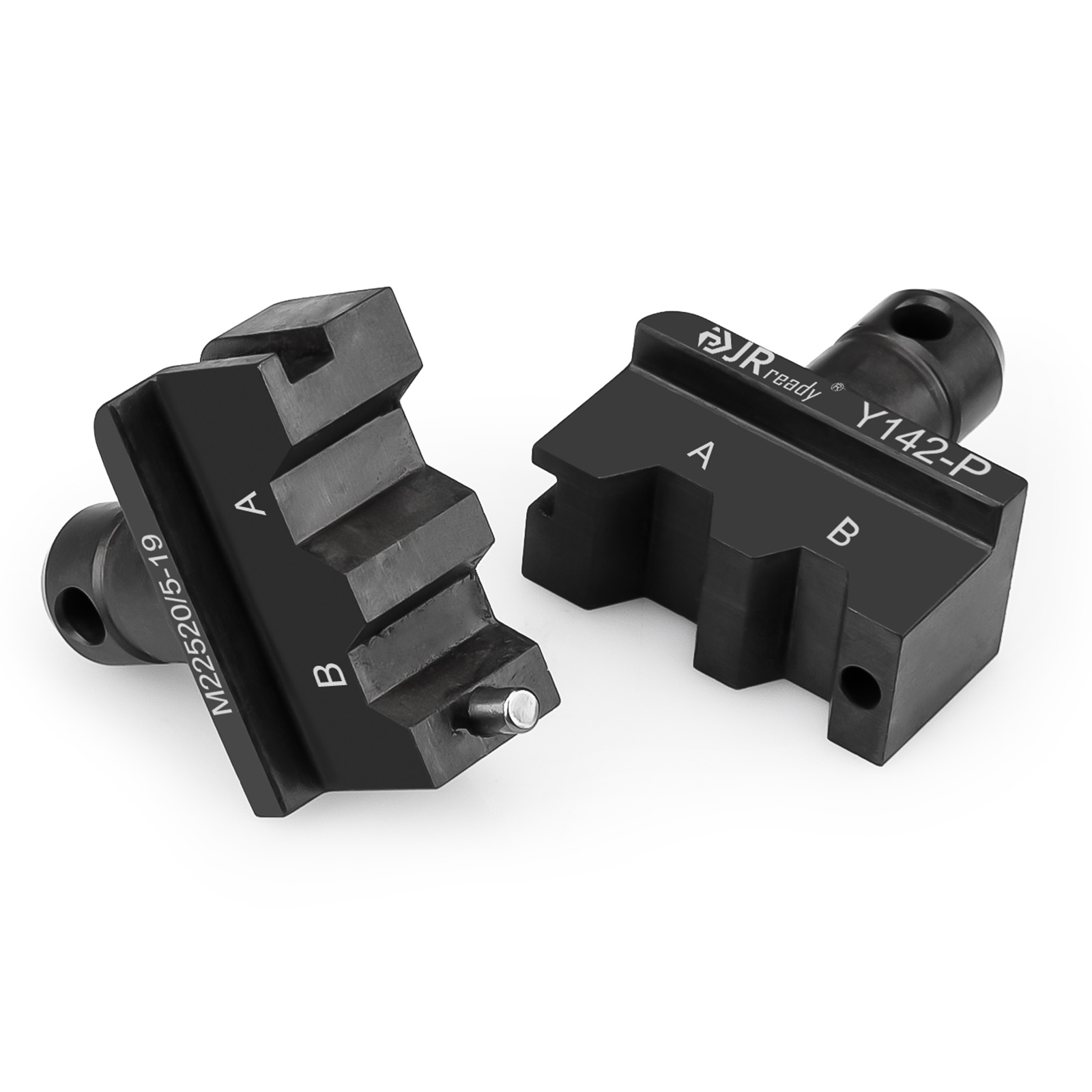

3. Equipped with guiding pins to ensure consistent alignment during die closure;

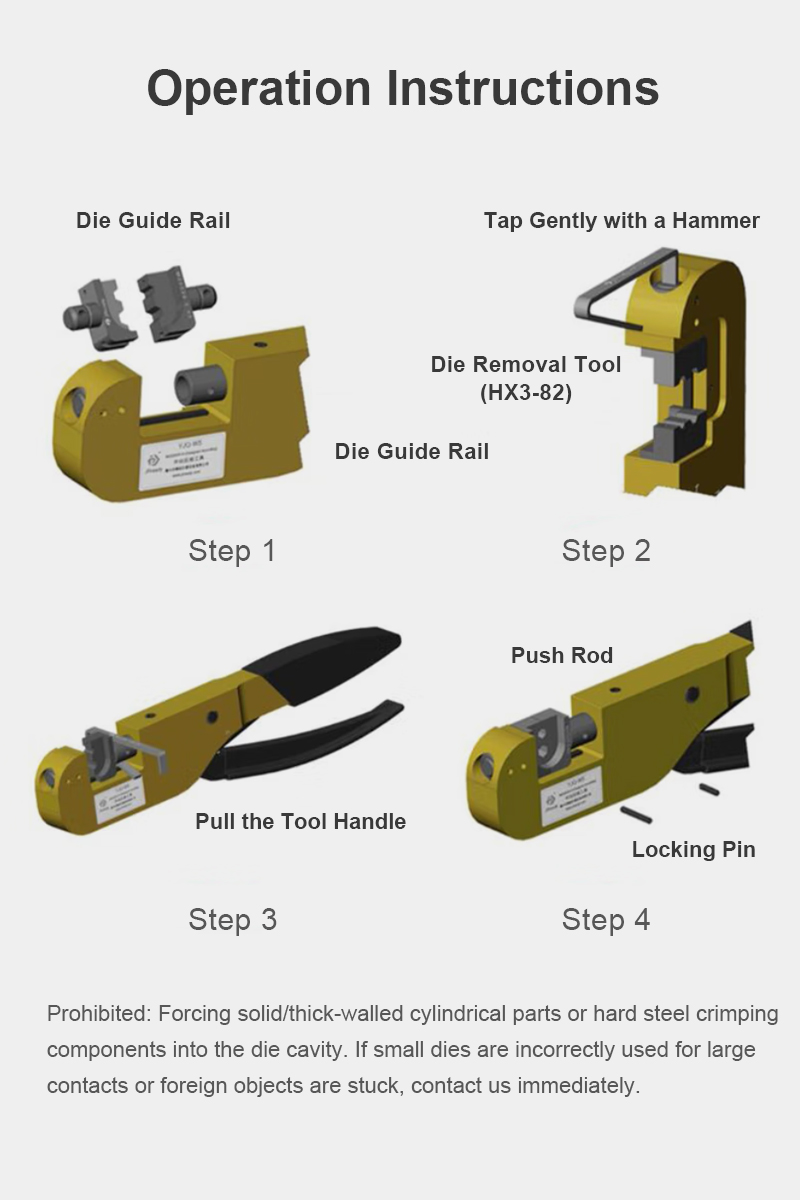

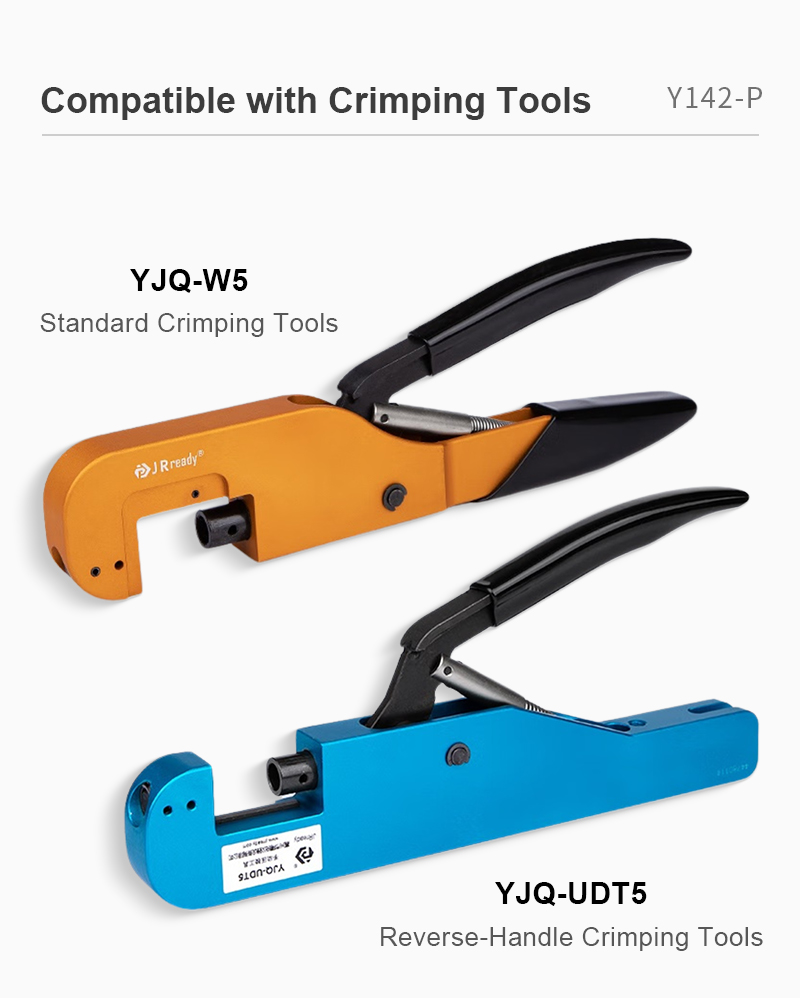

4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
2. Cavity A: 6.48mm opening, 10.16mm indentation length; Cavity B: 5.41mm opening, 10.16mm indentation length;
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
| Brand | JRready | Part Number | Y142-P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | Black |

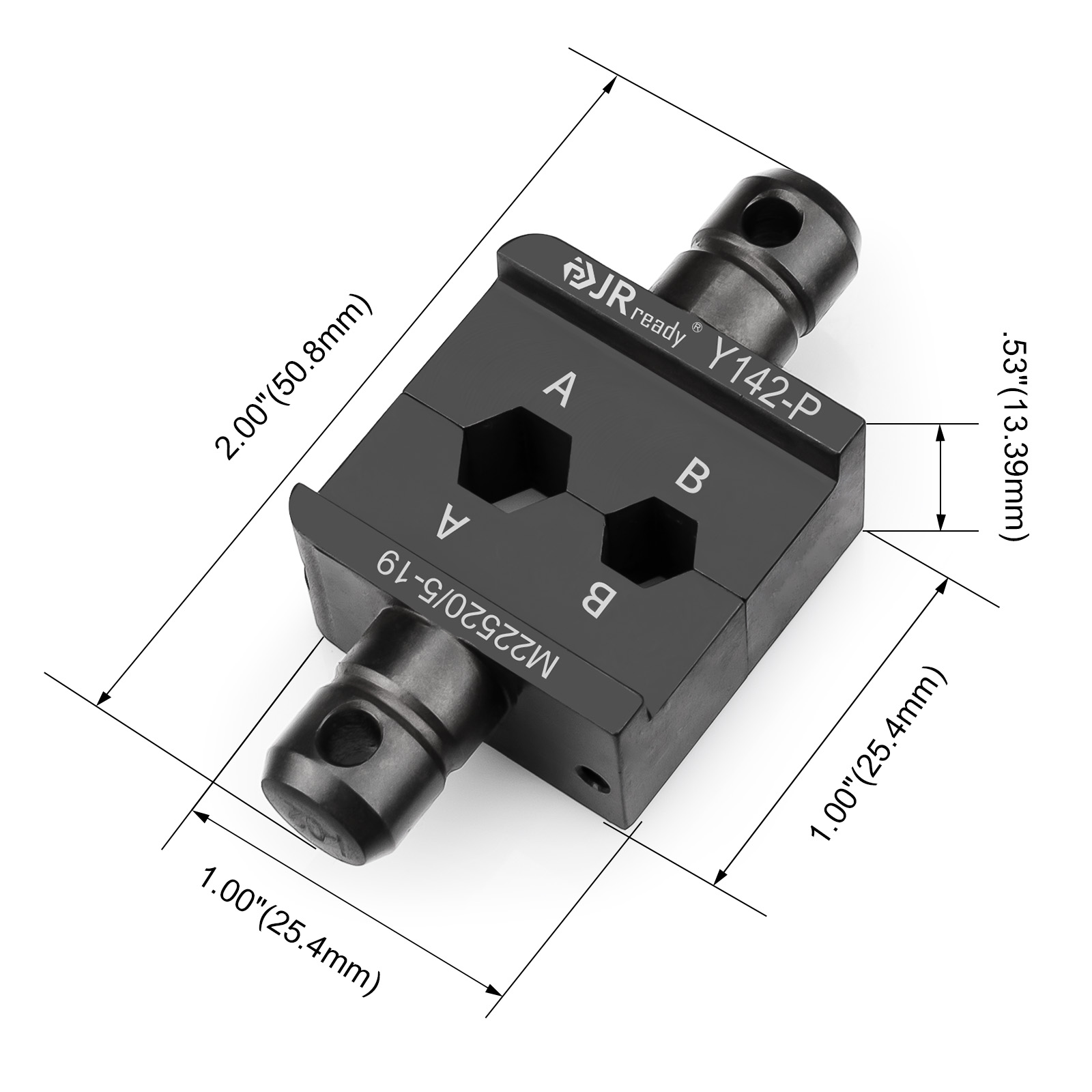

| Material | Mold Steel | Dimension | 25.4*50.8*13.4mm |
| Country of Origin | China | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
