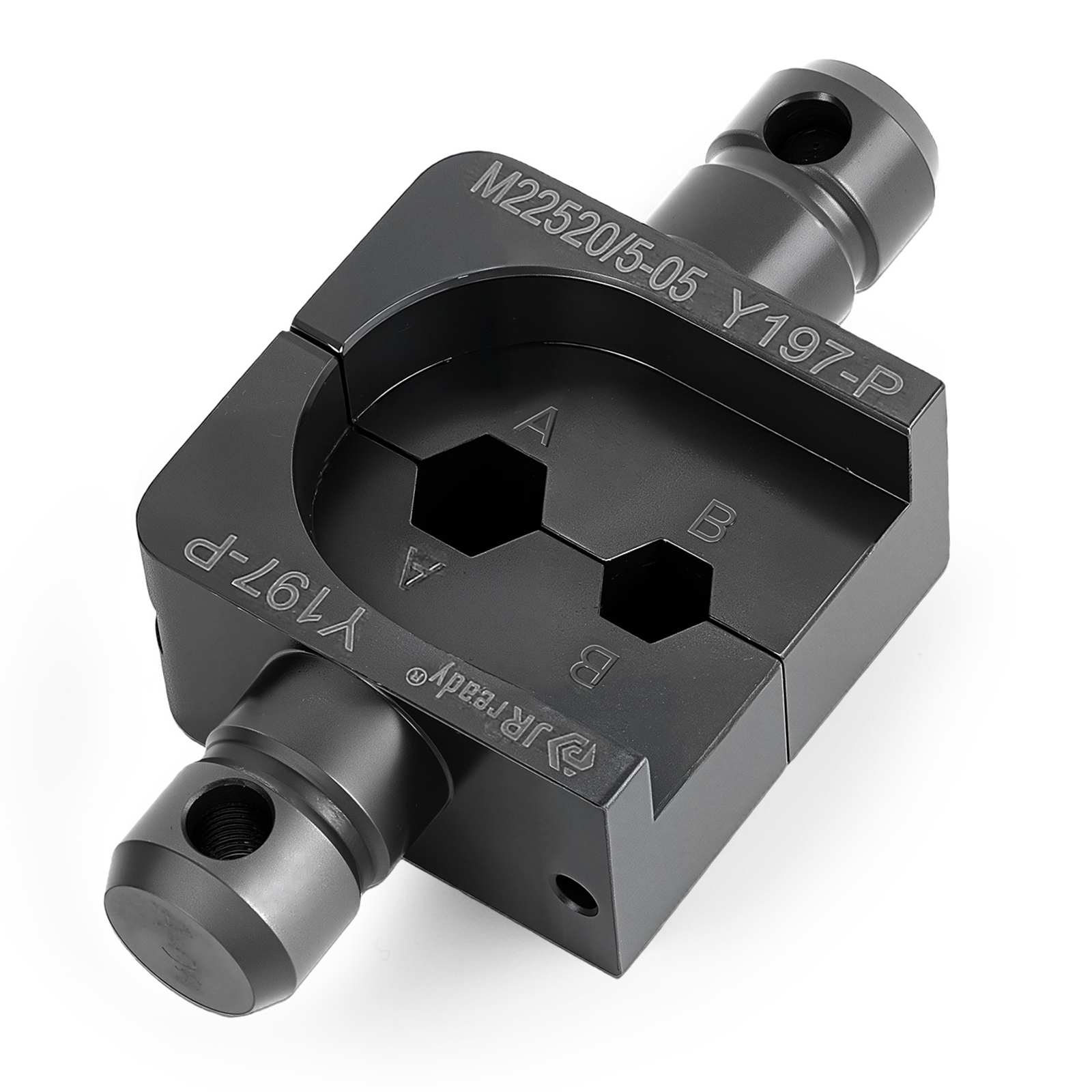

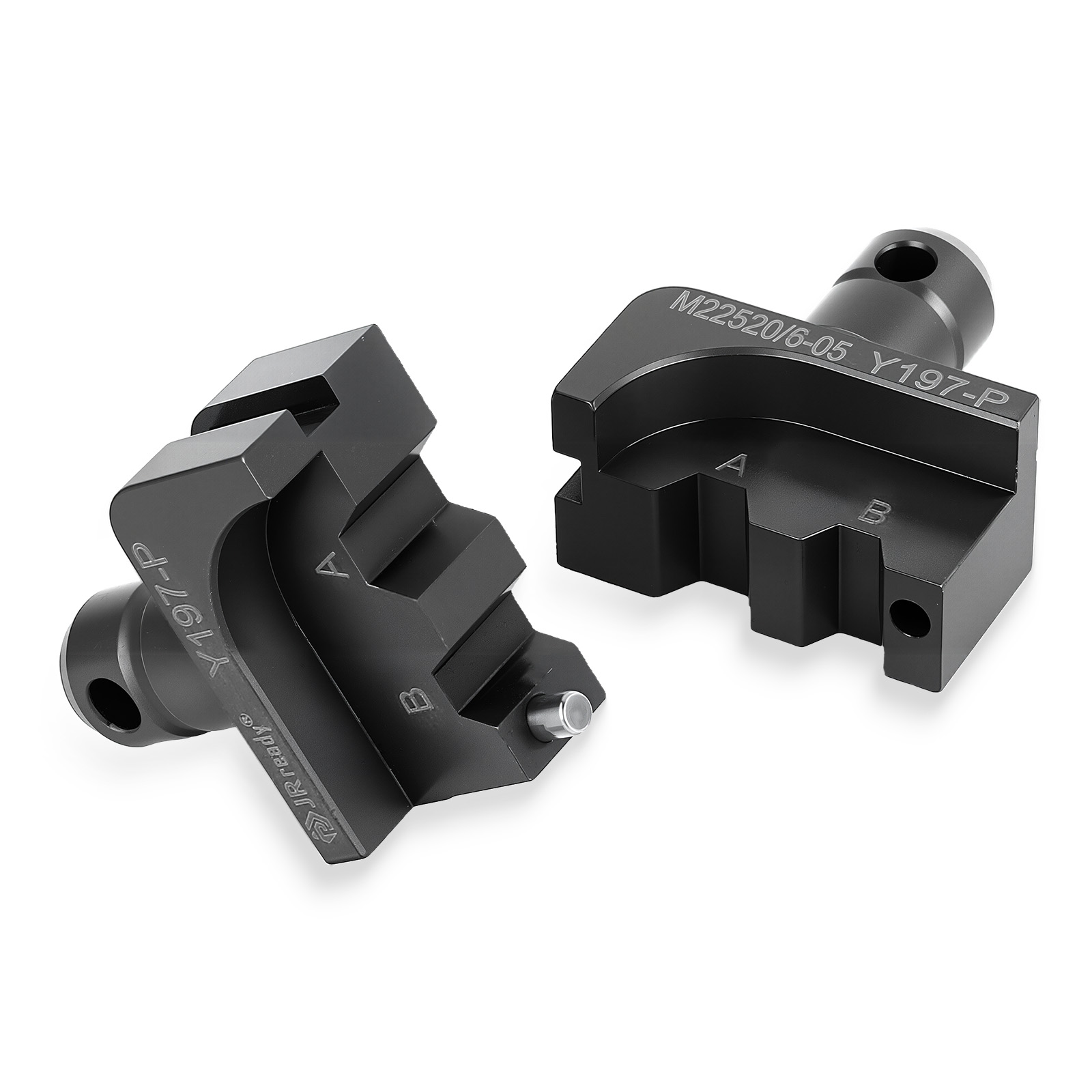

JRready Y197-P (M22520/5-05) Crimp Die
1. Designed in compliance with U.S. Military Standard M22520/5-05

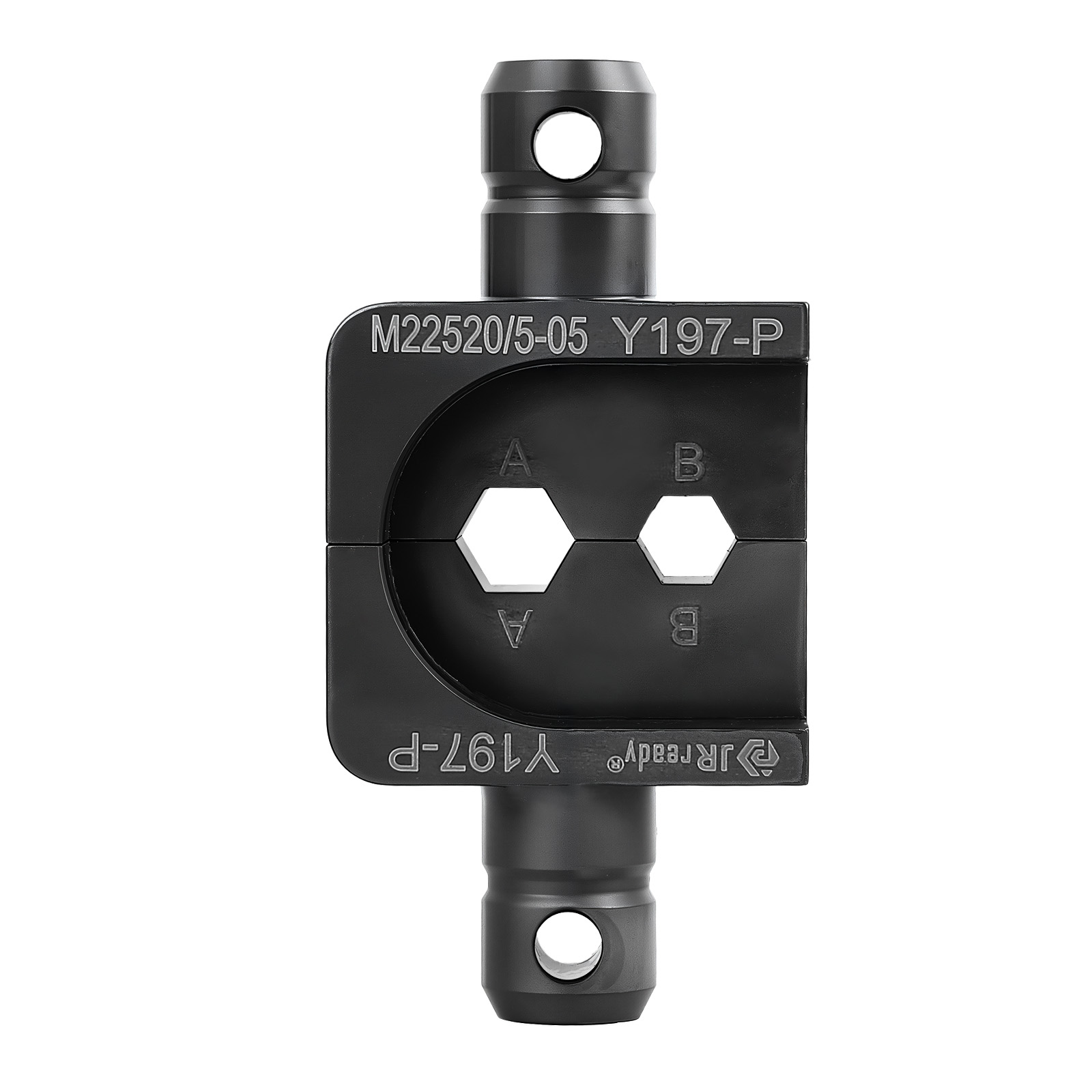

2. Cavity A: opening 5.41mm, indentation length 8.25mm; Cavity B: opening 4.52mm, indentation length 8.25mm
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimping tool models YJQ-W5 and YJQ-UDT5
2. Cavity A: opening 5.41mm, indentation length 8.25mm; Cavity B: opening 4.52mm, indentation length 8.25mm
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimping tool models YJQ-W5 and YJQ-UDT5
| Brand | JRready | Part Number | Y197-P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | Black |

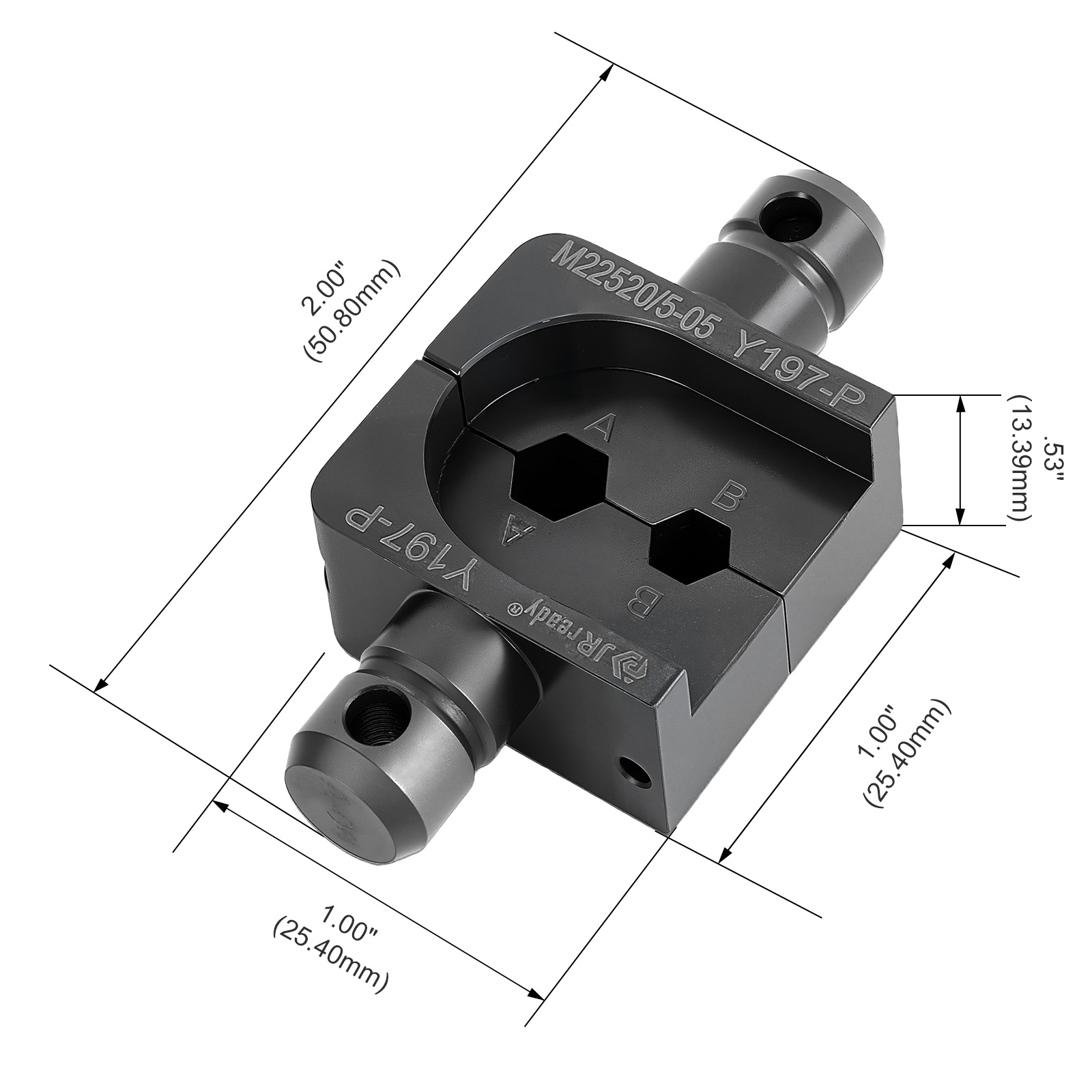

| Material | Mold Steel | Dimension | 25.4*50.8*13.4mm |
| Country of Origin | China | Weight | 57.7g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
