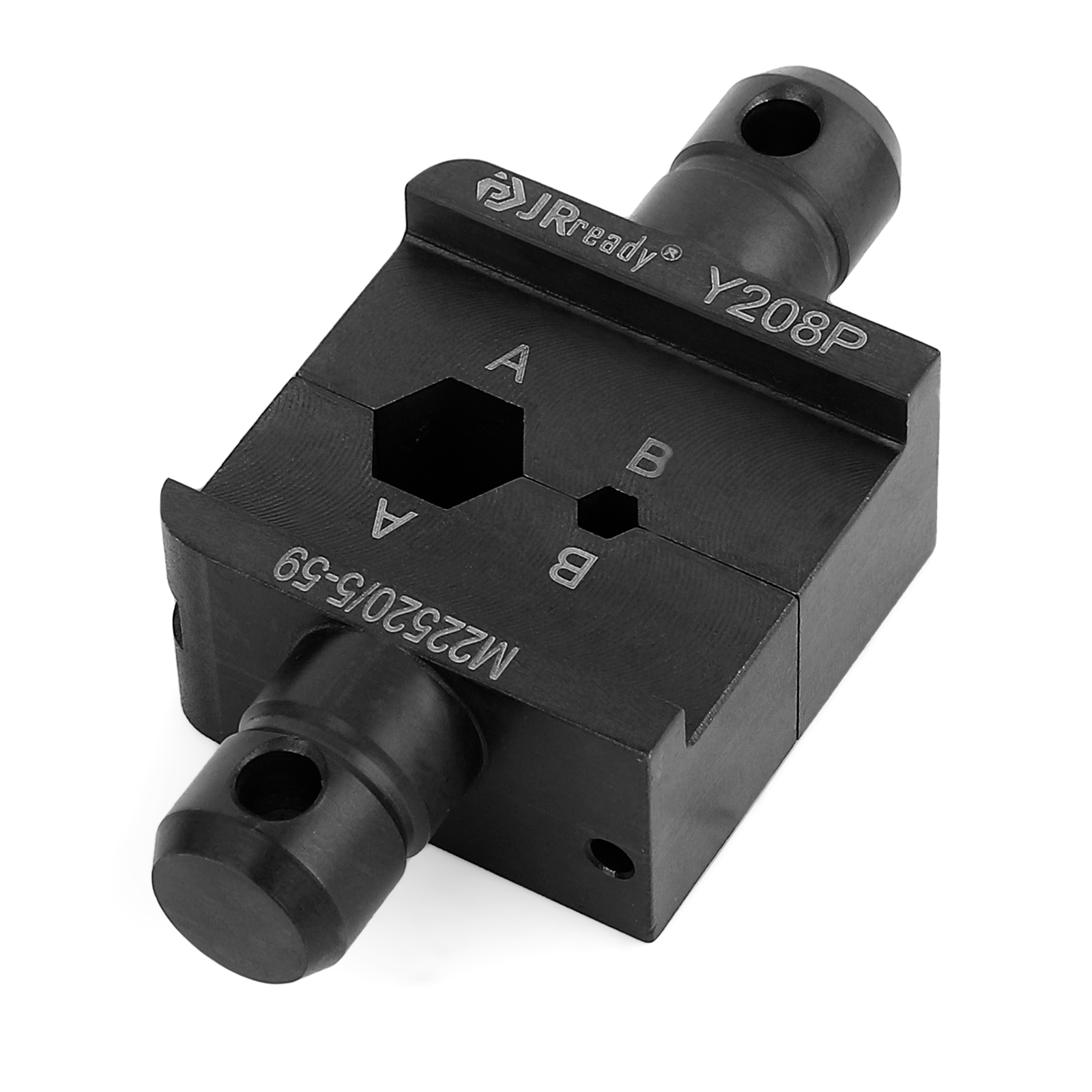

JRready Y208P (M22520/5-59) Crimp Die
1. Designed with reference to the US military standard M22520/5-59;

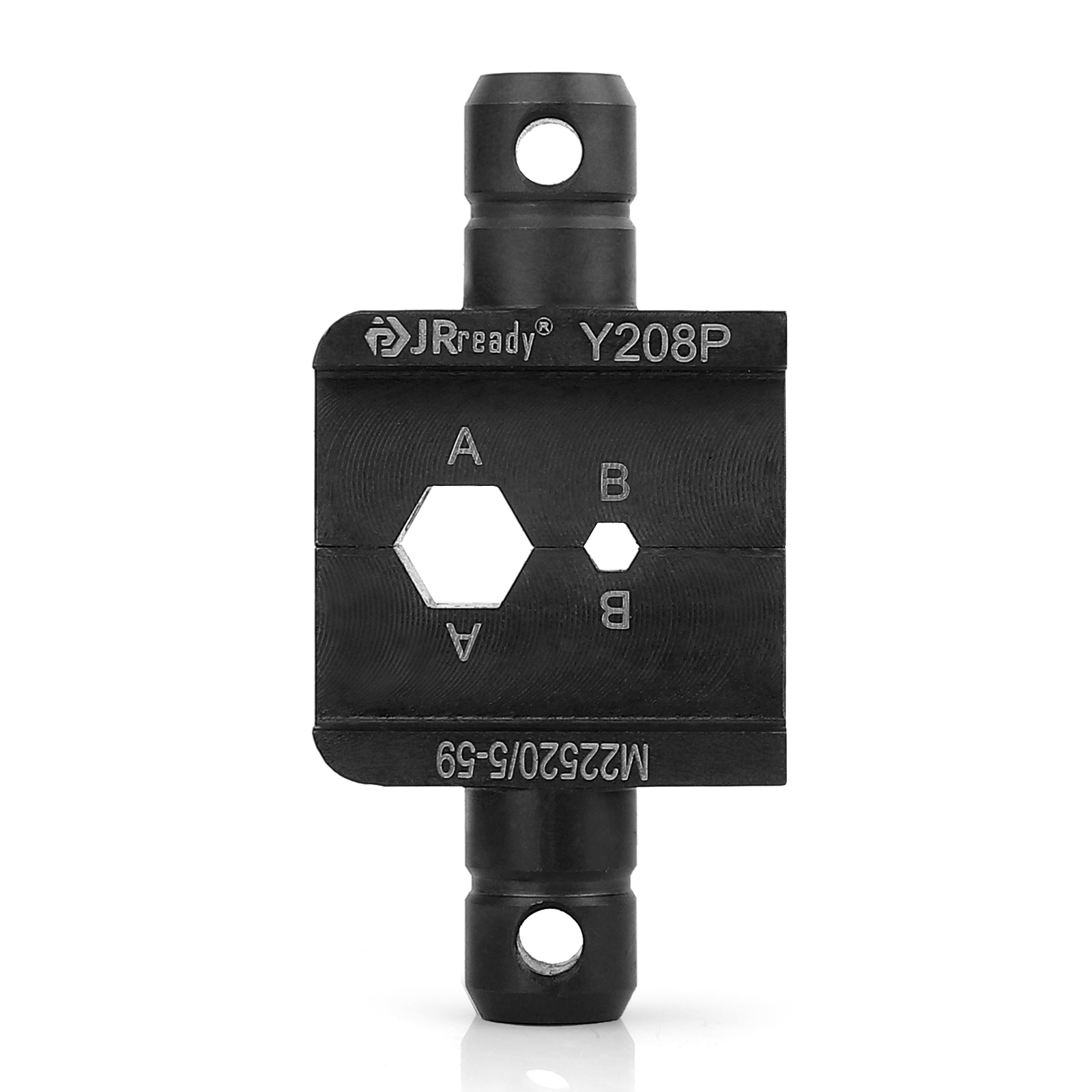

2. Cavity A opening 6.48mm, indentation length 10.16mm; Cavity B opening 2.54mm, indentation length 3.056mm;

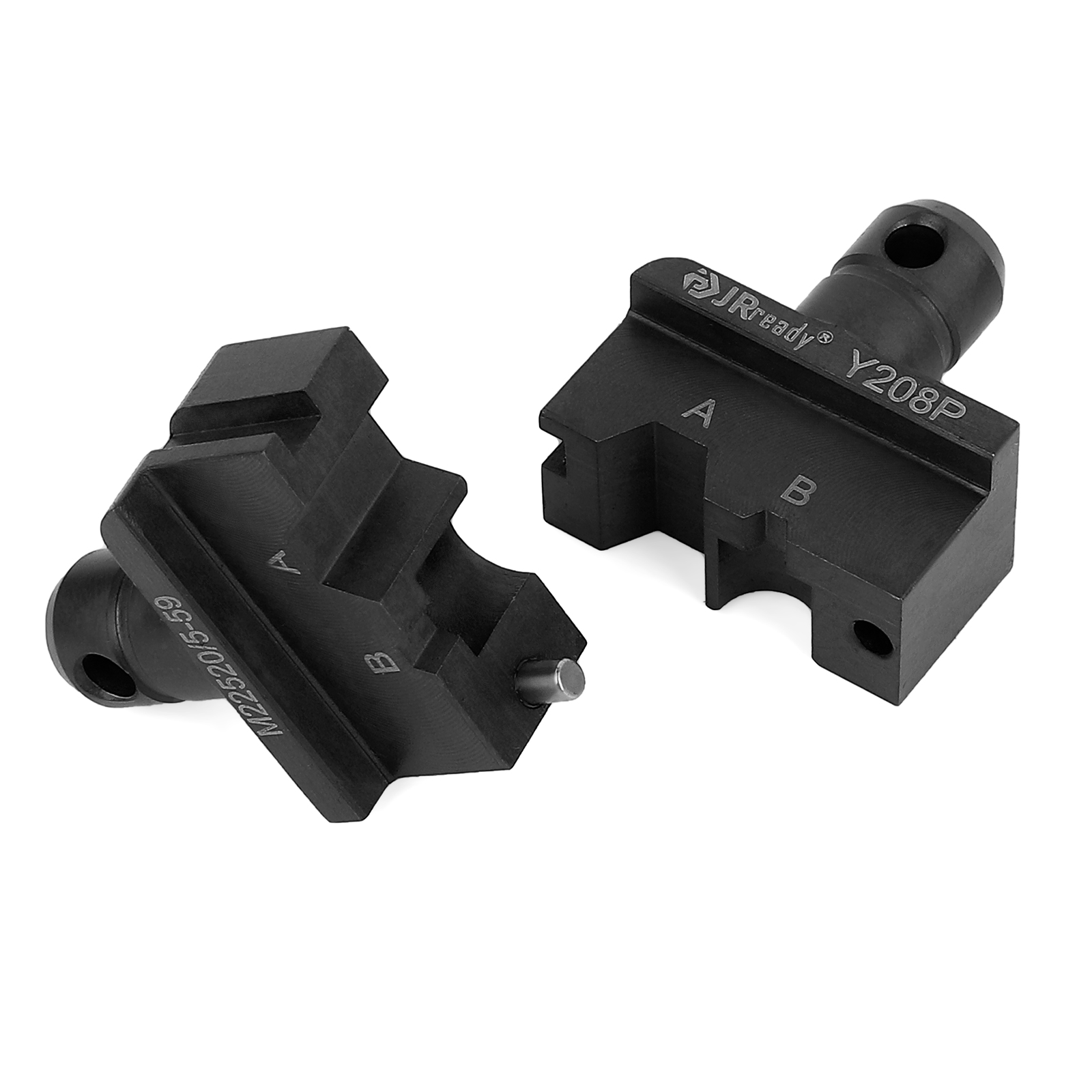

3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
2. Cavity A opening 6.48mm, indentation length 10.16mm; Cavity B opening 2.54mm, indentation length 3.056mm;
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
| Brand | JRready | Part Number | Y208P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | Black |

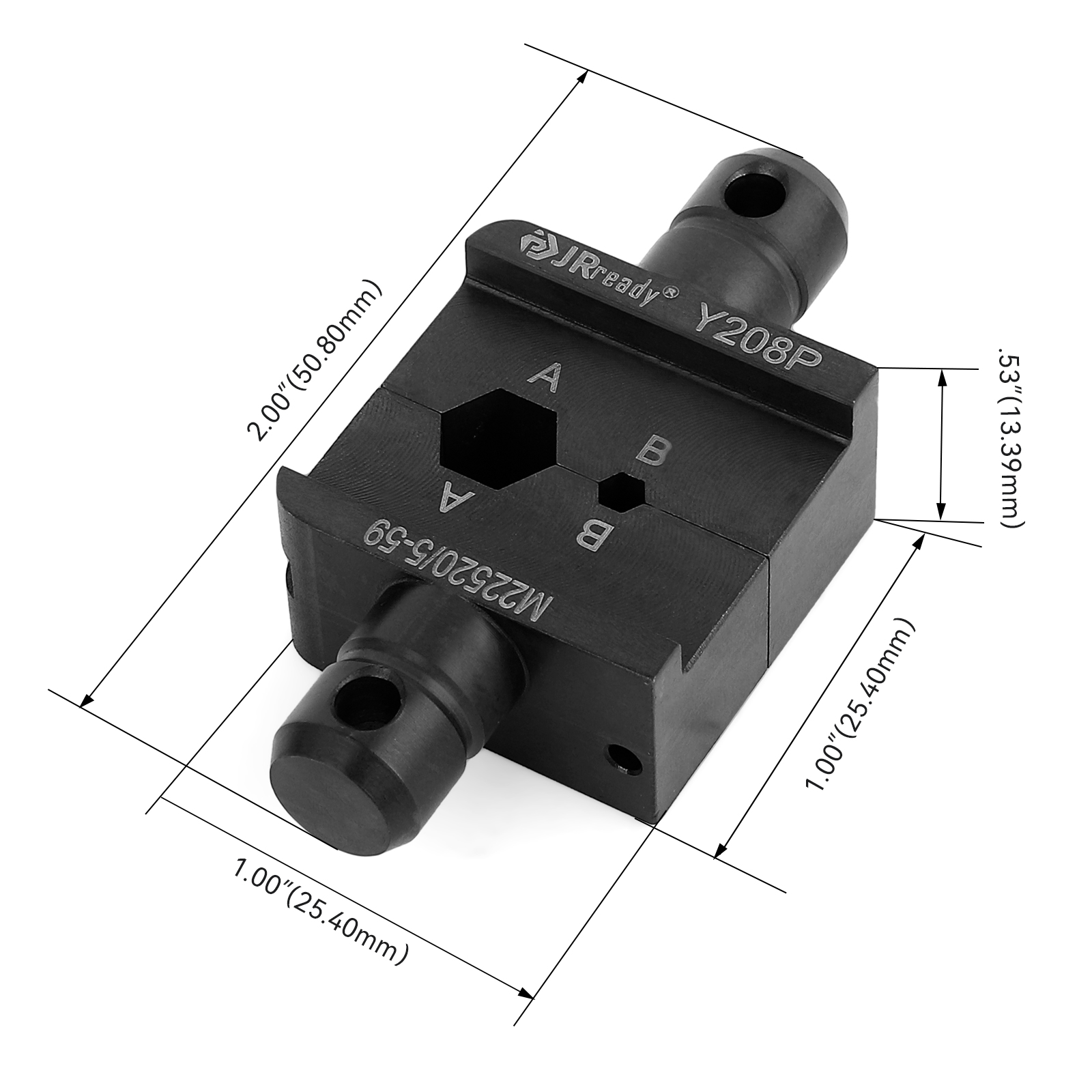

| Material | Mold Steel | Dimension | 25.4*50.8*13.4mm |
| Country of Origin | China | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
