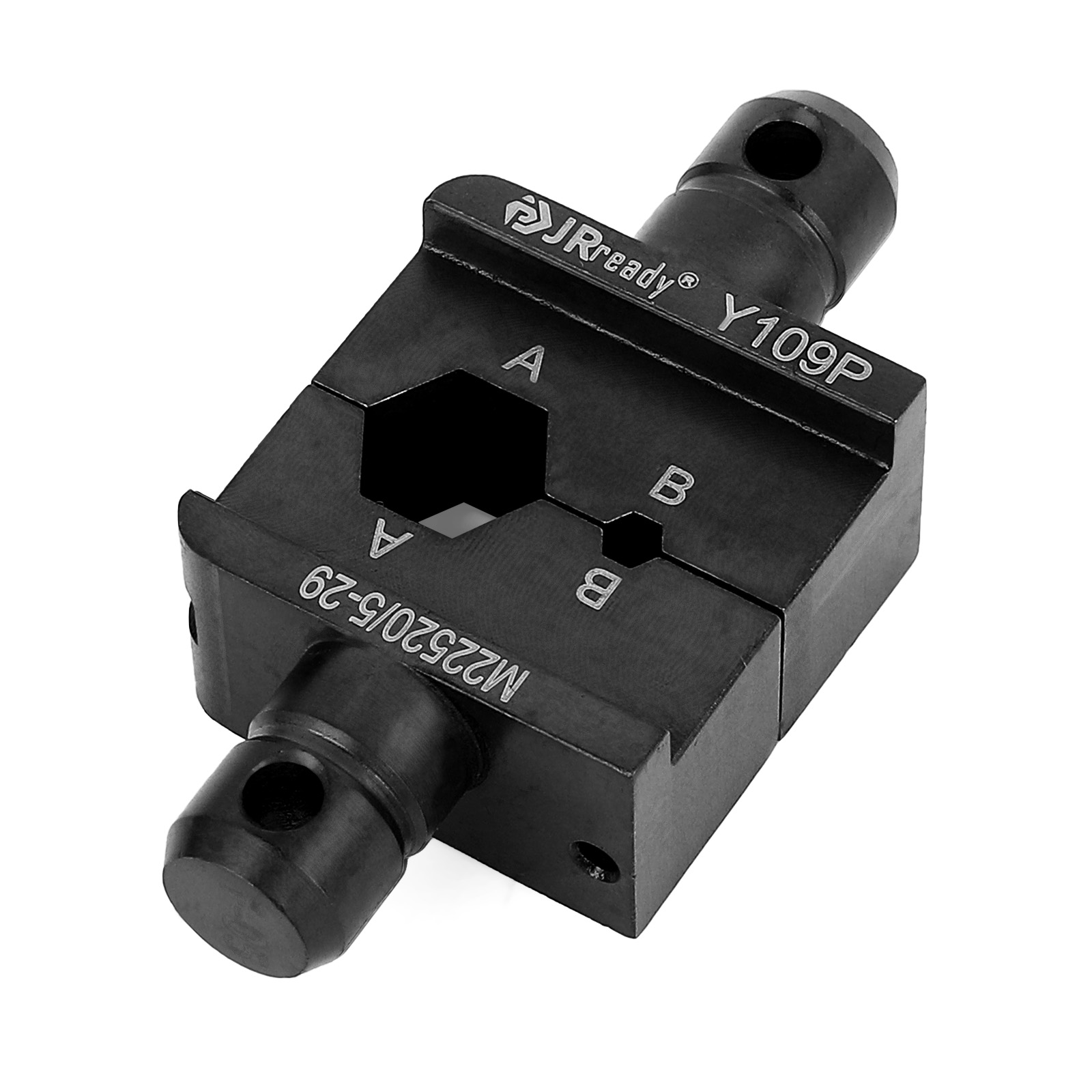

JRready Y109P (M22520/5-29) Crimp Die
1. Designed according to U.S. Military Standard M22520/5-29;

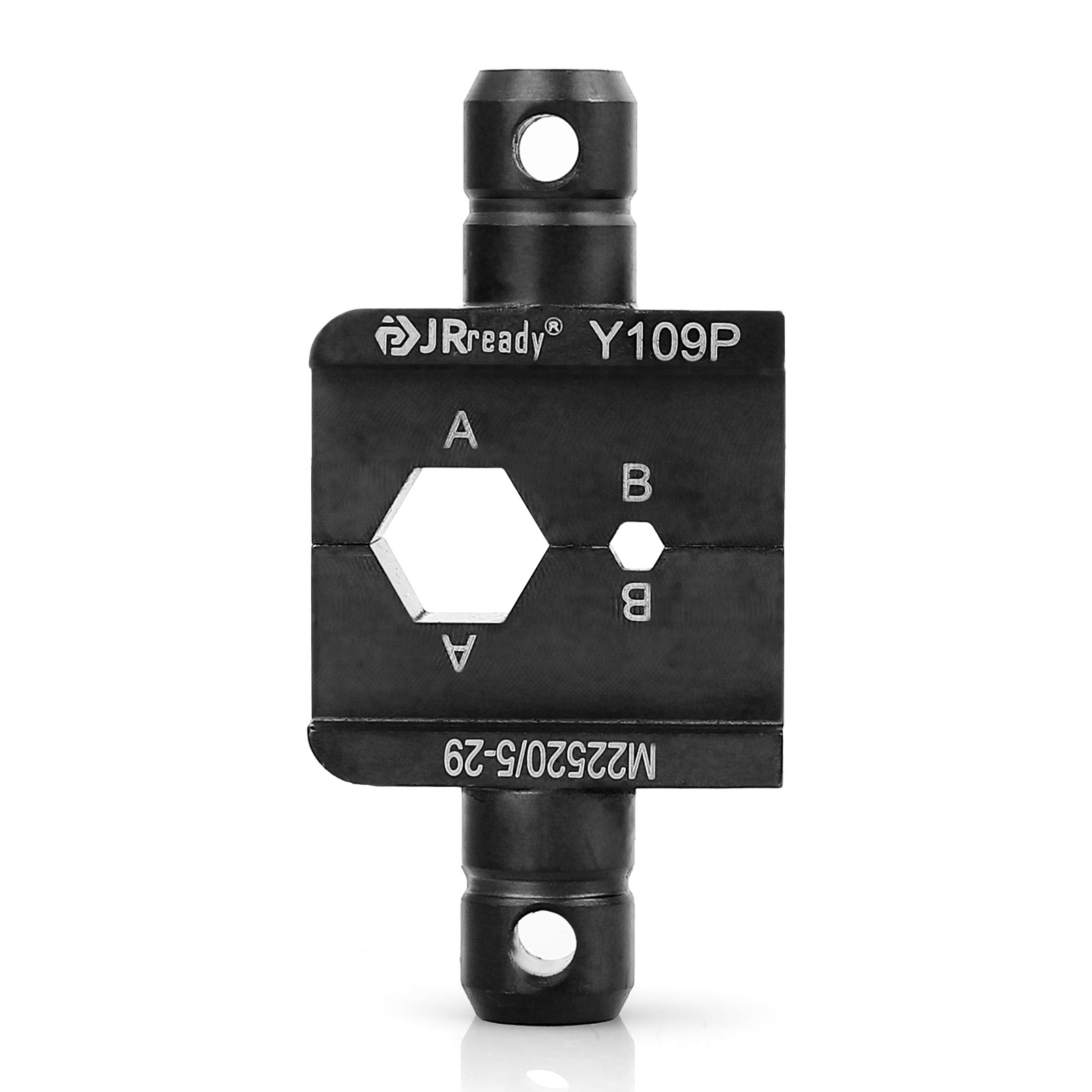

2. Cavity A: 3.23mm opening, 10.16mm indentation length; Cavity B: 2.54mm opening, 3.056mm indentation length;φ6.35mm，7.01mm indentation length

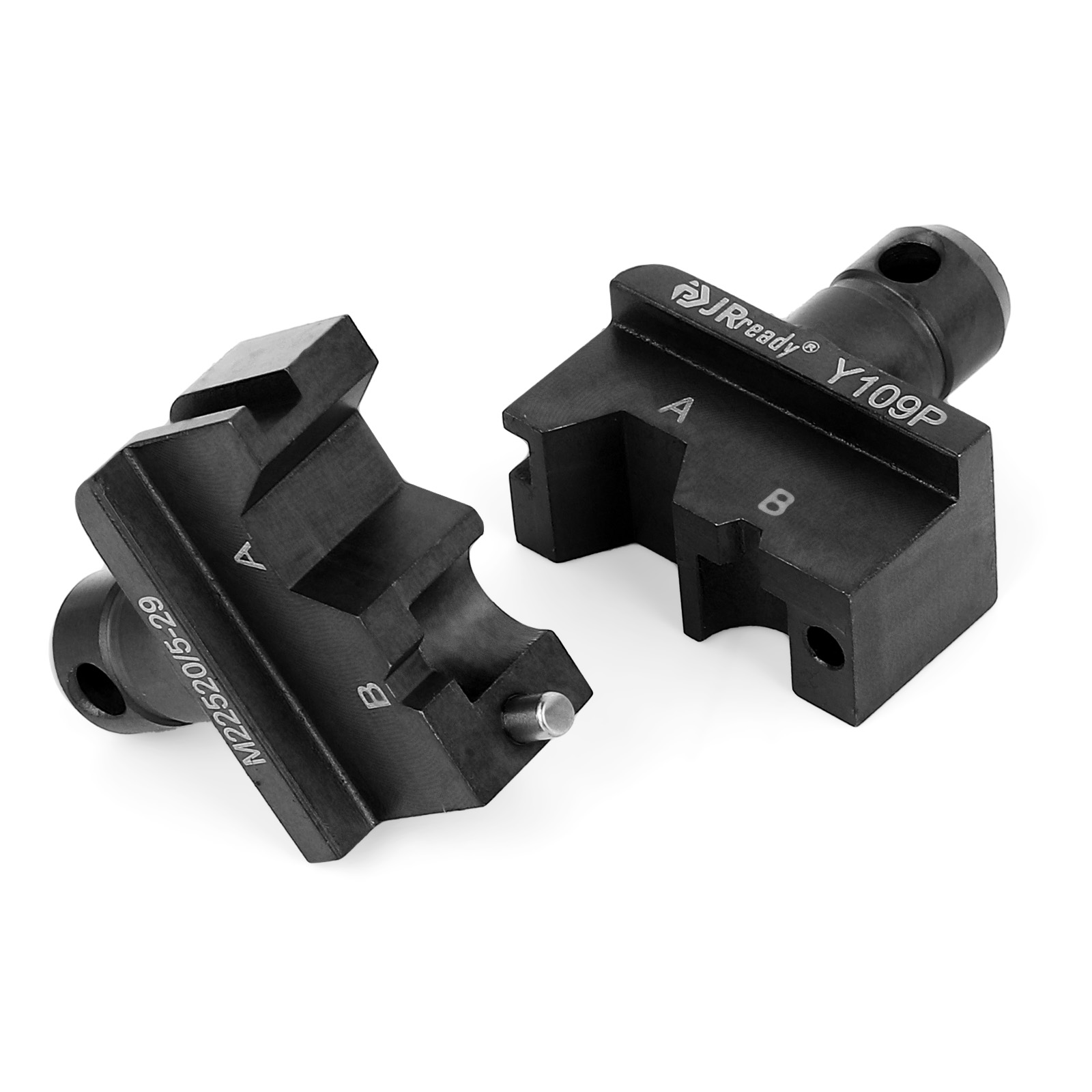

3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
2. Cavity A: 3.23mm opening, 10.16mm indentation length; Cavity B: 2.54mm opening, 3.056mm indentation length;φ6.35mm，7.01mm indentation length
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
| Brand | JRready | Part Number | Y109 |
| Category | MIL-Spec Positioner & Die Set | Colour | Black |

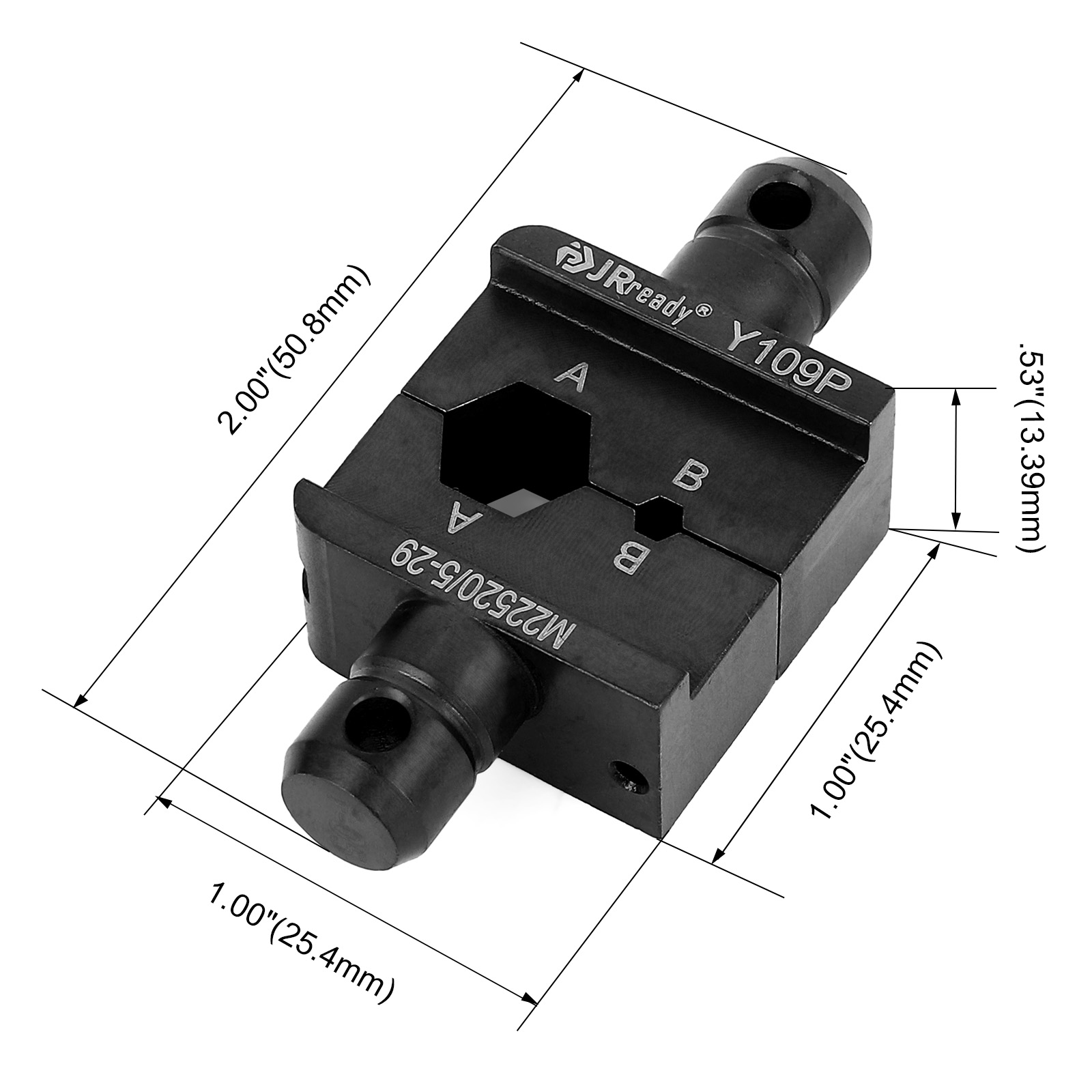

| Material | Mold Steel | Dimension | 25.4*50.8*13.4mm |
| Country of Origin | China | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
