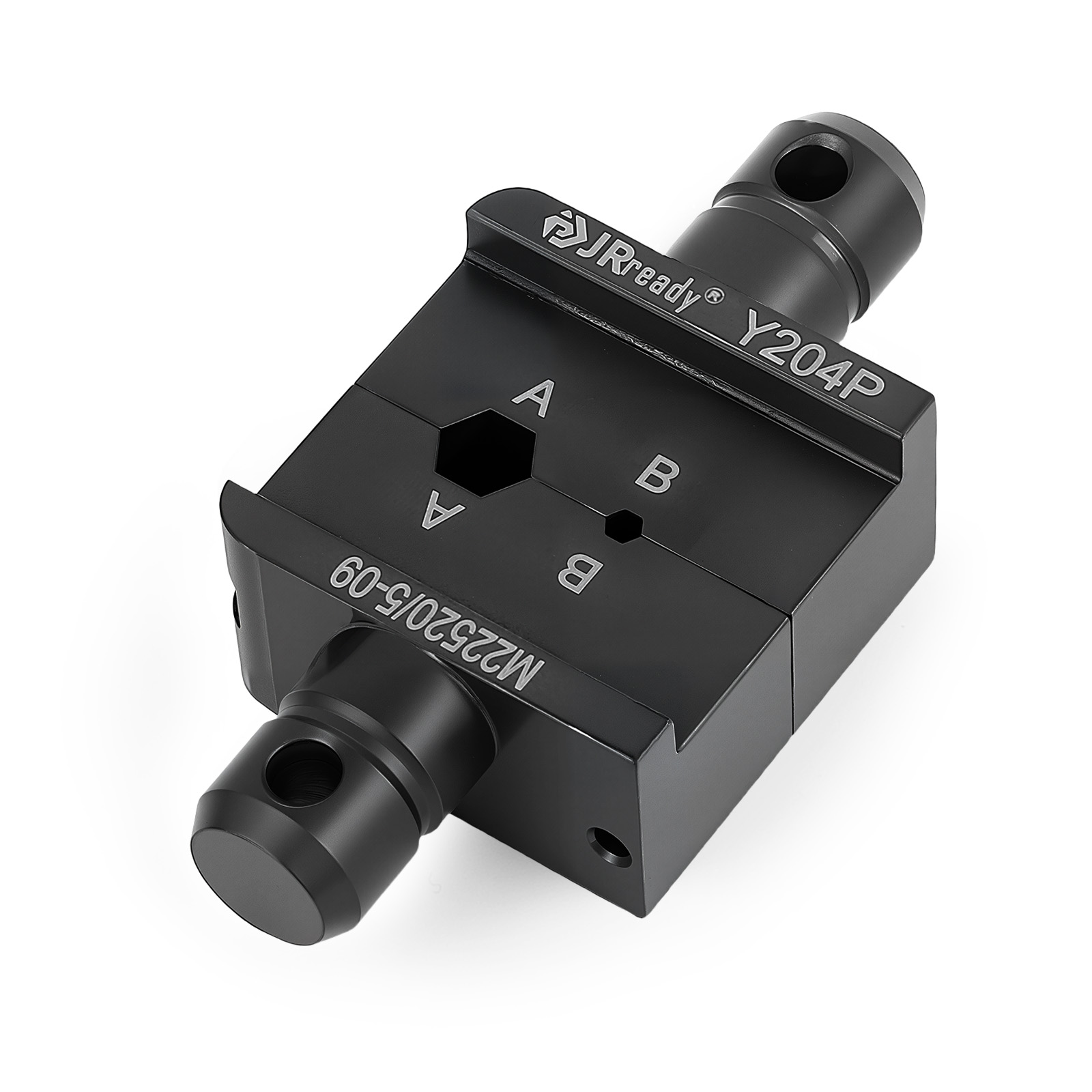

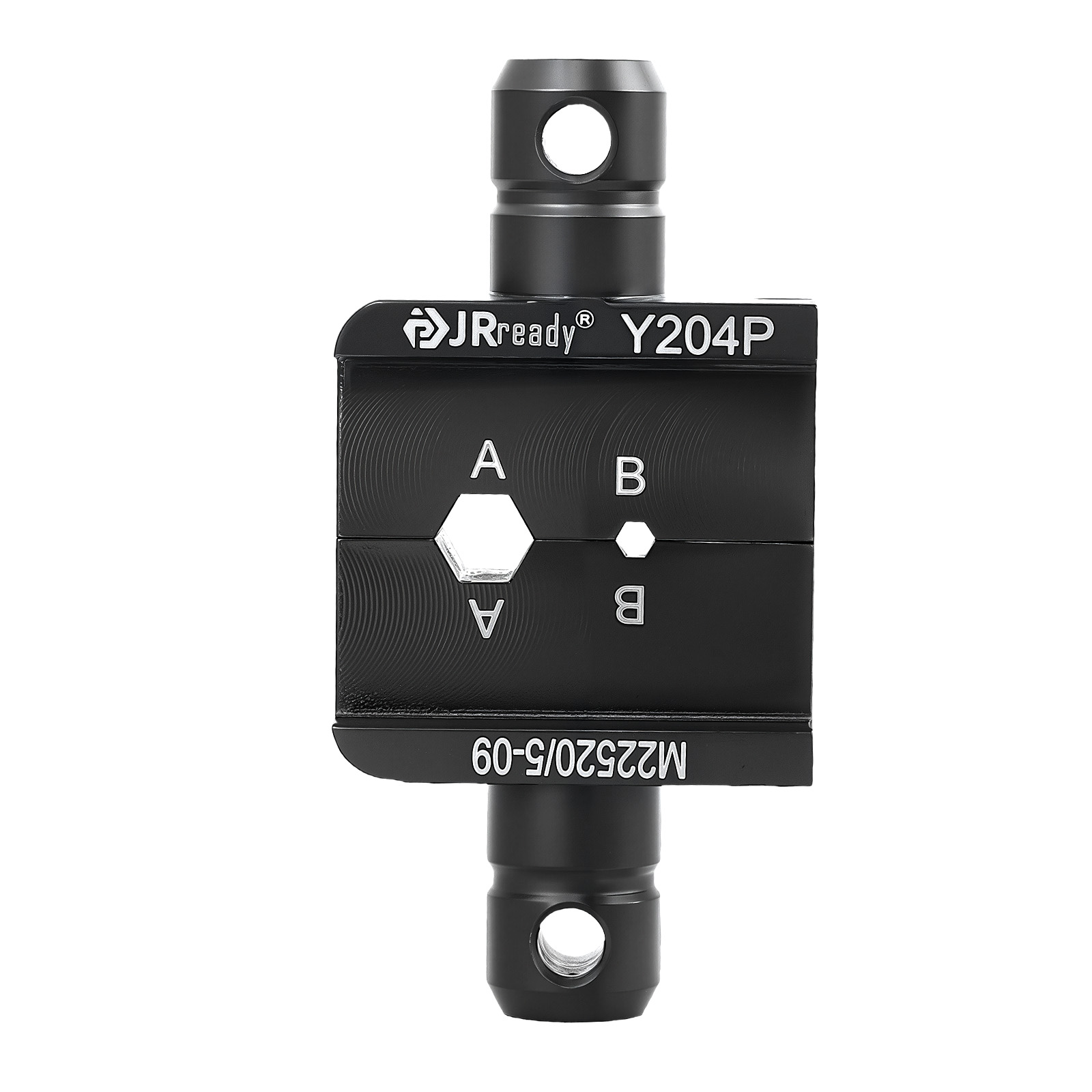

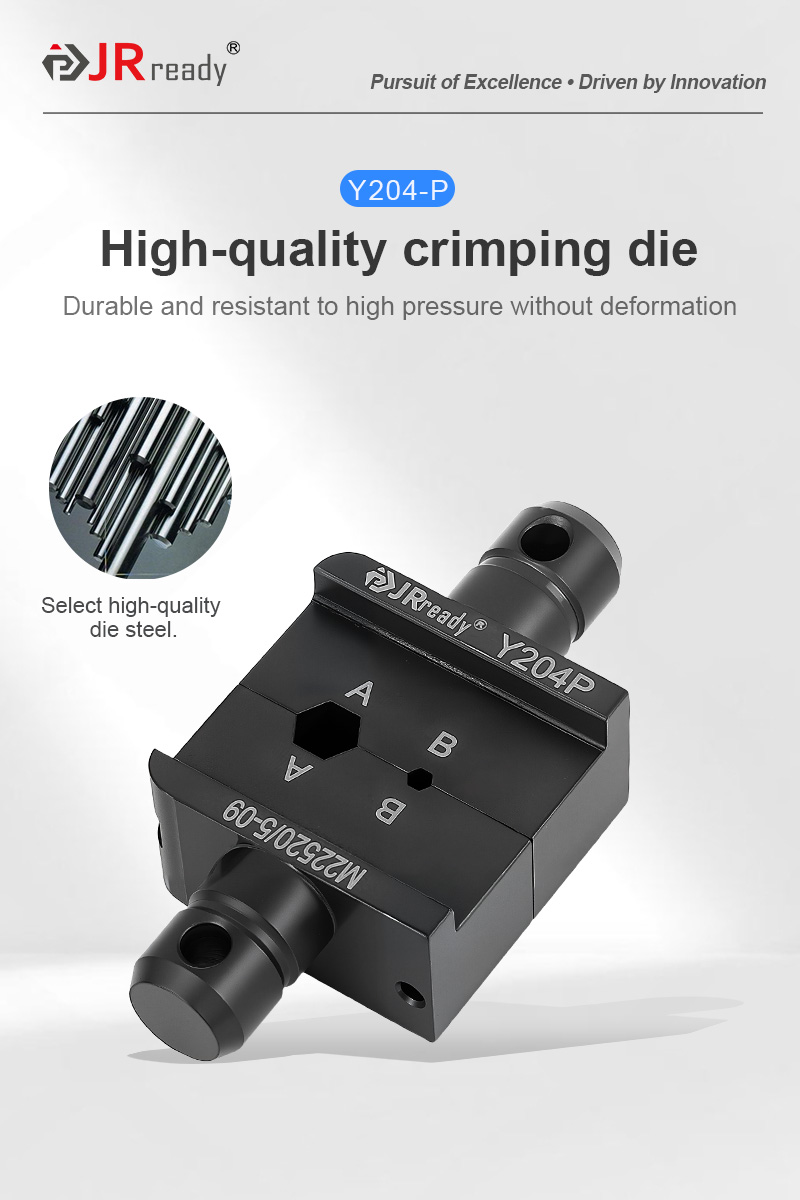

JRready Y204P (M22520/5-09) Crimp Die
1. Designed in compliance with U.S. Military Standard M22520/5-09
2. Cavity A: opening 4.52mm, indentation length 10.16mm; Cavity B: opening 1.73mm, indentation length 10.16mm

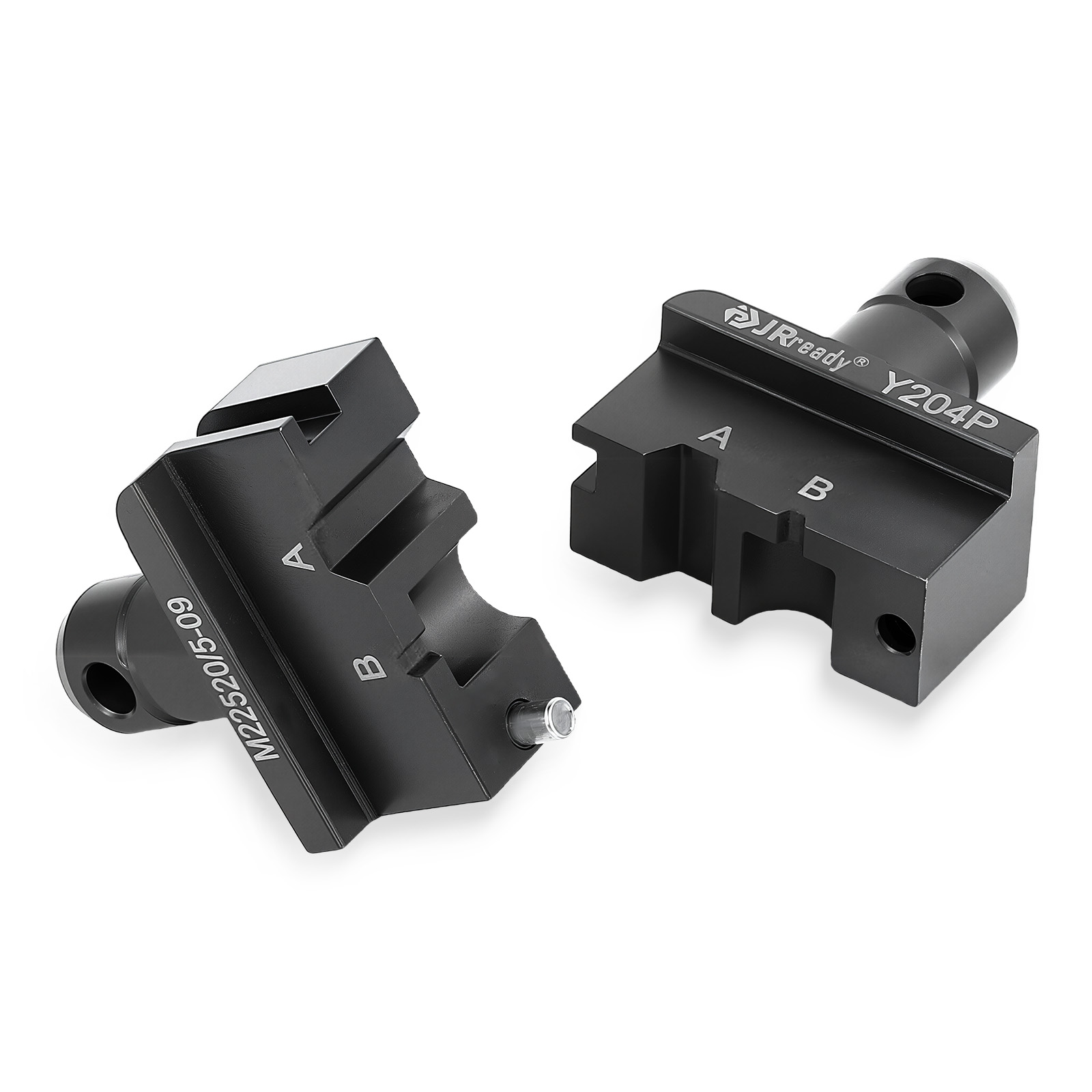

3. Equipped with guiding pins to ensure consistent alignment during die closure;

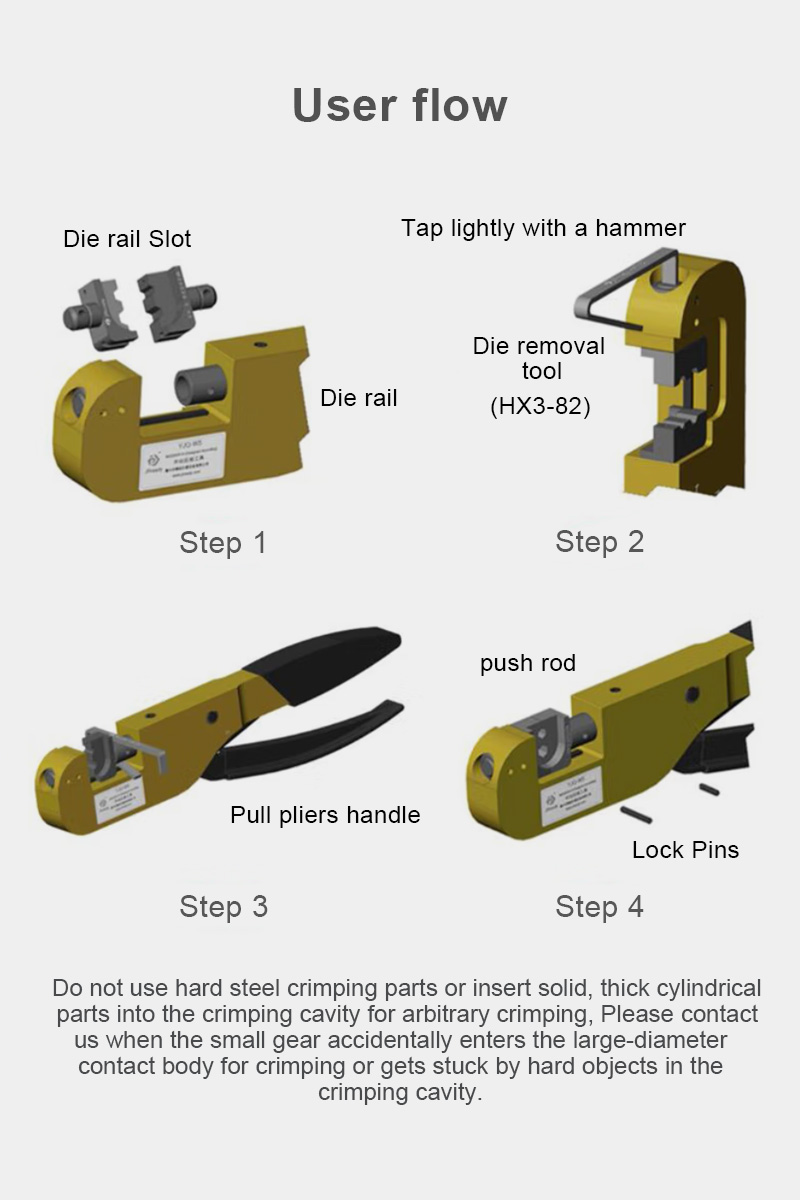

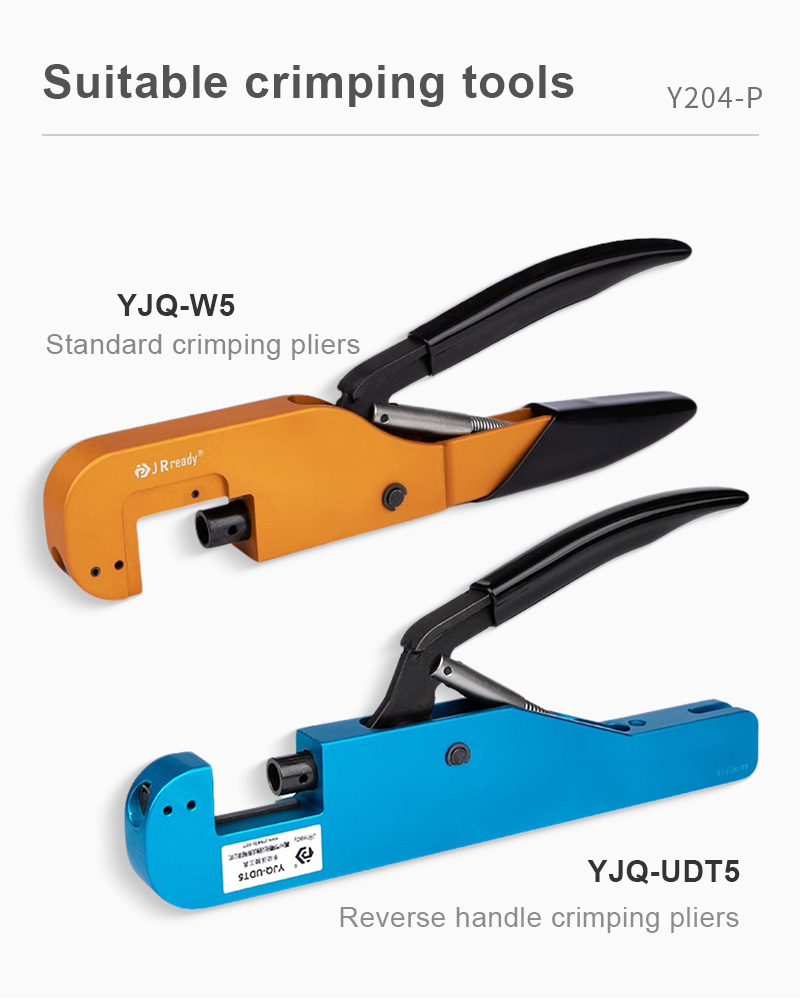

4. Compatible with crimping tool models YJQ-W5 and YJQ-UDT5
2. Cavity A: opening 4.52mm, indentation length 10.16mm; Cavity B: opening 1.73mm, indentation length 10.16mm
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimping tool models YJQ-W5 and YJQ-UDT5
| Brand | JRready | Part Number | Y204P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | Black |

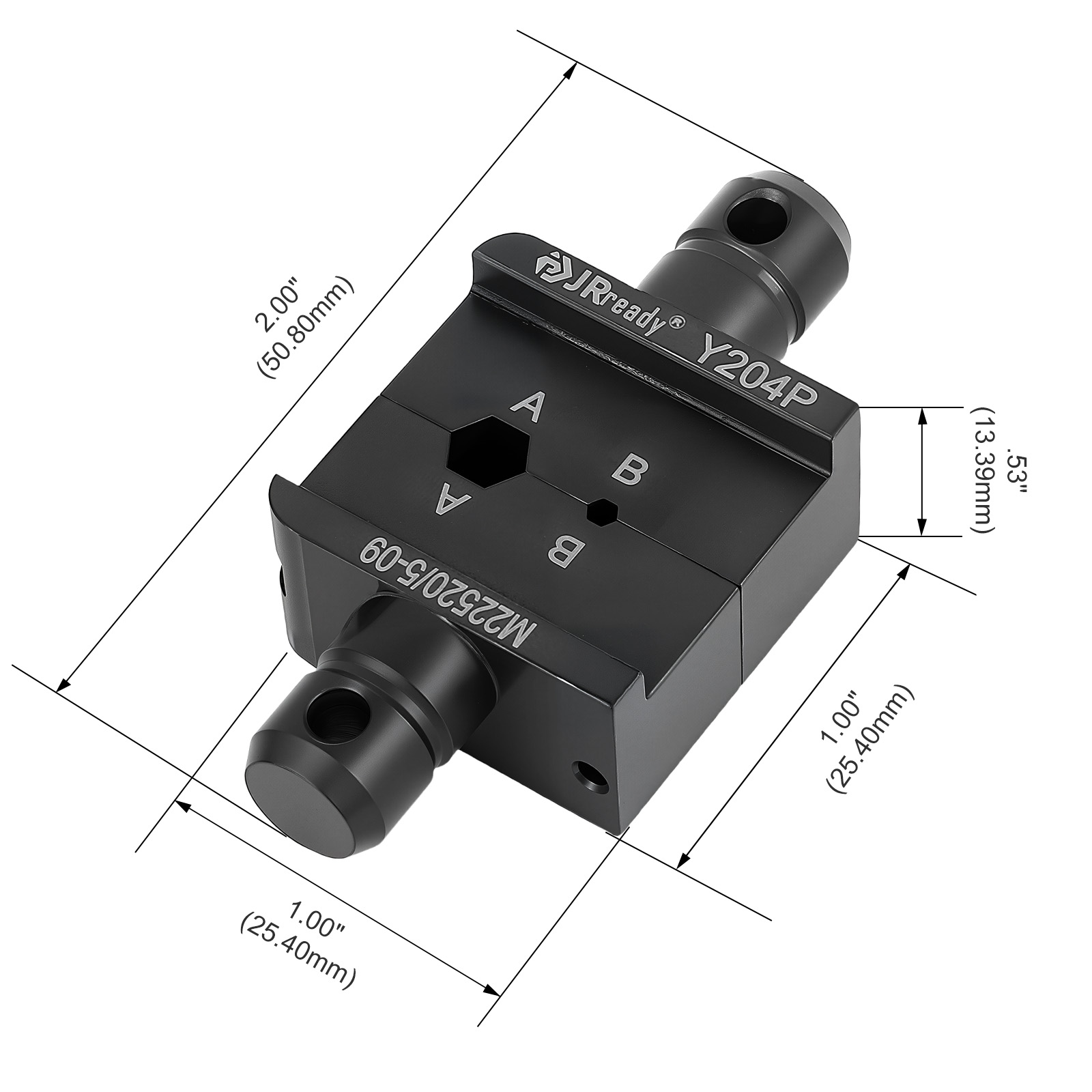

| Material | Mold Steel | Dimension | 50.8*25.4*13.39mm |
| Country of Origin | China | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
