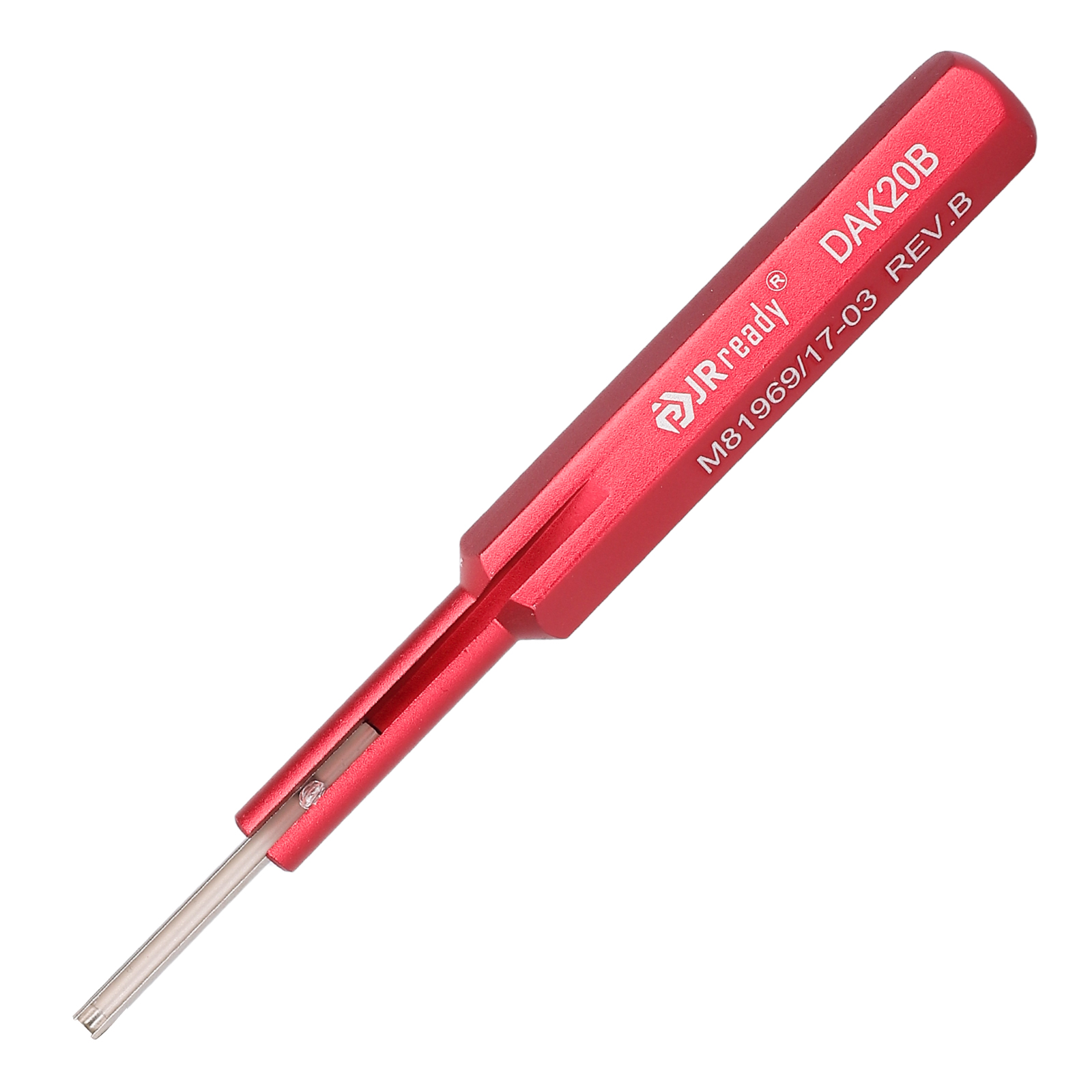

JRready DAK20B (M81969/17-03) Pin Insertion Tool​

1. Designed to MIL standard M81969/17-03​​.

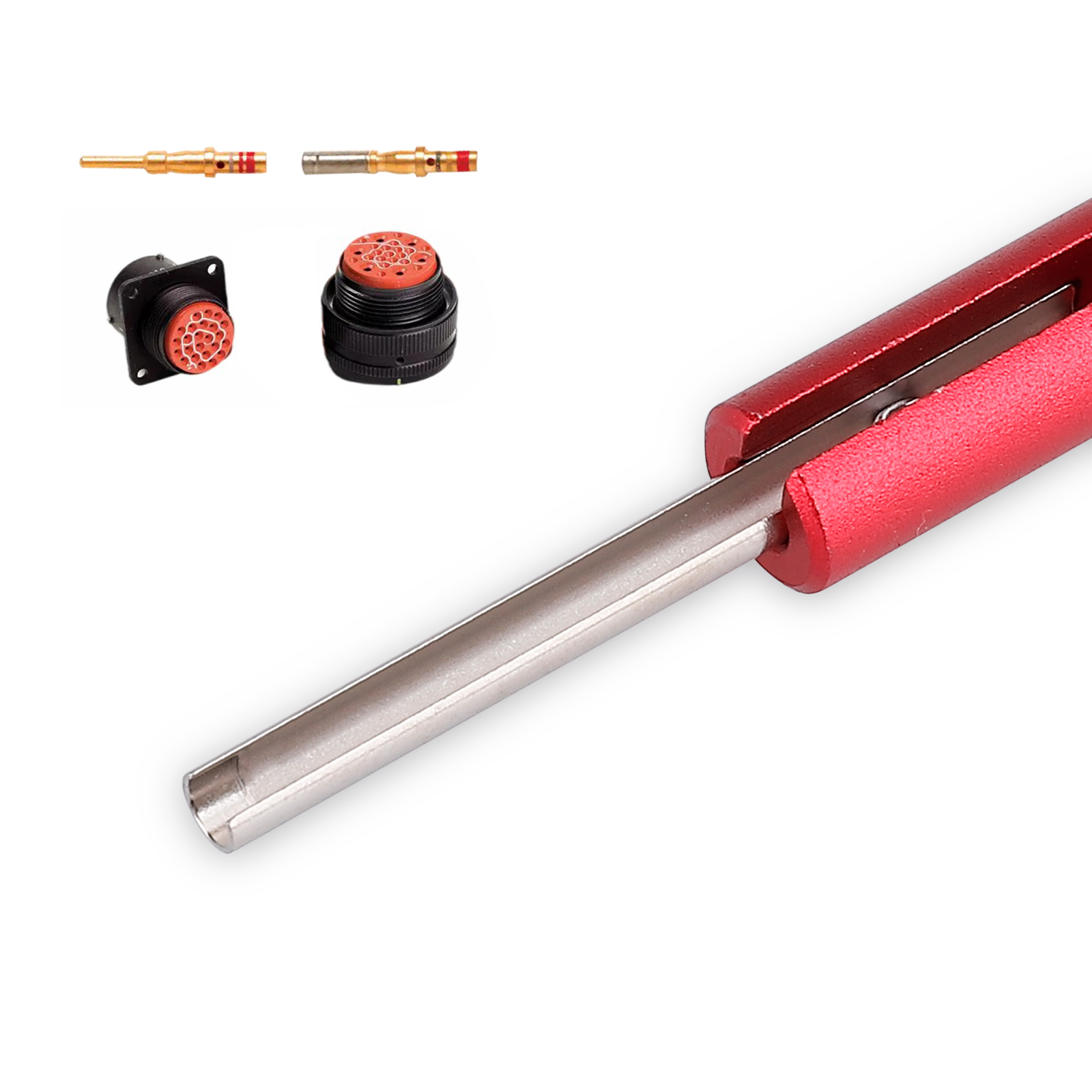

2. Suitable for the insertion of 20# MIL-spec terminals in MS26482/J598 series connectors.
3. Suitable for the insertion of 20# terminals in MIL-DTL-26482 Series I, MIL-DTL-26500, and MIL-C-38300 series connectors.
Contact Us

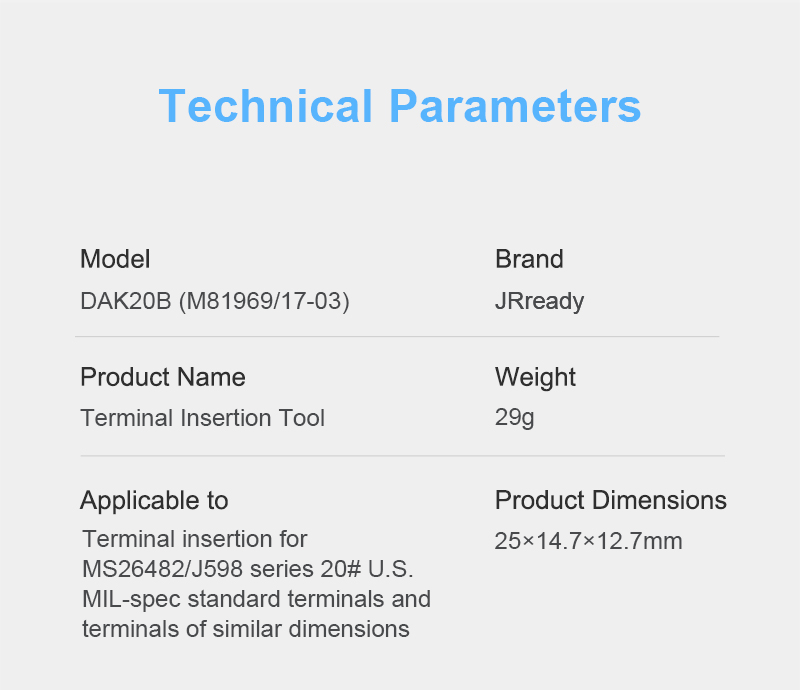

Brand JRready Part Number DAK20B (M81969/17-03)
Category MIL-spec Insertion & Extraction Tool Colour Red

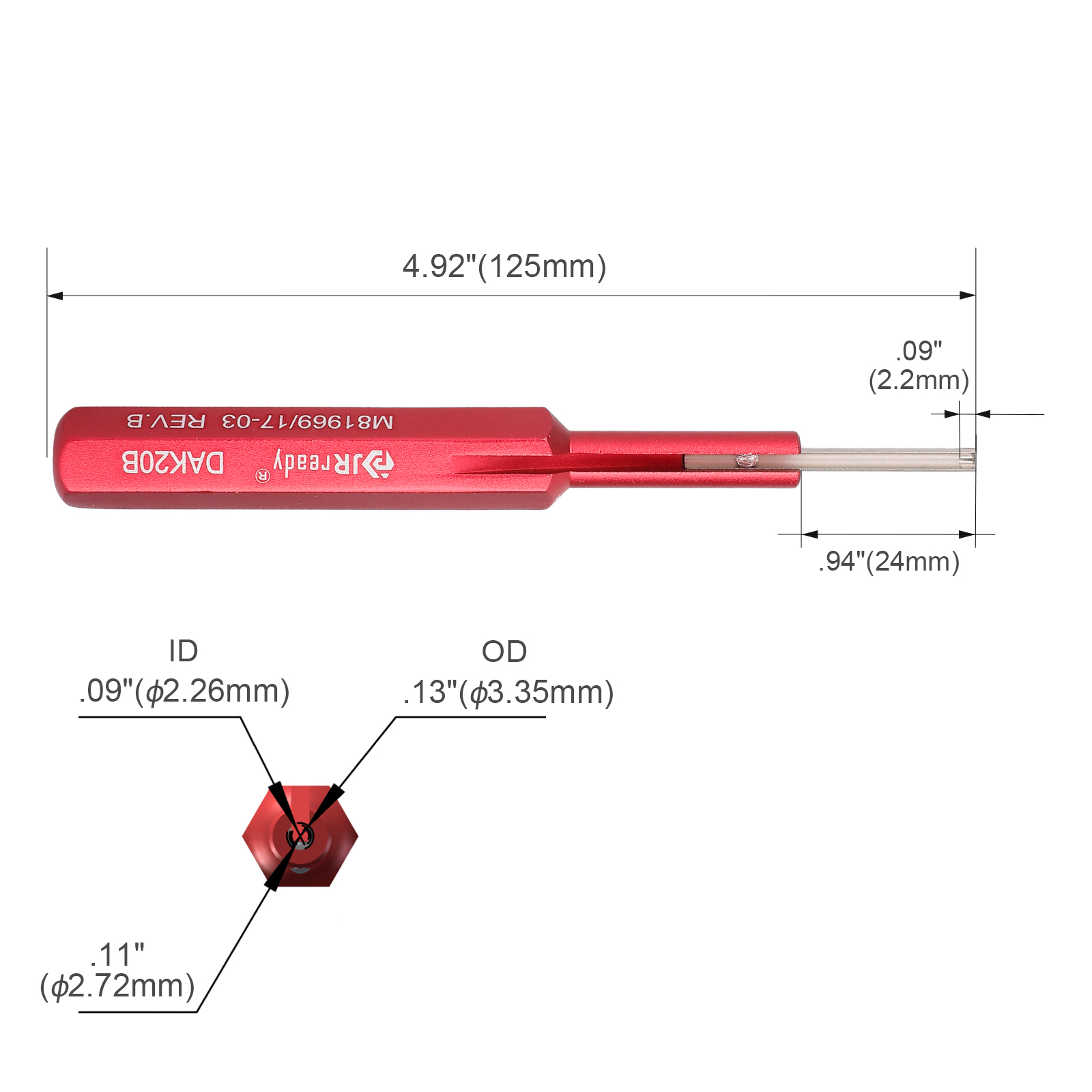

Material ​Aluminum-Alloy Handle Dimension 125*14.7*12.7mm
Country of Origin China Weight 29g
Application Suitable for the insertion of 20# MIL-spec terminals and termianls with similar sizes in MS26482/J598 series connectors



Product Introduction
