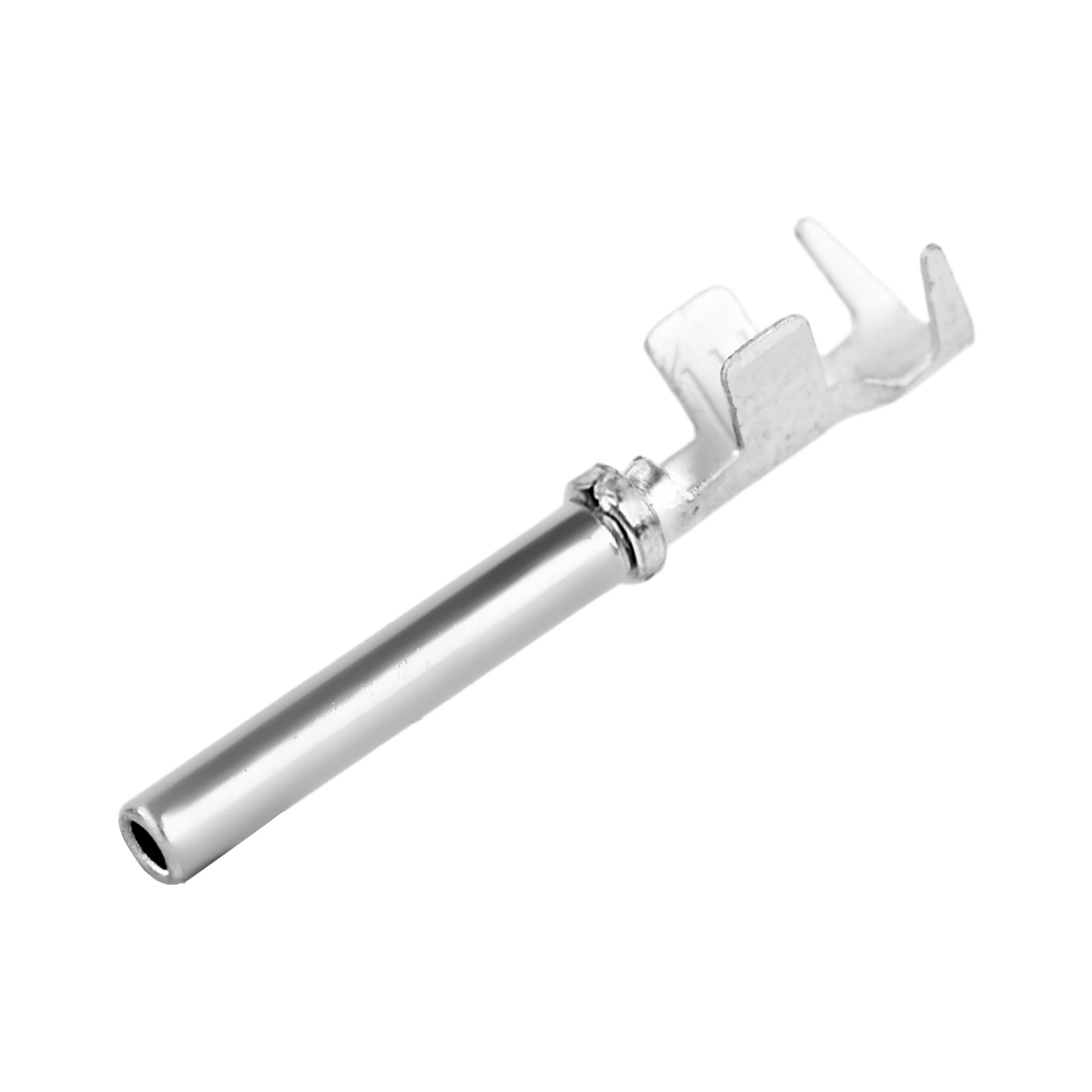

JRready1062-20-0122 20# Formed & Stamped Socket Terminal
1. Compatible with wire range16-22AWG（1.5-0.35mm²）；
2. Compatible with stamped pin 1062-20-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：7.5A；
5. Wire Insulation Diameter：φ1.91mm-φ3.18mm
2. Compatible with stamped pin 1062-20-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：7.5A；
5. Wire Insulation Diameter：φ1.91mm-φ3.18mm
| Brand | JRready | Part Number | 1062-20-0122 |
| Category | DT Series | Colour | Silver-White |
| Material | Phosphor Bronze | Dimension |

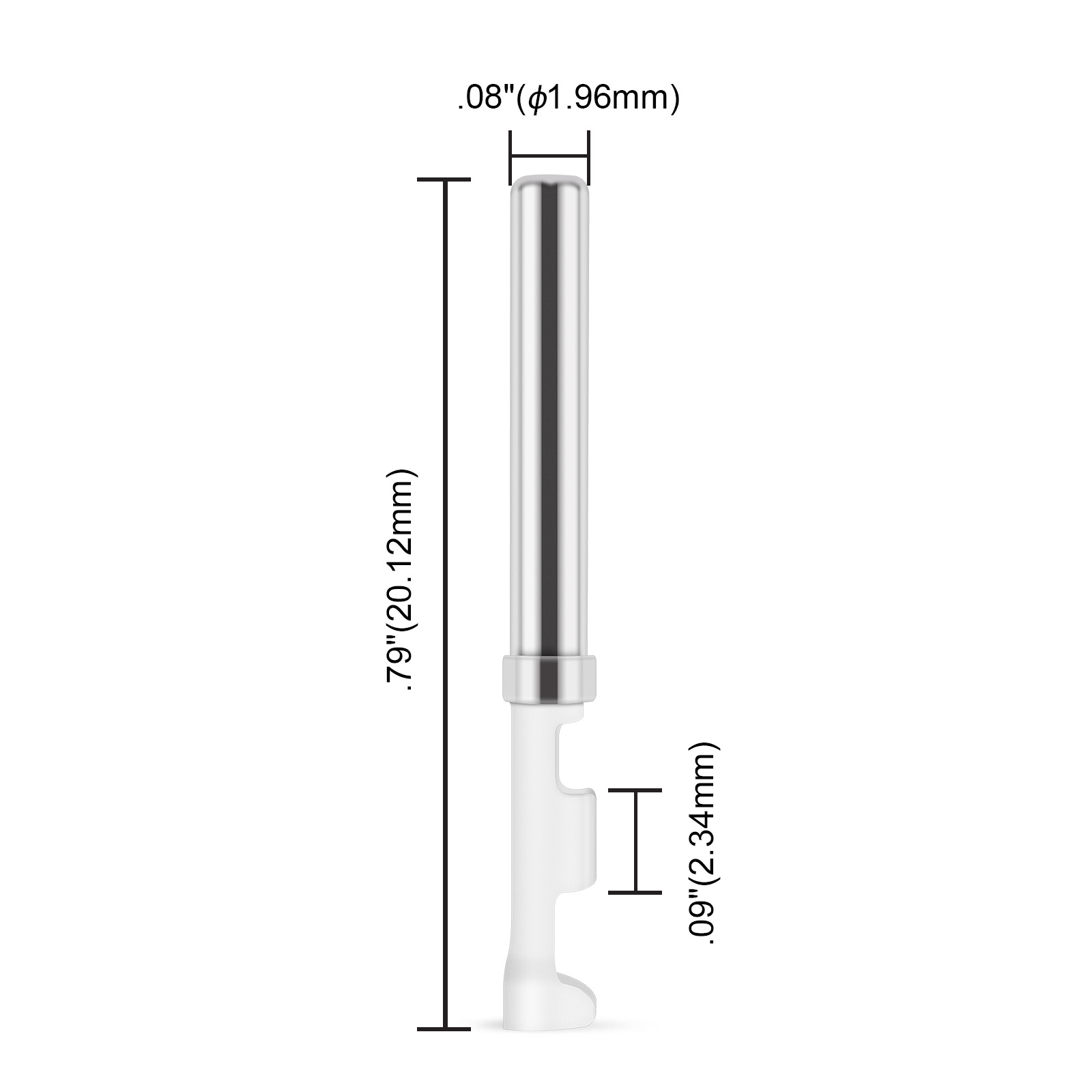

Length: 20.12mm, Diameter: 1.96mm |
| Country of Origin | China | Weight | 0.28g |

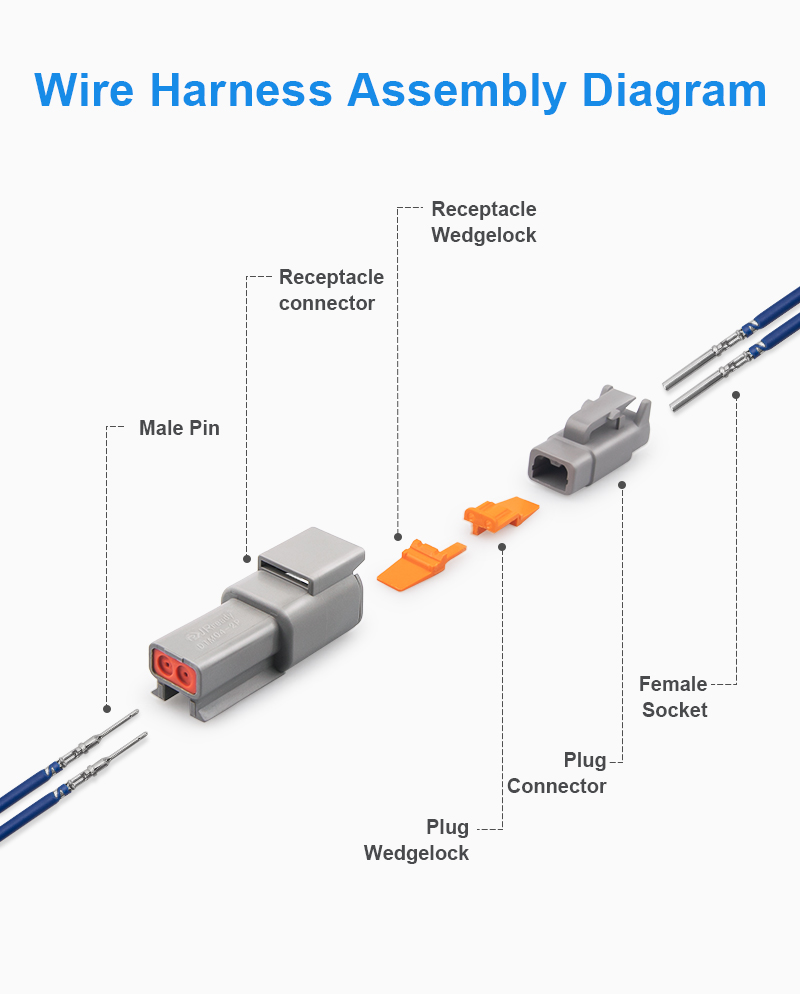

| Application | Compatible with DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors | ||
| Working Temperature | -40°C -125°C | Working Pressure | 0 |
| Rated Voltage | 250V | Rated Current | 7.5A |
