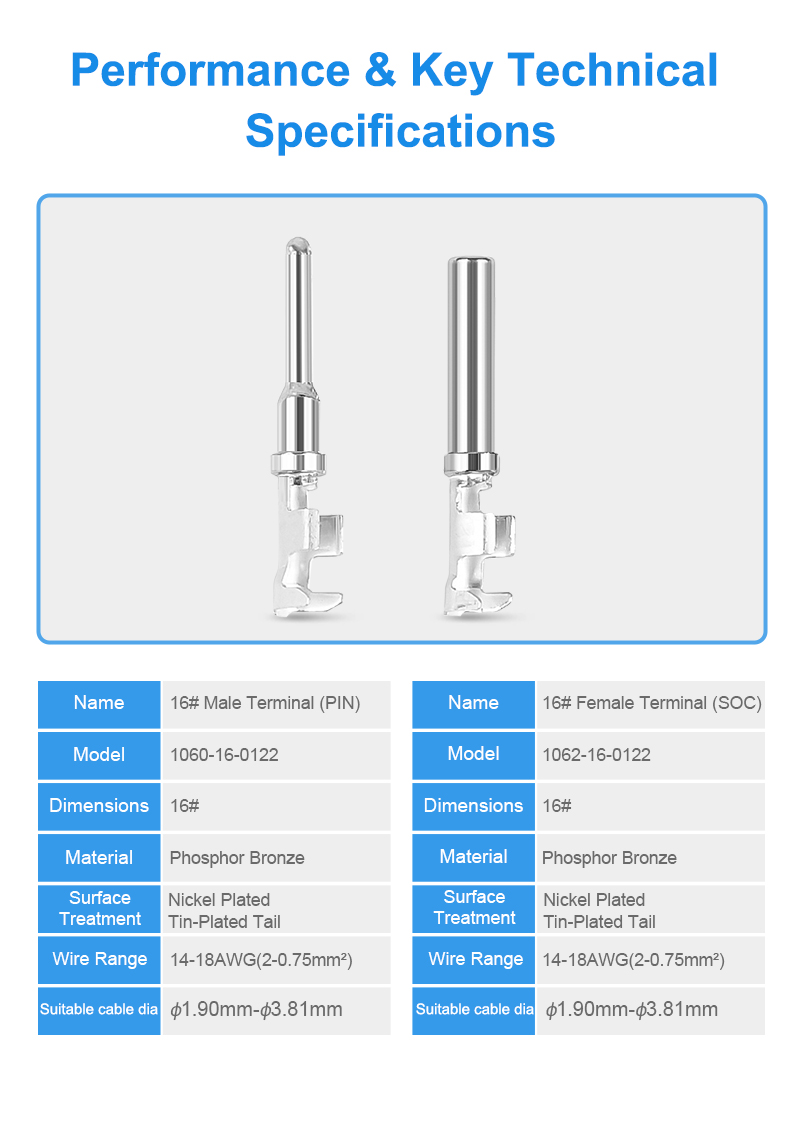

JRready 1062-16-0122 16# Formed & Stamped Socket Terminal
1. Compatible with wire range 14-18 AWG (0.75-2.0mm²)；
2. Compatible with stamped pin 1060-16-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：13A；
5. Wire Insulation Diameter：φ1.90mm-φ3.55mm
2. Compatible with stamped pin 1060-16-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：13A；
5. Wire Insulation Diameter：φ1.90mm-φ3.55mm
| Brand | JRready | Part Number | 1062-16-0122 |
| Category | DT Series | Colour | 0 |

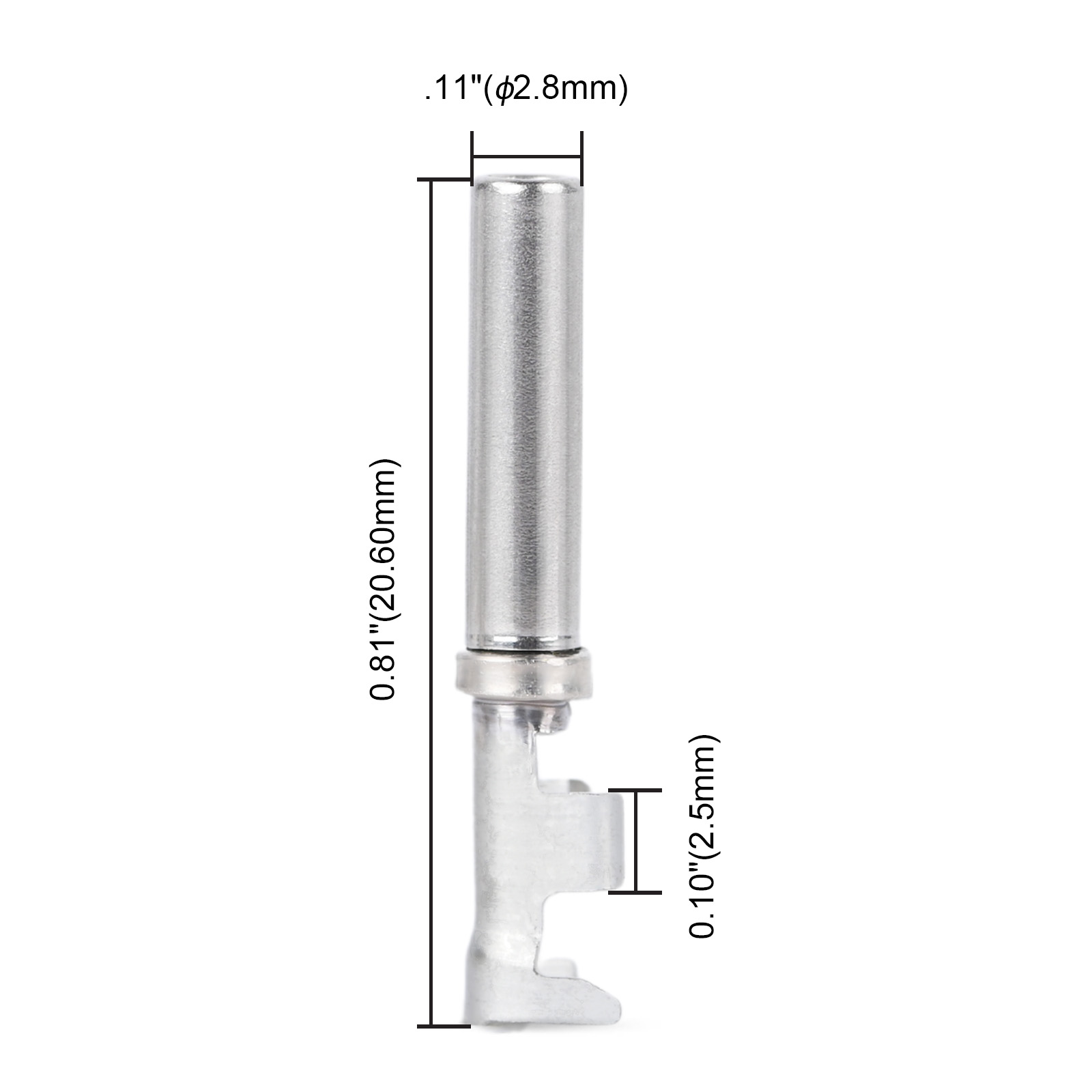

| Material | Phosphor Bronze | Dimension | Length: 20.22mm, Diameter: 3.3mm |
| Country of Origin | China | Weight | 0.43g |

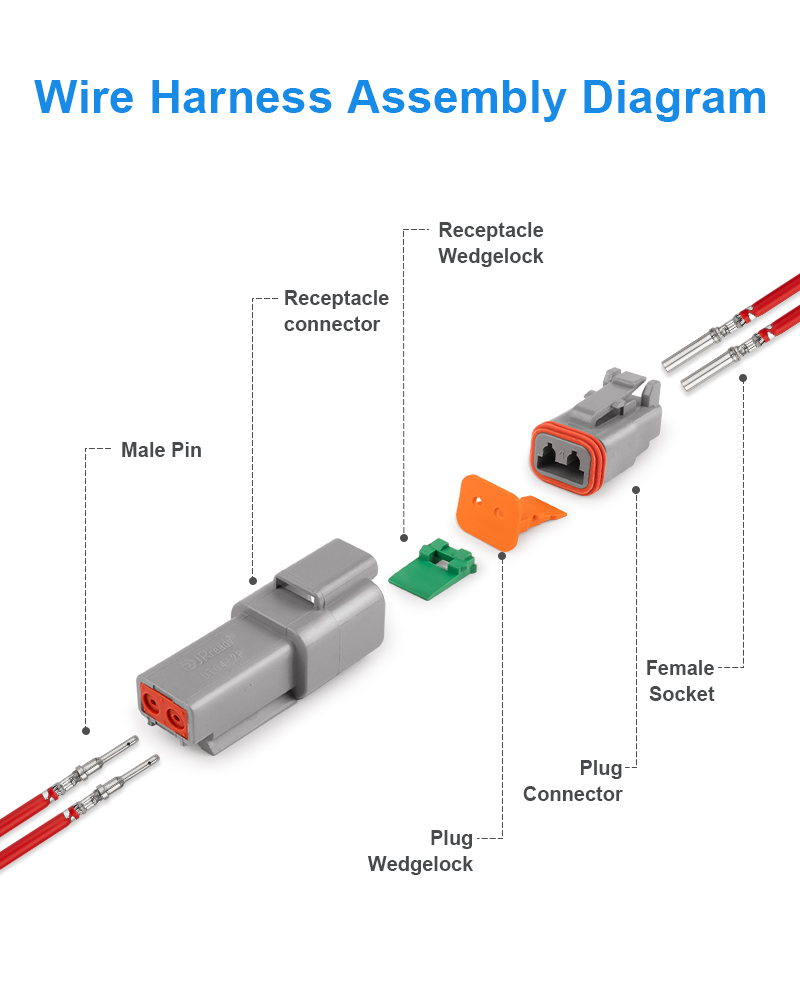

| Application | Compatible with DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 13A |
