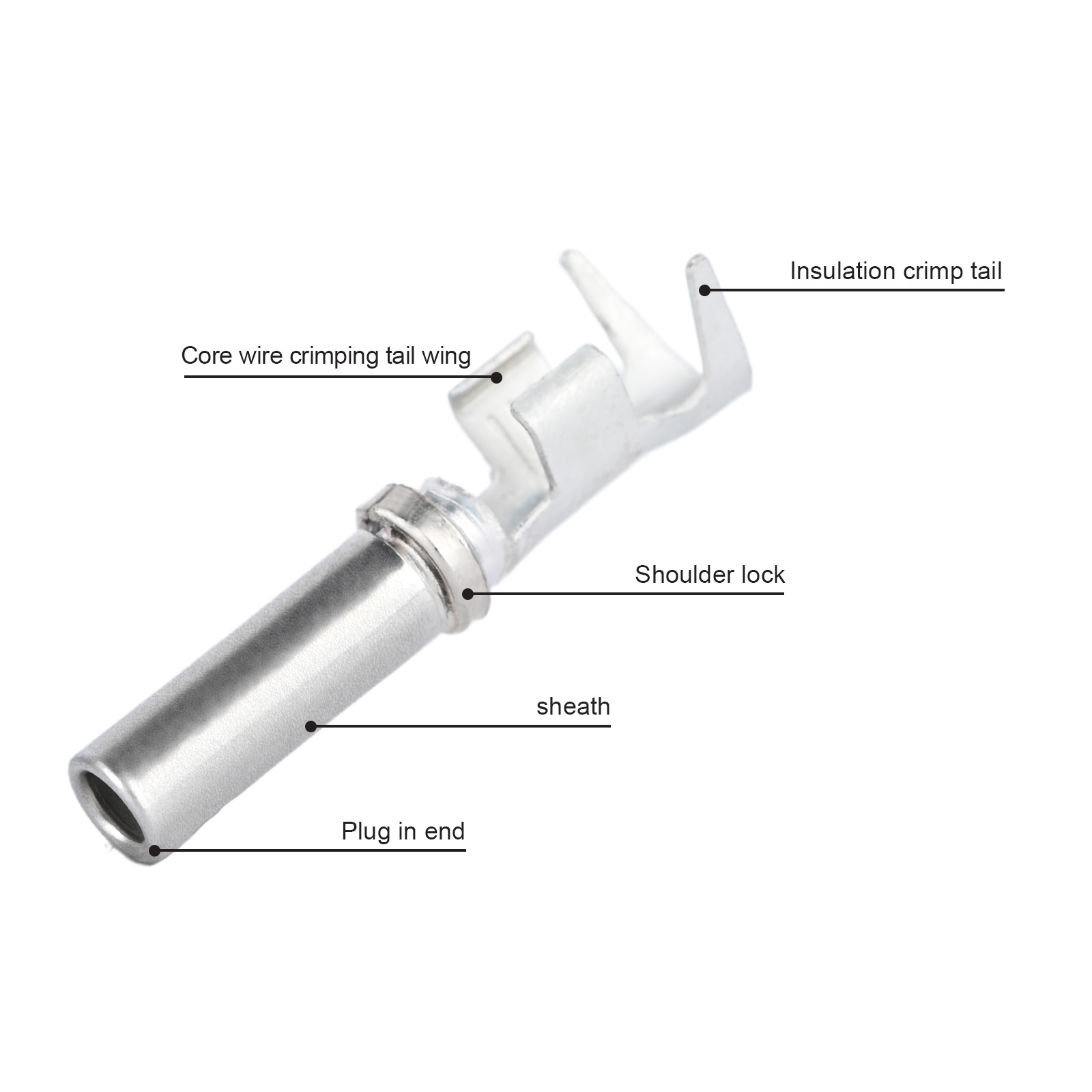

JRready 1062-12-0166 12# Formed & Stamped Socket Terminal
1. Compatible with wire range 12-14 AWG (2.0-4.0mm²)；
2. Compatible with stamped pin 1060-12-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：25A；
5. Insulation Diameter：φ2.87mm-φ4.47mm
2. Compatible with stamped pin 1060-12-0122；
3. Nickel plated overall, tin plated at the crimping position at the tail；
4. Rated Current：25A；
5. Insulation Diameter：φ2.87mm-φ4.47mm
| Brand | JRready | Part Number | 1062-12-0166 |
| Category | DT Series | Colour | 0 |

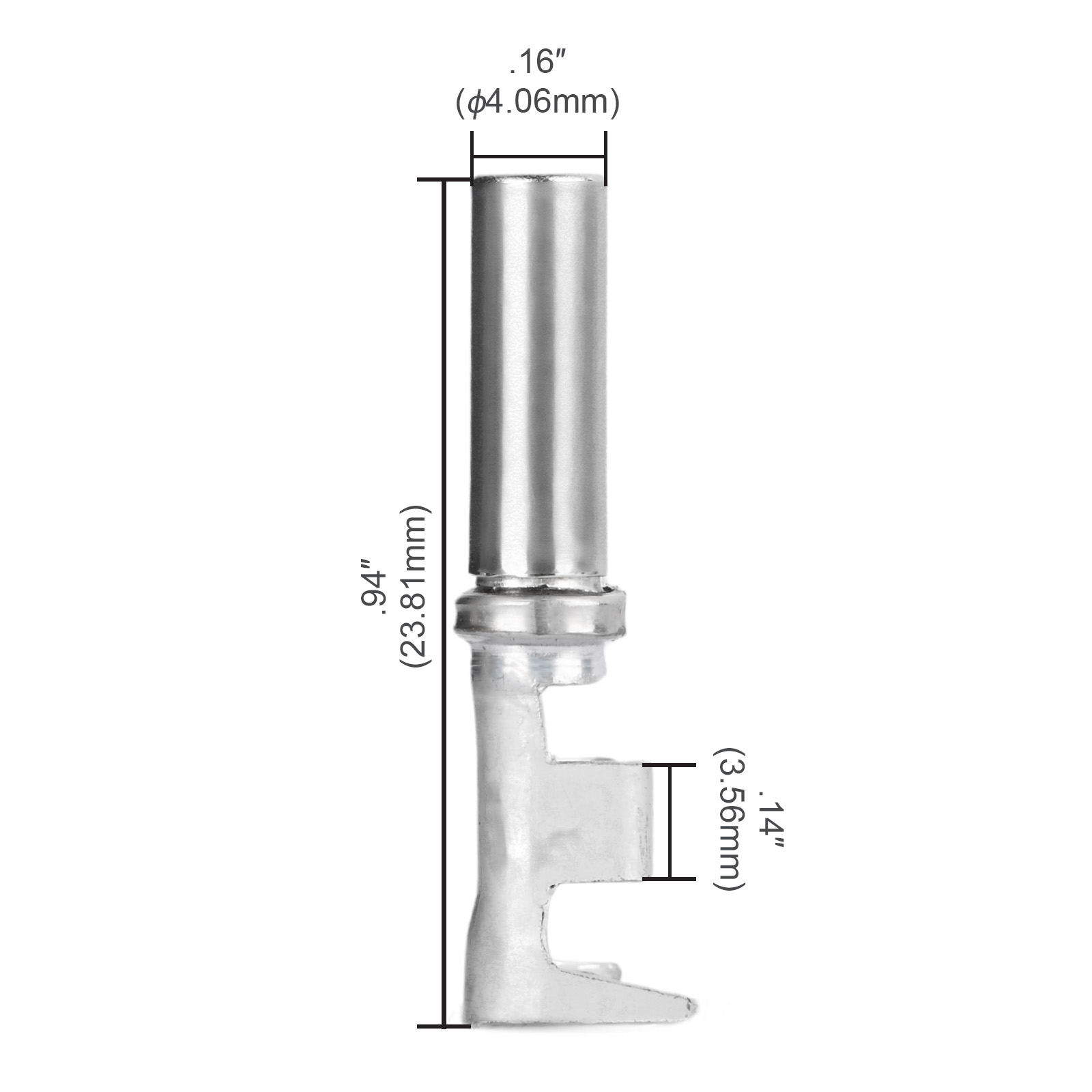

| Material | Phosphor Bronze | Dimension | Length:23.81mm, Diameter: 4.06mm |
| Country of Origin | China | Weight | 0.9g |
| Application | Compatible with DTP, HDP20, HD30,DTHD, HD10, DRC, and Jiffy Splice series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
