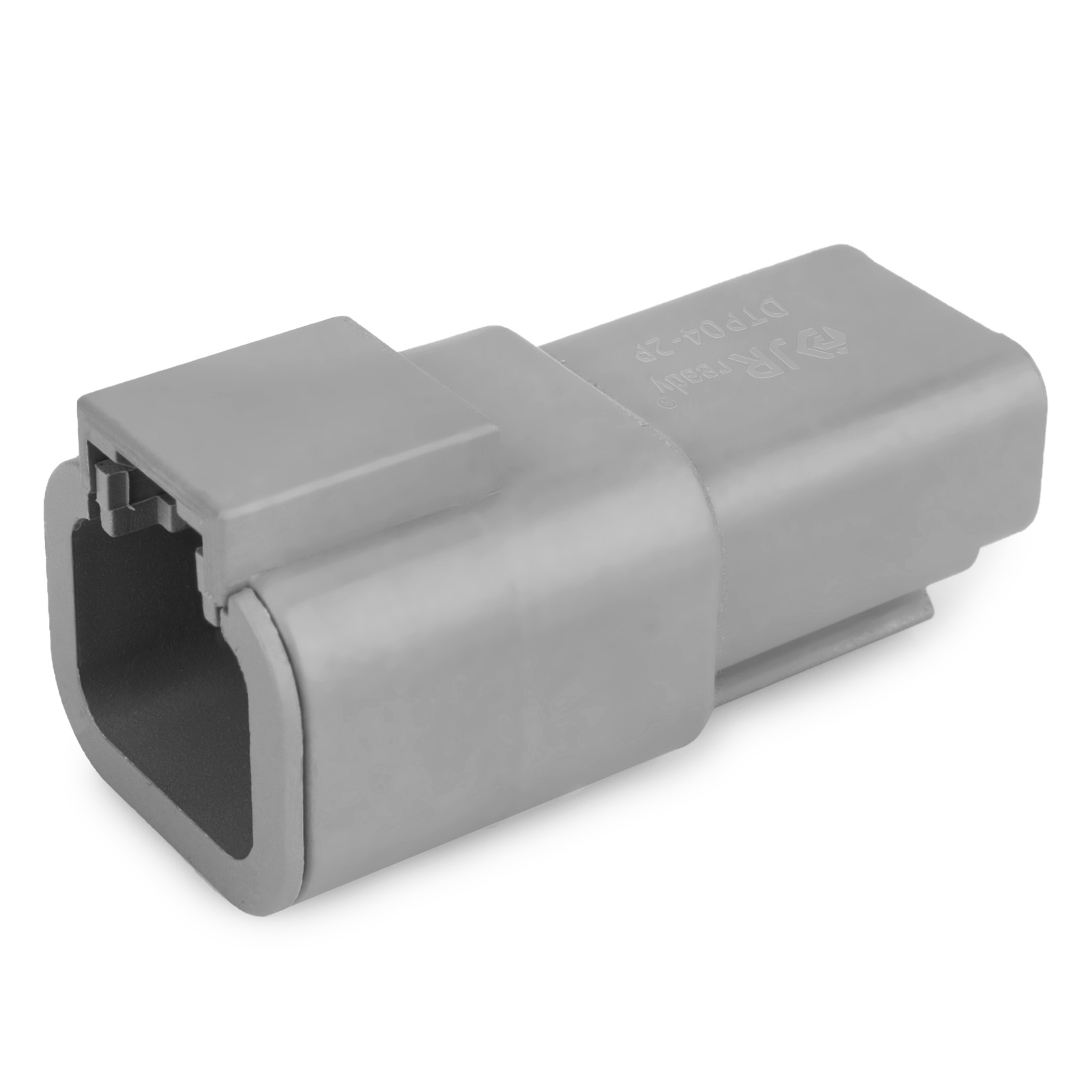

JRready DTP04-2P Waterproof Connector
1. Compatible with 12-16AWG wire；
2. Compatible with 12# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 2 Cavities；
5. Rated Voltage: 250V AC/DC，Rated Current: 25A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Compatible with 12# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 2 Cavities；
5. Rated Voltage: 250V AC/DC，Rated Current: 25A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTP04-2P |

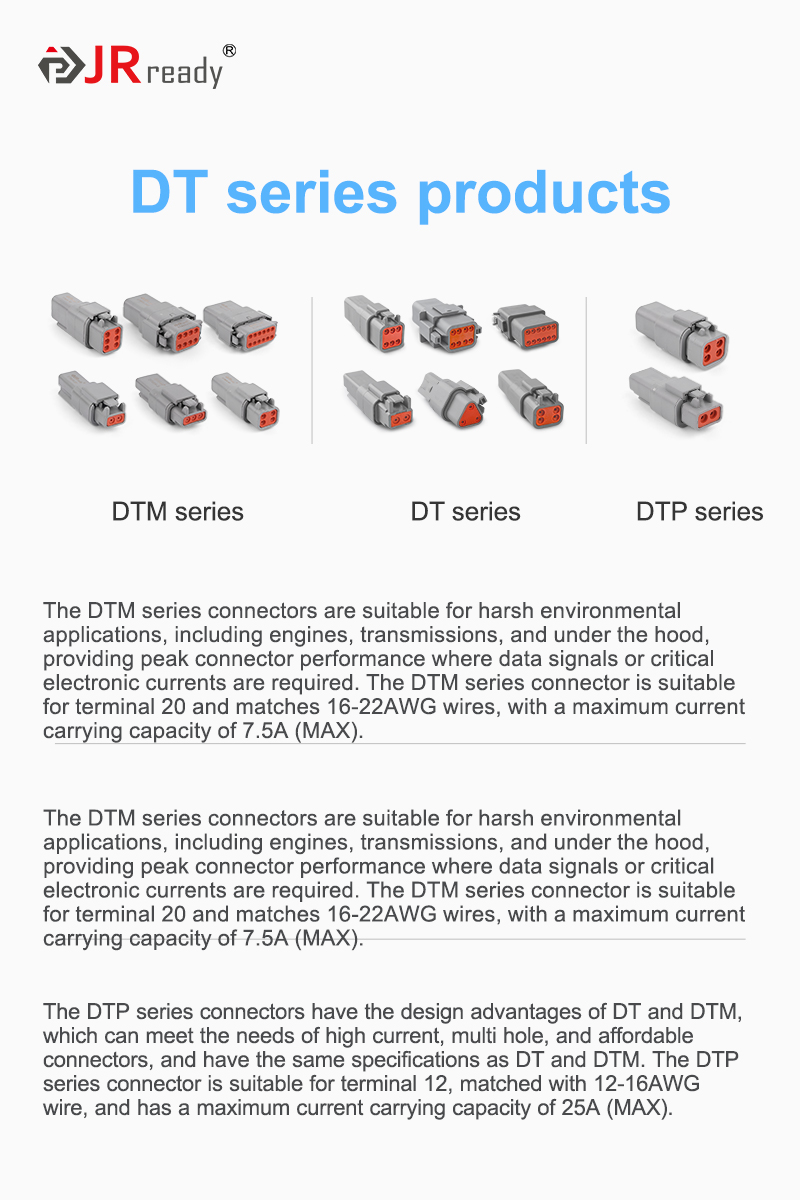

| Category | DT Series Connector | Colour | Gray |

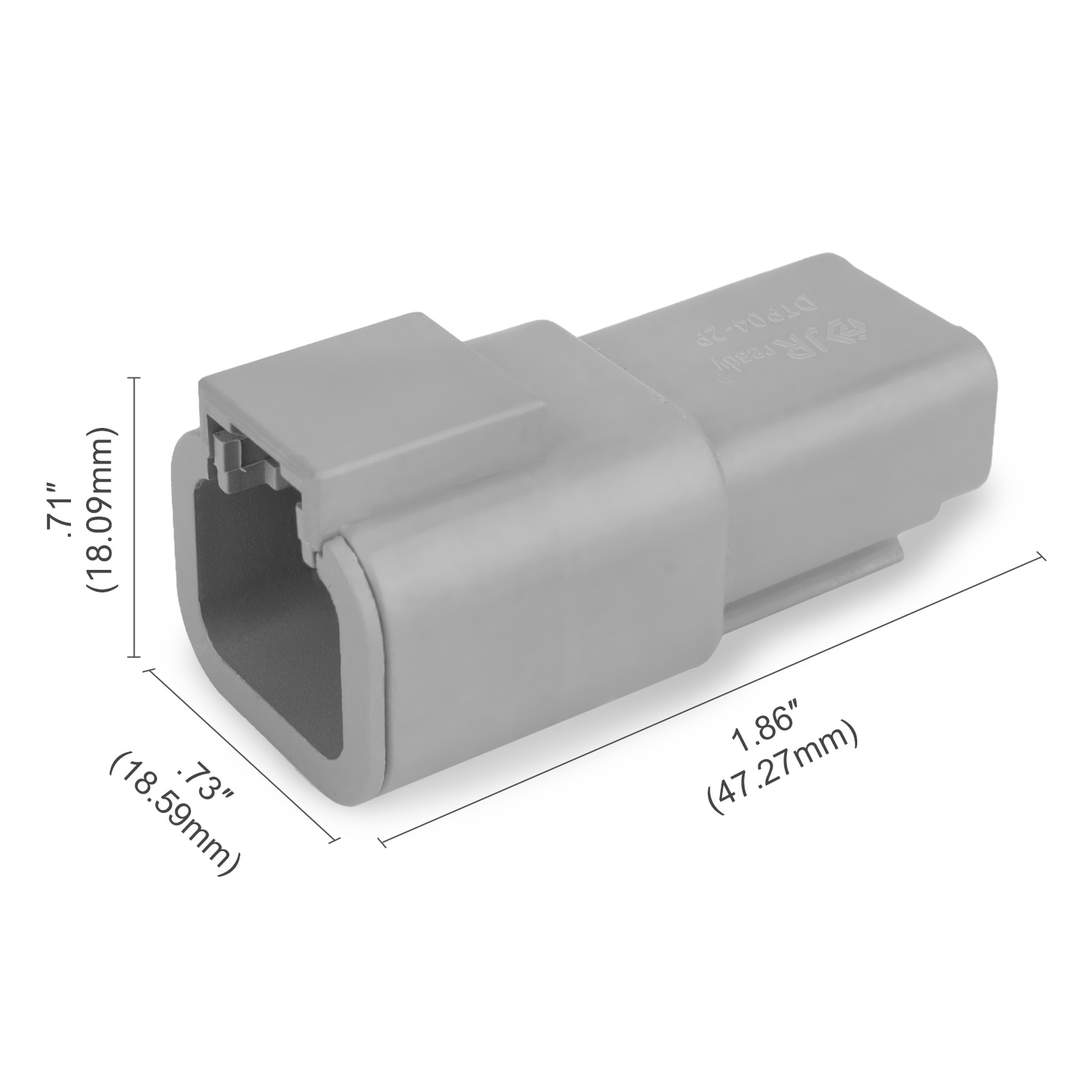

| Material | PA66 | Dimension | 47.27*18.59*18.09(mm) |
| Country of Origin | China | Weight | 12.3g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
