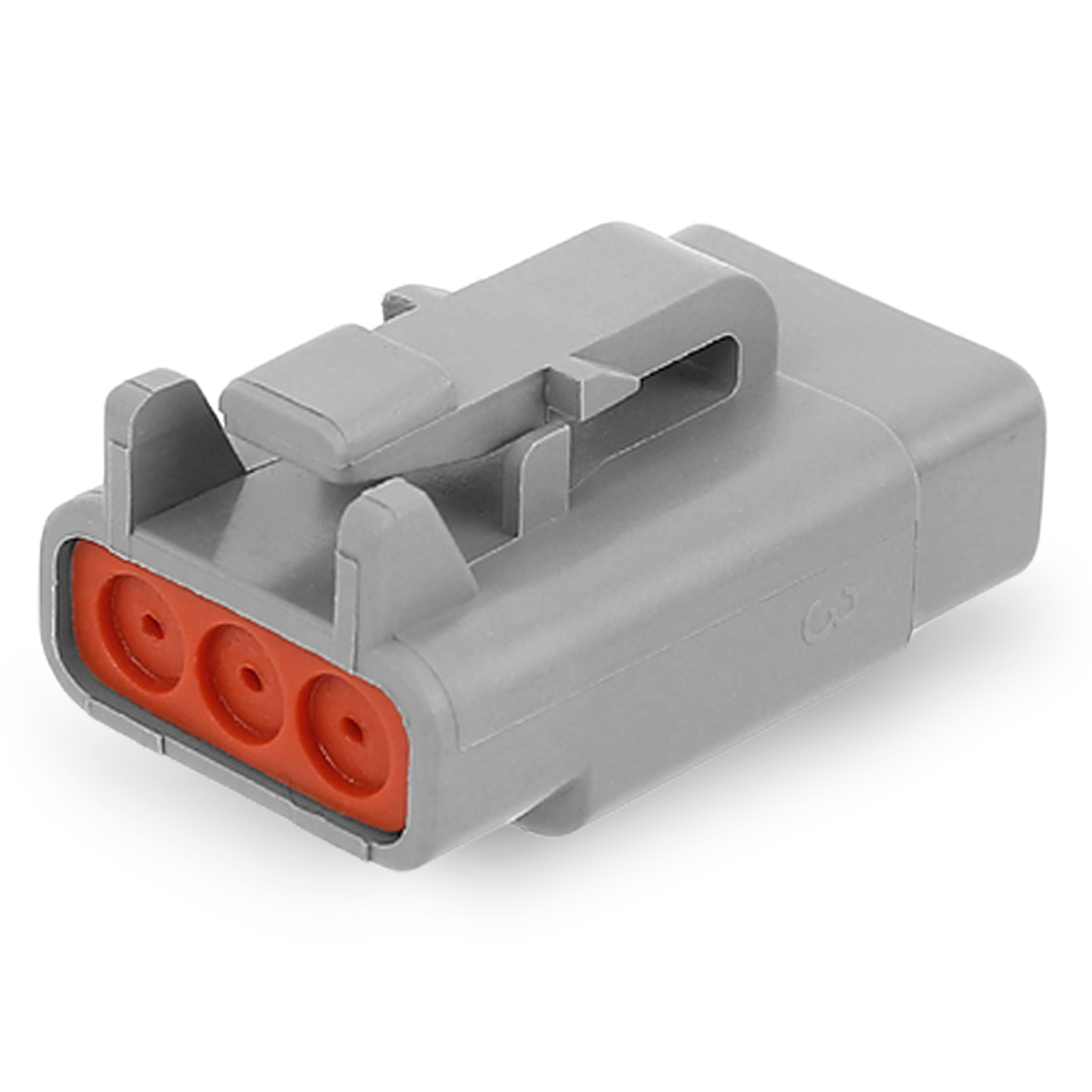

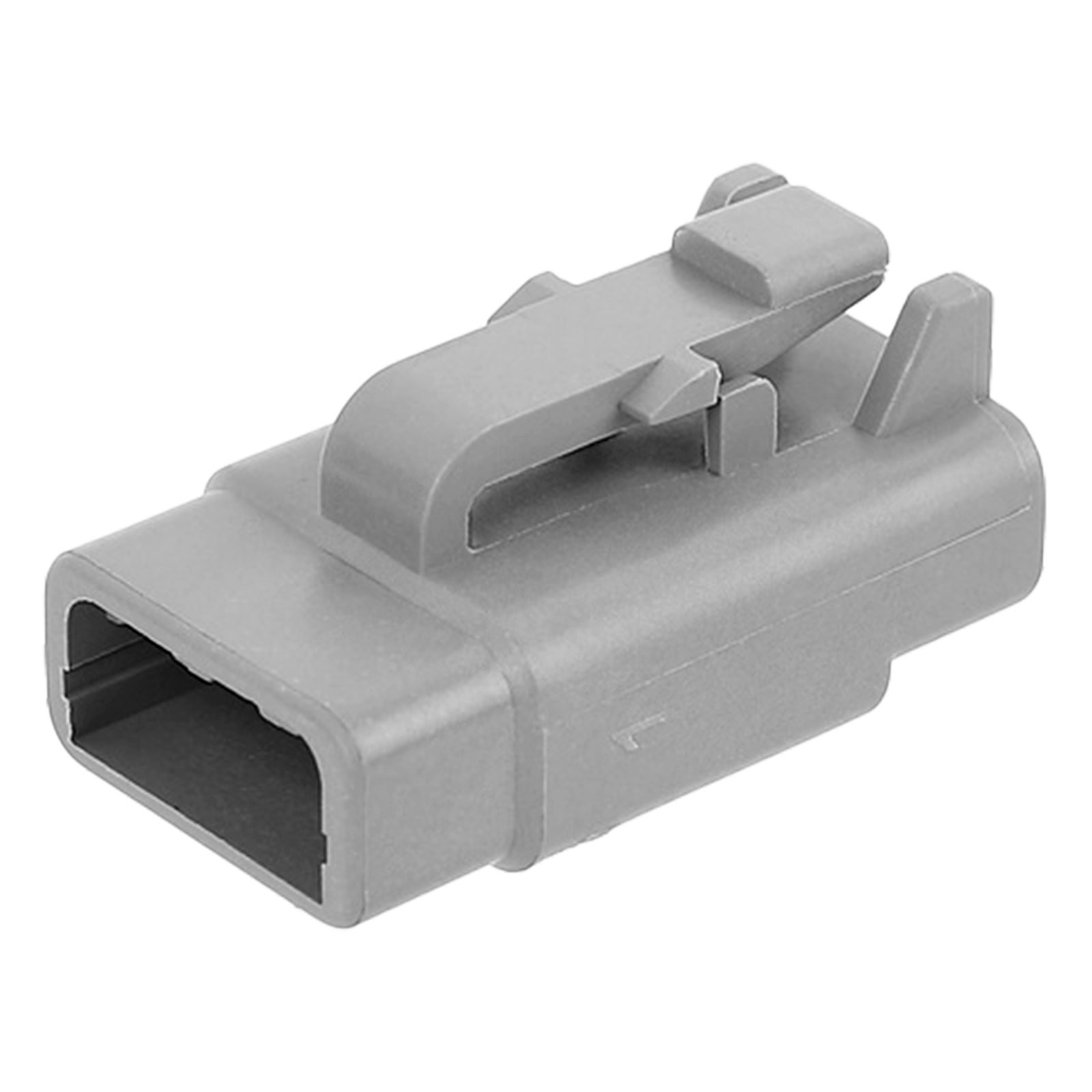

JRready DTM06-3SWaterproof Connector
1. Compatible with 16-22AWG wire；
2. Compatible with 20# solid sockets and stamped sockets；
3. Connection Type : Wire to Wire；
4. Number of Positions : 3 positions；
5. Rated Voltage ：250V AC/DC，Rated Current ：7.5A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Compatible with 20# solid sockets and stamped sockets；
3. Connection Type : Wire to Wire；
4. Number of Positions : 3 positions；
5. Rated Voltage ：250V AC/DC，Rated Current ：7.5A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTM06-3S |

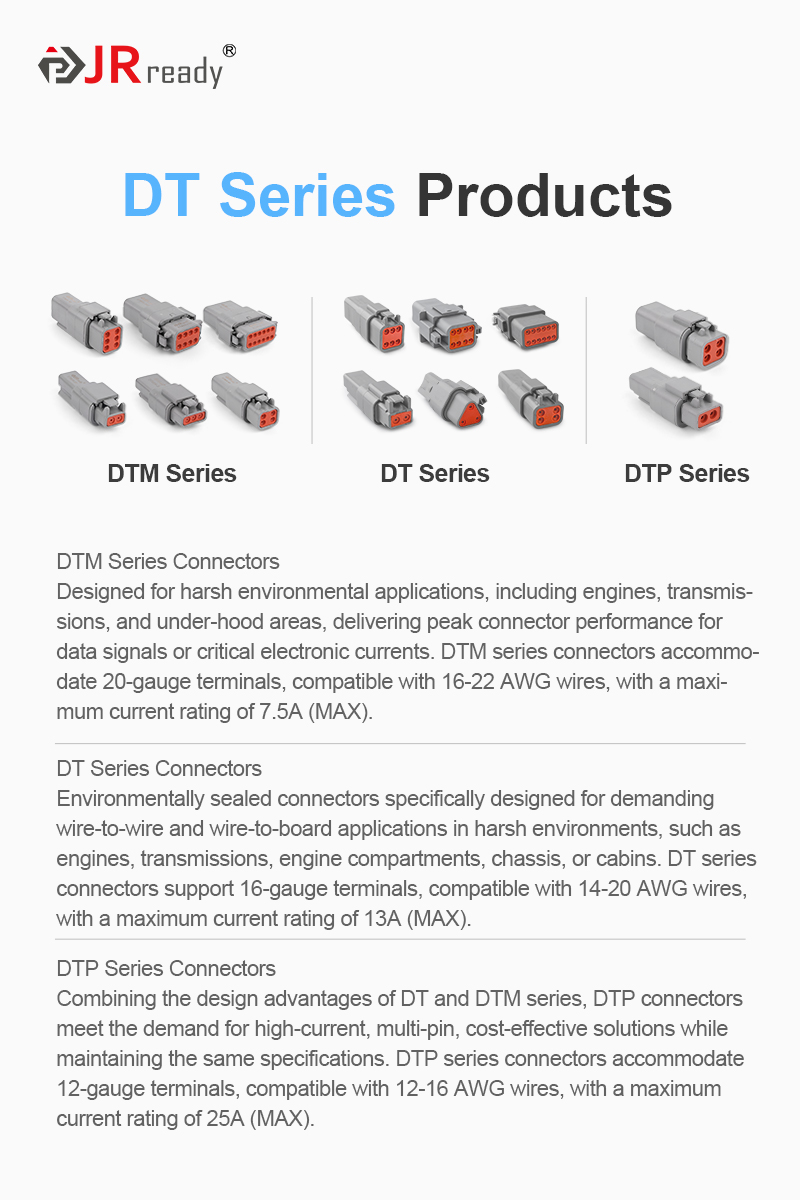

| Category | DT Series Connector | Colour | Gray |

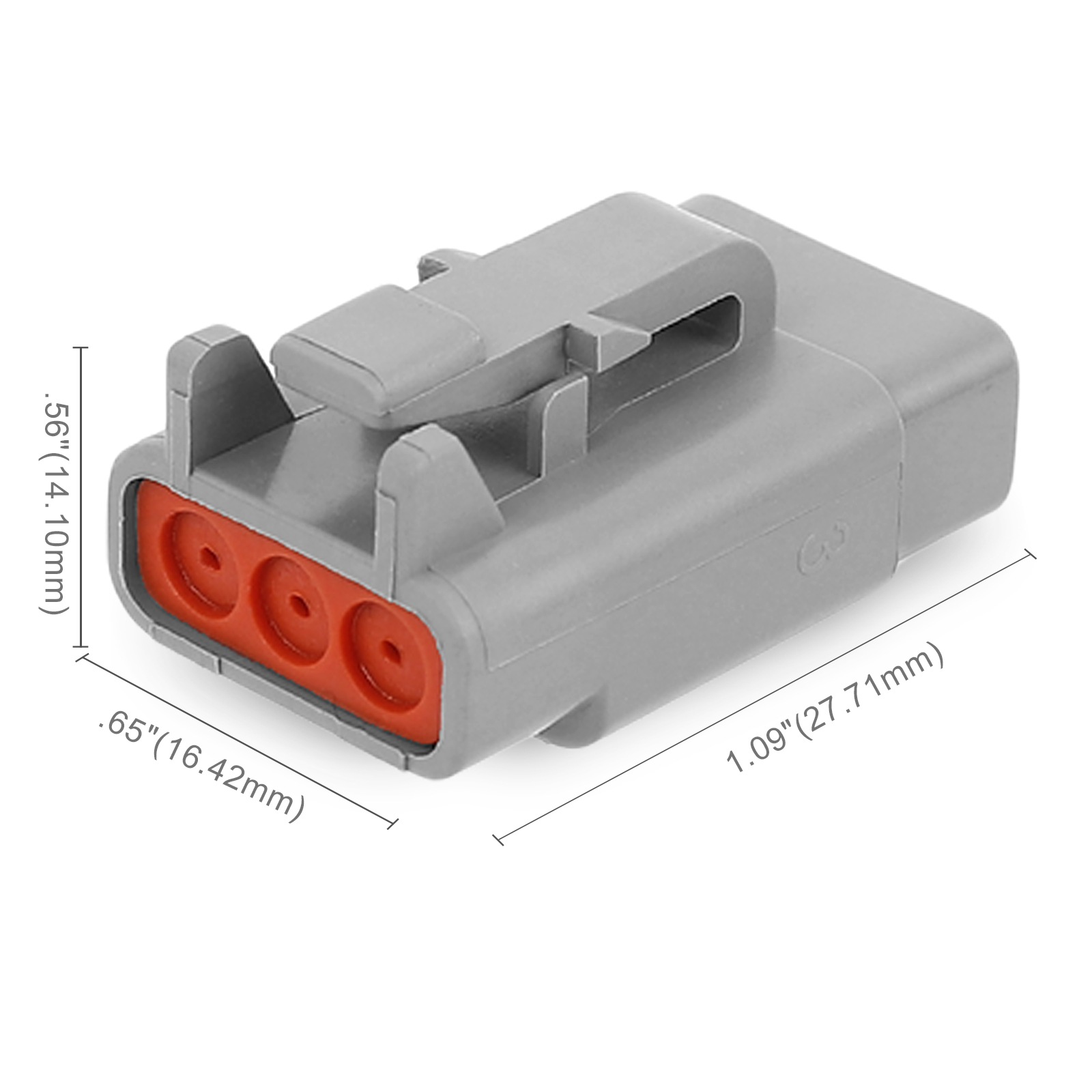

| Material | PA66 | Dimension | 27.71*16.42*14.10mm |
| Country of Origin | China | Weight | 3g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||

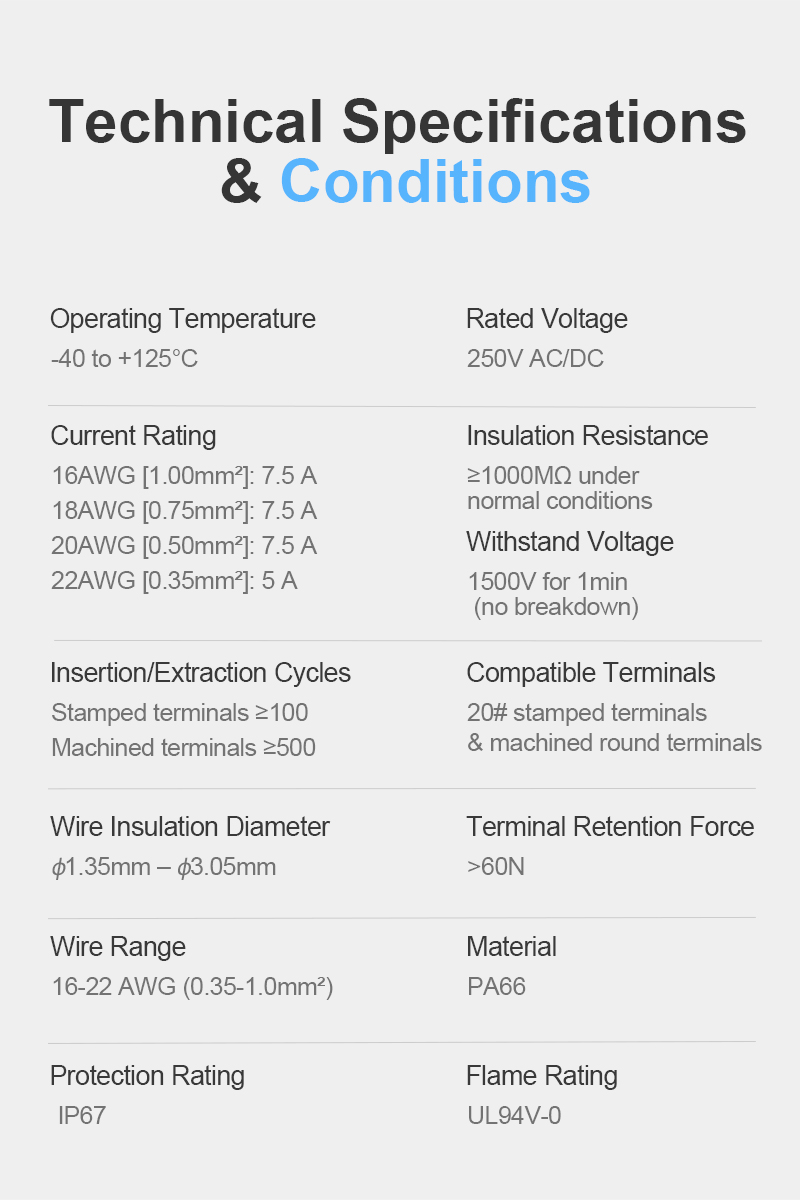

| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7.5A |
