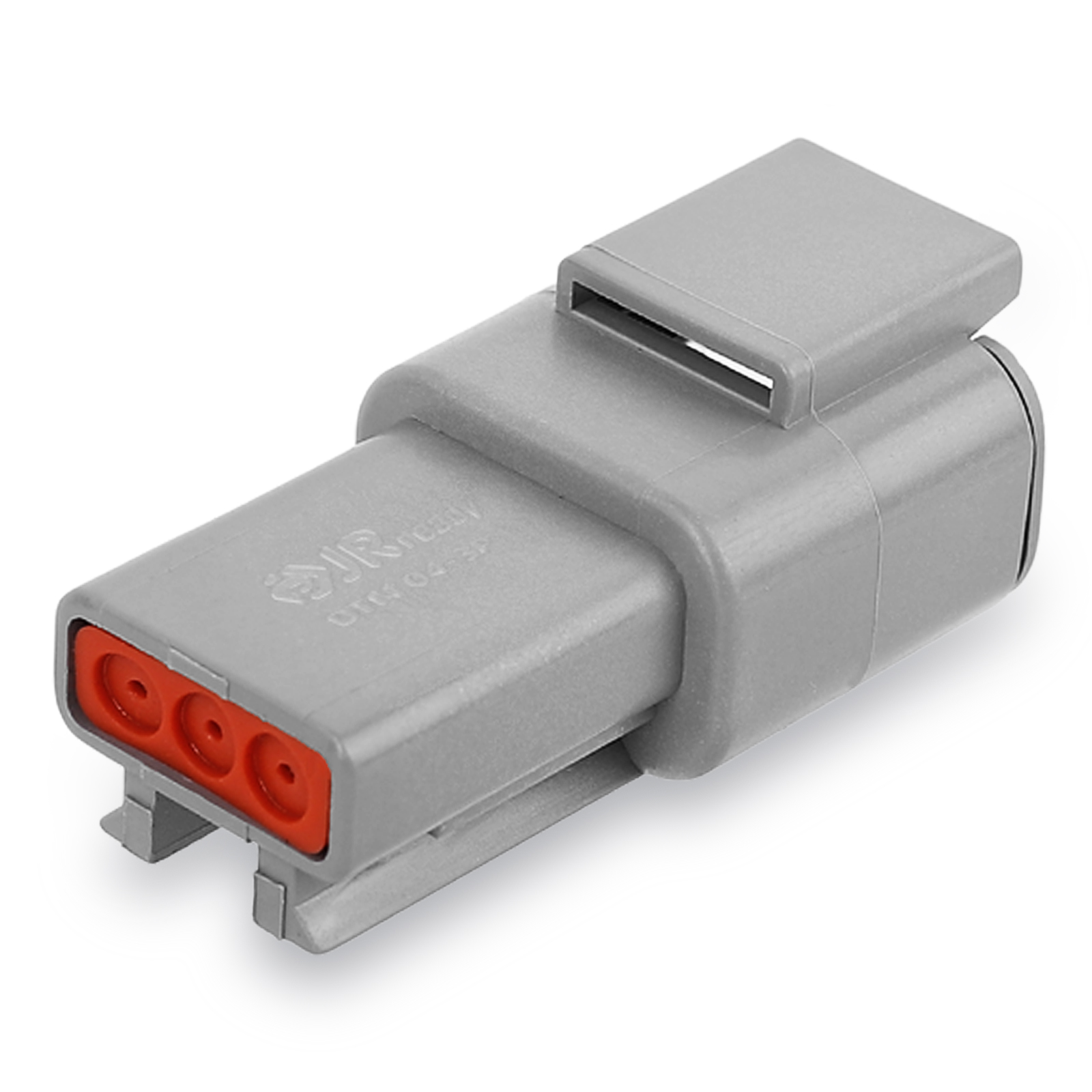

JRready DTM04-3P Waterproof Connector
1. Compatible with 16-22AWG wire；
2. Compatible with 20# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 3 Cavities；
5. Rated Voltage: 250V AC/DC, Rated Current: 7.5A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Compatible with 20# solid pins and stamped pins；
3. Connection Type : Wire to Wire；
4. Number of Cavities : 3 Cavities；
5. Rated Voltage: 250V AC/DC, Rated Current: 7.5A；
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | DTM04-3P |

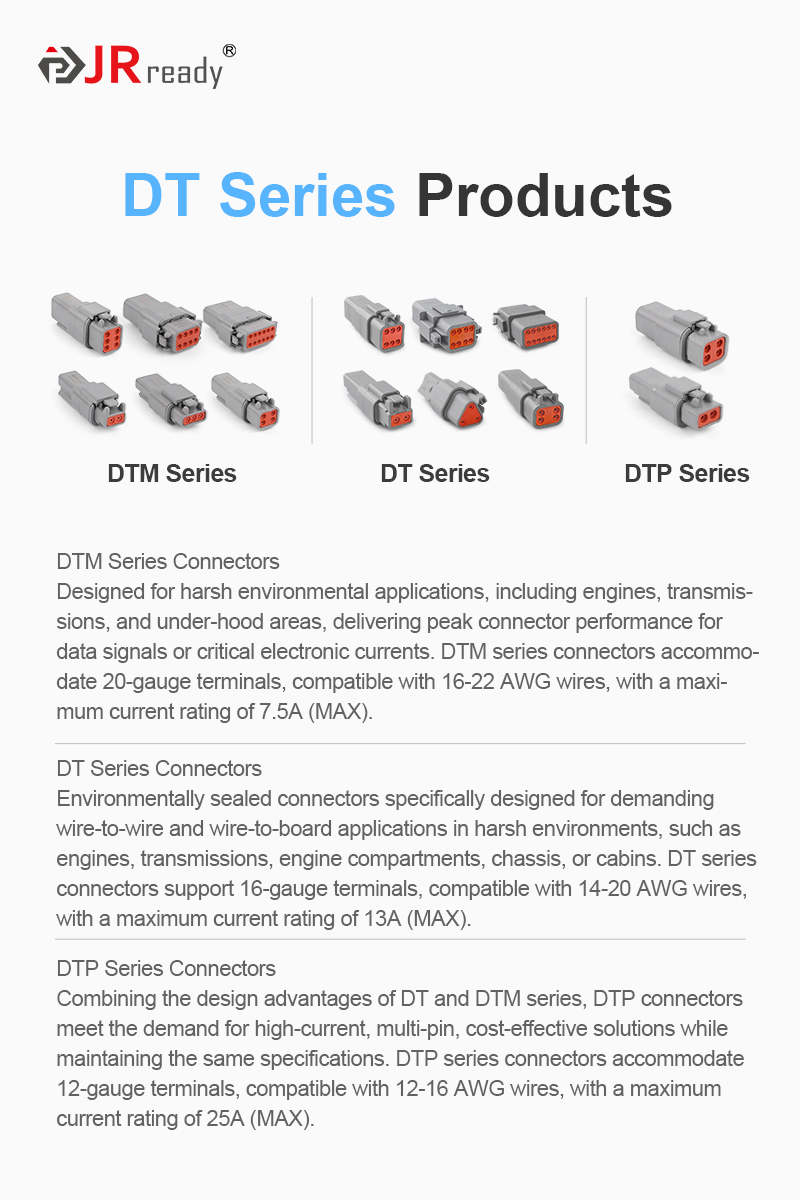

| Category | DT Series Connector | Colour | Gray |

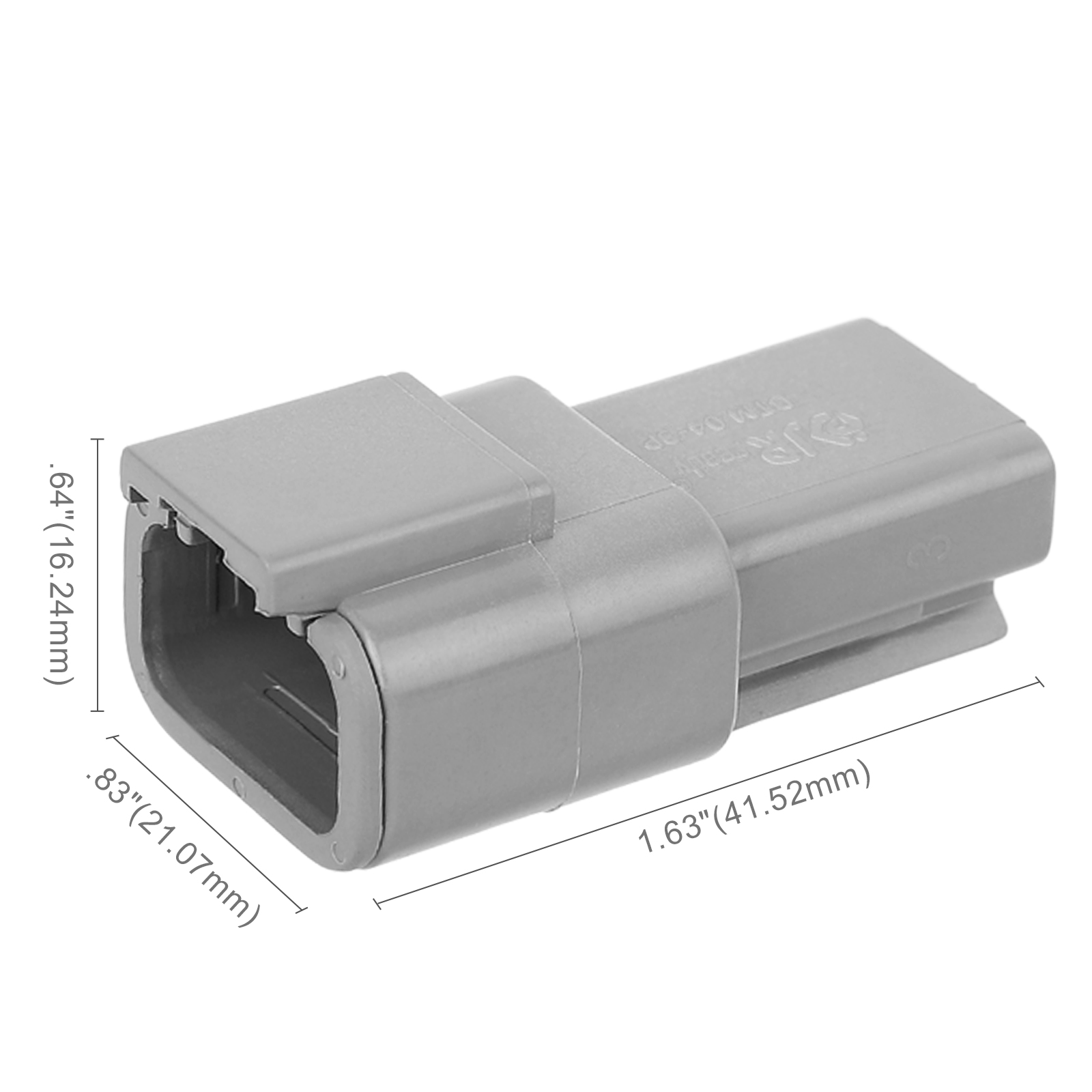

| Material | PA66 | Dimension | 41.52*21.07*16.24mm |
| Country of Origin | China | Weight | 5.00g |
| Application | Heavy-duty, transportation, marine, alternative energy, agricultural, and other applications requiring reliable connectivity in harsh environments | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7.5A |
