JRready YJQ-W2Q Pneumatic Four-indent Crimping Tool

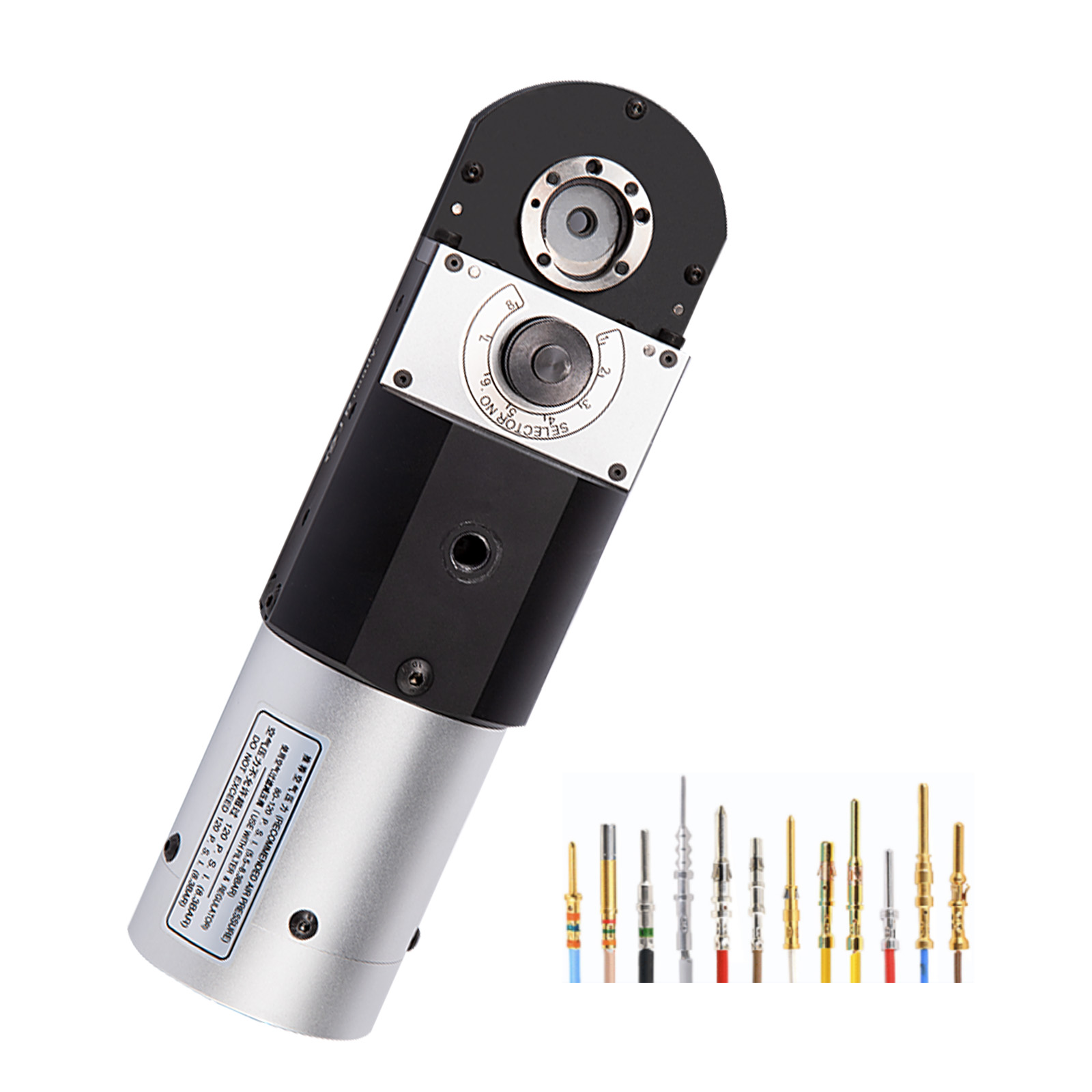

1. Crimping tool designed according to the MIL standard MIL-C-22520/1-01 crimping specification;
2. Suitable for crimping 10A and 16A terminals in HARTING, TE, and WAIN heavy-duty connectors;
3. Applicable wire range: 26-12AWG (0.128-4.0mm²);

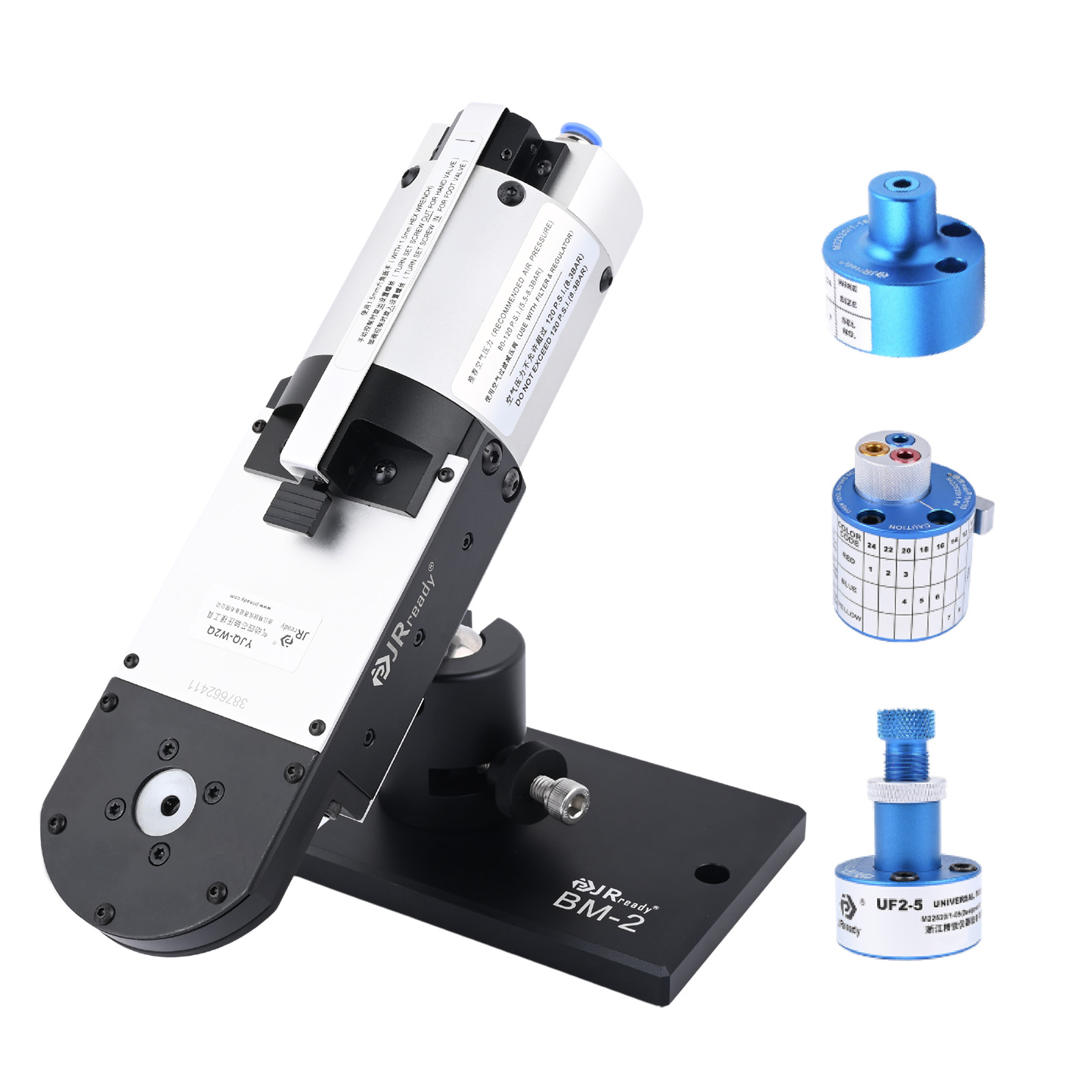

4 .Applicable to M22520/1 series positioners;
2. Suitable for crimping 10A and 16A terminals in HARTING, TE, and WAIN heavy-duty connectors;
3. Applicable wire range: 26-12AWG (0.128-4.0mm²);
4 .Applicable to M22520/1 series positioners;
| Brand | JRready | Part Number | YJQ-W2Q |
| Category | MIL Standard Crimping Tool | Colour | Silver |

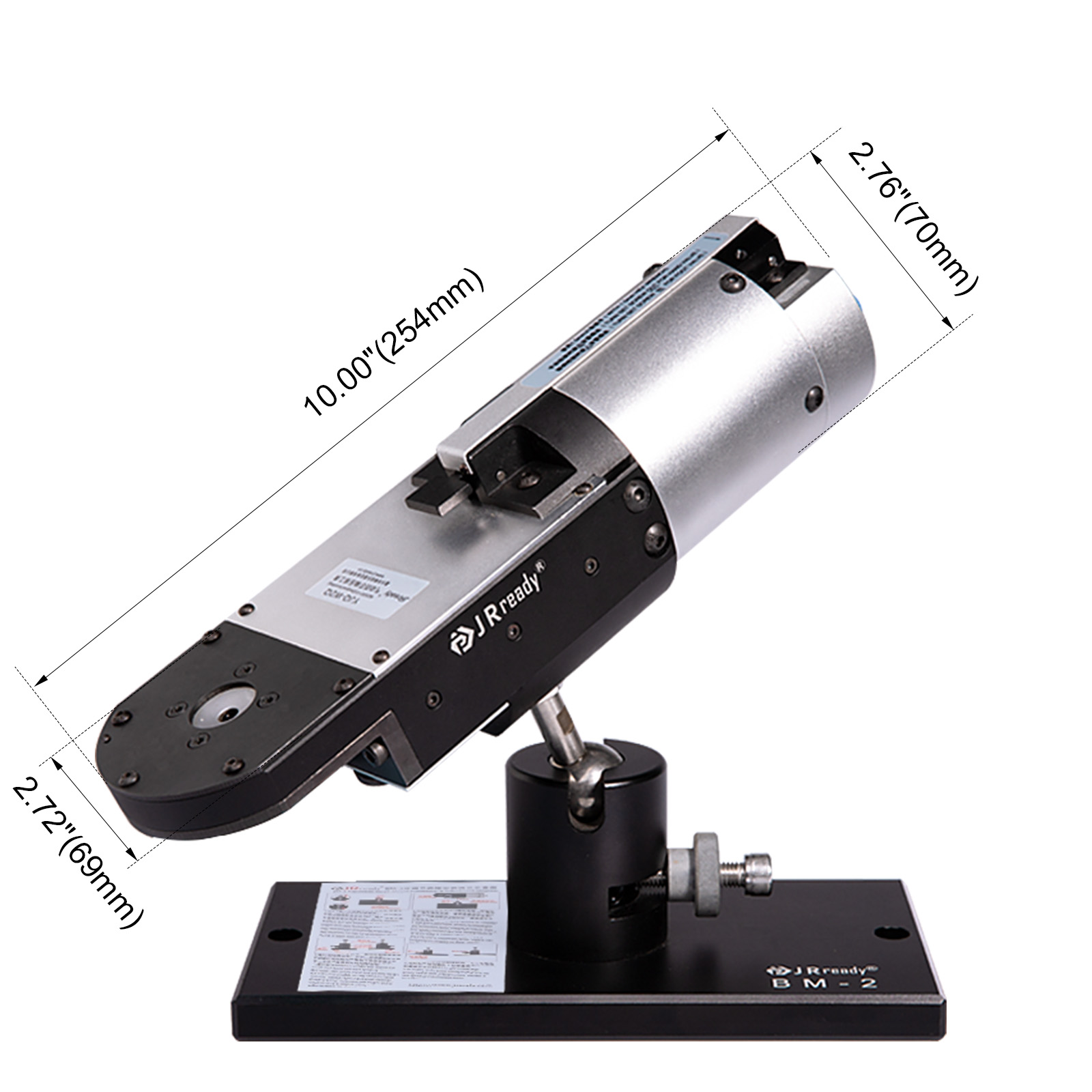

| Material | Mold Steel | Dimension | 254*70*69mm |
| Country of Origin | China | Weight | 4200g |
| Application | Suitable for crimping of MIL standard terminals 12#, 16#, 20# and heavy-duty 10A, 16A terminals | ||

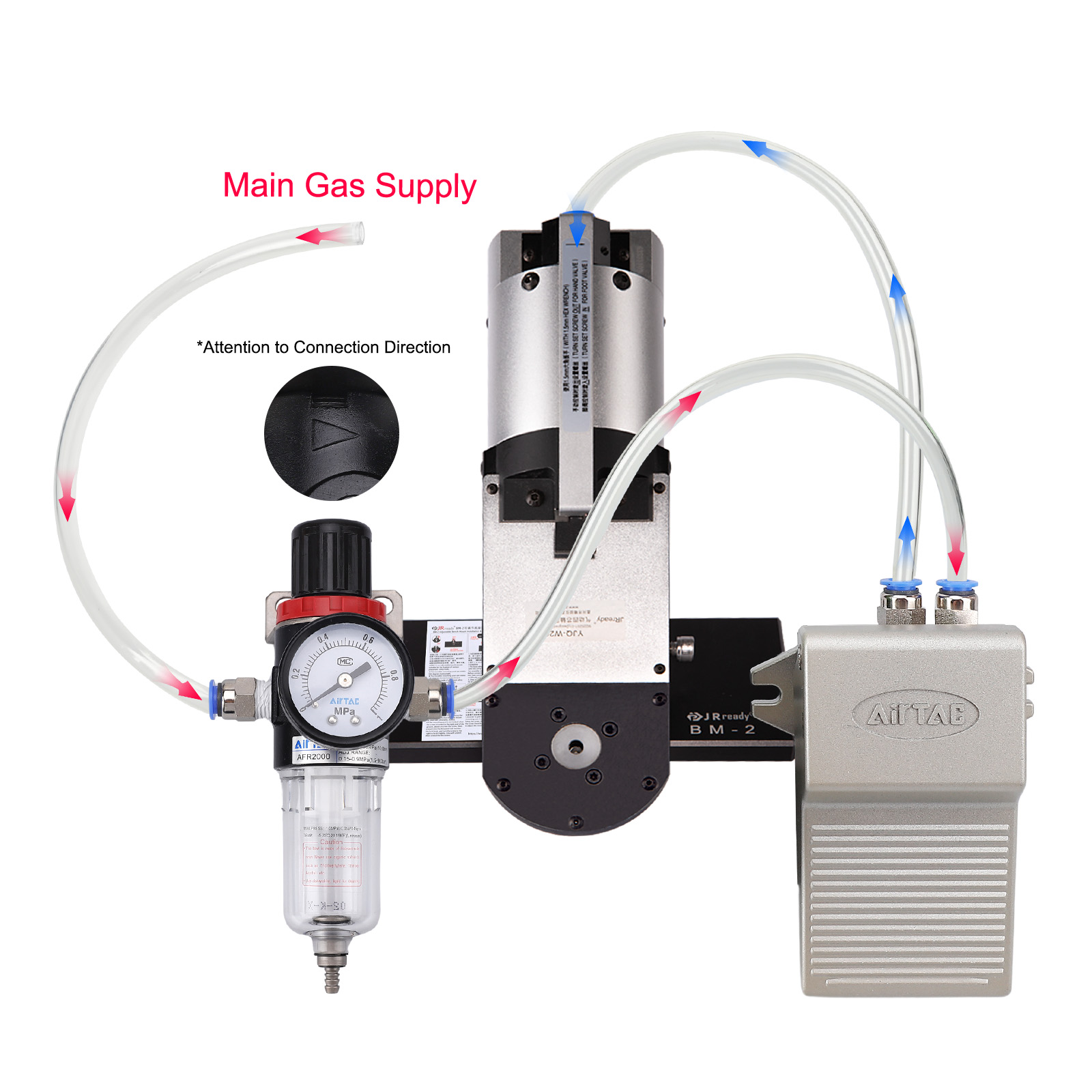

| Working Temperature | / | Working Pressure | 5.5-8.3BAR |
