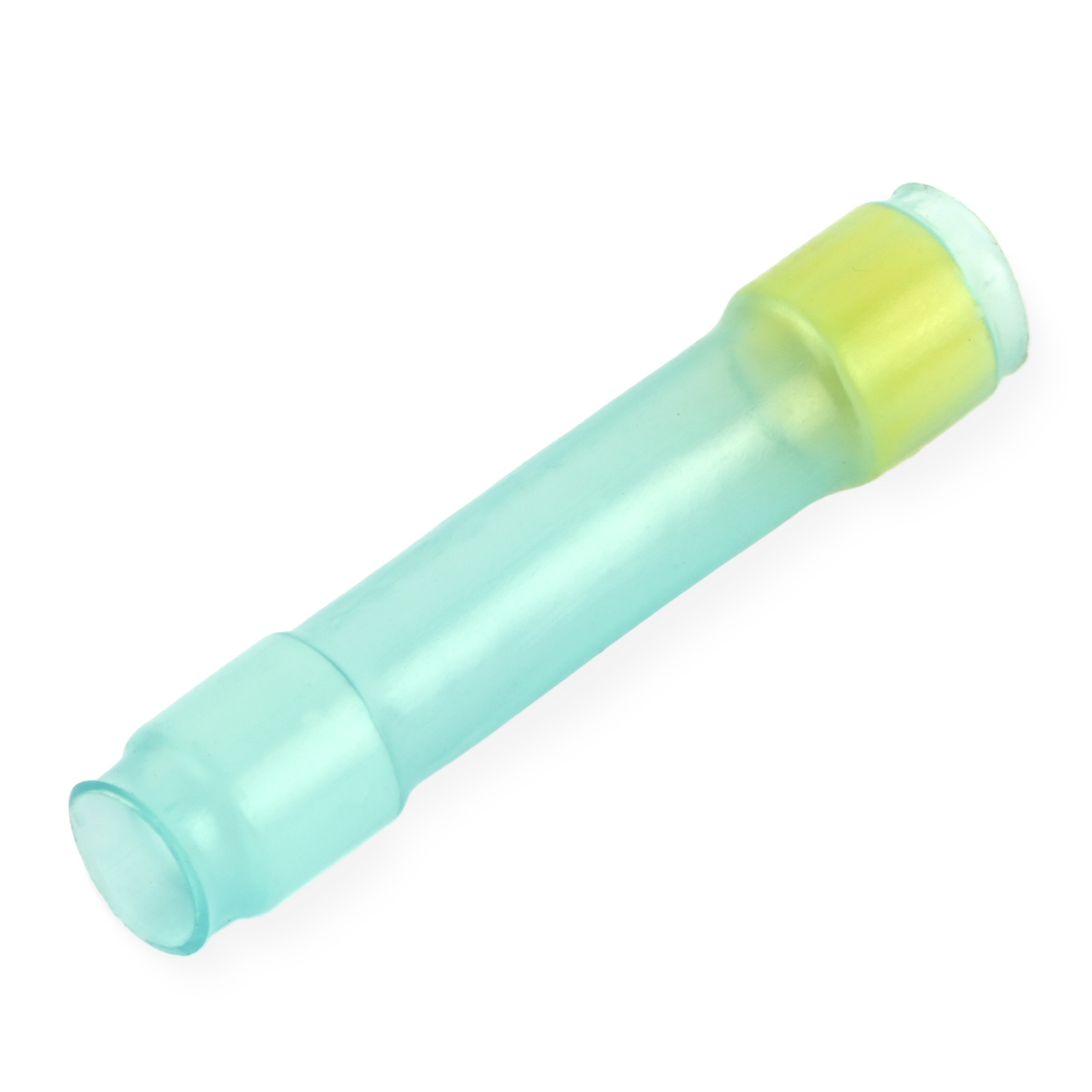

JRready JSS81824/1-3H Heat Shrink connector - Yellow
1.Designed with reference to M81824/1 standard;
2.Wire range: 16-12 AWG;
3.Operating temperature range: -55°C to +150°C;
4.Compatible with splice connectors;
5.Waterproof grade: IP68;
6.Suitable for on-site wire connections and electrical repairs when used with splice connectors.
2.Wire range: 16-12 AWG;
3.Operating temperature range: -55°C to +150°C;
4.Compatible with splice connectors;
5.Waterproof grade: IP68;
6.Suitable for on-site wire connections and electrical repairs when used with splice connectors.
| Brand | JRready | Part Number | JSS81824/1-3H |
| Category | Heat Shrink Tubing | Colour | Yellow Ring |
| Material | PVDF | Dimension | 28*4.82*4.32mm |
| Country of Origin | China | Weight | 0.27g |
| Application | Applicable to industries including railways, marine, automotive, aerospace, power, and electronics | ||
| Working Temperature | -55℃-150℃ | Working Pressure | / |
| Rated Voltage | / | Rated Current | / |
