JRready 16# Pin Terminal 0460-202-1631
1. Compatible with wire range 20-16 AWG (0.5-1.5 mm²)；
2. Mating Machined Socket 0462-201-16131
3. Fully Nickel-Plated
4. Rated Current: 13A
2. Mating Machined Socket 0462-201-16131
3. Fully Nickel-Plated
4. Rated Current: 13A
| Brand | JRready | Part Number | 0460-202-1631 |
| Category | DT Series | Colour | Gold |

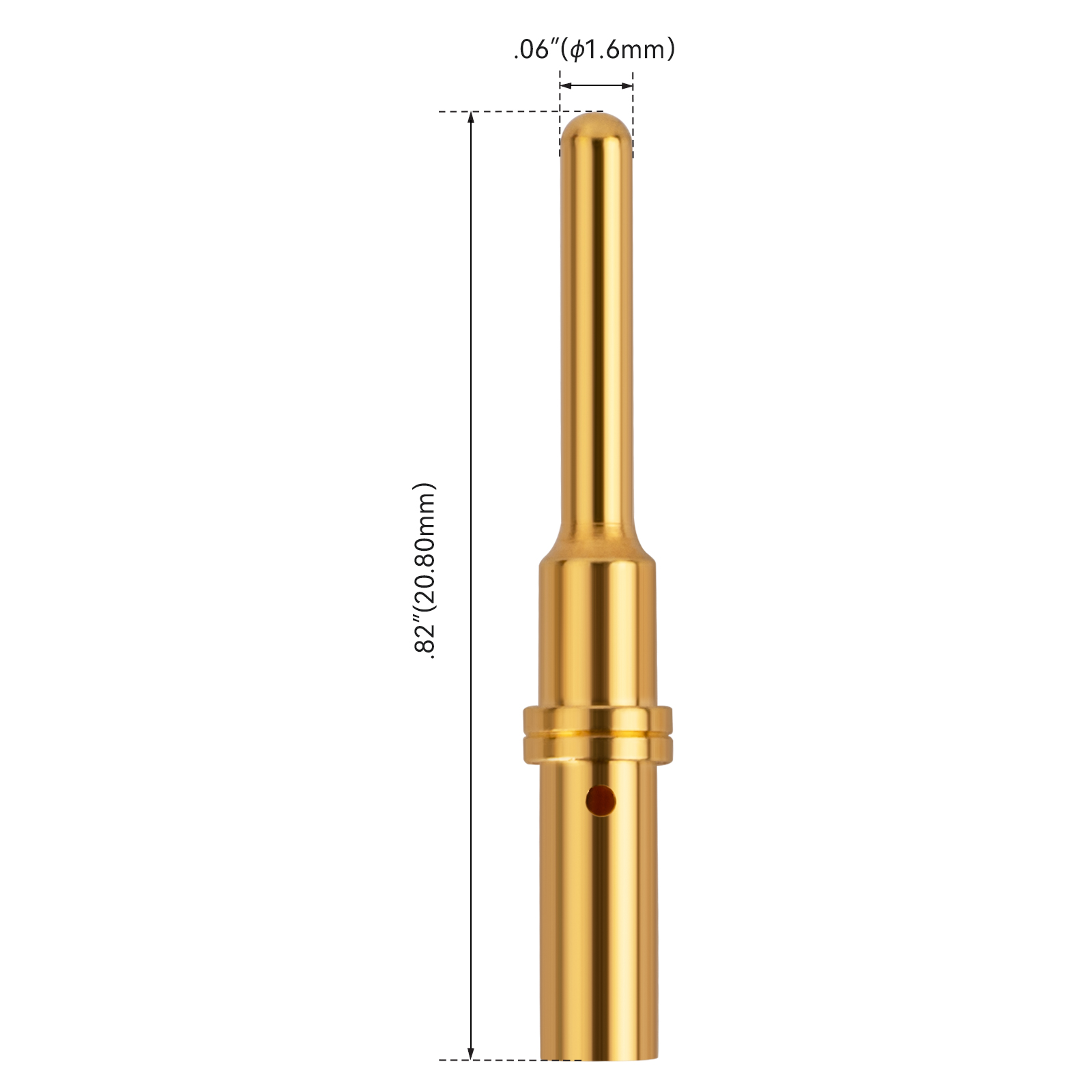

| Material | Tin Bronze | Dimension | Length: 20.80 mm, Diameter: 1.60 mm |
| Country of Origin | China | Weight | 1g |
| Application | Compatible with DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 13A |
