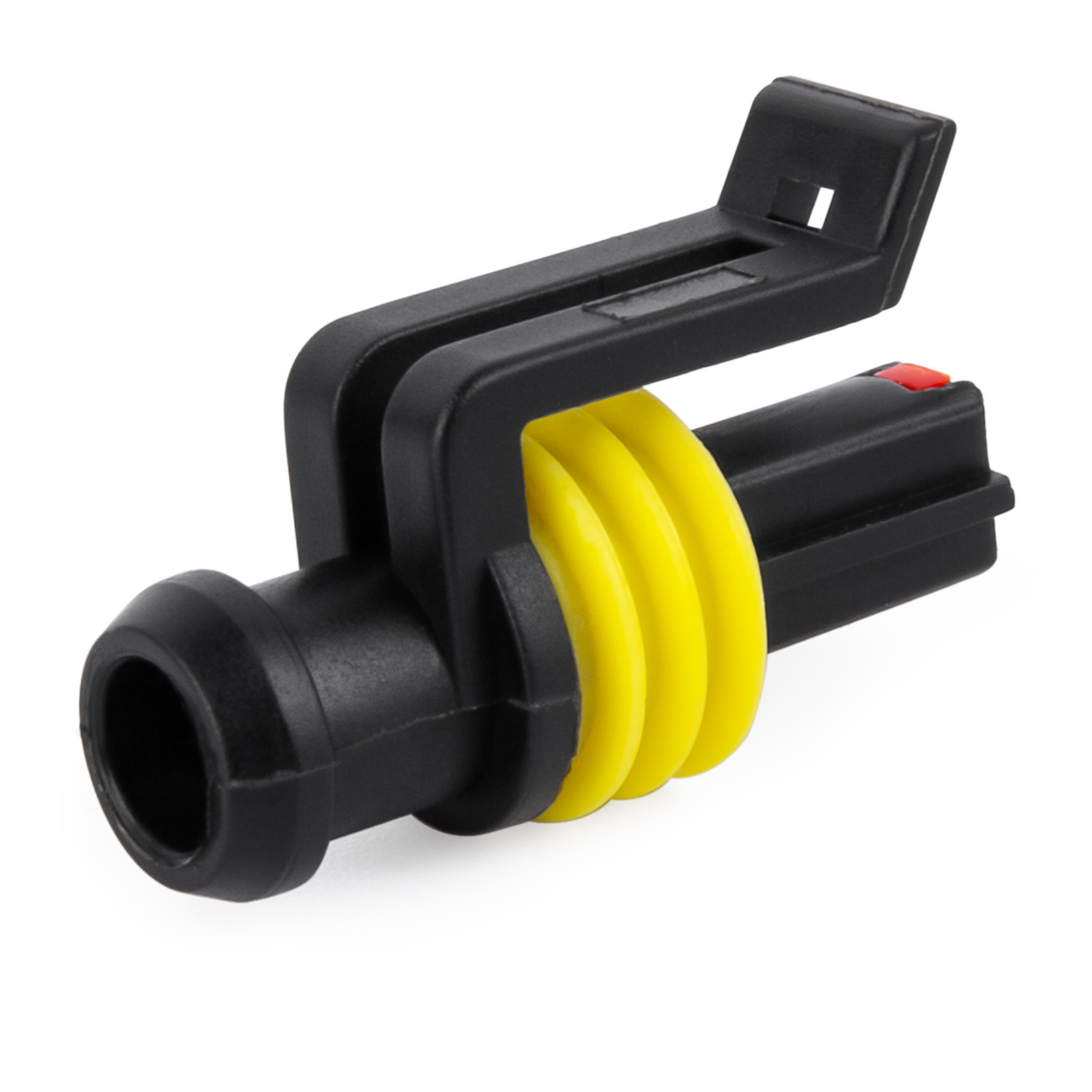

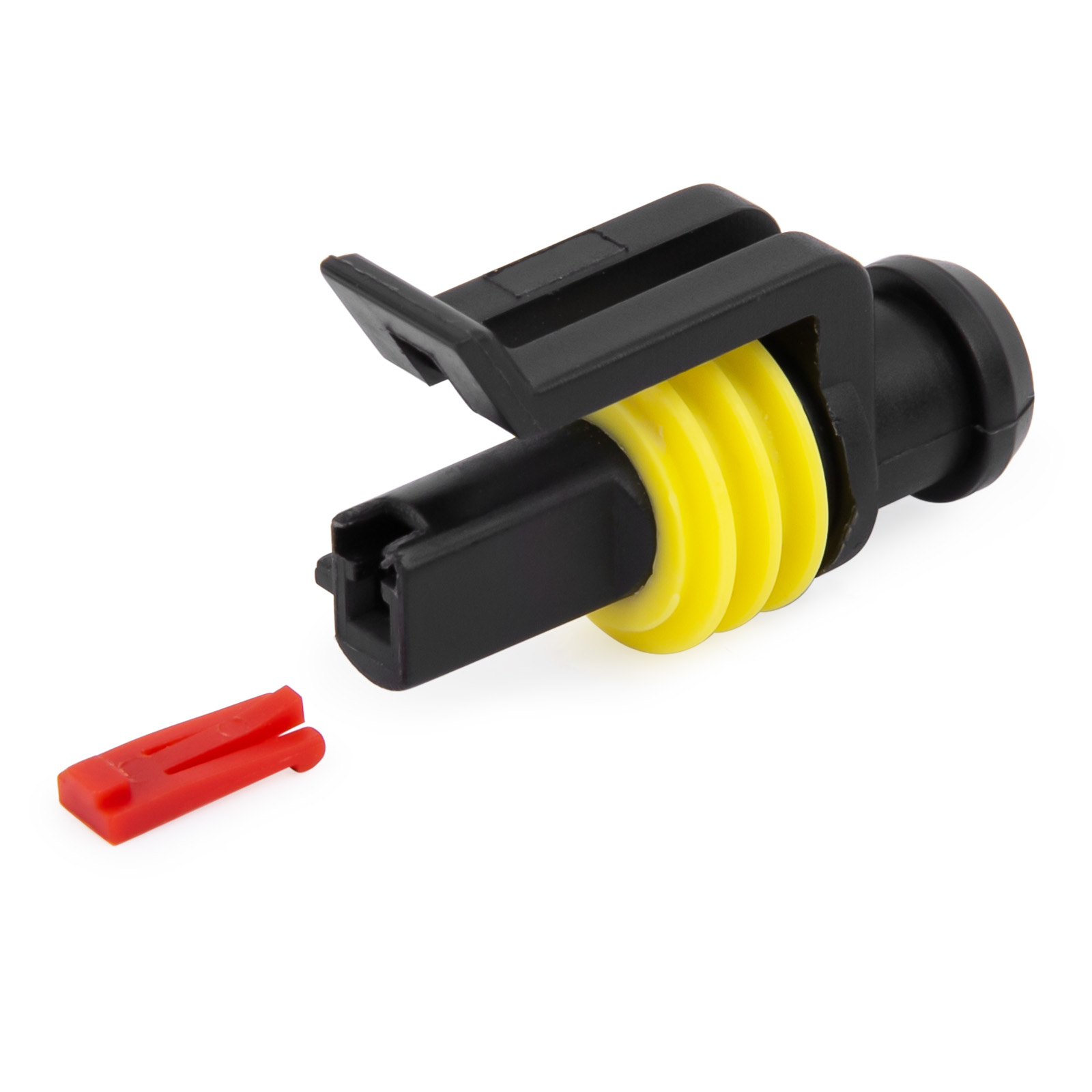

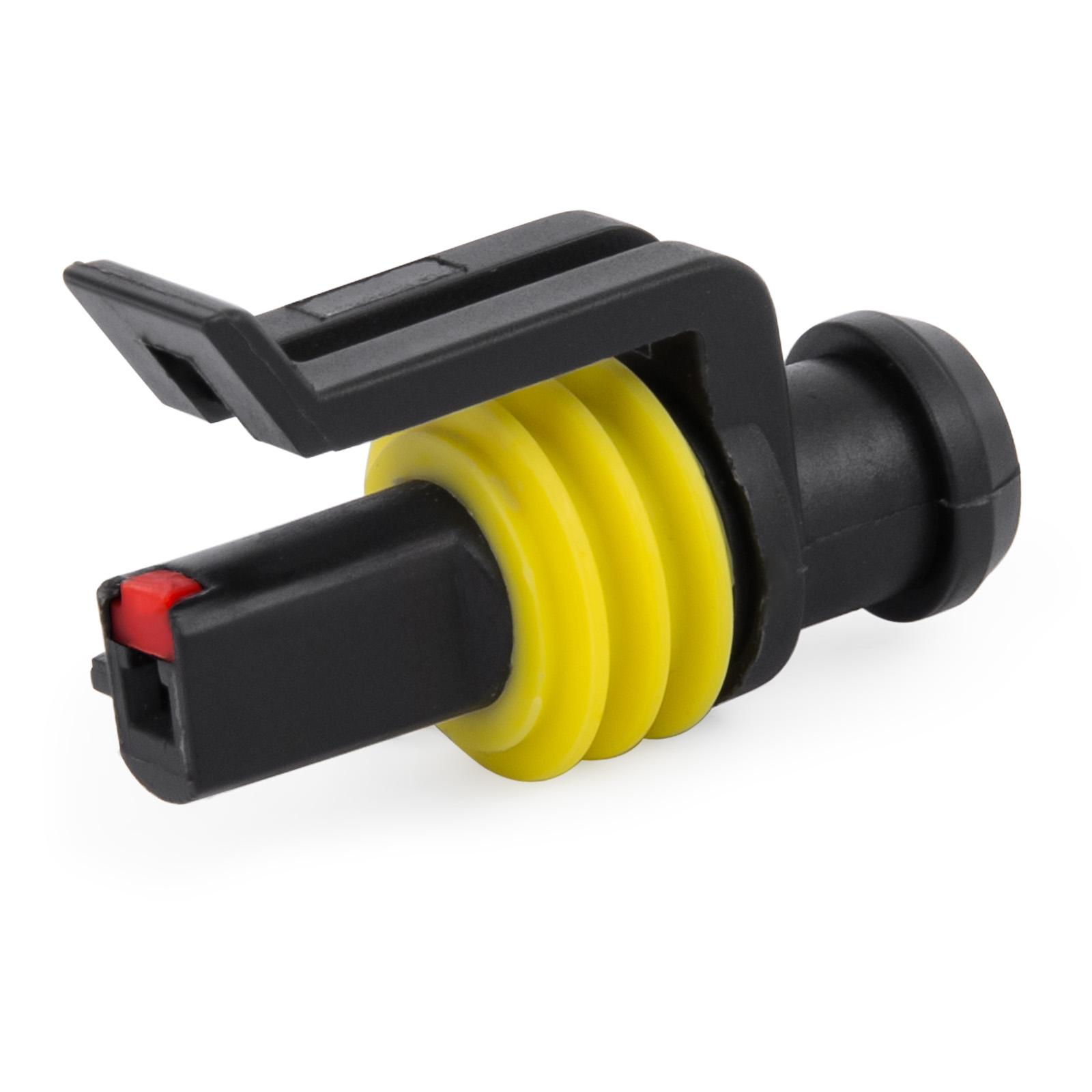

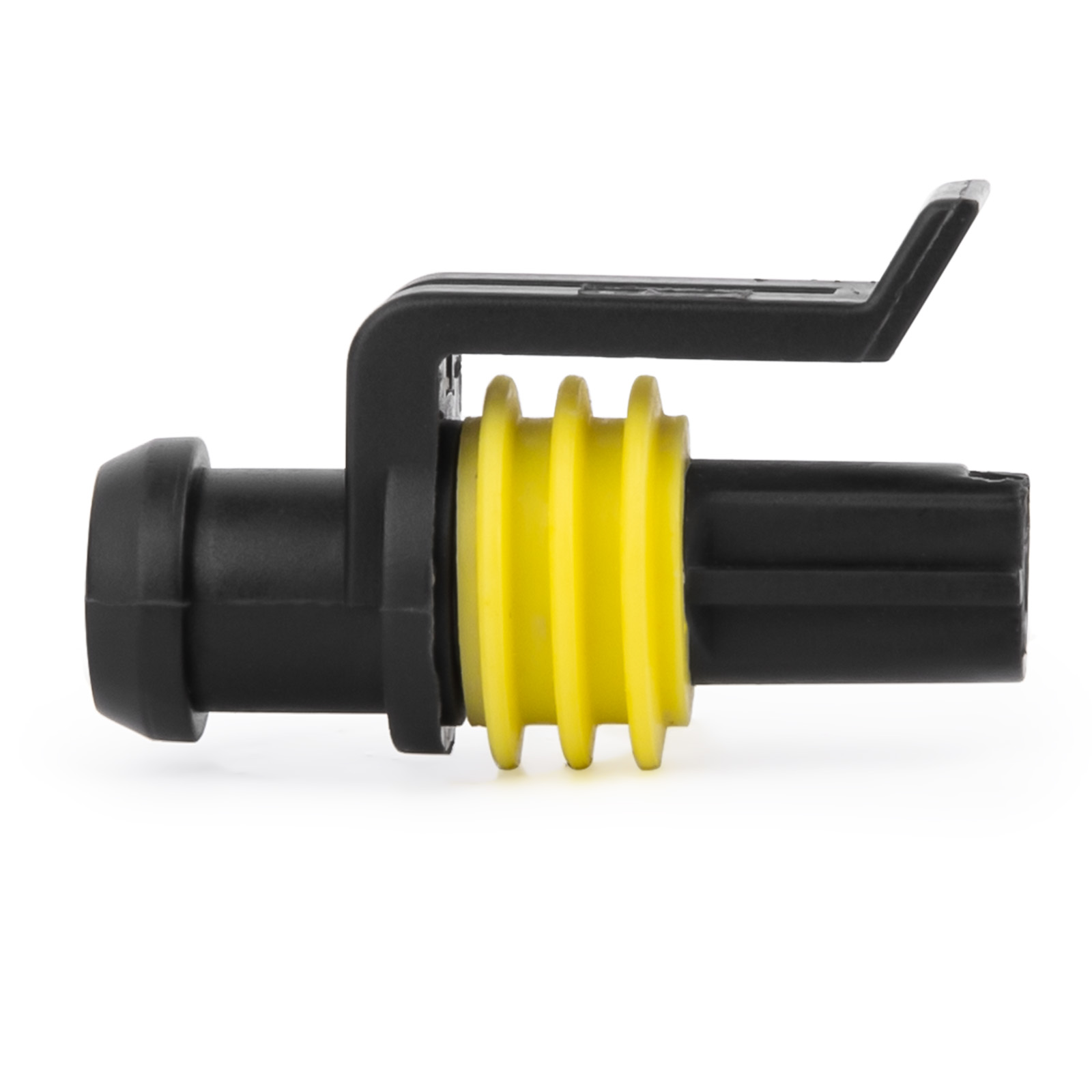

JRready 282079-2 Waterproof Connector
1.IP67 standard with enhanced waterproof performance;
2.Number of positions: 1;
3.Compatible with stamped female terminals 282403-1/282110-1/282466-1;
4.Wire range: 0.35-2.50 mm²;
5.Interoperable with same-spec products on the market.
2.Number of positions: 1;
3.Compatible with stamped female terminals 282403-1/282110-1/282466-1;
4.Wire range: 0.35-2.50 mm²;
5.Interoperable with same-spec products on the market.
| Brand | JRready | Part Number | 282079-2 |
| Category | JRready SUPERSEAL 1.5 Series | Colour | Black |

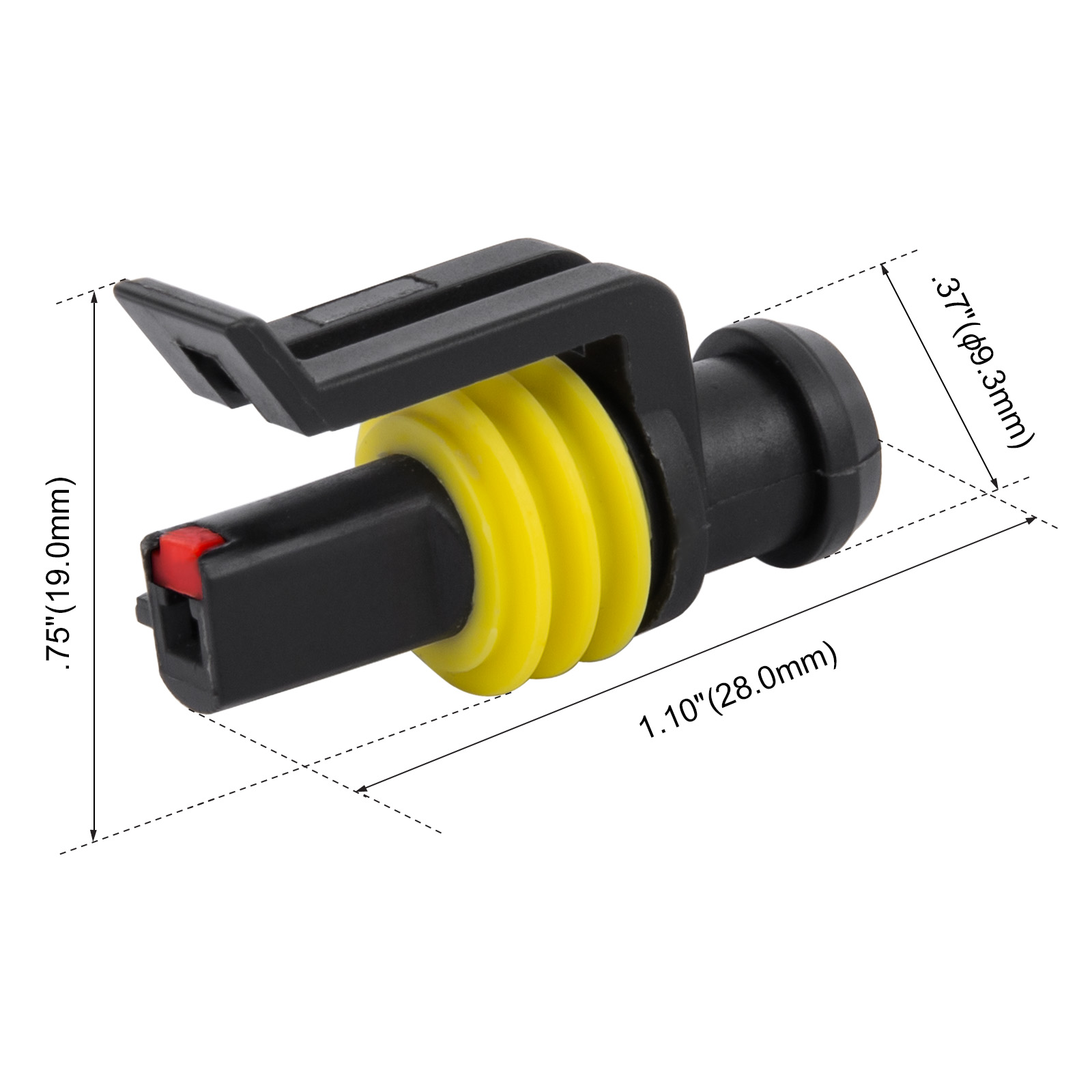

| Material | PA66 | Dimension | 28.0*19.0*9.3mm |
| Country of Origin | China | Weight | 1.4g |
| Application | Applied to the connection of electrical wiring harnesses under the engine hood of automobiles, trucks, buses, off-road vehicles, etc., or in sealed environments to solve the transmission of electrical performance of internal circuits in vehicles | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 24VDC | Rated Current | 14A (MAX) |
