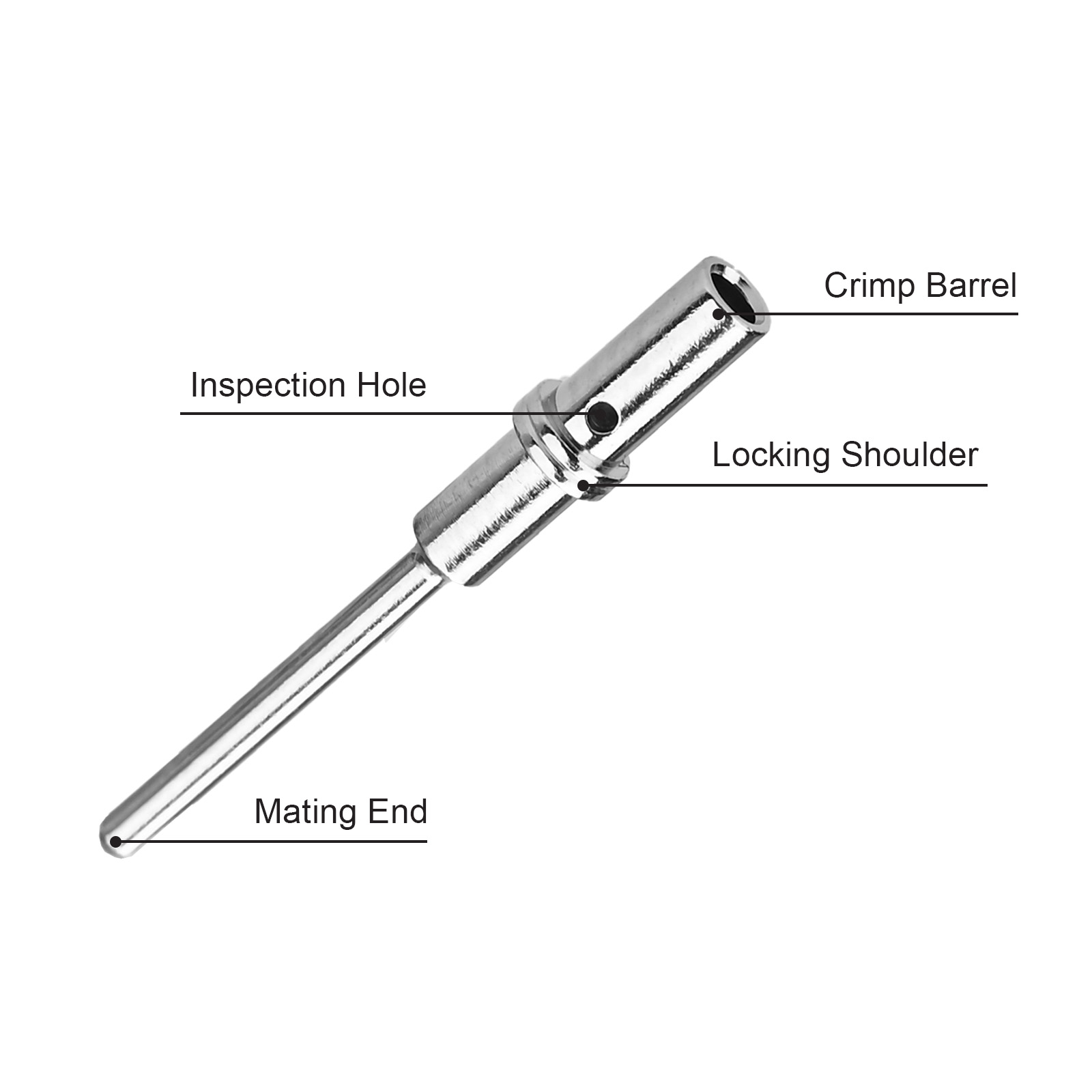

JRready 0460-202-20141 ​ ​20# Pin Terminal​

​1. Wire Range: 20-22 AWG (0.5-0.35 mm²)
2. ​​Mates with Machined socket 0462-201-20141​
3. ​Full Nickel Plating​
4. ​Rated Current: 7.5A
Contact Us
Brand JRready Part Number 0460-202-20141
Category DT Series  Colour ​Silver-White

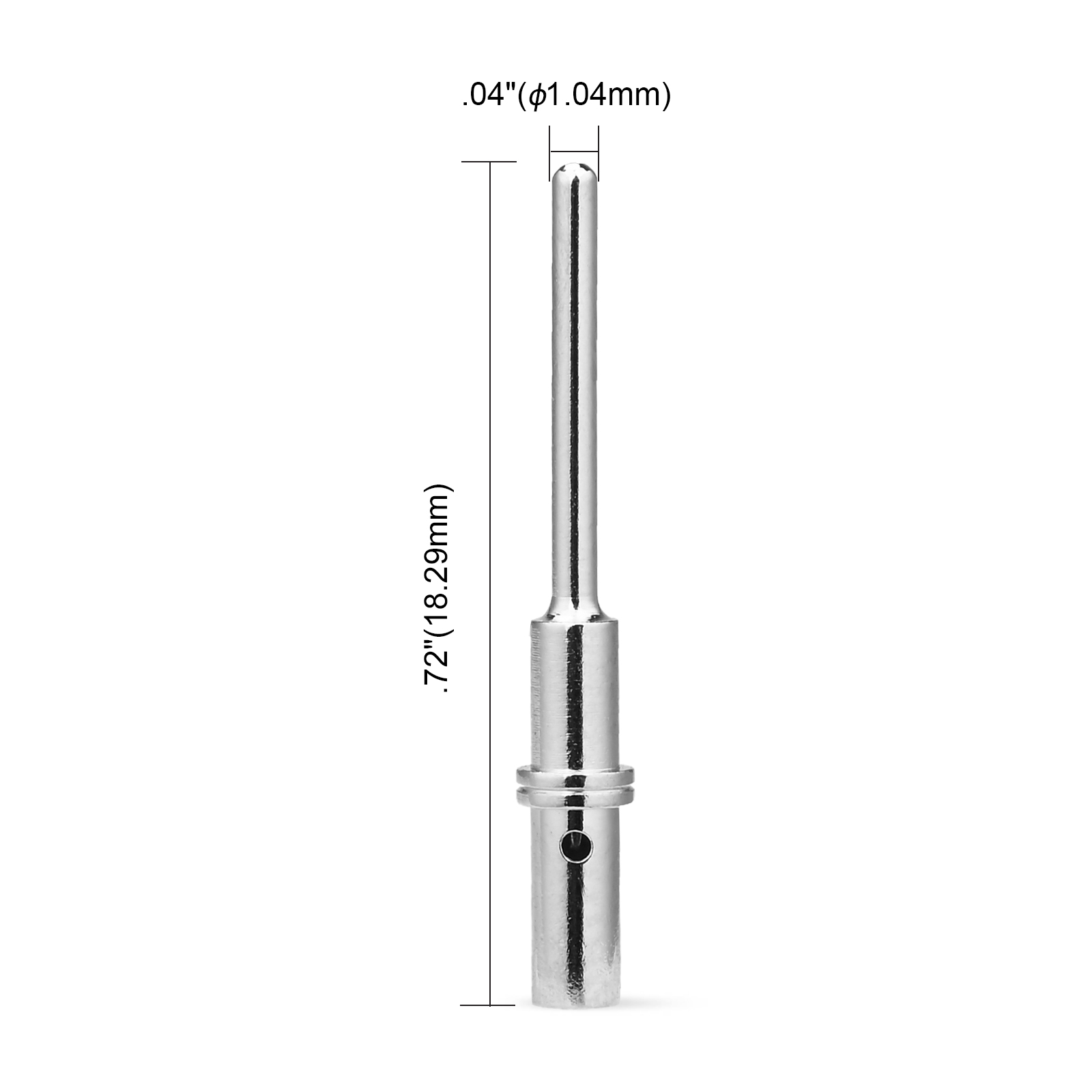

Material ​Tin Bronze  Dimension Length: 18.29 mm, Diameter: ⌀1.04 mm
Country of Origin China Weight 0.3g
Application Compatible with DTM、HDP20、HD30、DRC Series connectors
Working Temperature -40-125℃ Working Pressure /
Rated Voltage 250V Rated Current 7.5A
