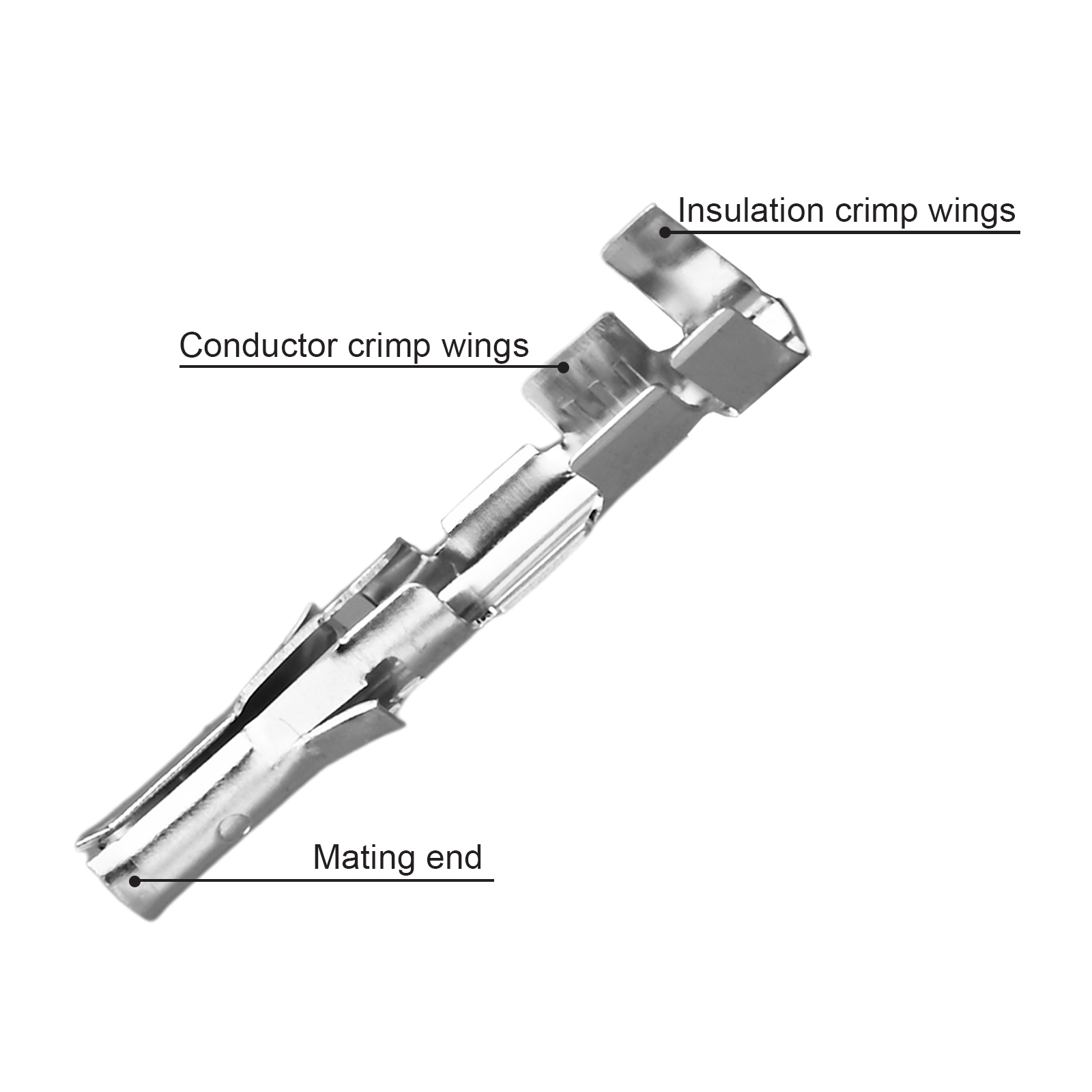

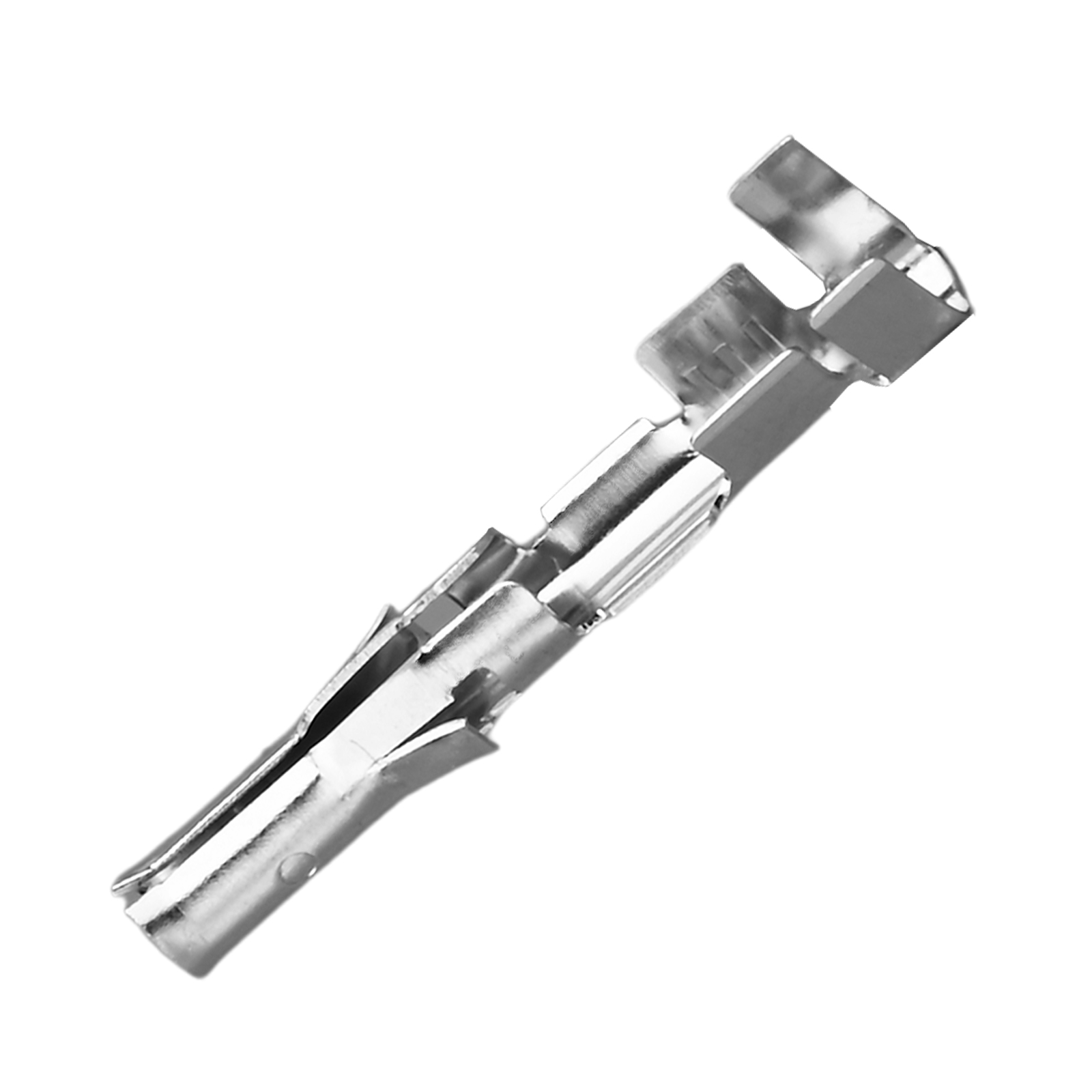

JRready JRN002-TBF-H Terminal

1.Wire range: 20-14 AWG (0.5-2.0 mm²)

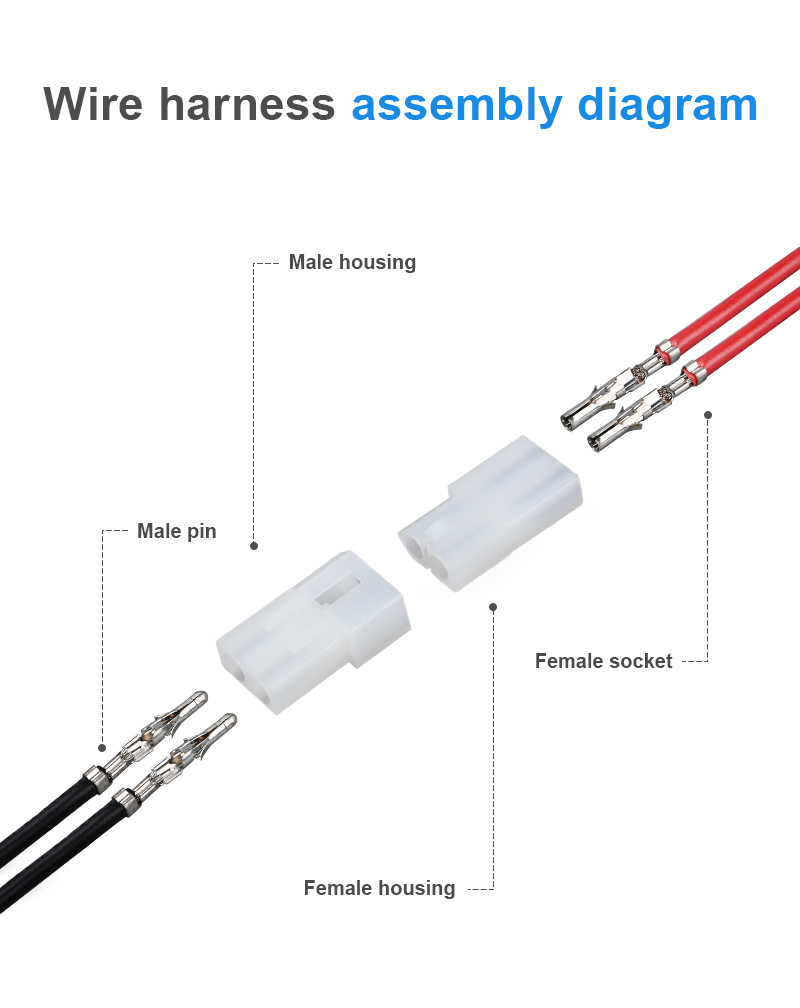

2.Mating pin: JRN002-TBM-H
3.Nickel-plated brass with tin finish
4.Rated current: 12A
Contact Us
Brand JRready Part Number JRN002-TBF-H
Category JRN002 (5.03) Series Colour Silver

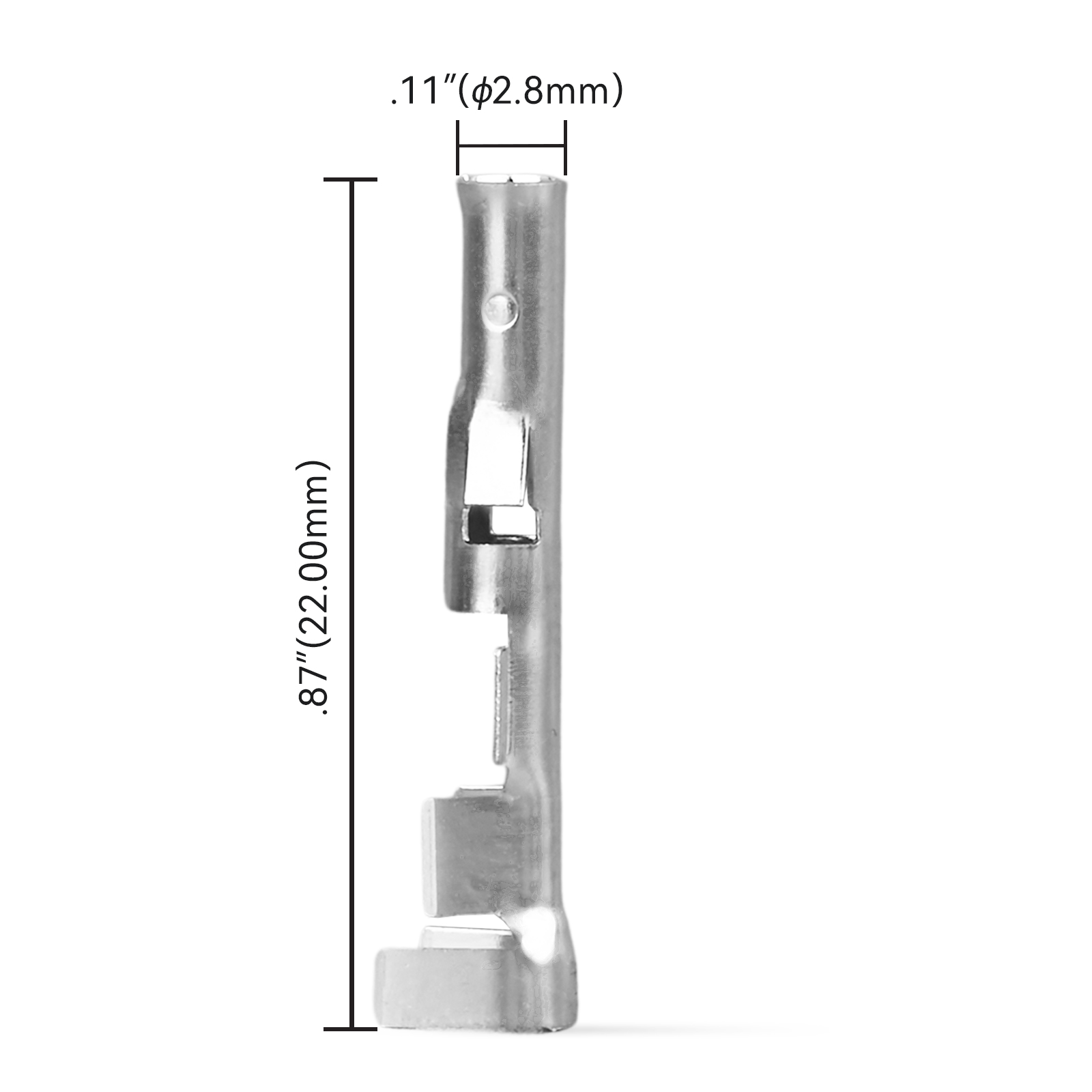

Material Brass with nickel plating - tin surface finish​ Dimension Length: 22mm, Diameter: 2.8mm
Country of Origin China Weight 0.3g
Application Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc.
Working Temperature -40-105℃ Working Pressure /
Rated Voltage 250V Rated Current 12A

Product Introduction
