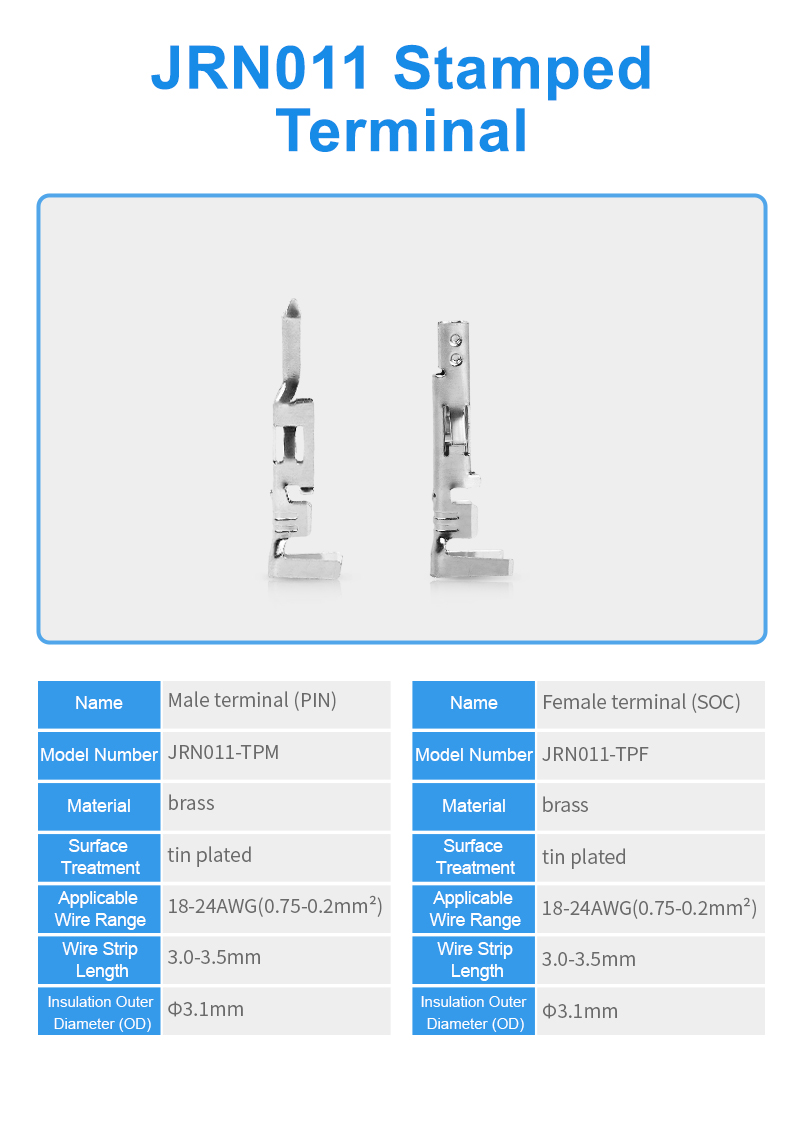

JRready JRN011-TBF-H Terminal
1. Compatible wire range: 24-18AWG (0.2-0.75mm)

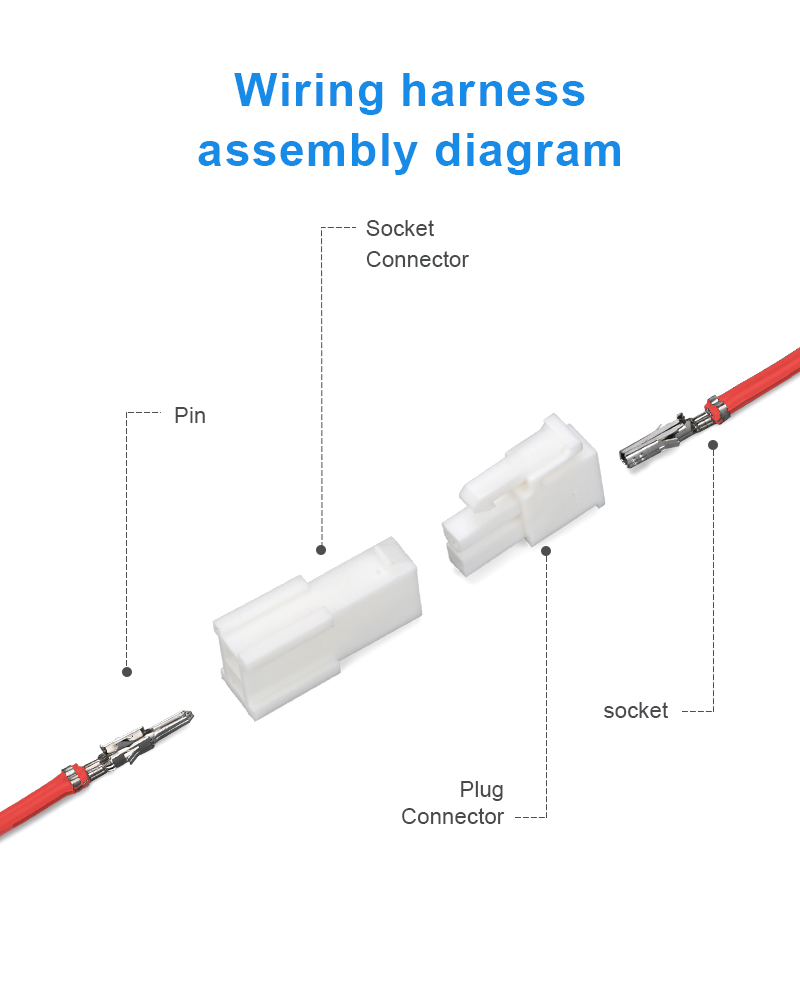

2. Mating pin: JRN011-TBM-H
3. Brass material
4. Rated current: 9A
2. Mating pin: JRN011-TBM-H
3. Brass material
4. Rated current: 9A
| Brand | JRready | Part Number | JRN011-TBF-H |
| Category | JRN011 (4.20) Series | Colour | Silver |
| Material | Brass | Dimension | Length: 14.5mm, Diameter: 1.7mm |
| Country of Origin | China | Weight | 0.14g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 9A |
