JRready JRN011-HF-2X01P-V0 Connector
1. Compatible wire range: 16-28AWG;
2. Supports stamped sockets;
3. Connection type: Wire-to-wire;
4. Number of positions: 2;
5. Rated voltage: 250V AC/DC, rated current: 9A;
6. Compatible with market-standard products of the same specification.
2. Supports stamped sockets;
3. Connection type: Wire-to-wire;
4. Number of positions: 2;
5. Rated voltage: 250V AC/DC, rated current: 9A;
6. Compatible with market-standard products of the same specification.
| Brand | JRready | Part Number | JRN011-HF-2X01P-V0 |
| Category | JRN011 (4.20) Series | Colour | White |

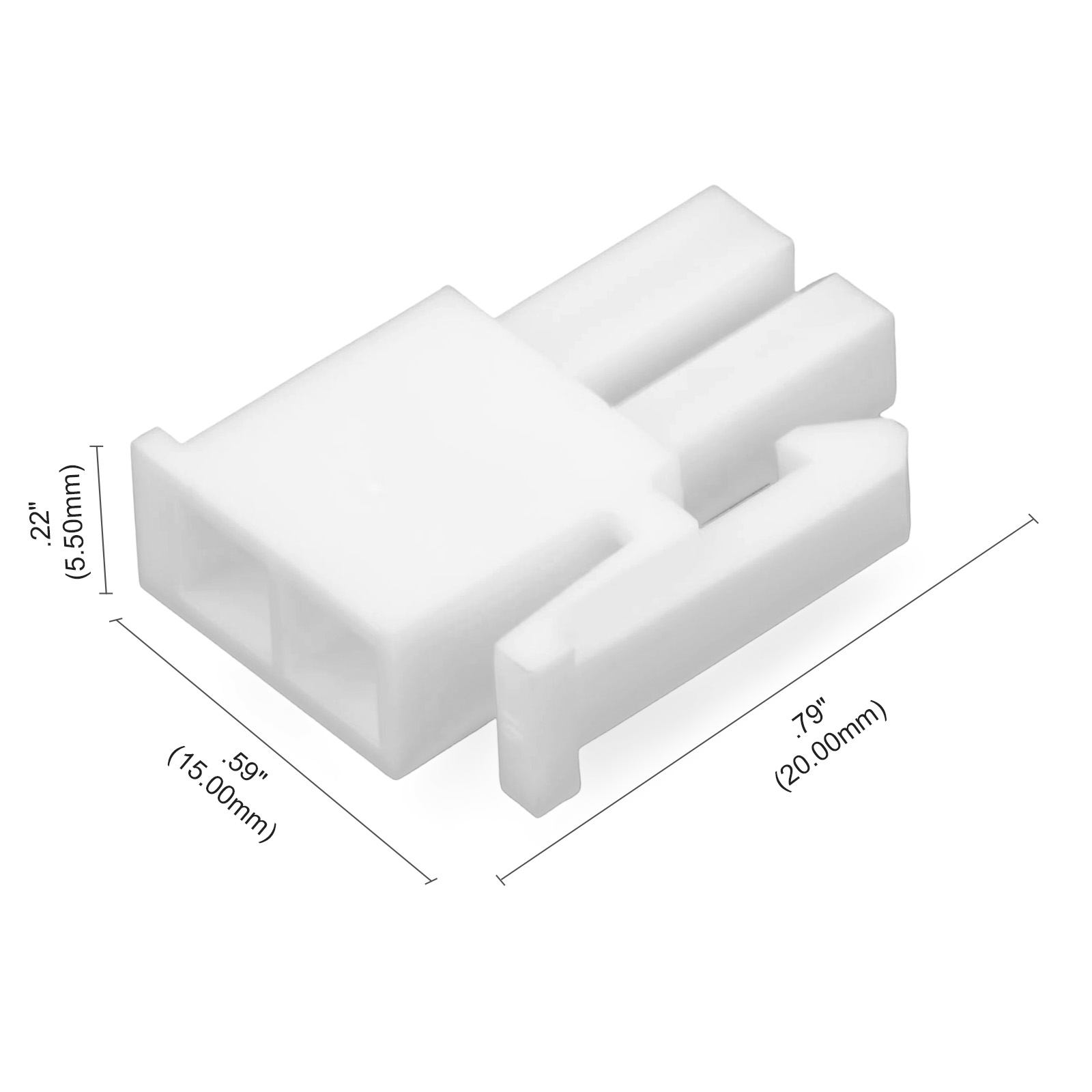

| Material | PA66 | Dimension | 20.0*15.0*5.5mm |
| Country of Origin | China | Weight | 0.61g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 9A |
