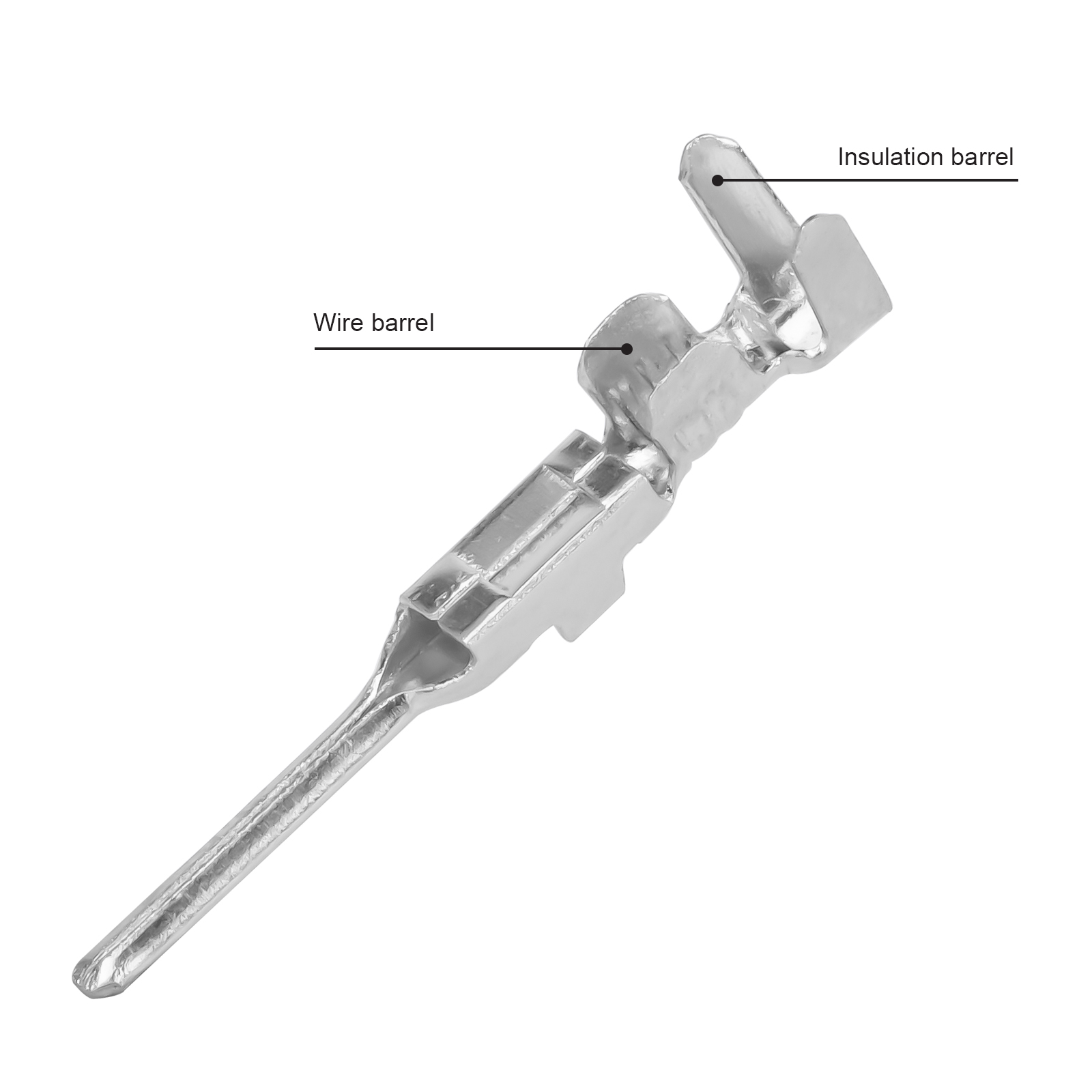

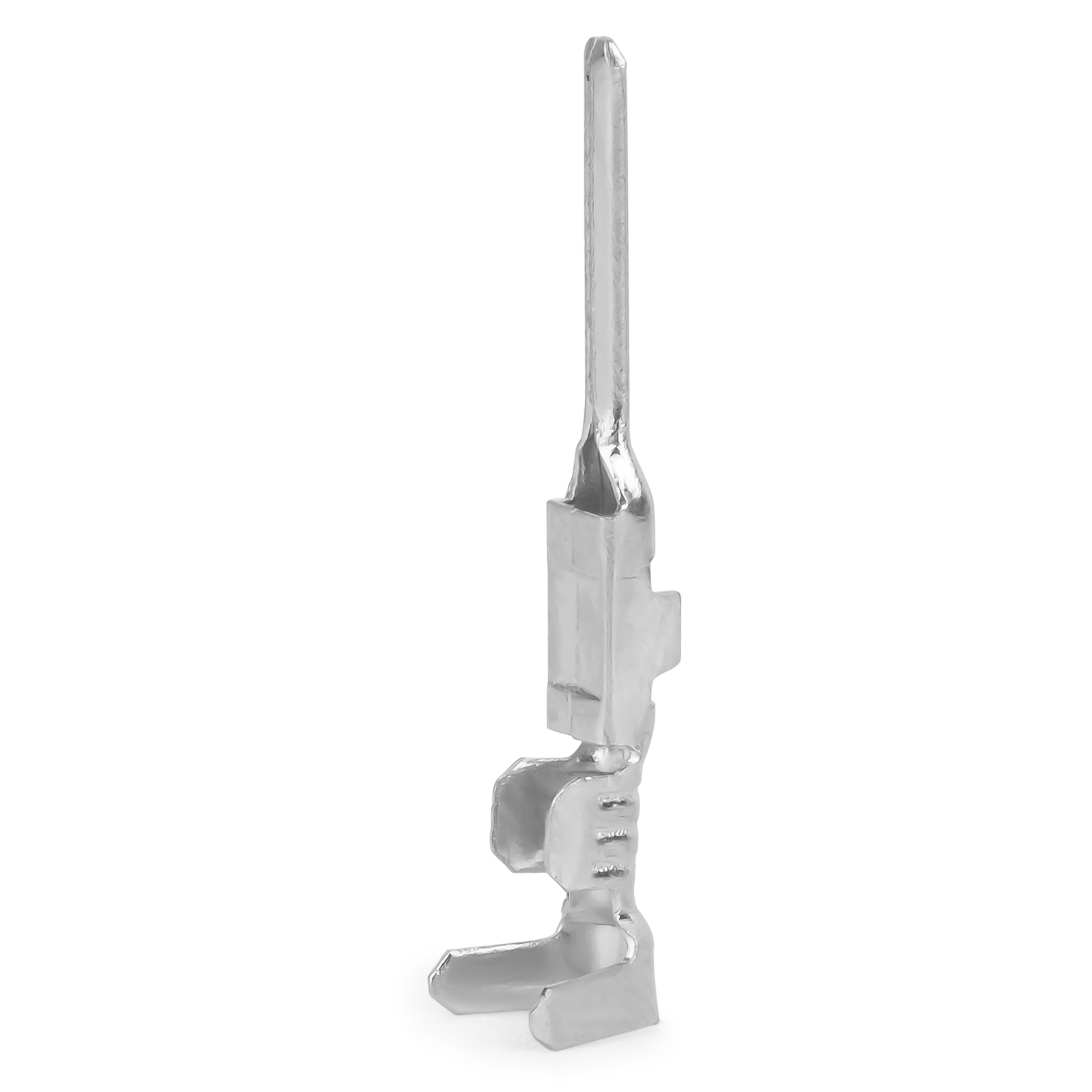

JRready 282109-1 Formed & Stamped Pin Terminal
1. Wire Range: 18-16 AWG (0.75-1.50mm²);
2. Mating Socket: 282110-1;
3. Brass, Nickel-Plated Surface;
4. Rated Current: 14A
2. Mating Socket: 282110-1;
3. Brass, Nickel-Plated Surface;
4. Rated Current: 14A
| Brand | JRready | Part Number | 282109-1 |
| Category | Terminal | Colour | Silver |

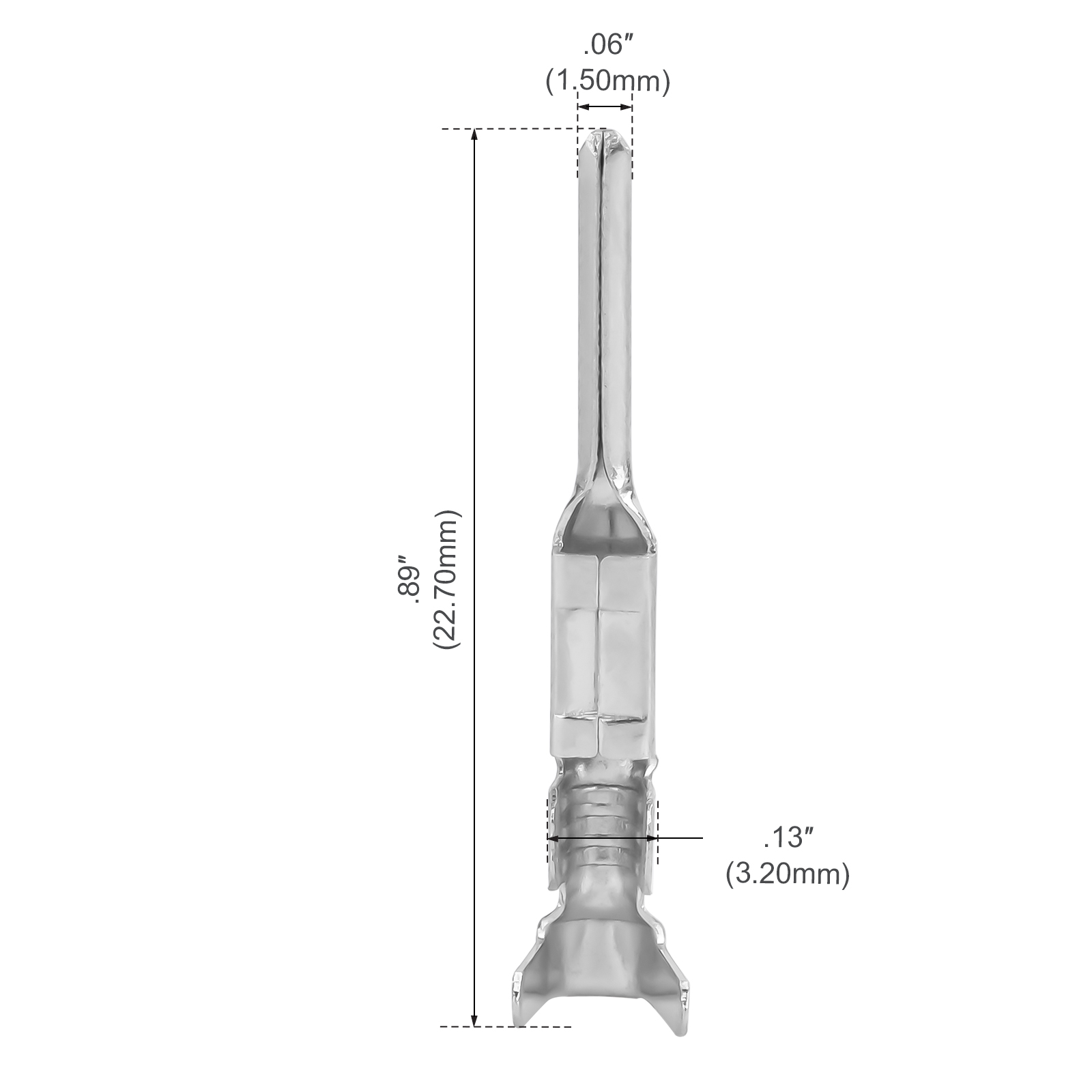

| Material | Brass | Dimension | 22.70*3.20*1.50mm |
| Country of Origin | China | Weight | 0.25g |
| Application | Suitable for SUPERSEAL 1.5 Series Connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 24VDC | Rated Current | 14A(MAX) |
