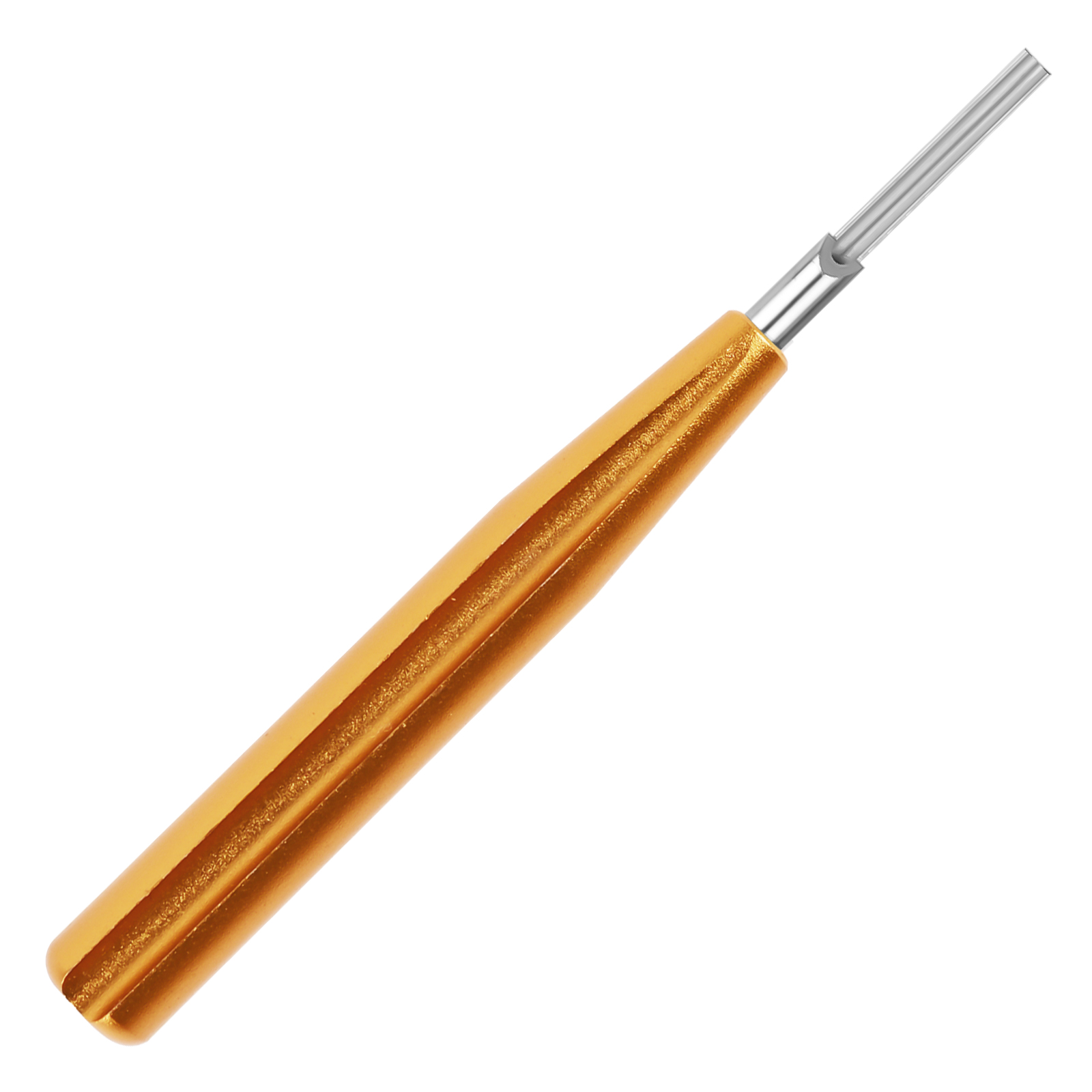

JRready DRK-D Sub Terminal Extraction Tool

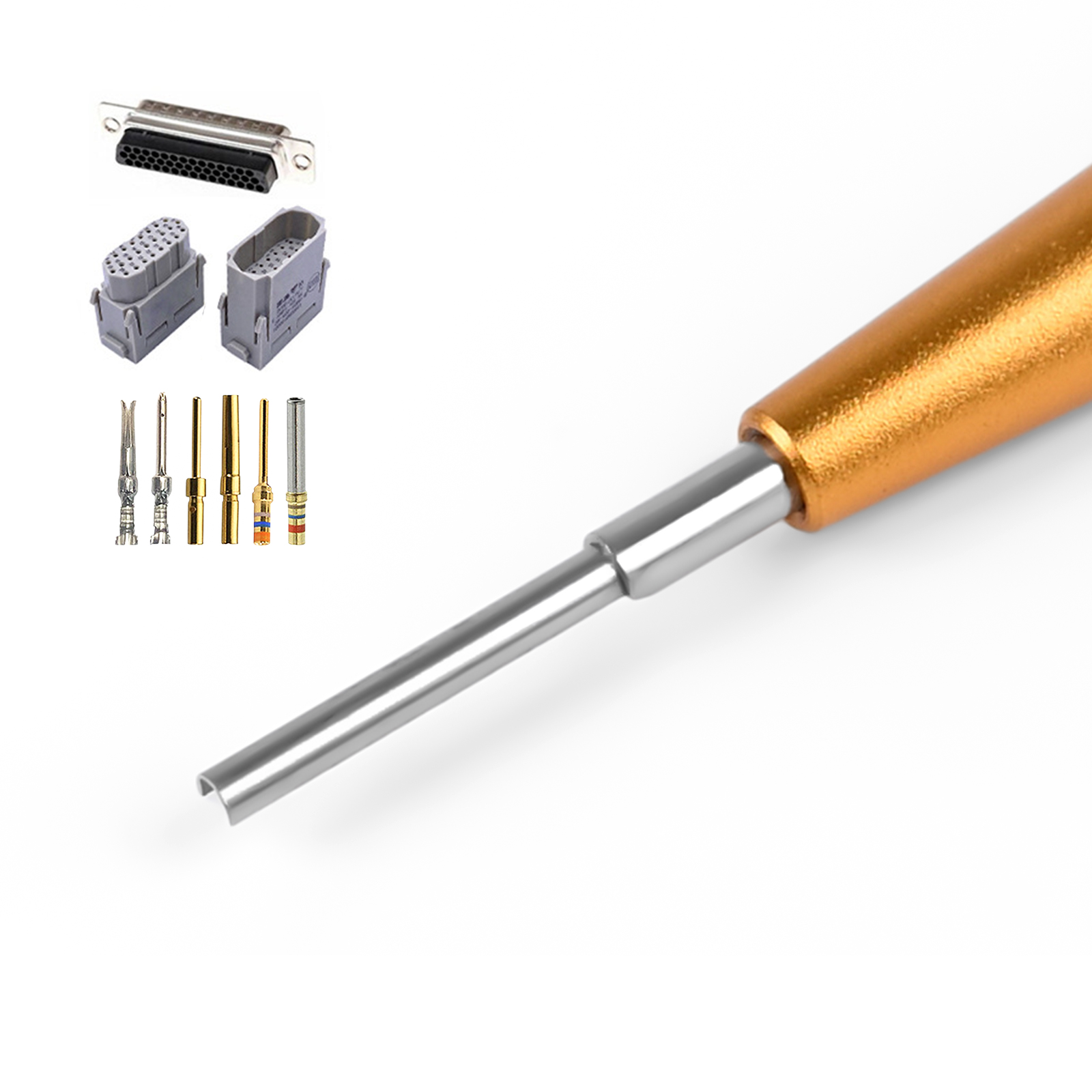

1. Suitable for the insertion & extraction of 20# terminals in the US military standard MIL-DTL-24308 connectors;
2. Suitable for the insertion & extraction of 5A solid contacts in TE D-SUB and HMN-025 connectors;
3. Suitable for the insertion & extraction of 5A solid contacts in HARTING D-SUB STANDARD series DB9, DB15, DB25, DB37, and DB50 connectors;
4. Suitable for the insertion & extraction of 5A solid contacts in WAIN HMDS-009 D-Sub connectors and HMDS-025 high-density connectors;
2. Suitable for the insertion & extraction of 5A solid contacts in TE D-SUB and HMN-025 connectors;
3. Suitable for the insertion & extraction of 5A solid contacts in HARTING D-SUB STANDARD series DB9, DB15, DB25, DB37, and DB50 connectors;
4. Suitable for the insertion & extraction of 5A solid contacts in WAIN HMDS-009 D-Sub connectors and HMDS-025 high-density connectors;

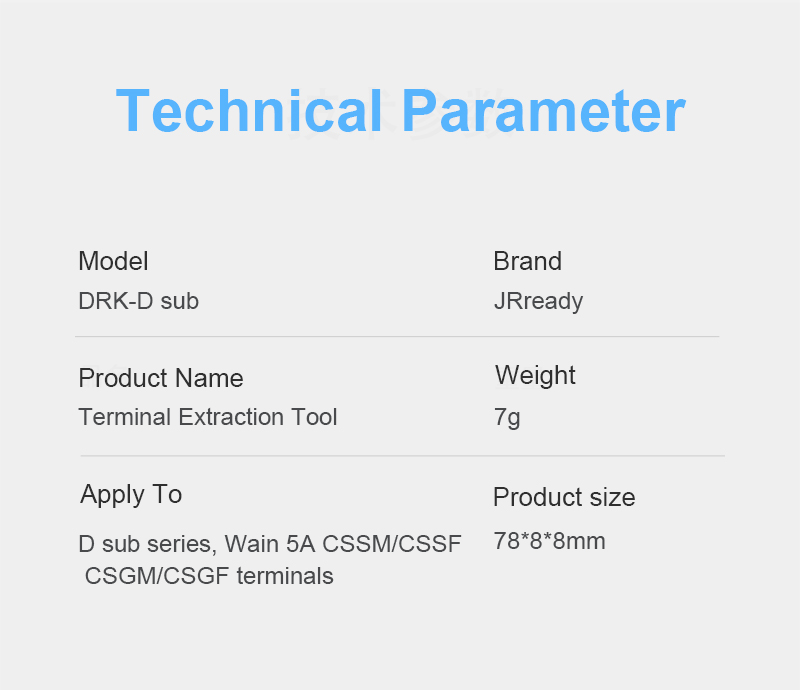

| Brand | JRready | Part Number | DRK-D sub |
| Category | Heavy Duty Connector Extraction Tool | Colour | Yellow |

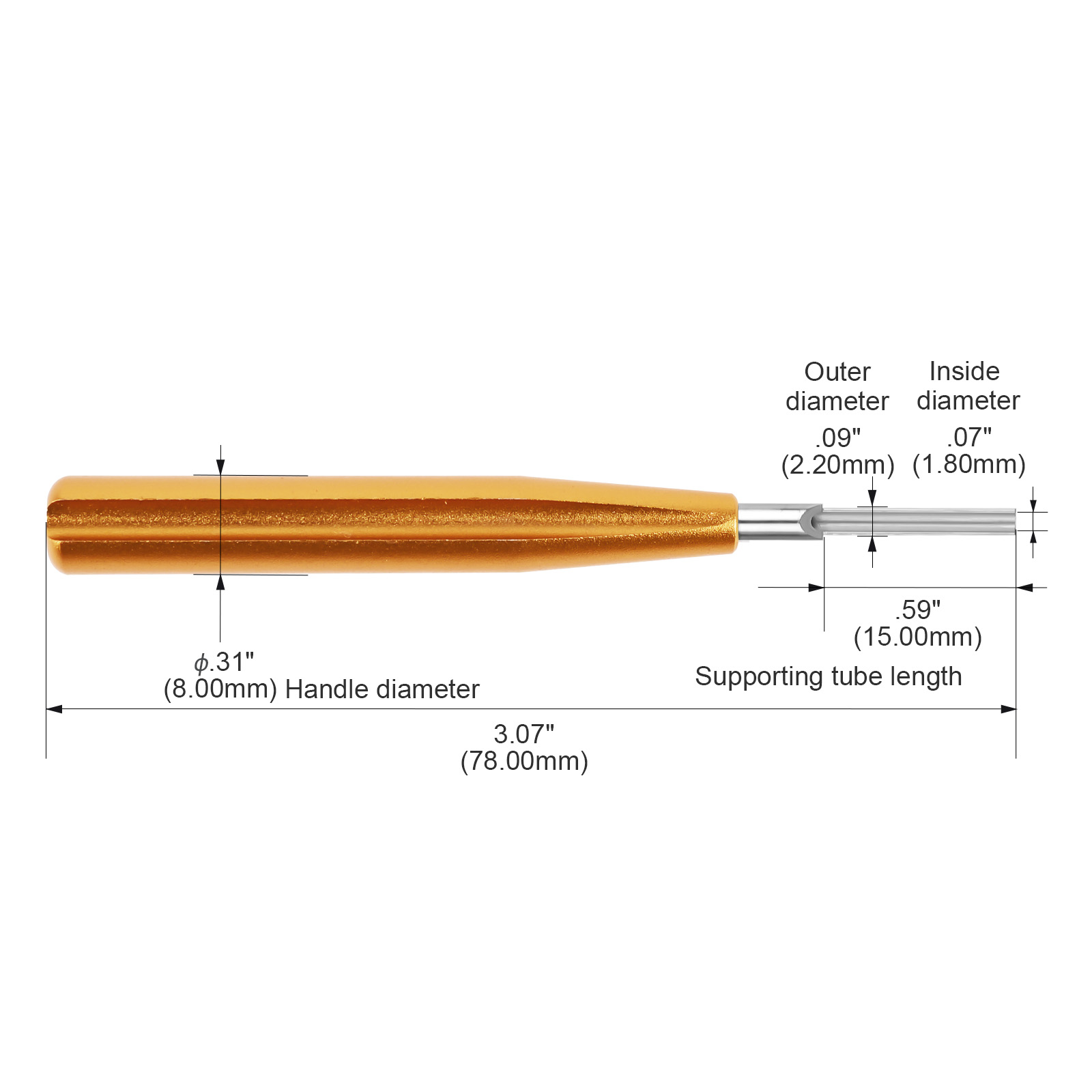

| Material | Aluminum Alloy Handle | Dimension | 78*8*8mm |
| Country of Origin | China | Weight | 7g |
| Application | Applicable to the insertion & extraction of 5A solid contacts in US military standard MIL-DTL-24308, TE, HARTING, WAIN, ILME D-SUB connectors. | ||
