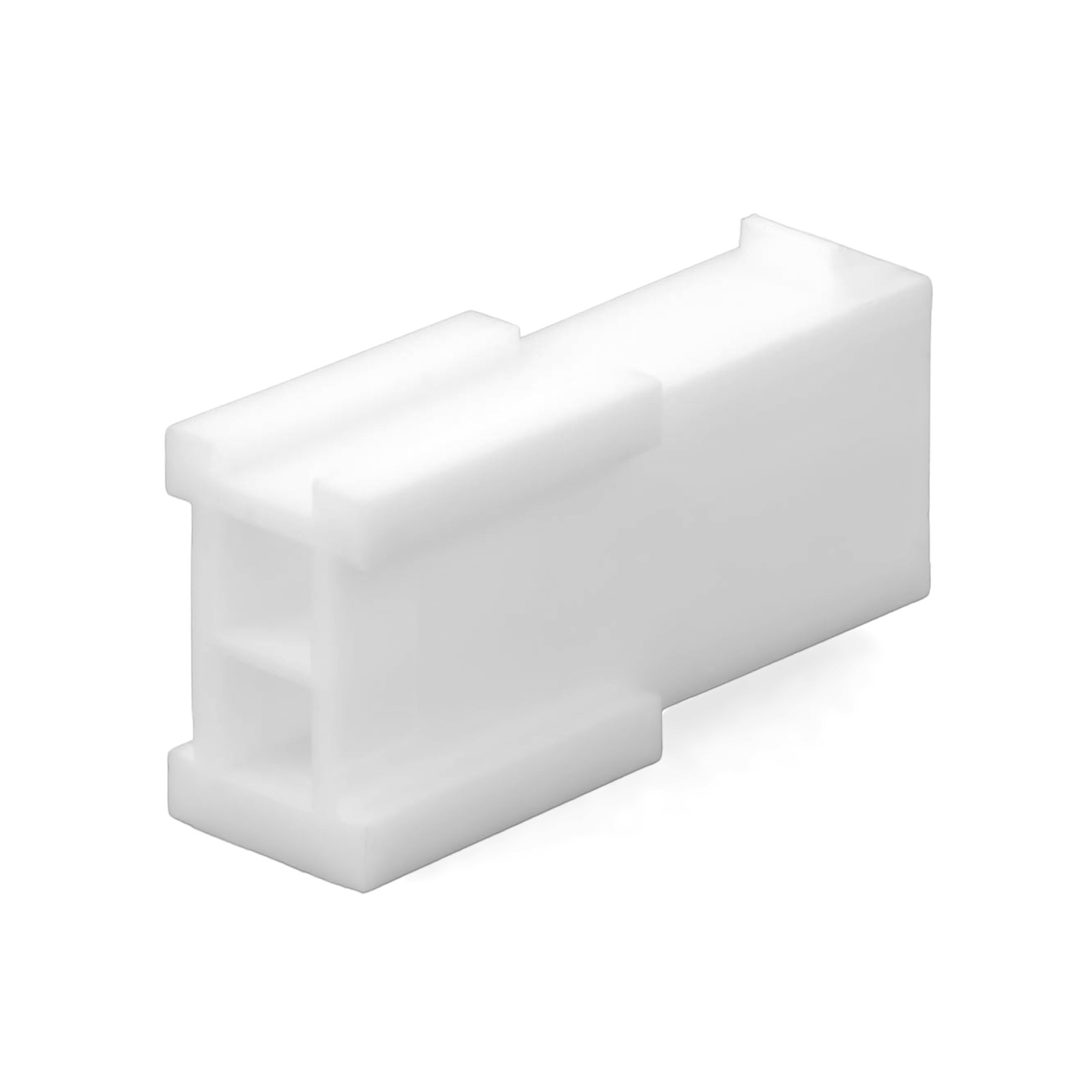

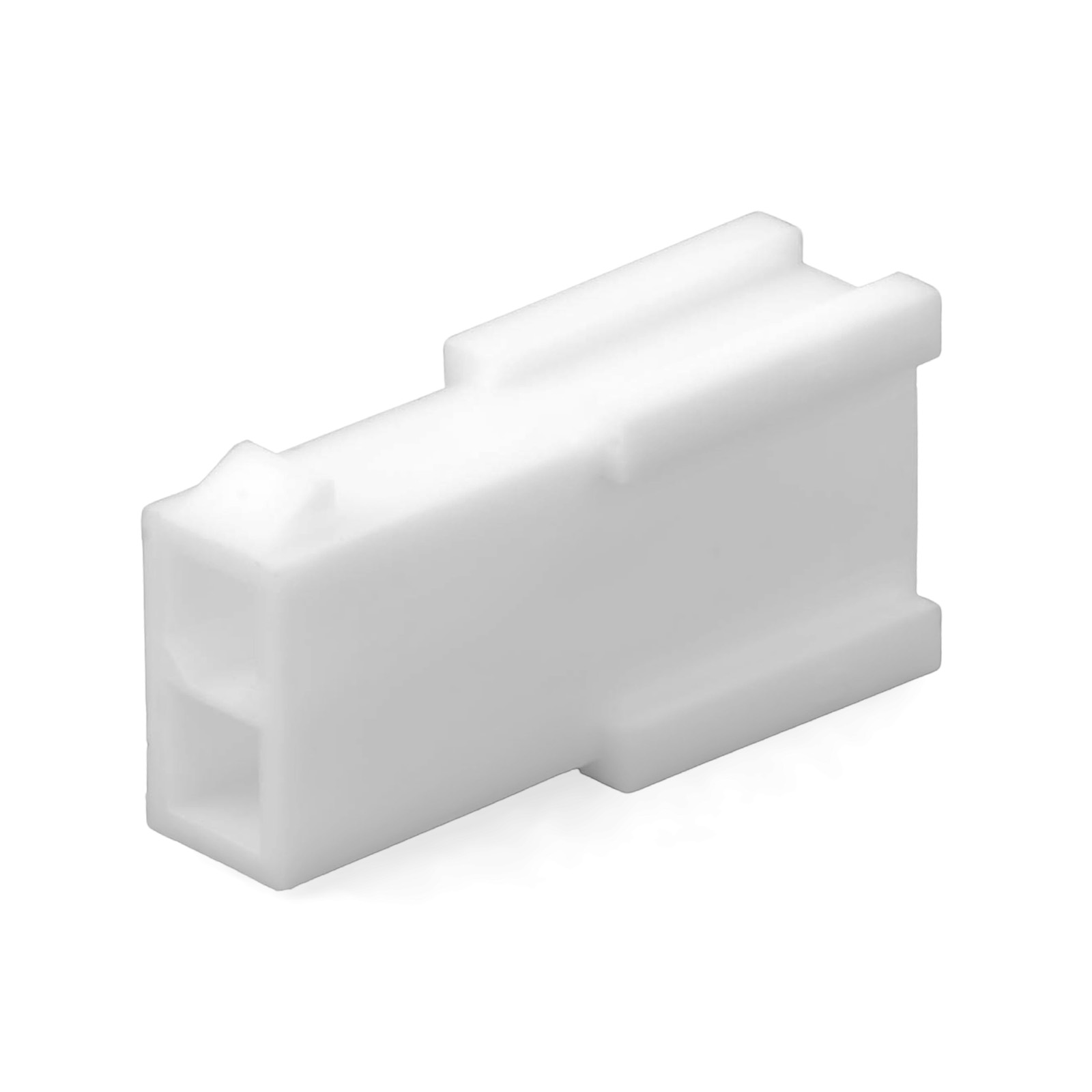

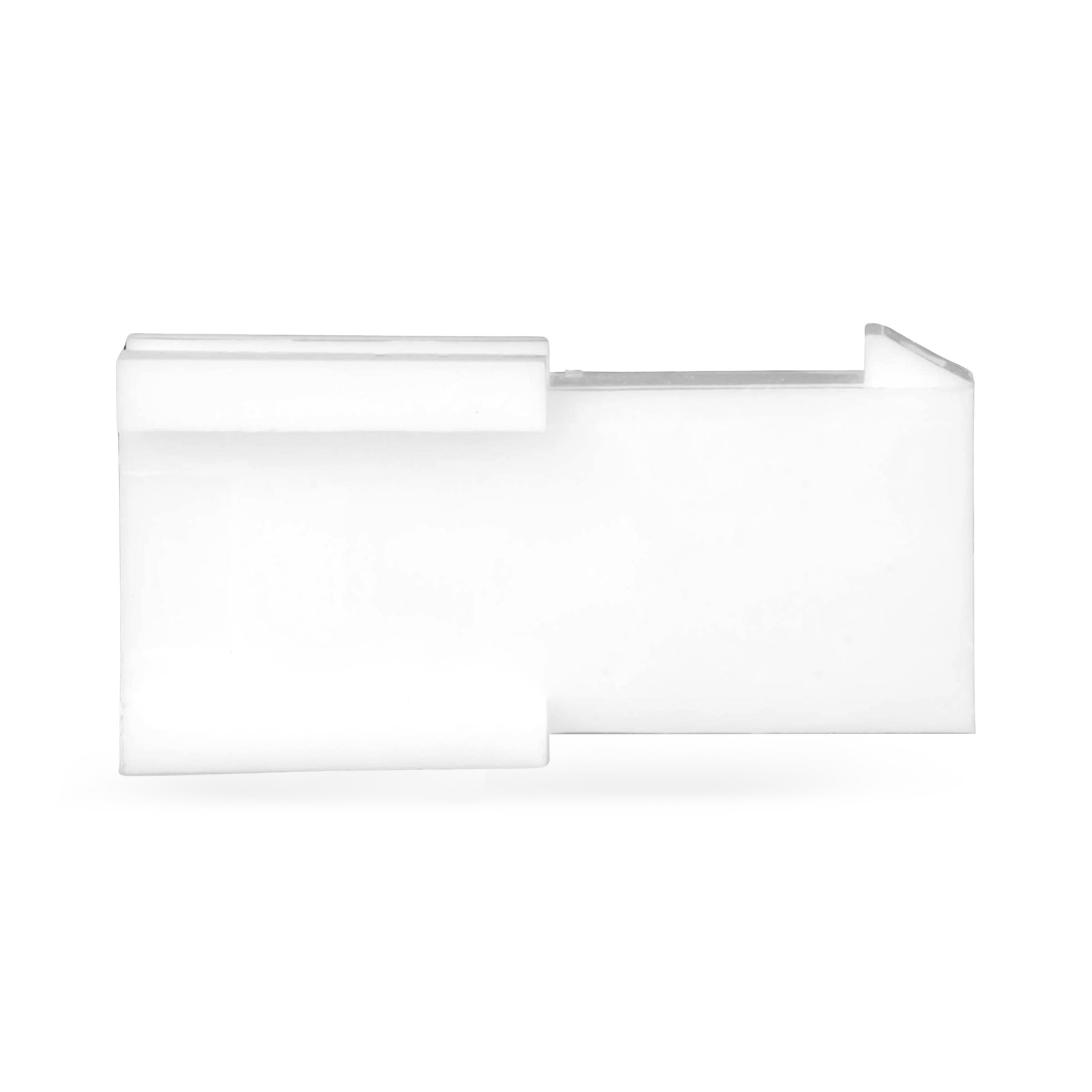

JRready JRN011-HMA-2X01P-V0 Connector
1.Compatible with 16-28 AWG wire range;
2.Supports stamped pins;

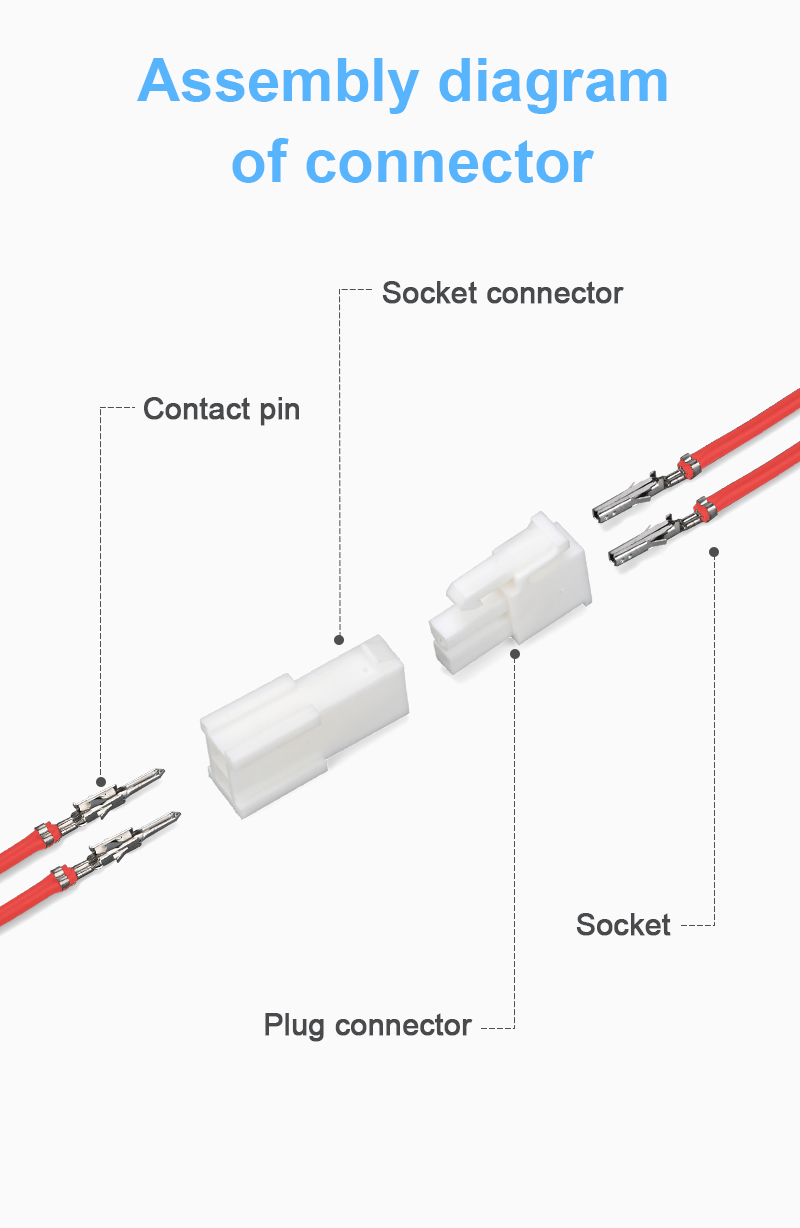

3.Connection type: Wire-to-wire;
4.Number of positions: 2;
5.Rated voltage: 250V AC/DC, Rated current: 9A;
6.Compatible with market equivalents of the same specification.
2.Supports stamped pins;
3.Connection type: Wire-to-wire;
4.Number of positions: 2;
5.Rated voltage: 250V AC/DC, Rated current: 9A;
6.Compatible with market equivalents of the same specification.
| Brand | JRready | Part Number | JRN011-HMA-2X01P-V0 |

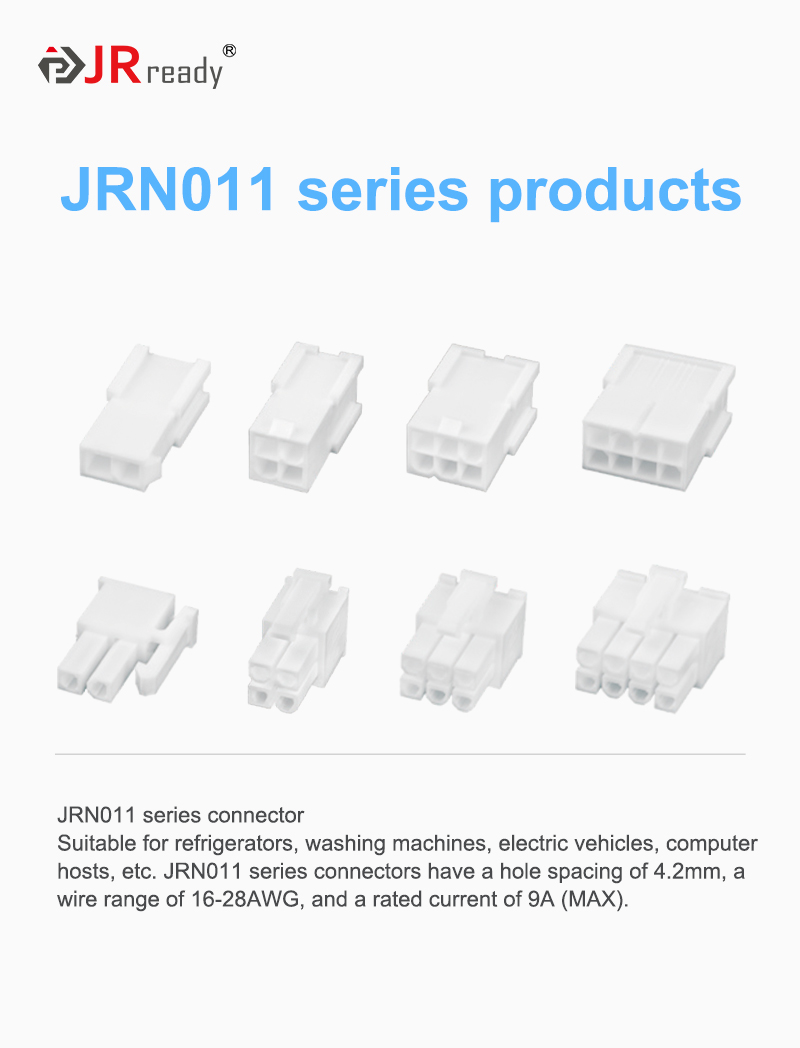

| Category | JRN011 (4.20) Series | Colour | White |

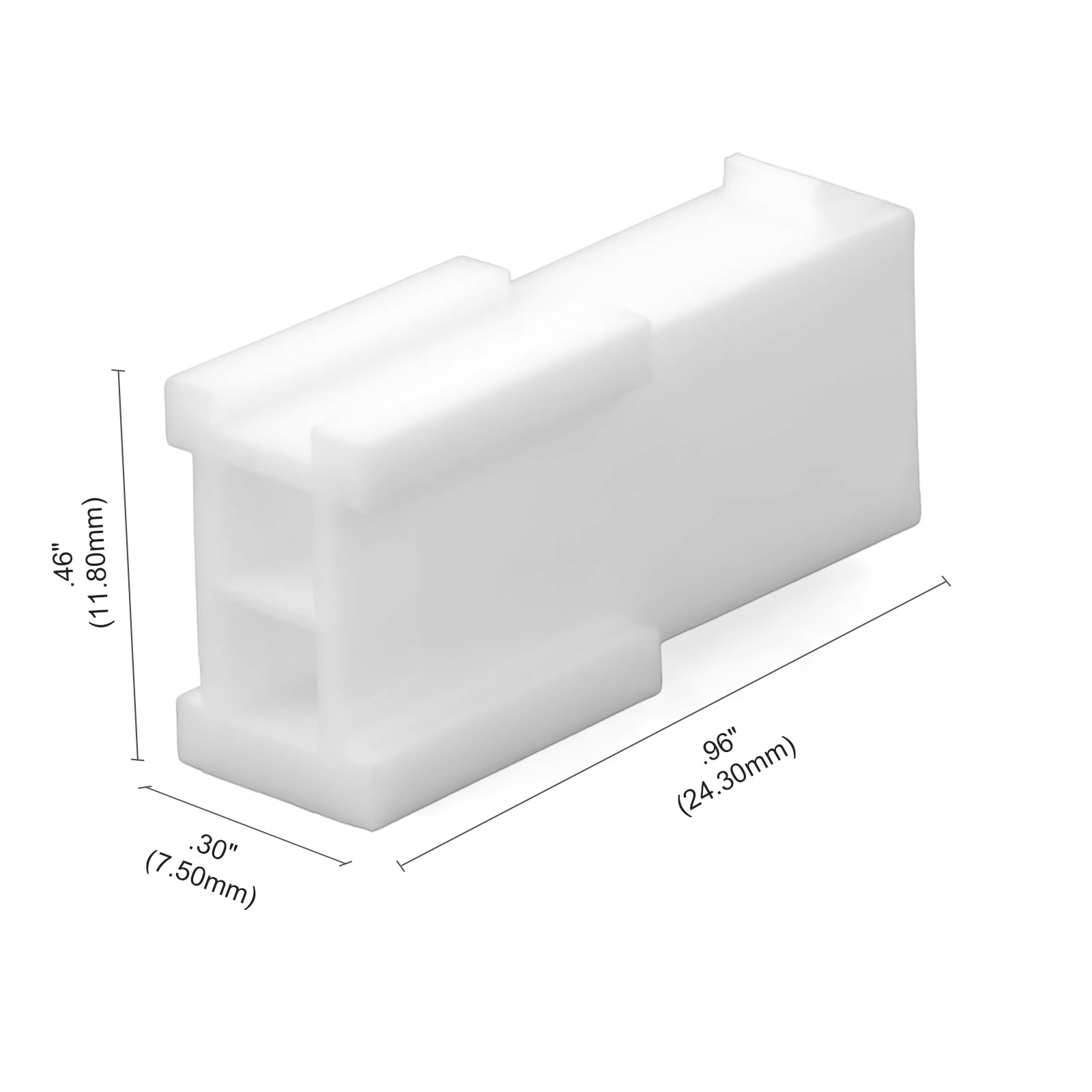

| Material | PA66 | Dimension | 24.3*11.8*7.5mm |
| Country of Origin | China | Weight | 1.49g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||

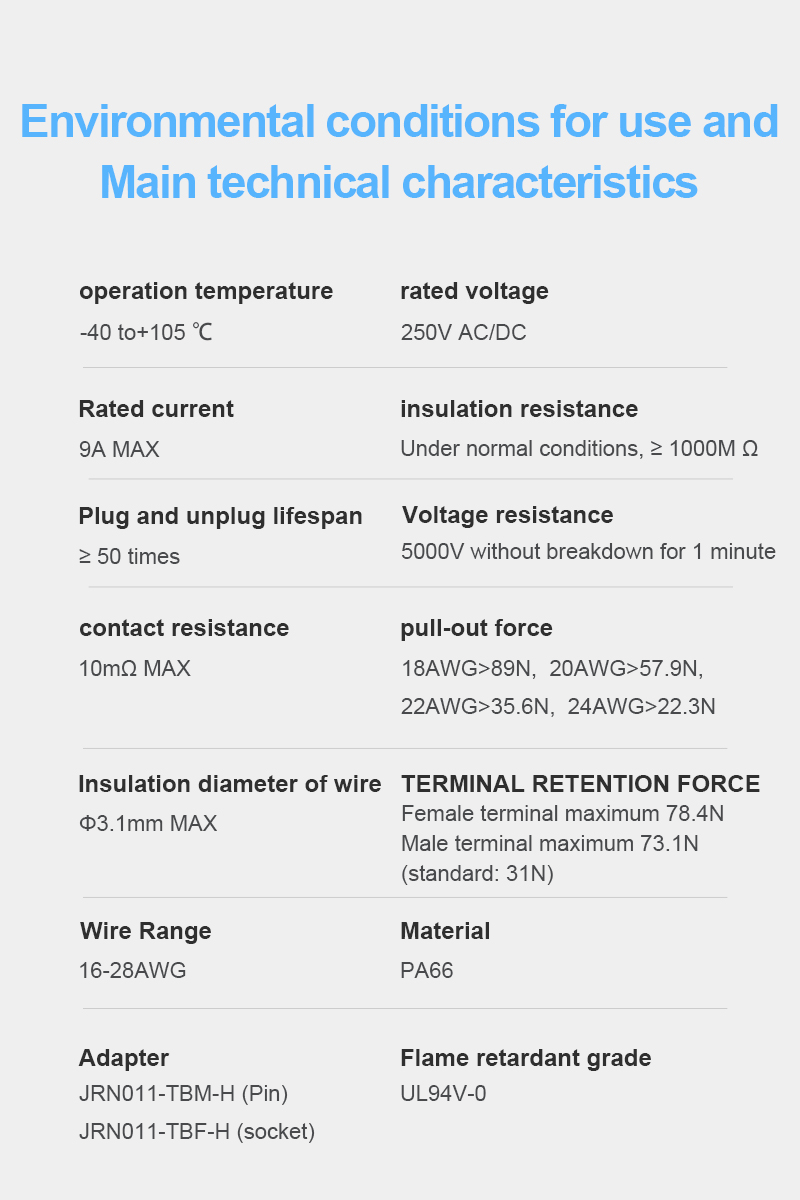

| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 9A |
