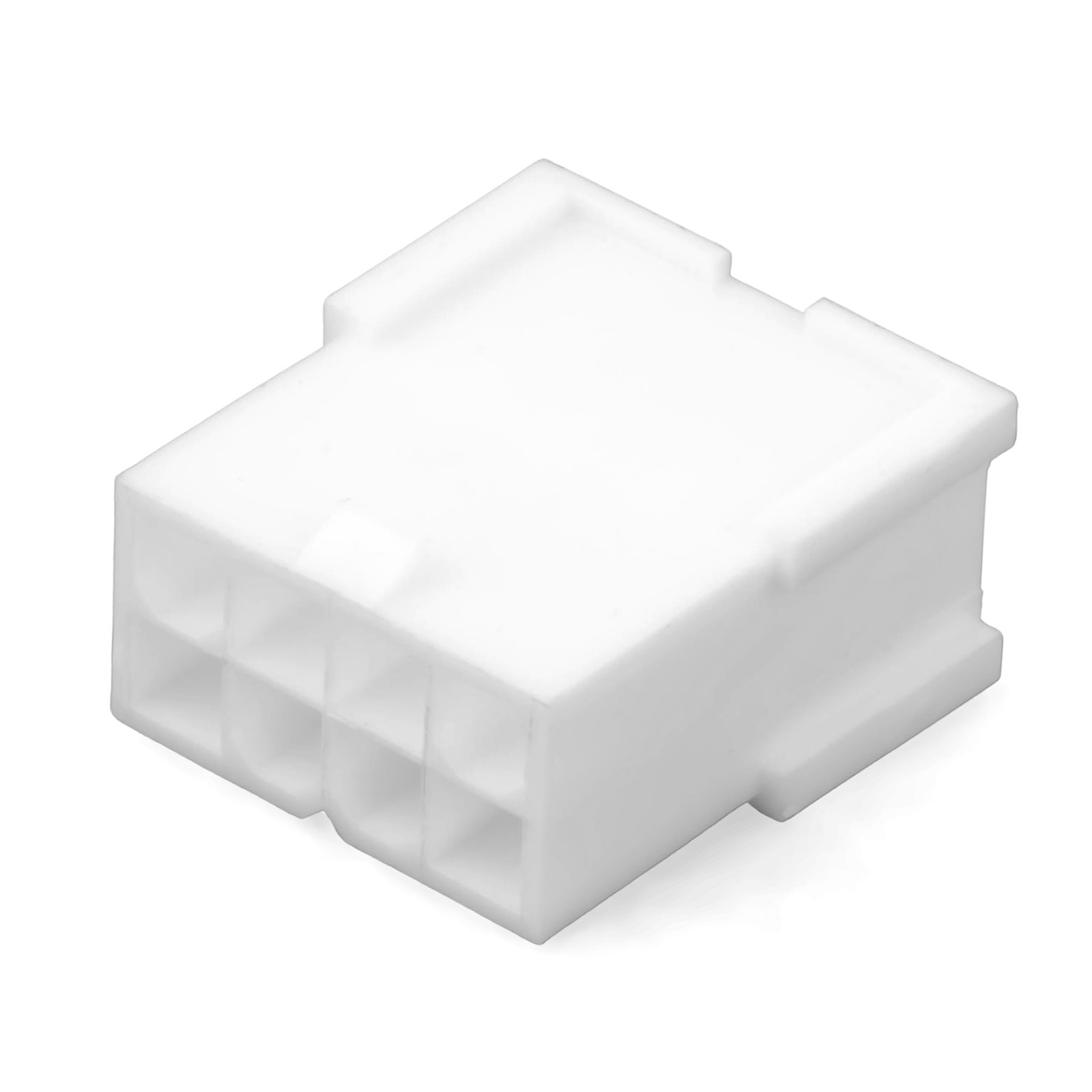

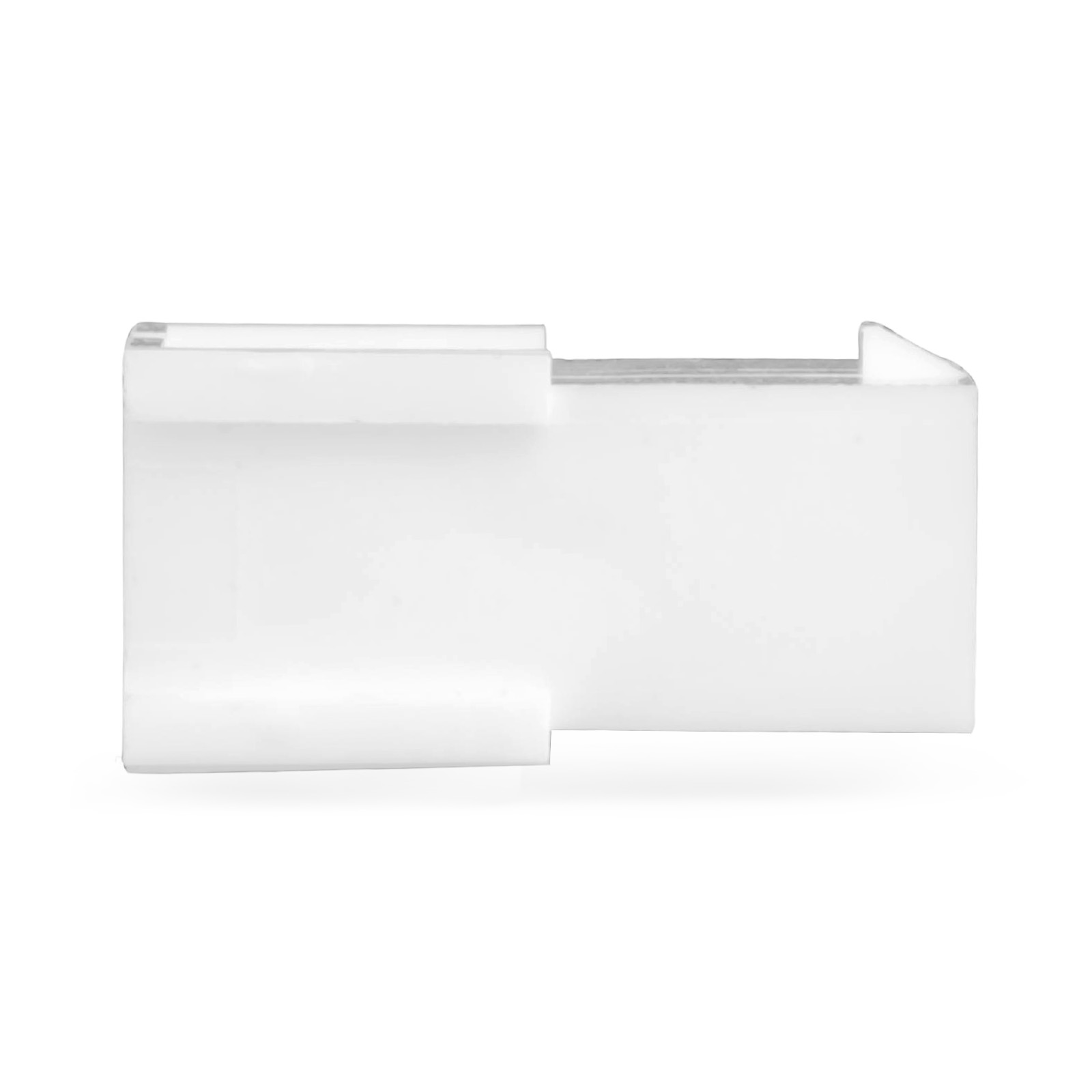

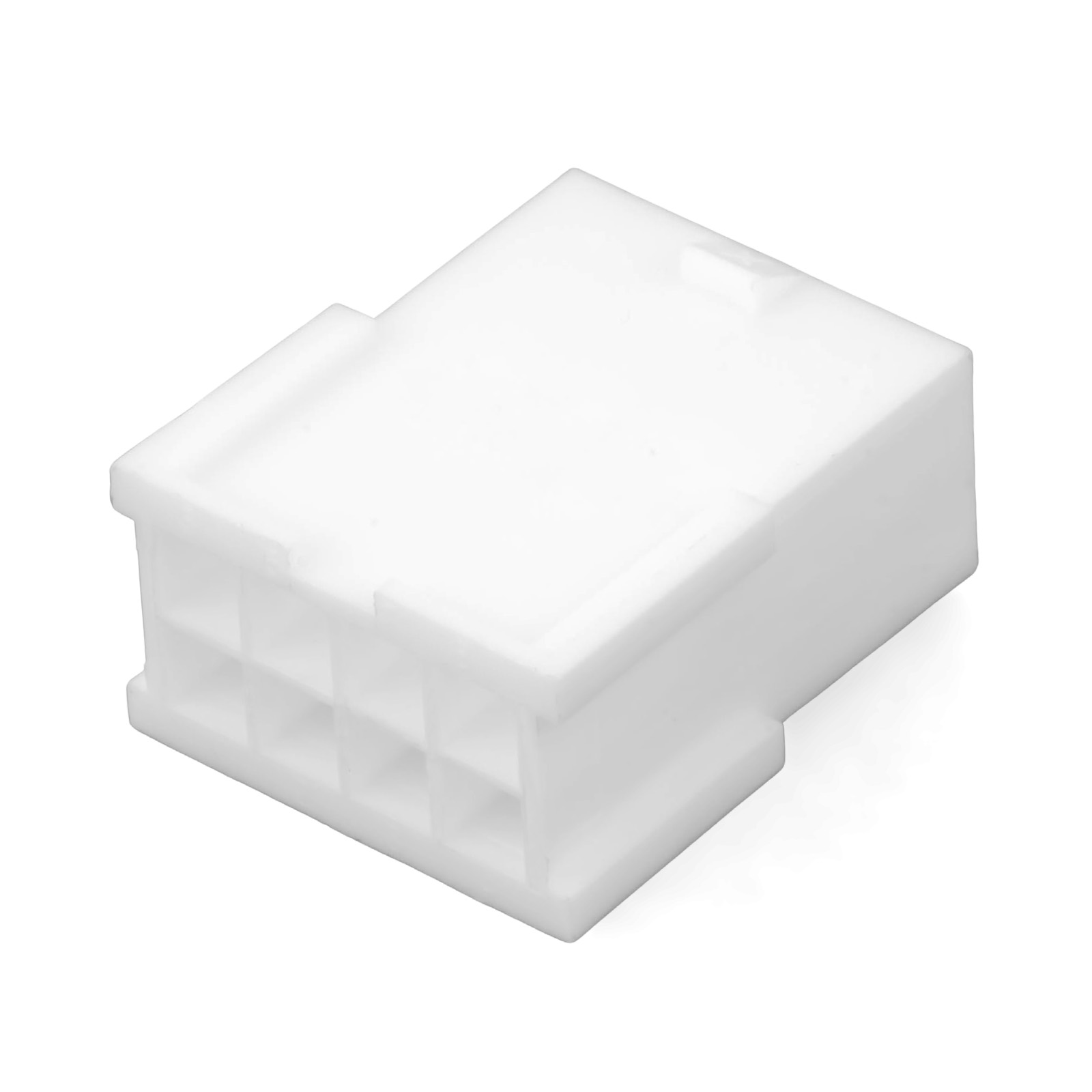

JRready JRN011-HMA-2X04P-V0 Connector
1. Wire Range: 16-28 AWG;
2. Compatible with Stamped Pins;
3. Connection Type: Wire-to-Wire;
4. Position: 8-Pin;
5. Rated Voltage: 250V AC/DC; Current: 9A;
6. Compatible with market-standard products of the same specification.
2. Compatible with Stamped Pins;
3. Connection Type: Wire-to-Wire;
4. Position: 8-Pin;
5. Rated Voltage: 250V AC/DC; Current: 9A;
6. Compatible with market-standard products of the same specification.
| Brand | JRready | Part Number | JRN011-HMA-2X04P-V0 |

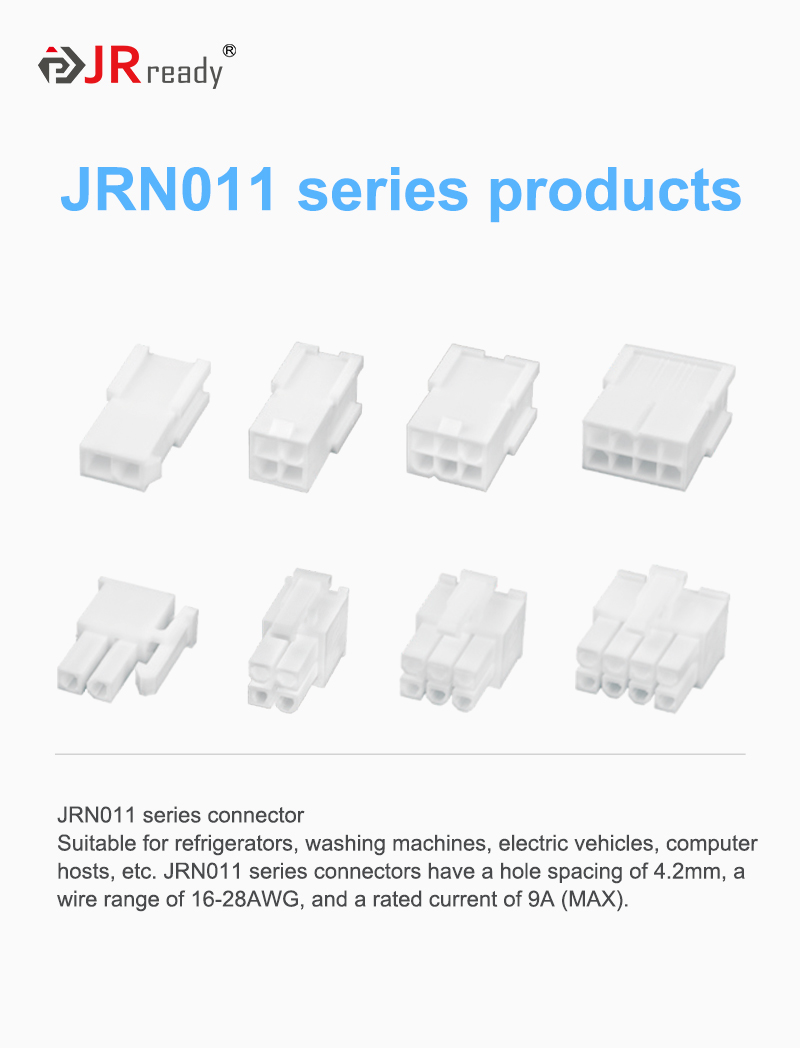

| Category | JRN011(4.2)Series | Colour | White |

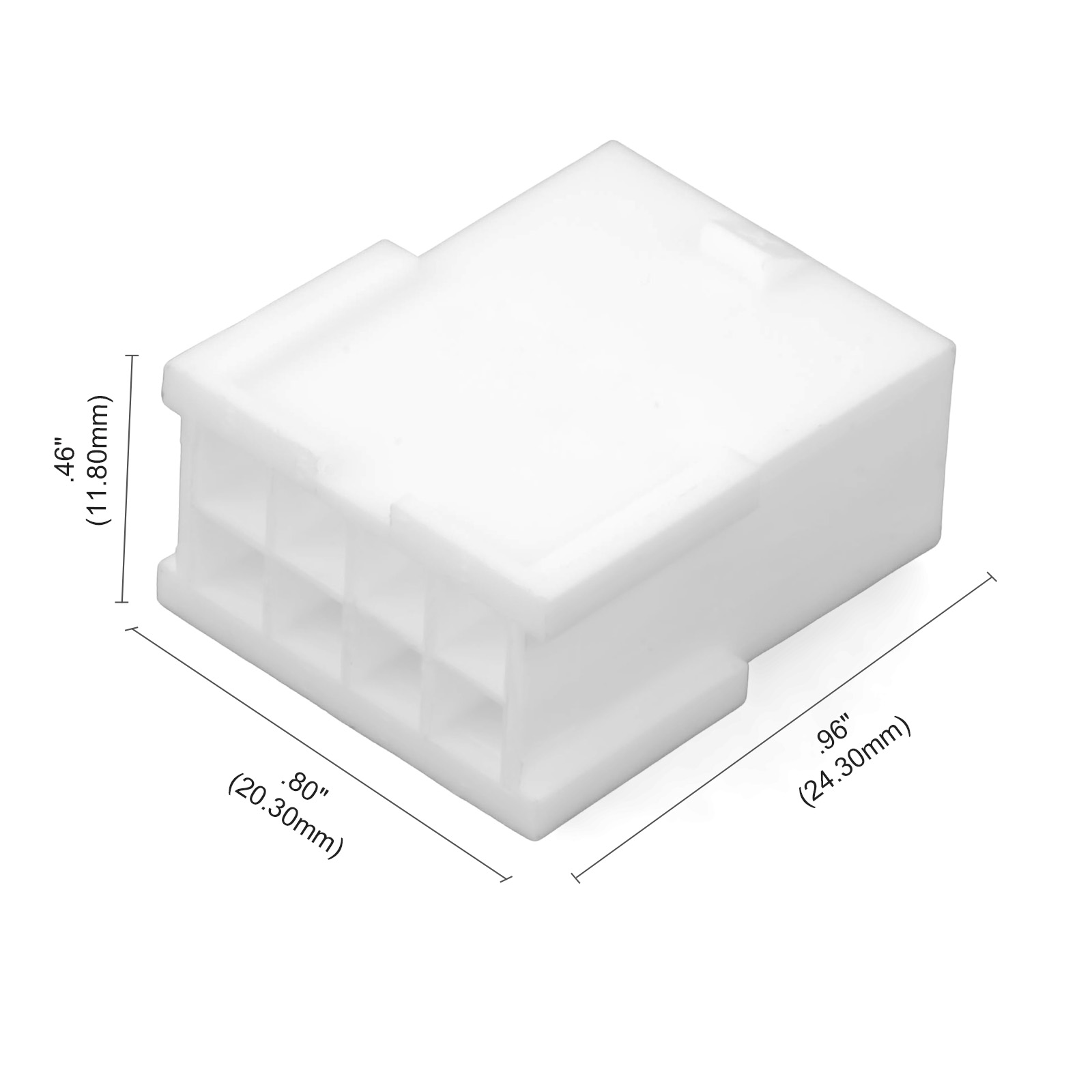

| Material | PA66 | Dimension | 24.3*20.3*11.8mm |
| Country of Origin | China | Weight | 2.5g |
| Application | Suitable for Refrigerators, Washing Machines, EVs, Computer Units | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 9A |
