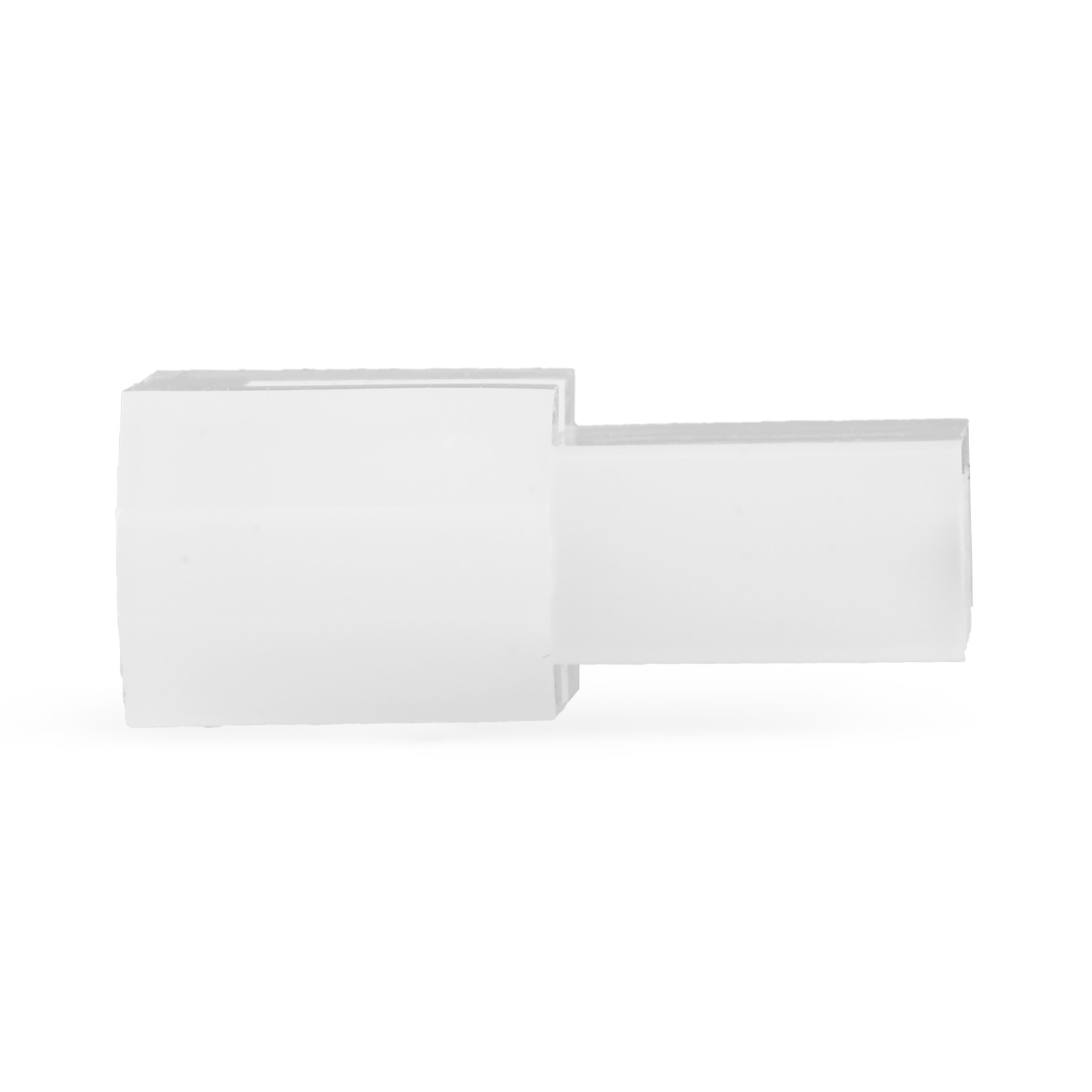

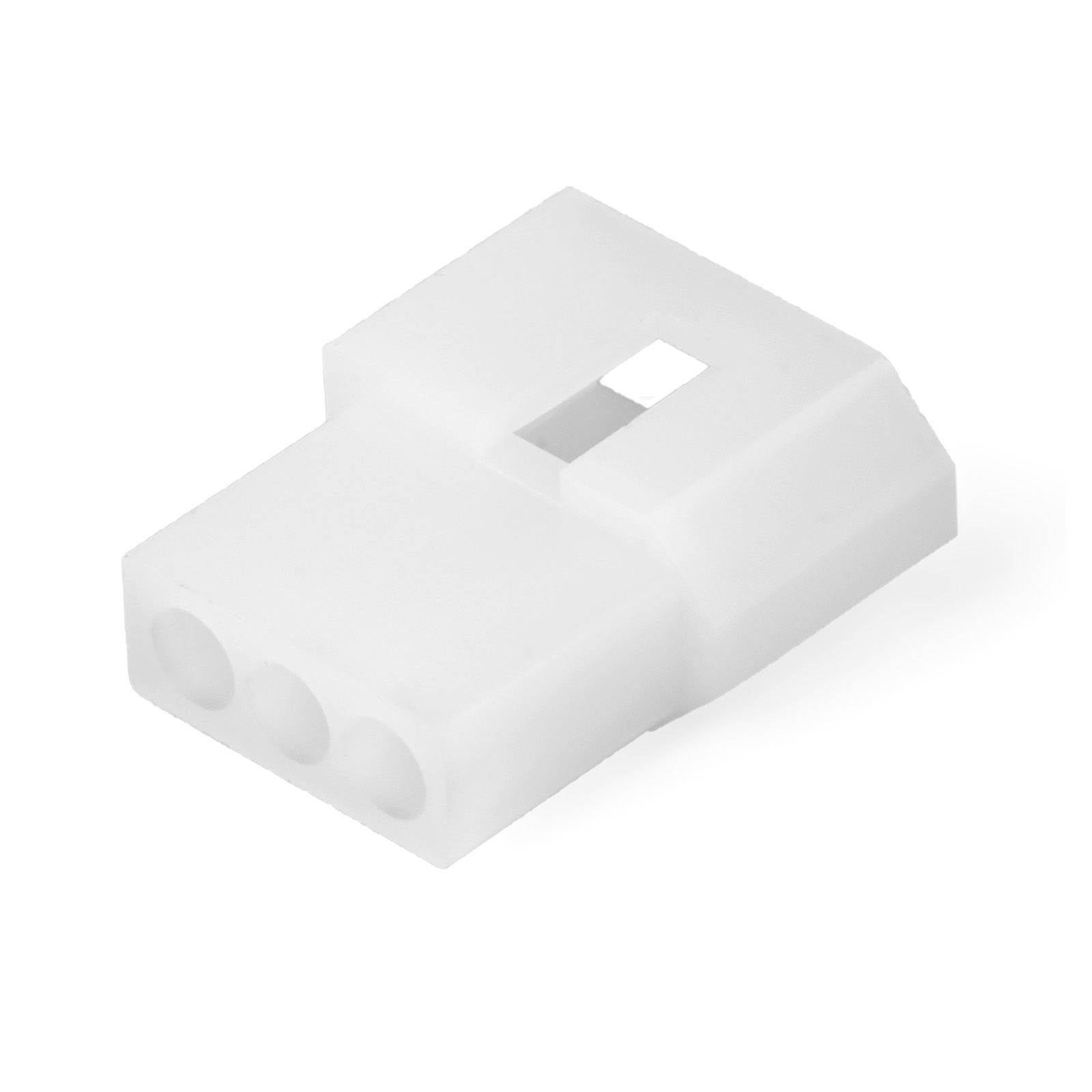

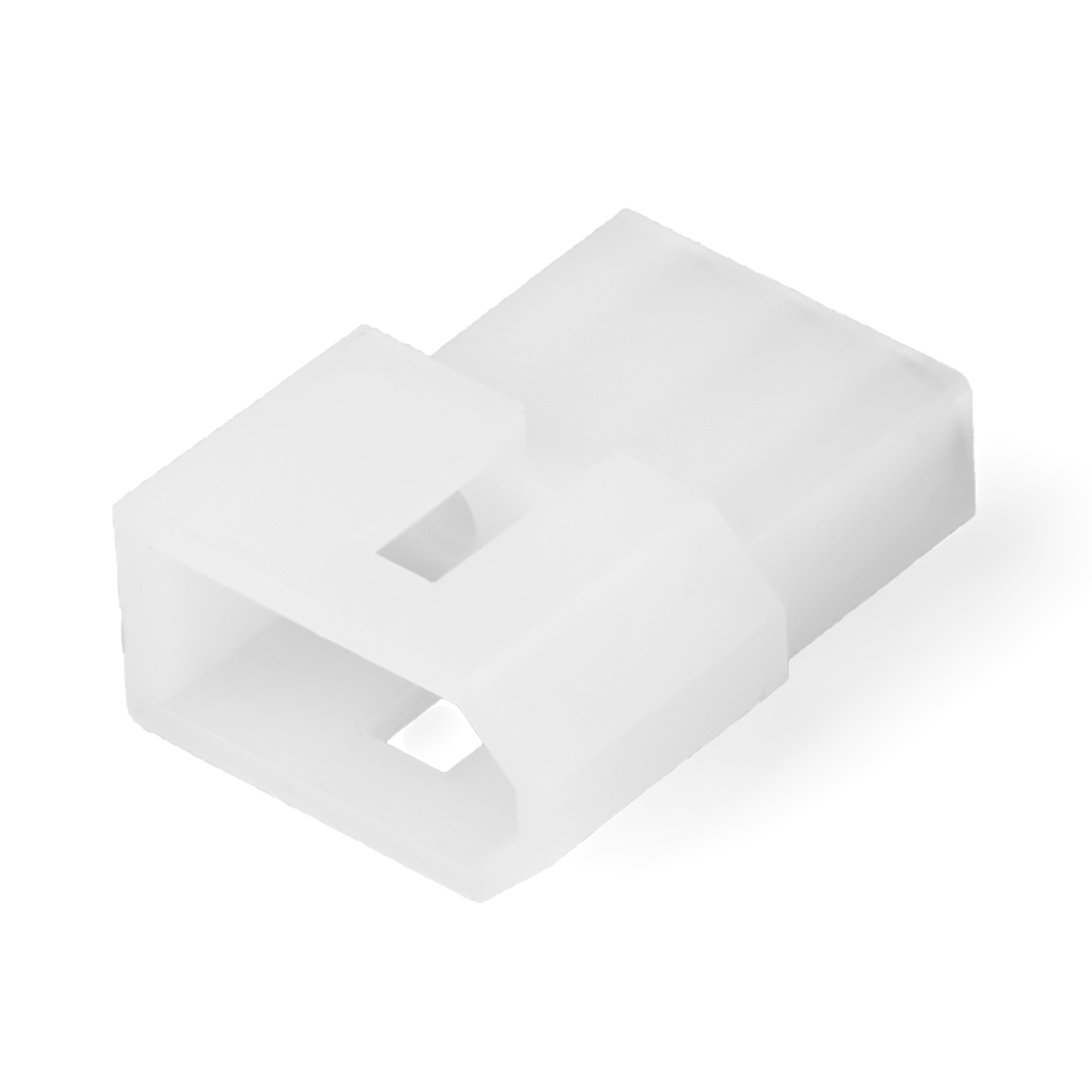

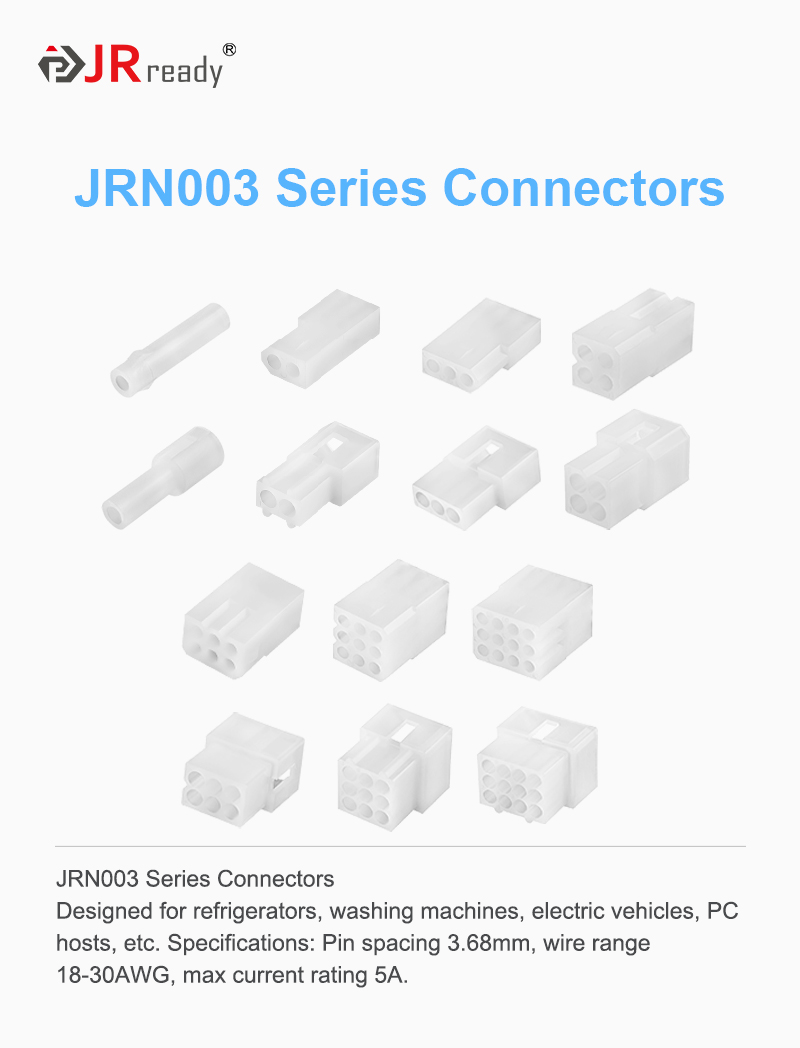

JRready JRN003-HMA-03P Connector
1. Wire Compatibility: 18-30 AWG
2. Terminal Type: Compatible with stamped pin
3. Connection Method: Wire-to-wire and wire-to-board
4. Number of Positions: 3-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 5A
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Terminal Type: Compatible with stamped pin
3. Connection Method: Wire-to-wire and wire-to-board
4. Number of Positions: 3-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 5A
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN003-HMA-03P |
| Category | JRN003 (3.68) Series | Colour | White |

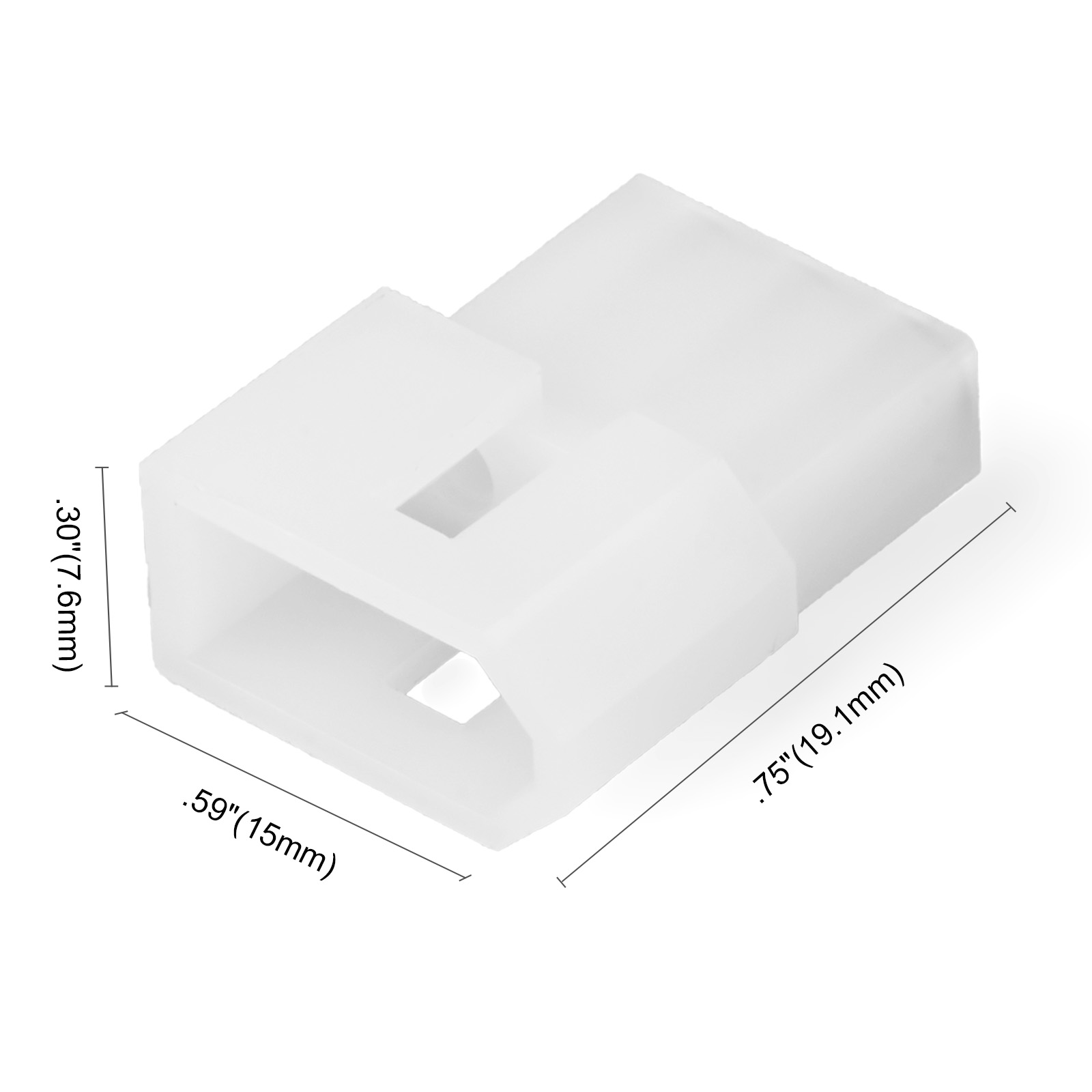

| Material | PA66 | Dimension | 19.1*15*7.6mm |
| Country of Origin | China | Weight | 0.91g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||

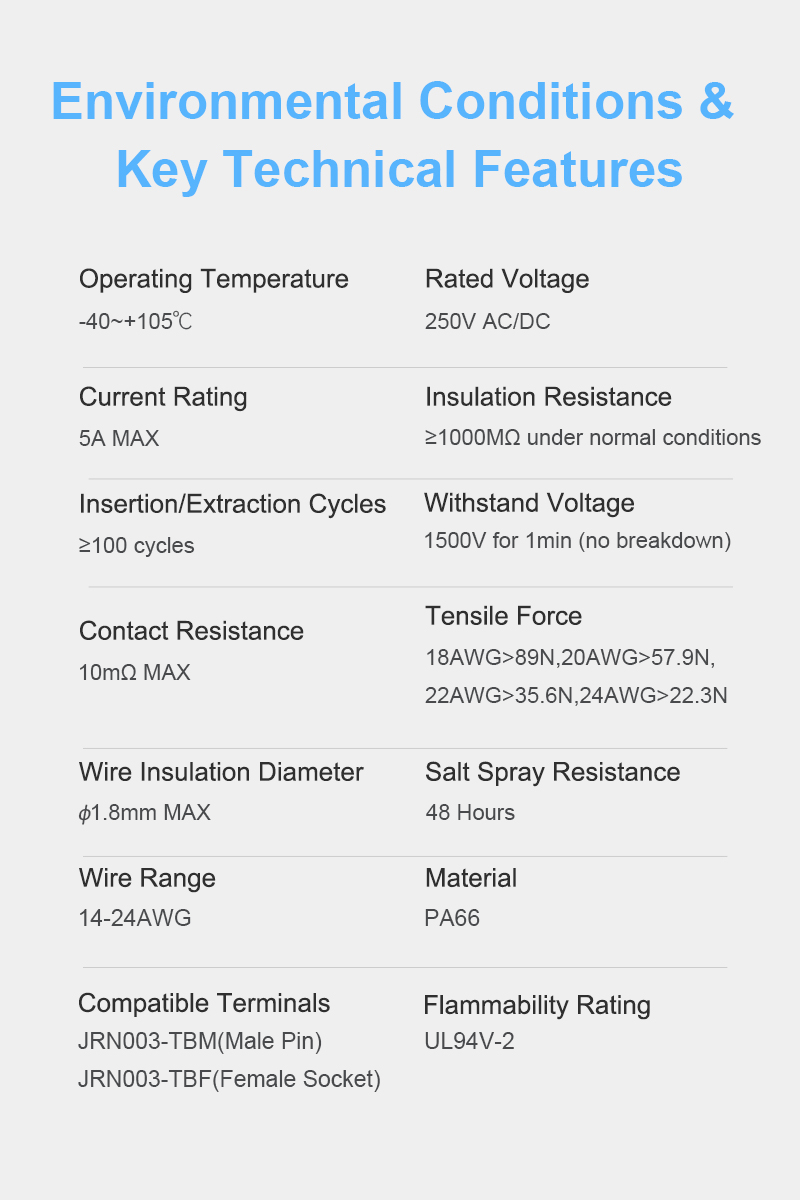

| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 5A |
