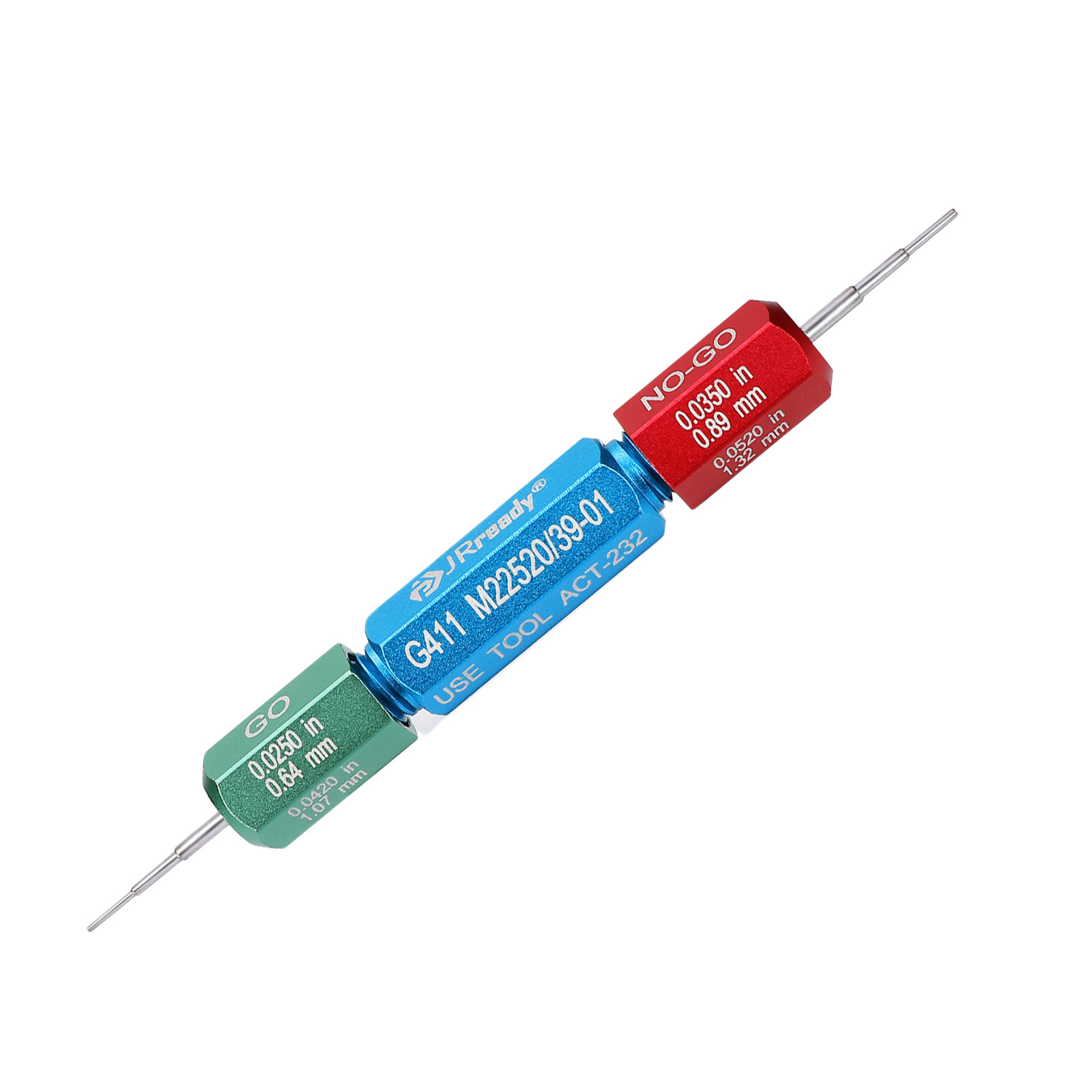

JRready G411（M22520/39-01） Go/No-Go Gauge

1. Designed per MIL-Spec M22520/39-01;

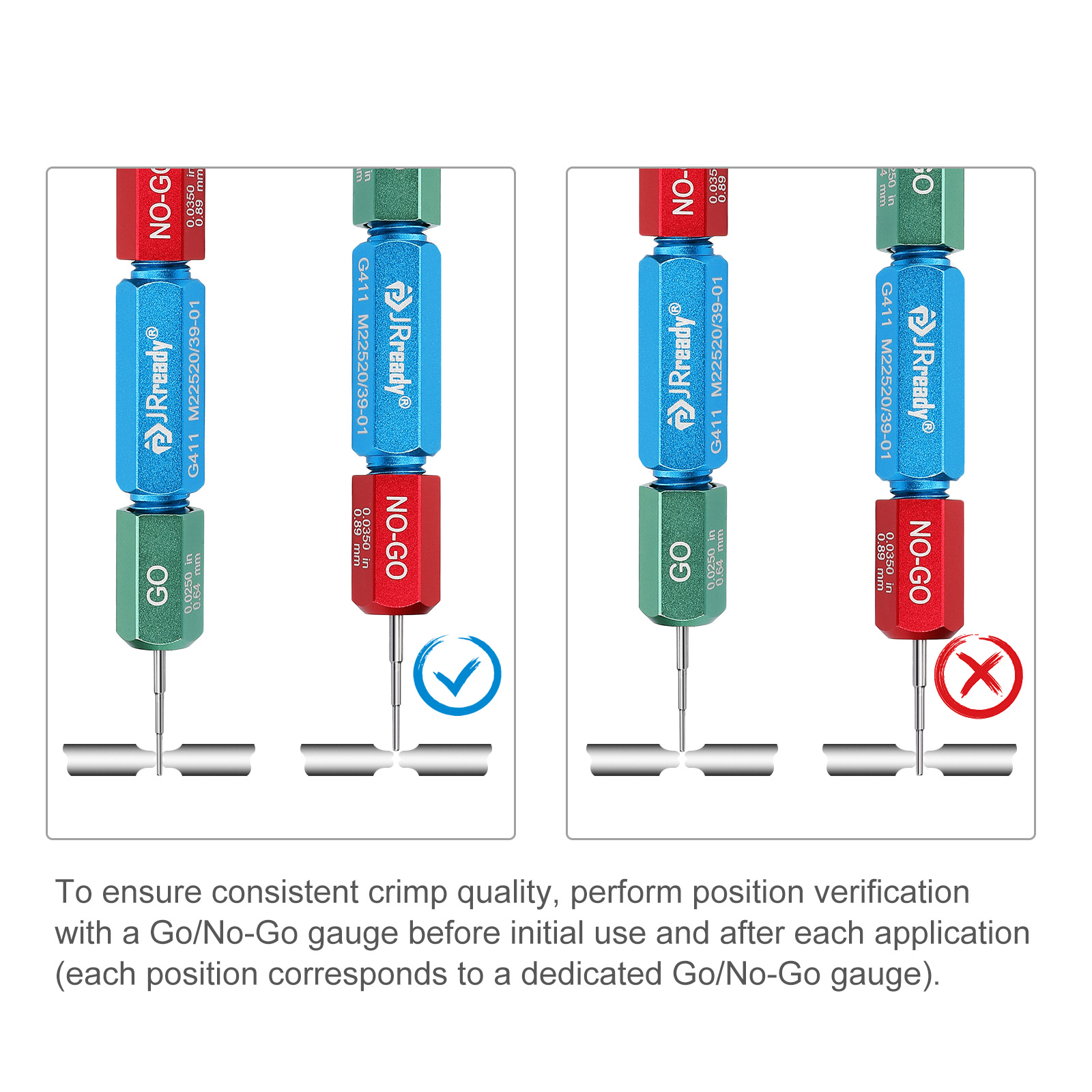

2. Suitable for the go-nogo gaging limits measurement of die cavity of ACT-232 crimp tool;

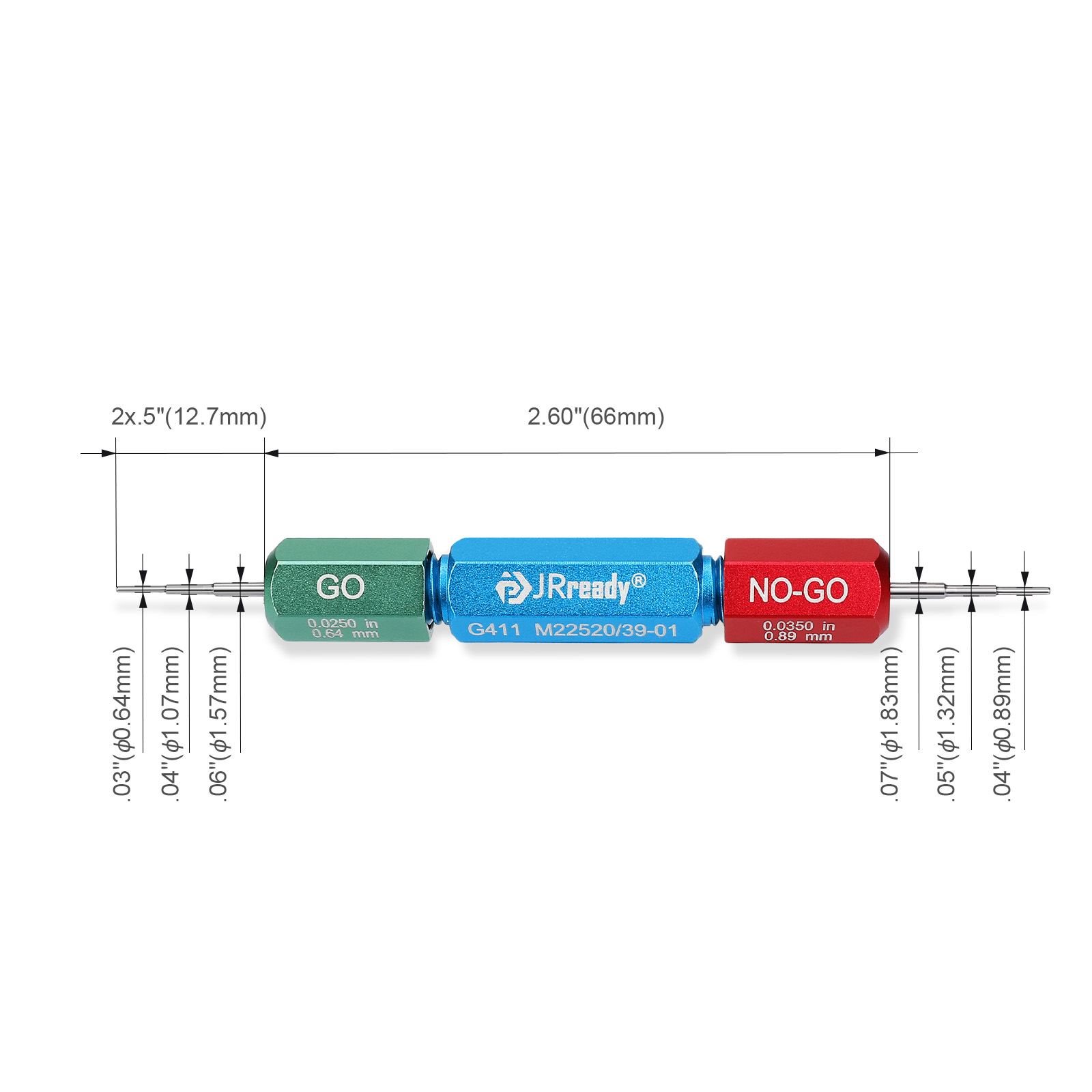

3. Cavity: 20-26AWG (RED), Go Gauge 0.64mm, No-Go Gauge 0.89mm; Cavity;
               16-20AWG (BLUE), Go Gauge 1.07mm, No-Go Gauge 1.32mm; Cavity;
               12-16AWG (YELLOW), Go Gauge 1.57mm, No-Go Gauge 1.83mm
Contact Us
Brand JRready Part Number G411
Category Measuring Tool Colour Green/Blue/Red
Material Bearing Steel Dimension 100mm
Country of Origin China Weight 15.4g
Application Suitable for the go-nogo gaging limits measurement of die cavity of ACT-232 crimp tool
