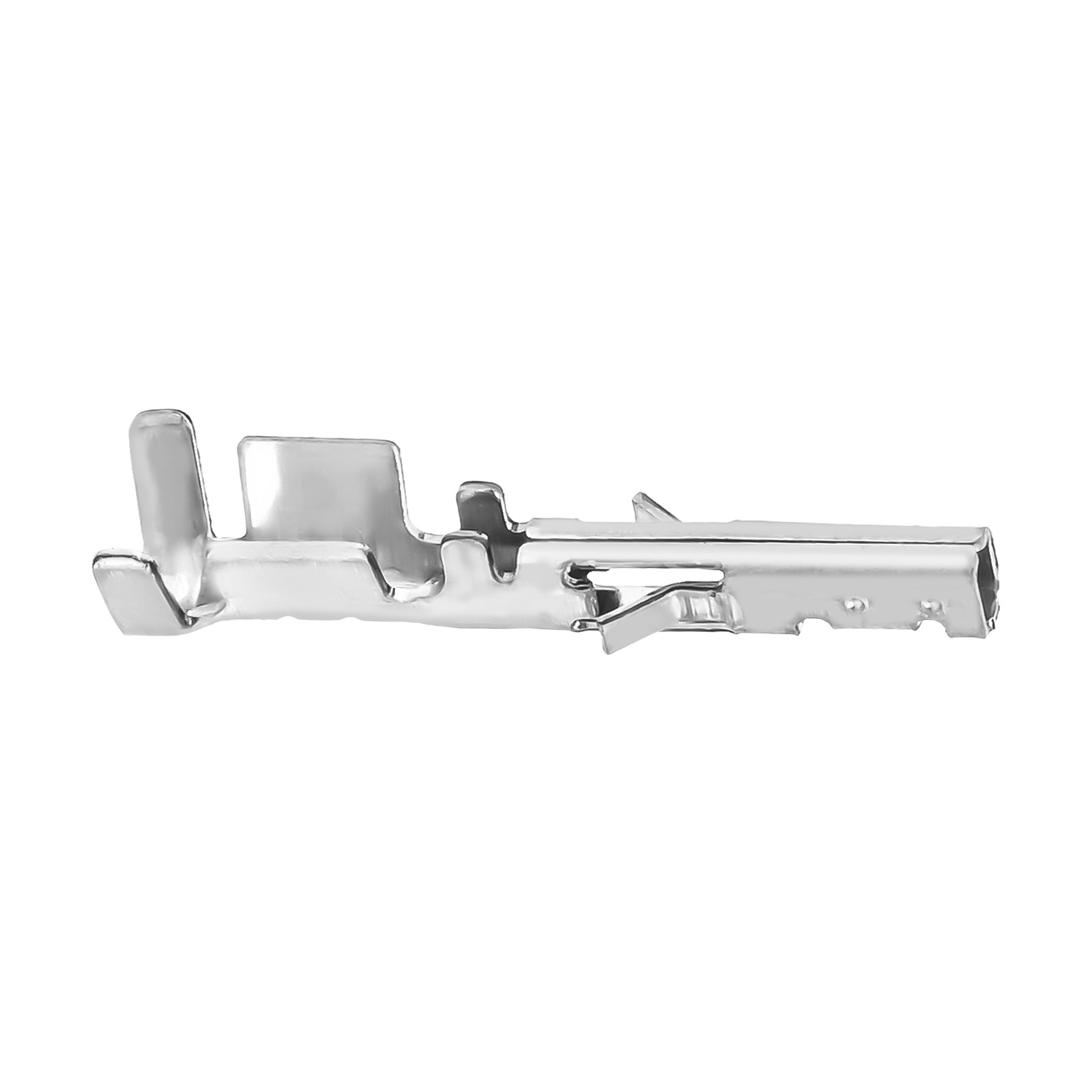

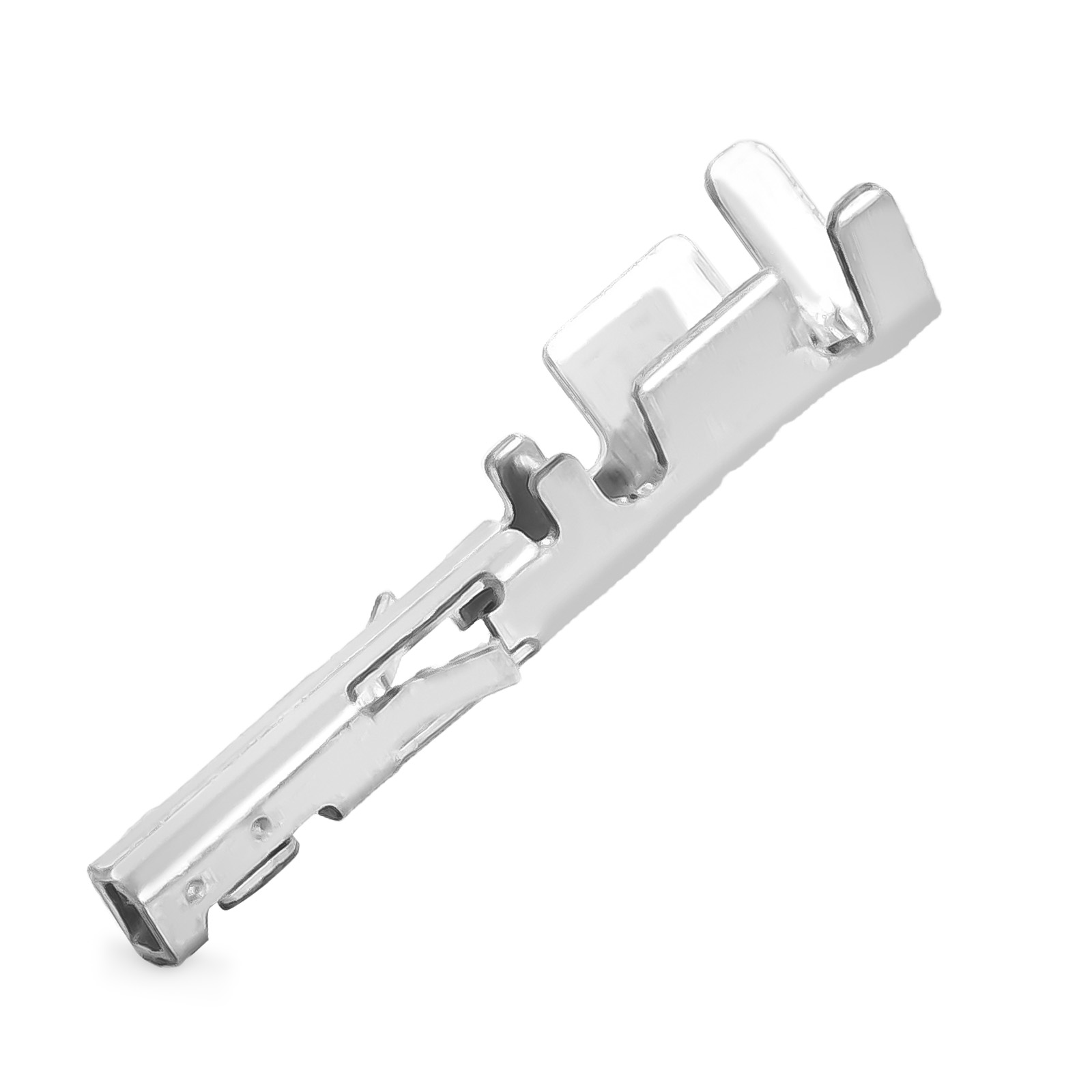

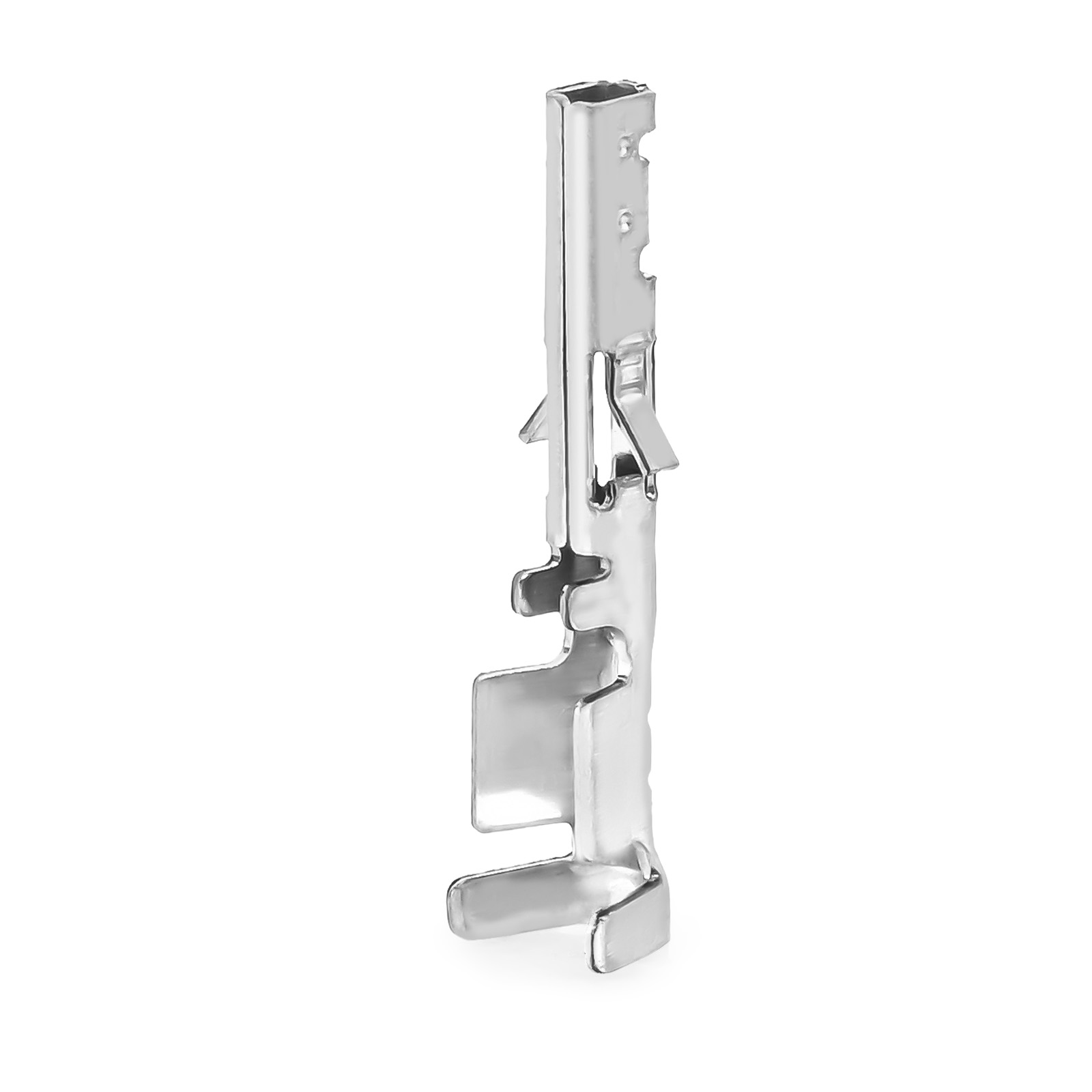

JRready JRN009-TPM Terminal
1. Compatible Wire Range: 24-20AWG (0.2-0.5mm)
2. Mating Pin: JRN009-TBF
3. Phosphor Bronze
4. Rated Current: 7A
2. Mating Pin: JRN009-TBF
3. Phosphor Bronze
4. Rated Current: 7A
| Brand | JRready | Part Number | JRN009-TPM |
| Category | JRN011 (4.20) Series | Colour | Silver |

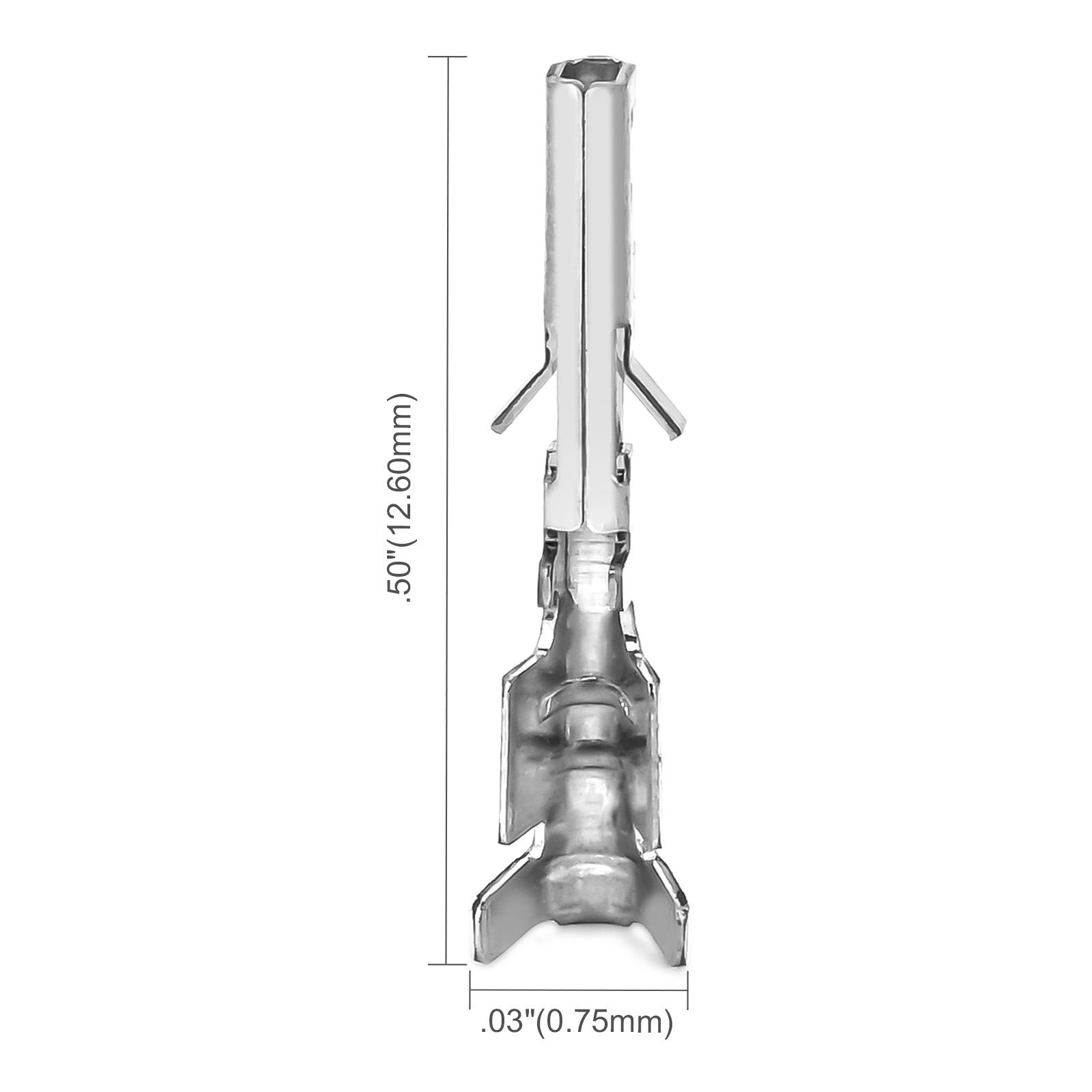

| Material | Phosphor Bronze | Dimension | Length: 12.6mm, Diameter: 0.75mm |
| Country of Origin | China | Weight | 0.14g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7A |
