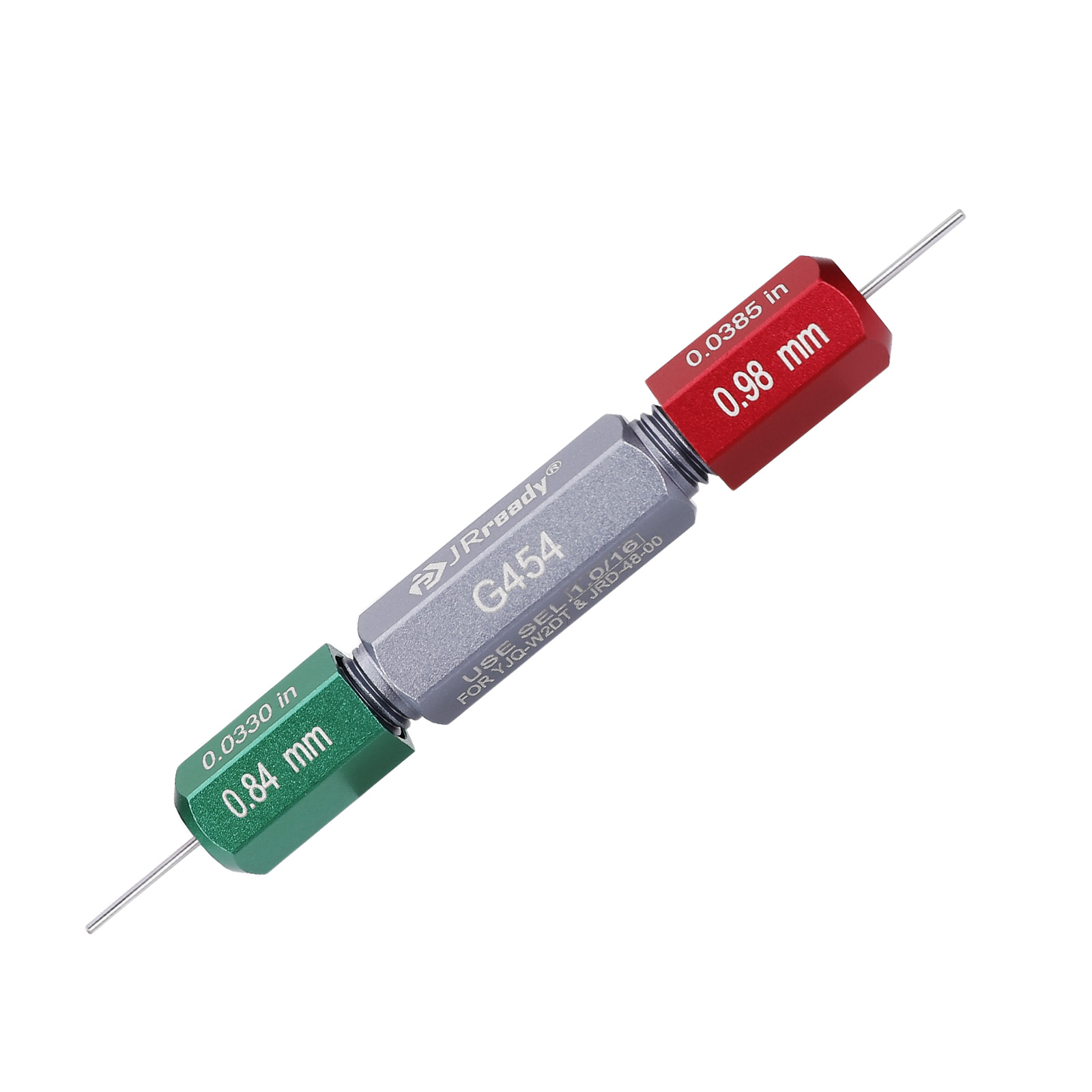

JRready G454 Go/No-Go Gauge

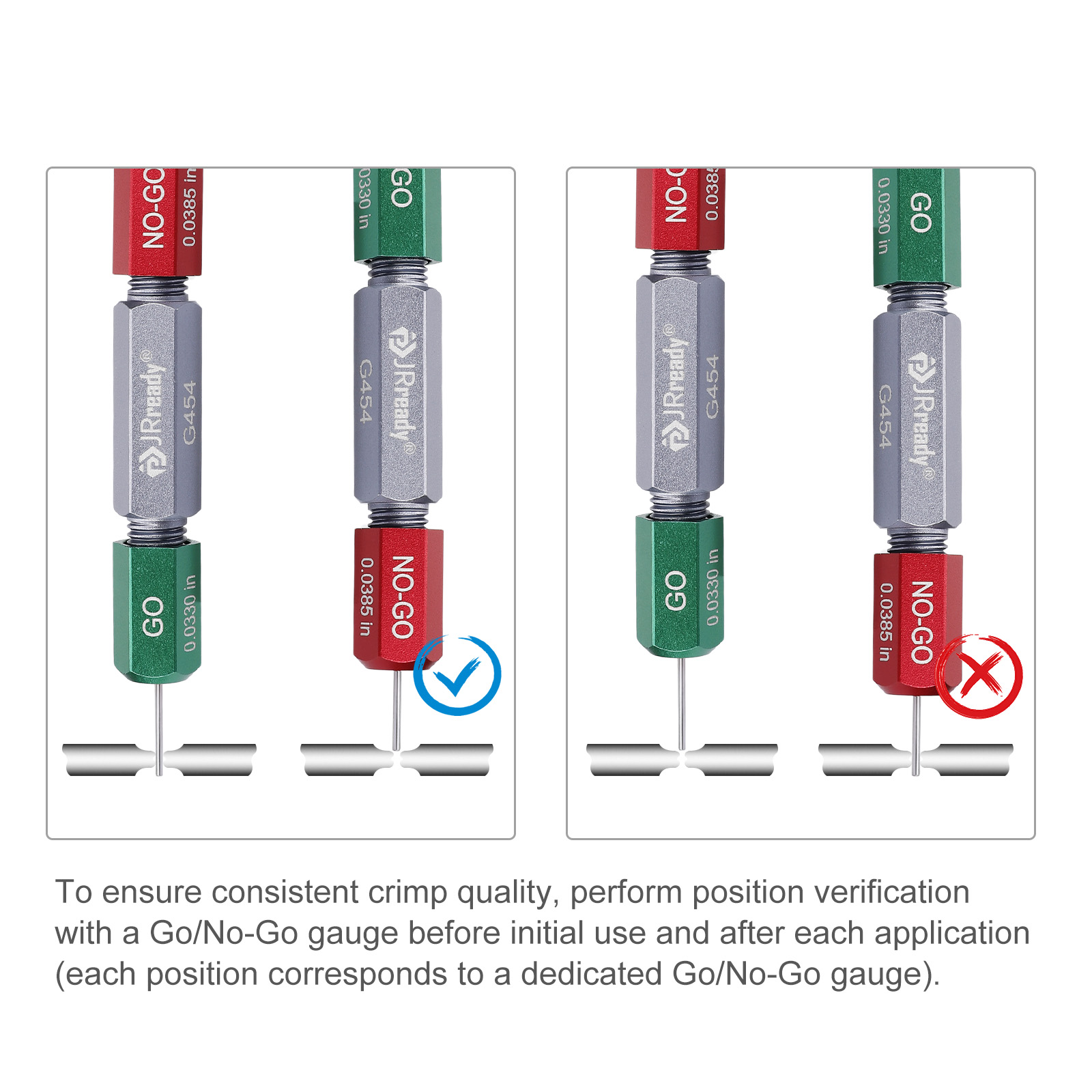

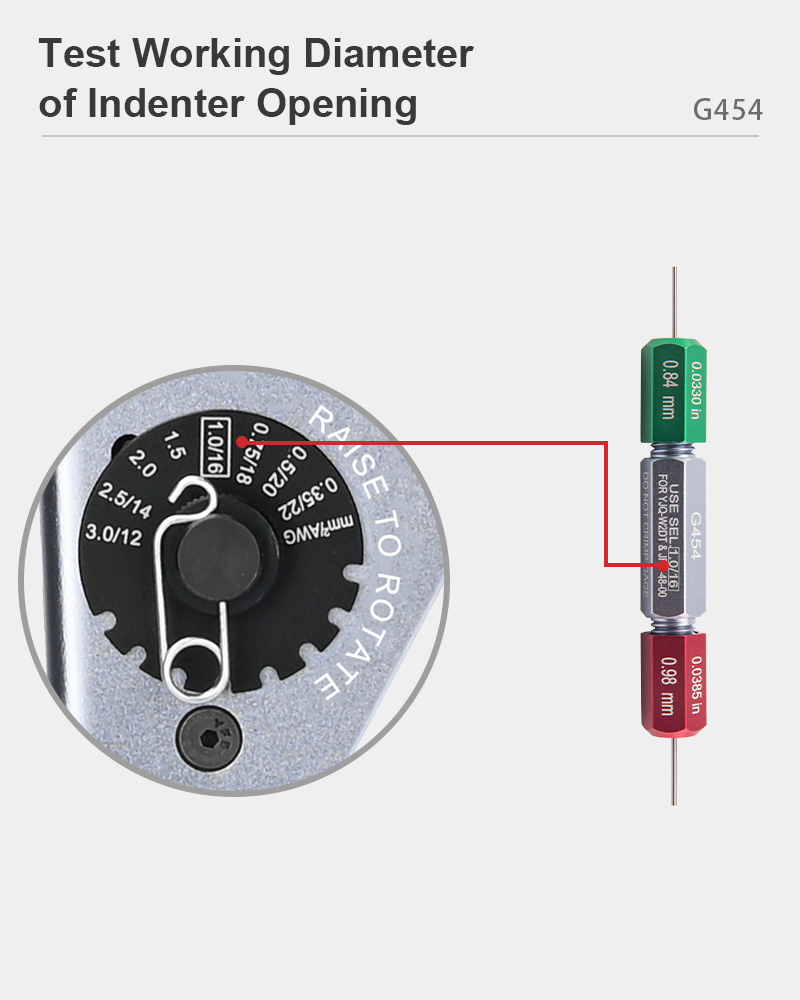

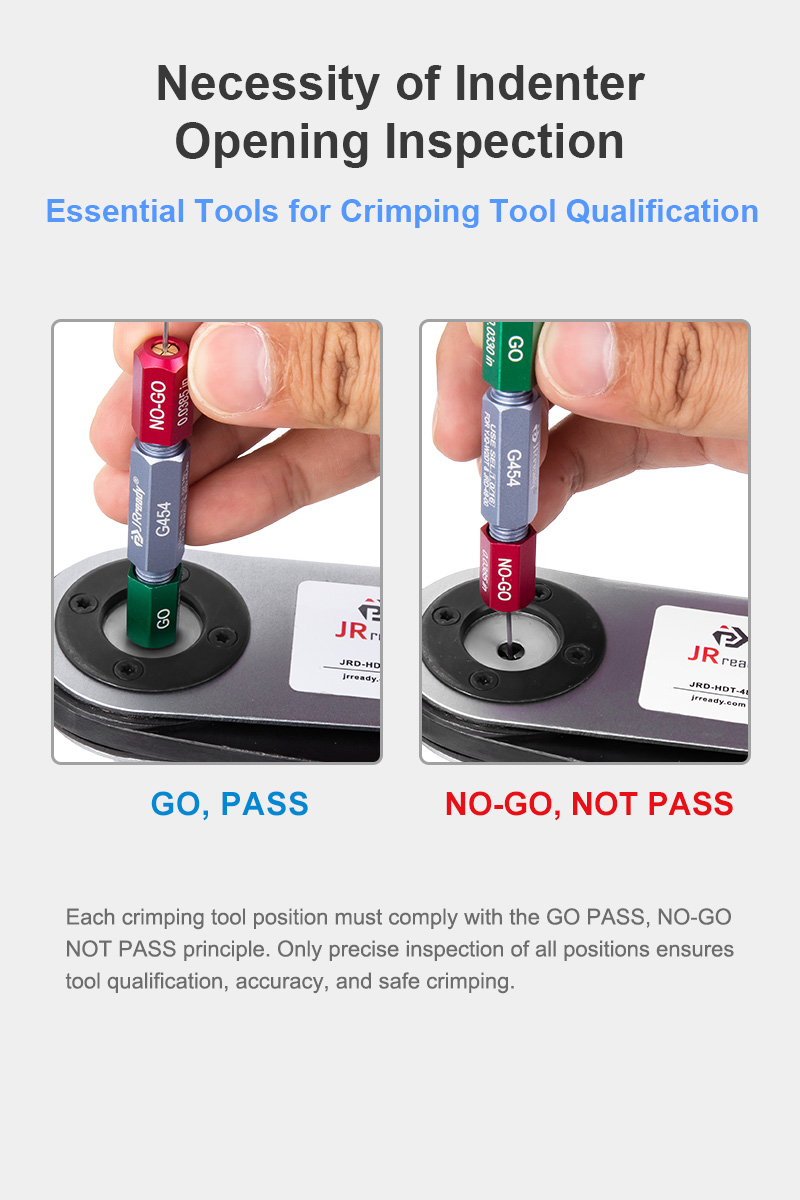

1. Applicable to the go-nogo gaging limits measurement of indenter opening of JRD-HDT-48 (1.0/16), YJQ-W2DT (1.0/16), ACT-M202 (1.0/16), YJQ-W2DTQ (1.0/16), HDT-46-00 (Selector NO. 4 ), HDT-46-01 (Selector NO. 4);

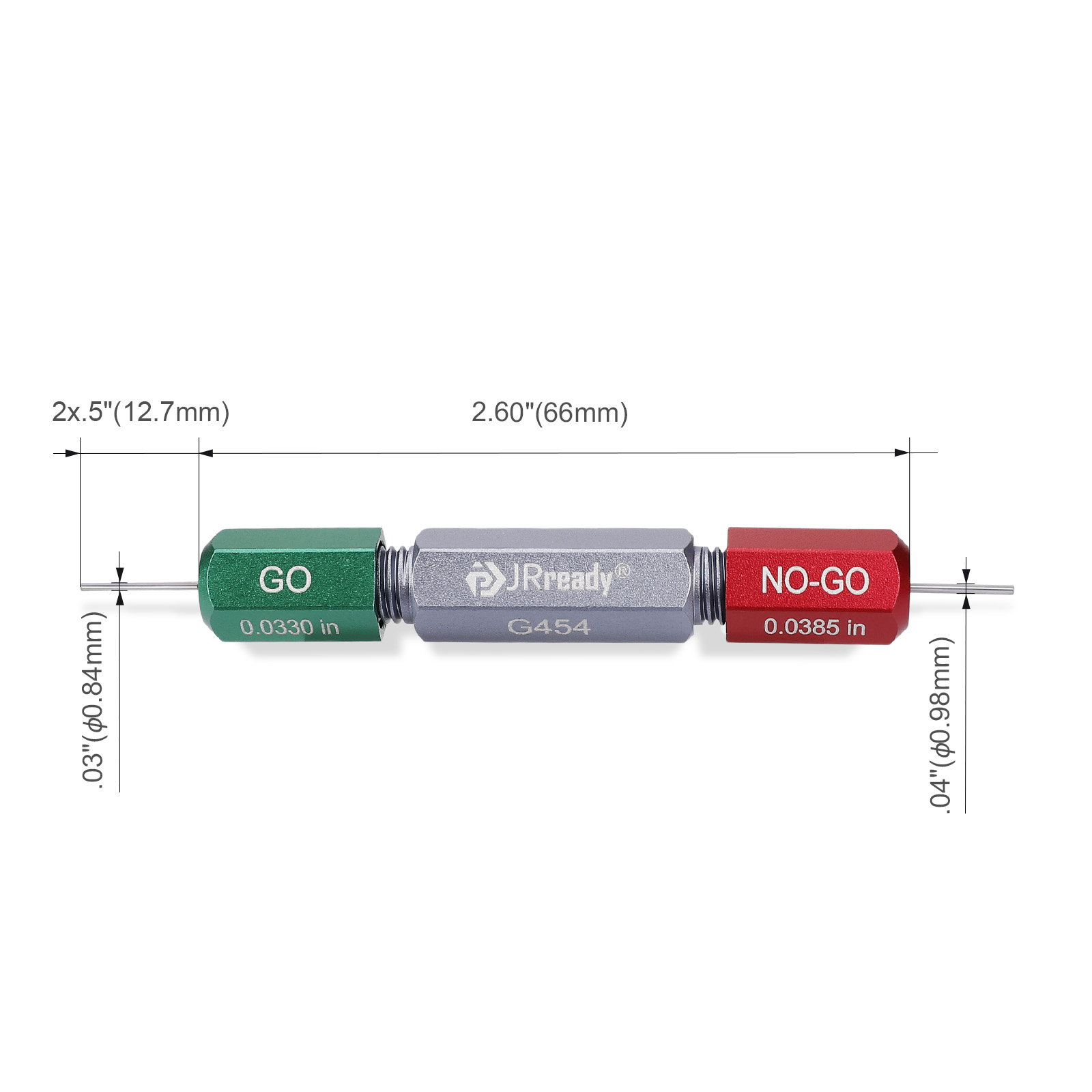

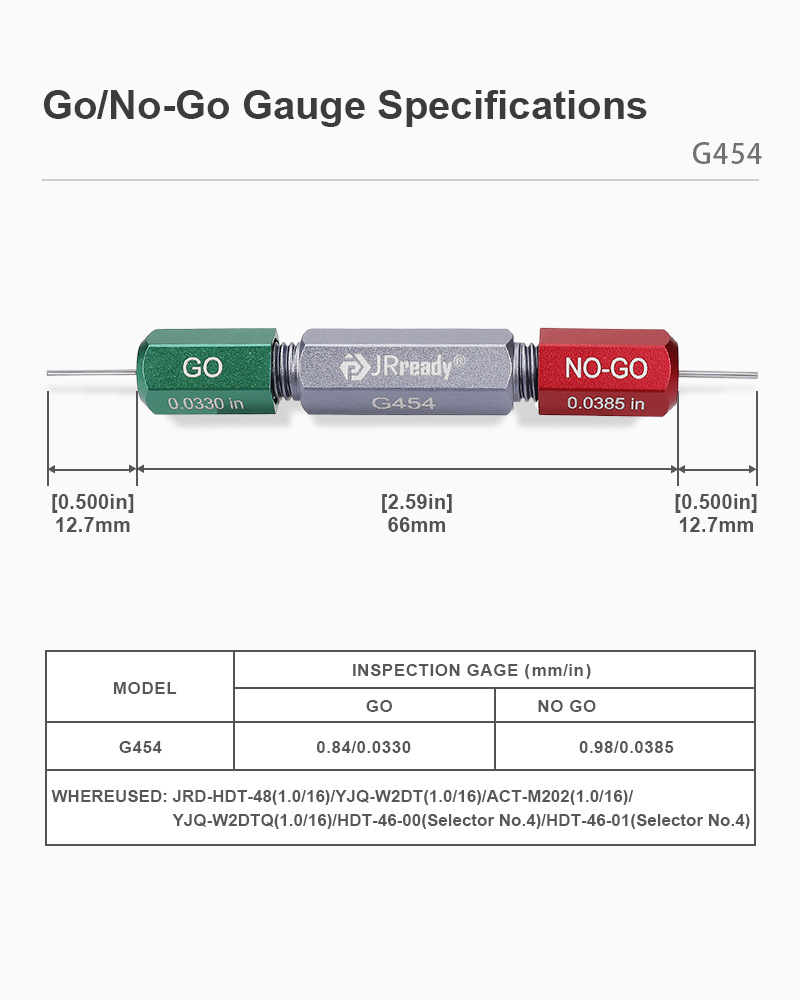

2. Go gauge 0.84mm, NO-GO gauge 0.98mm.
Contact Us
Brand JRready Part Number G454
Category Measuring Tool Colour Green/Gray/Red
Material Bearing Steel Dimension 91.4mm
Country of Origin China Weight 15g
Application Applicable to the go-nogo gaging limits measurement of indenter opening of JRD-HDT-48 (1.0/16), YJQ-W2DT (1.0/16), ACT-M202 (1.0/16), YJQ-W2DTQ (1.0/16), HDT-46-00 (Selector NO. 4 ), HDT-46-01 (Selector NO. 4);



Product Introduction
