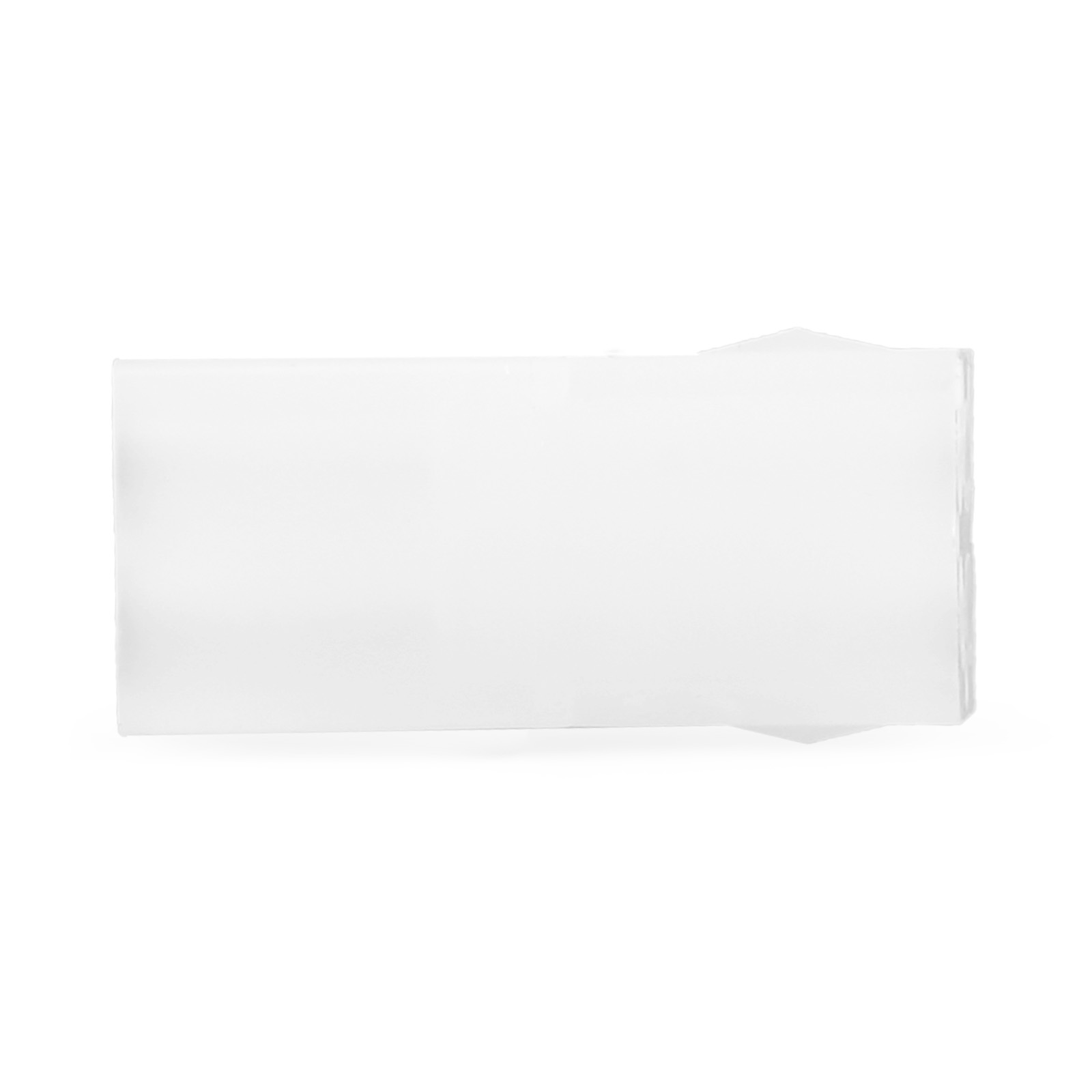

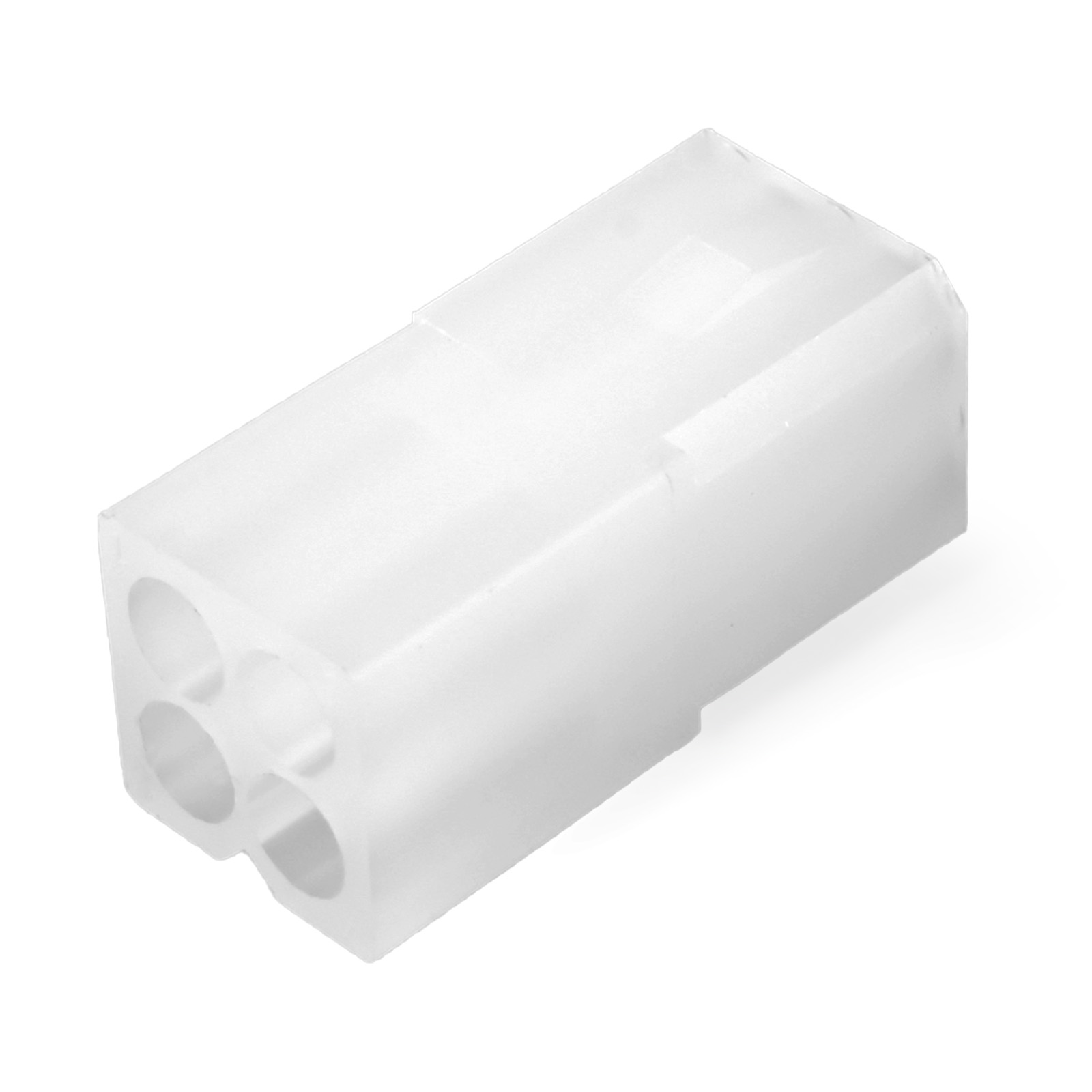

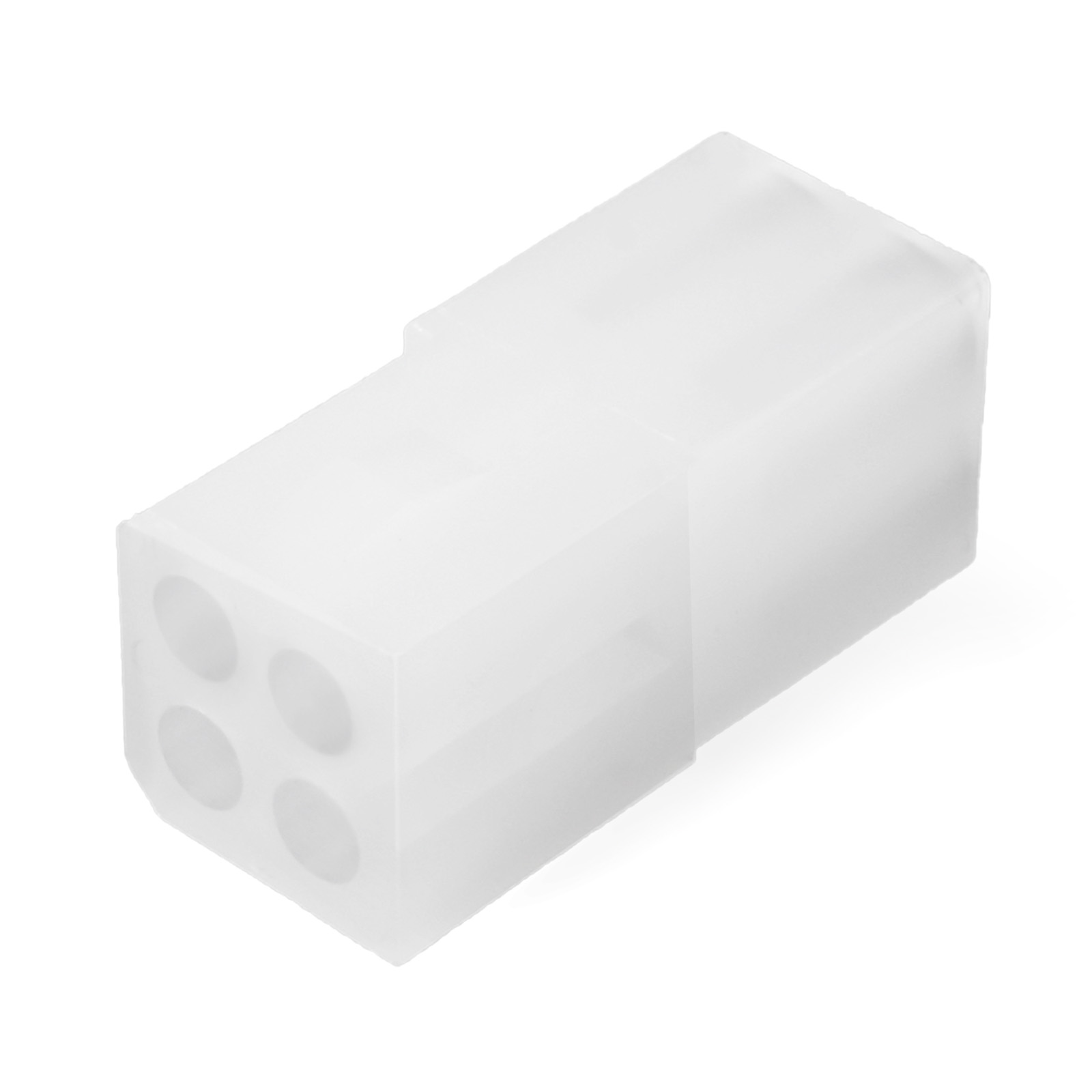

JRready JRN003-HFA-2X02P Connector
1. Wire Compatibility: 18-30 AWG
2. Terminal Type: Compatible with Stamped Sockets
3. Connection Method: Wire-to-Wire, Wire-to-Board
4. Position: 4-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 5A
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Terminal Type: Compatible with Stamped Sockets
3. Connection Method: Wire-to-Wire, Wire-to-Board
4. Position: 4-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 5A
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN003-HFA-2X02P |
| Category | JRN003（3.68)Series | Colour | White |

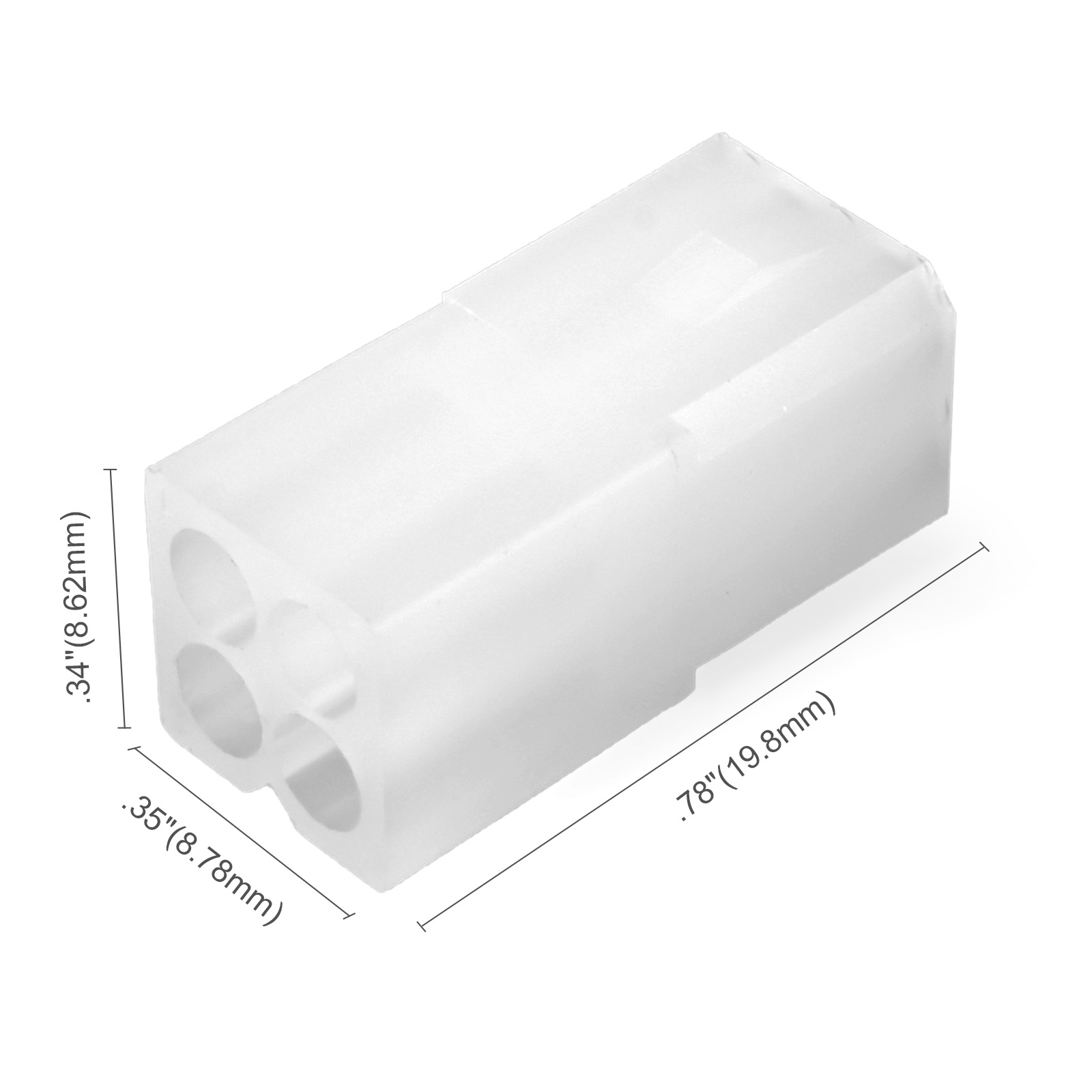

| Material | PA66 | Dimension | 19.8*8.78*8.62mm |
| Country of Origin | China | Weight | 1.07g |
| Application | Suitable for Refrigerators, Washing Machines, EVs, Computer Units | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 5A |
