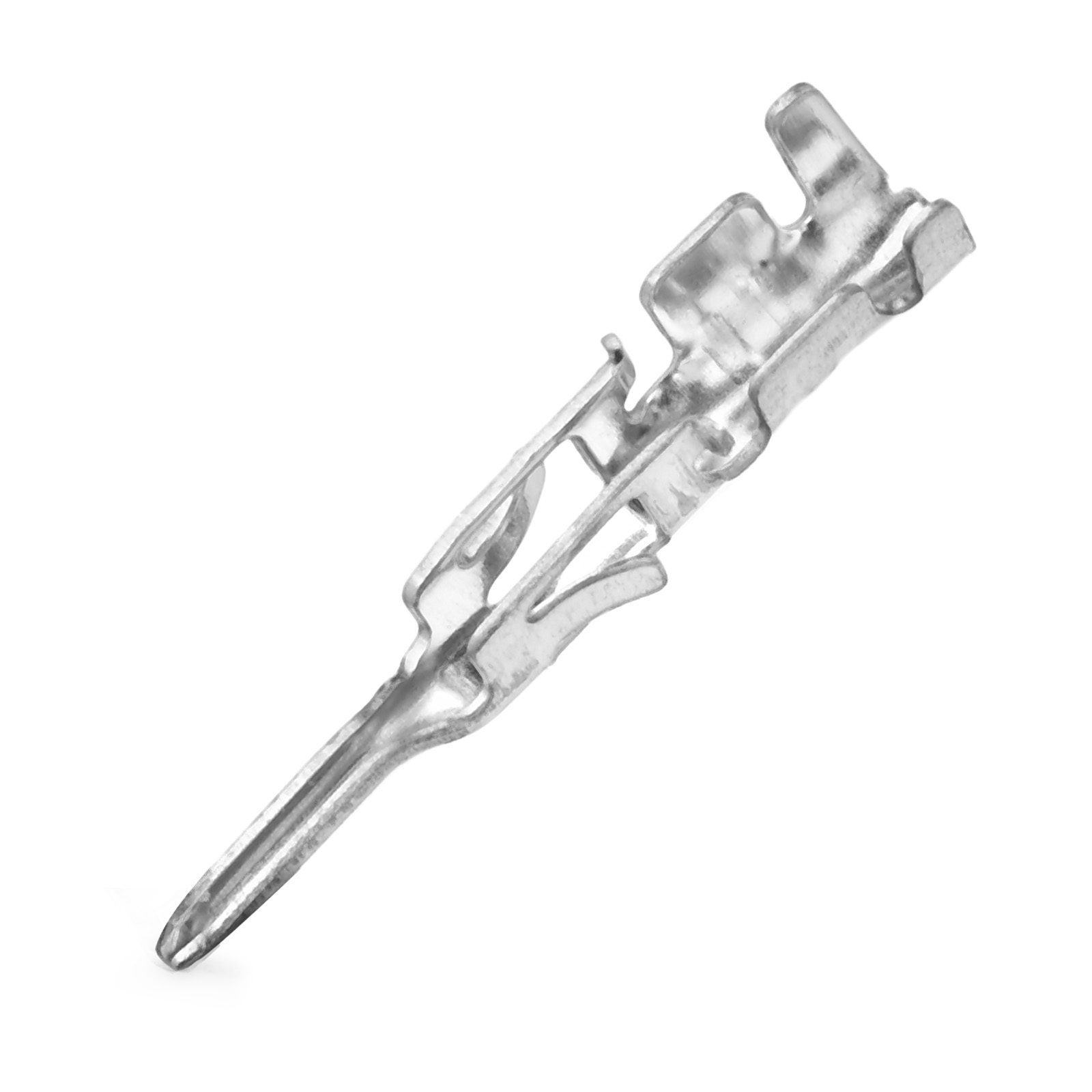

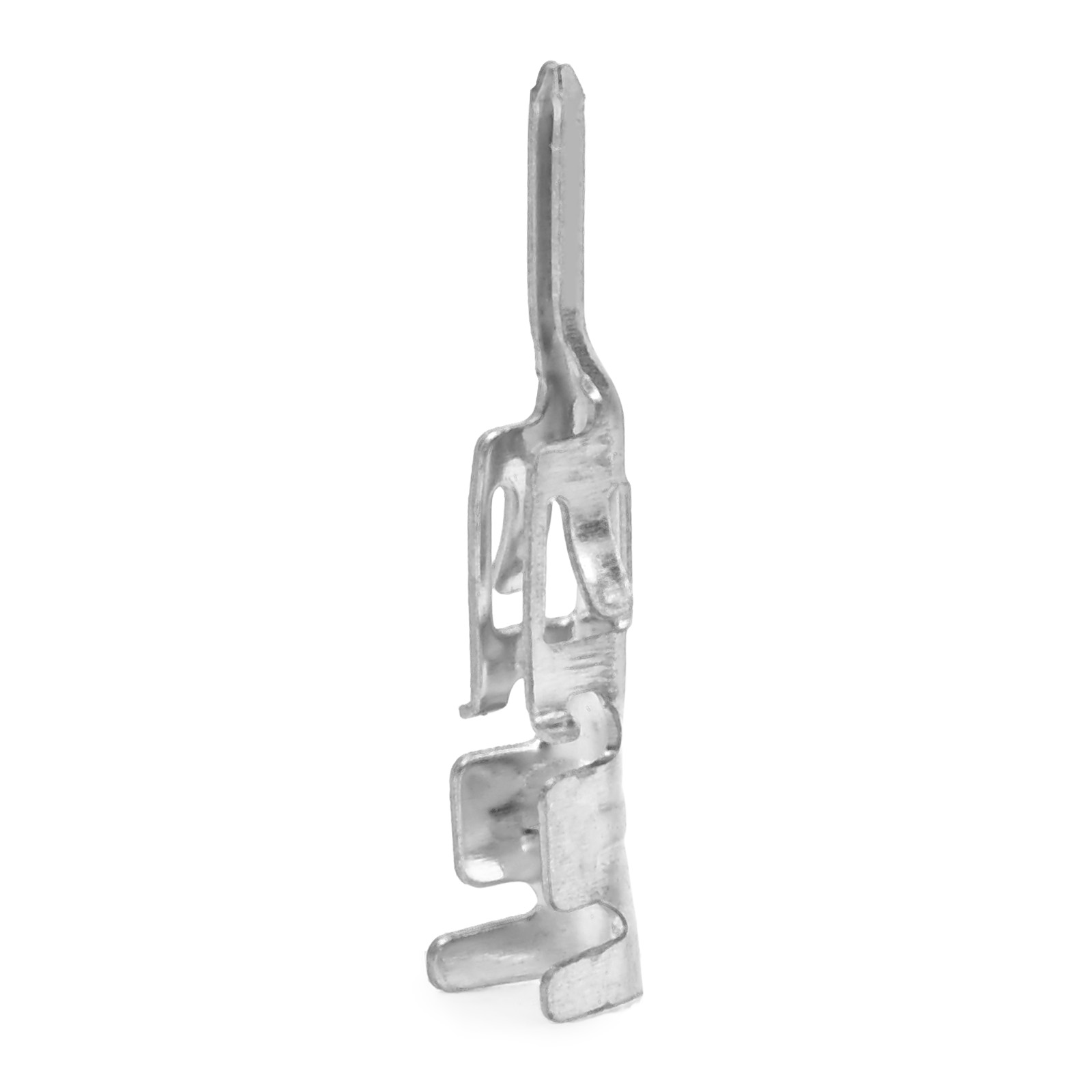

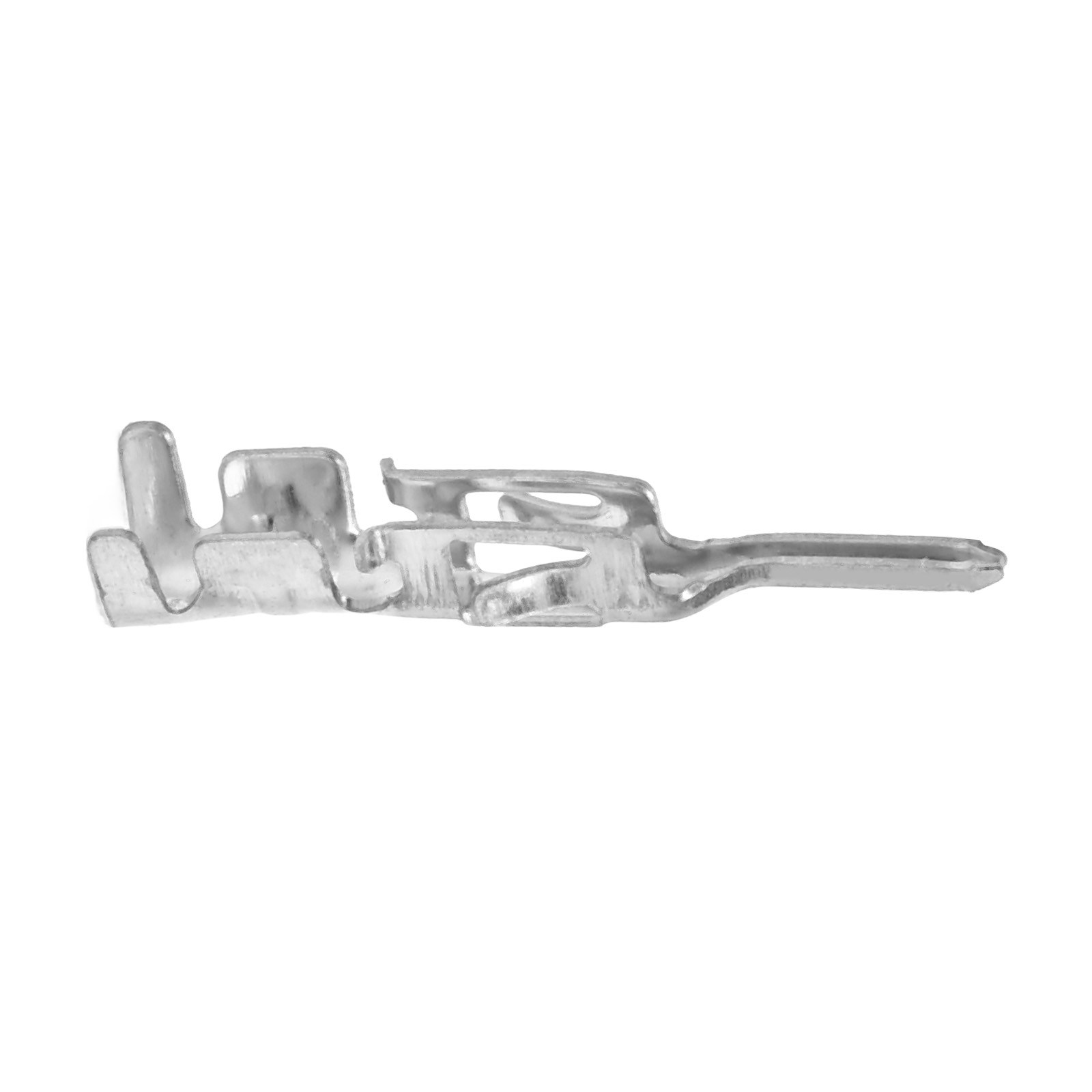

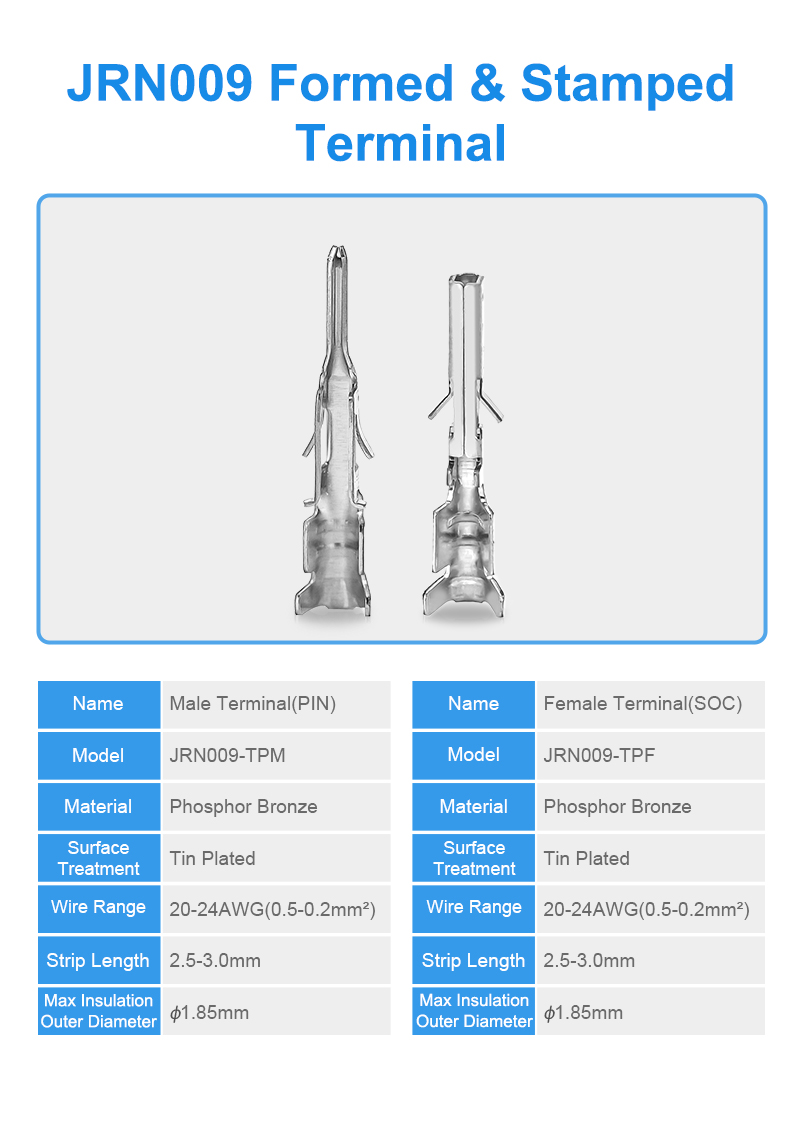

JRready JRN009-TPF Terminal
1. Compatible Wire Range: 24-20AWG (0.2-0.5mm)
2. Mating Pin: JRN009-TPM
3. Phosphor Bronze
4. Rated Current: 7A
2. Mating Pin: JRN009-TPM
3. Phosphor Bronze
4. Rated Current: 7A
| Brand | JRready | Part Number | JRN009-TPF |
| Category | JRN009(3.0) Series | Colour | Silver |

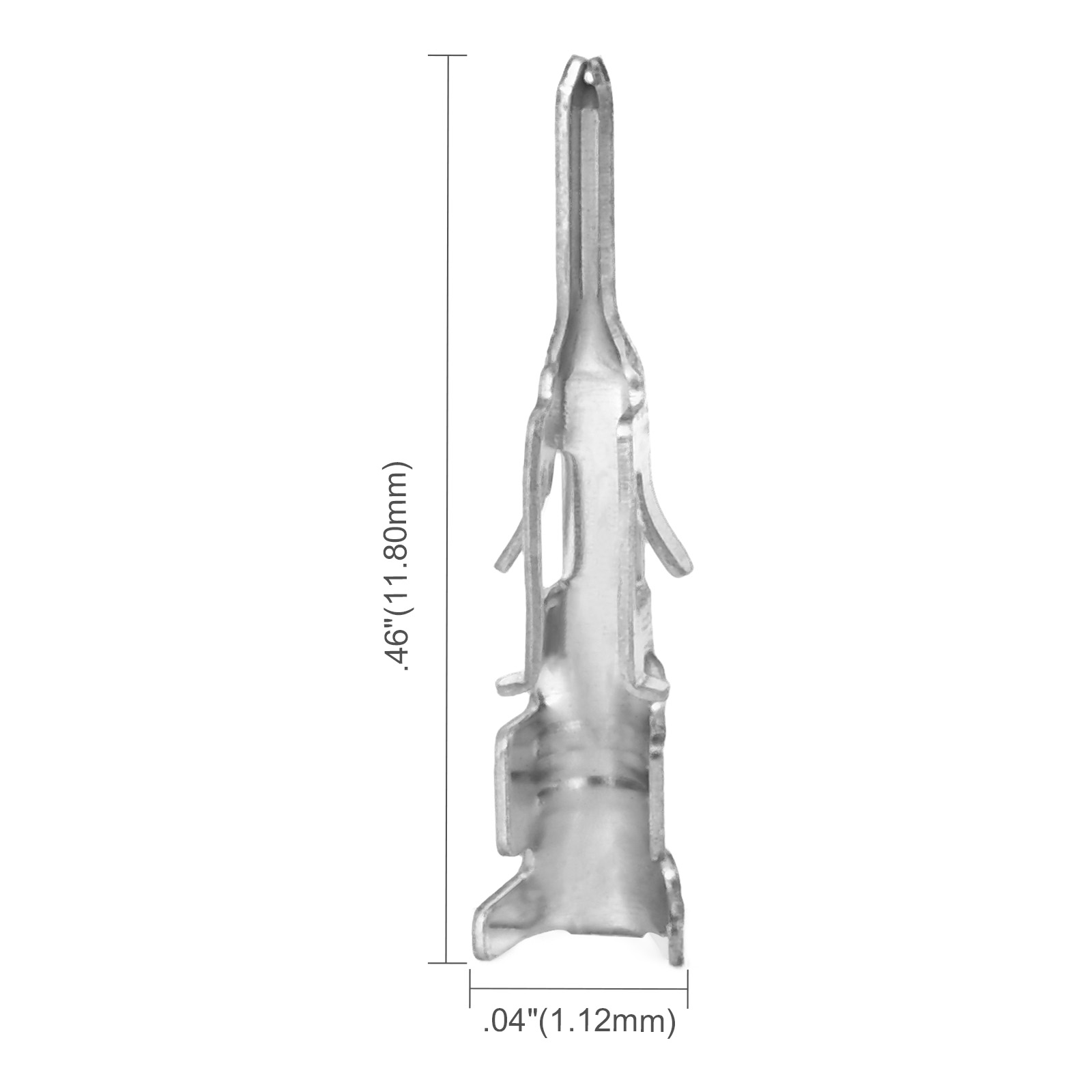

| Material | Phosphor Bronze | Dimension | Length: 11.8mm, Diameter: 1.12mm |
| Country of Origin | China | Weight | 0.06g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7A |
