JRready JRN003-TBF Terminal
1.Compatible wire range: 24-18AWG (0.2-0.75mm²)
2.Mating socket: JRN003-TBM
3.Nickel-plated brass with tin finish
4.Rated current: 5A
2.Mating socket: JRN003-TBM
3.Nickel-plated brass with tin finish
4.Rated current: 5A
| Brand | JRready | Part Number | JRN003-TBF |
| Category | JRN003（3.68） Series | Colour | Silver |

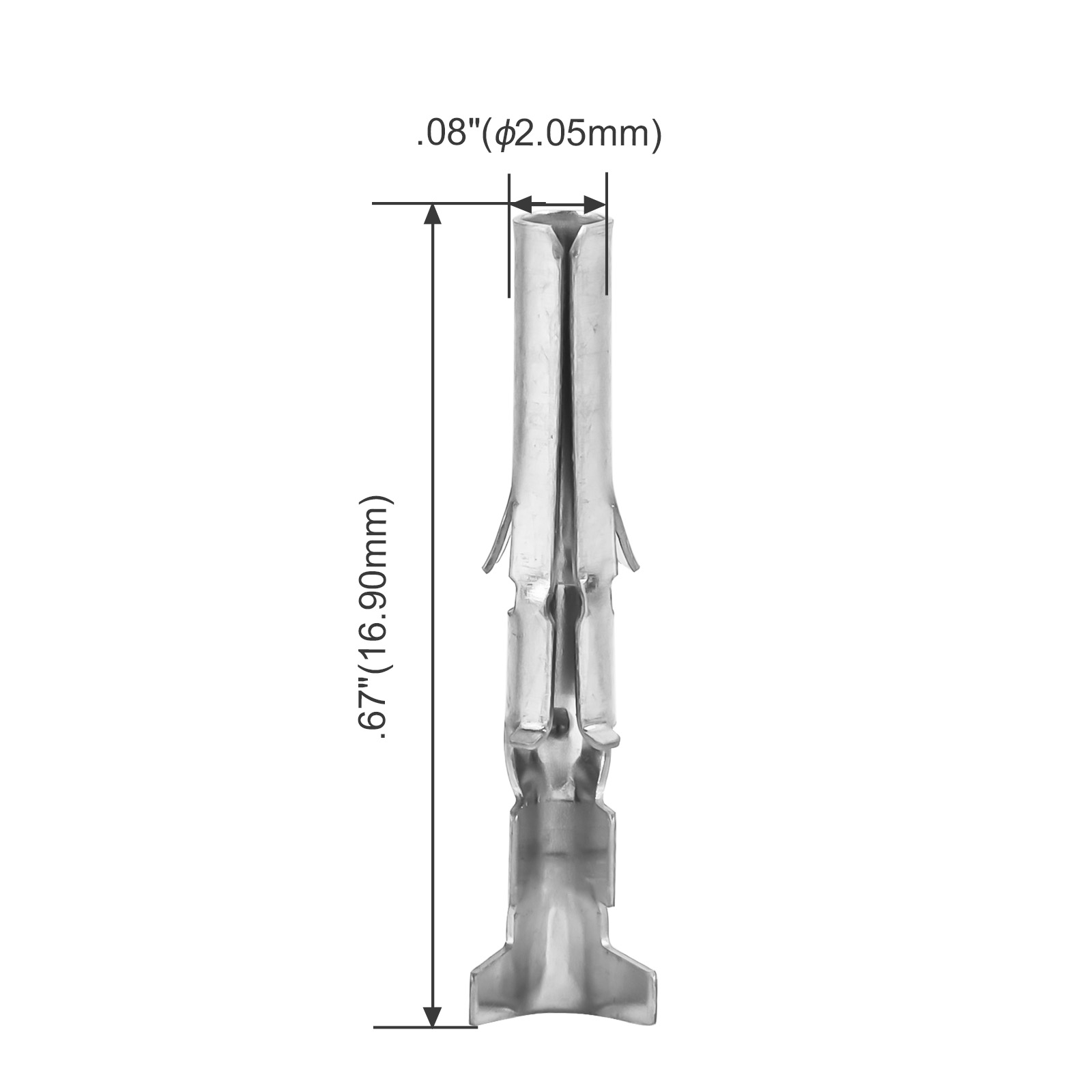

| Material | Brass with nickel plating - tin surface finish | Dimension | Length: 16.9mm, Diameter: 2.05mm |
| Country of Origin | China | Weight | 0.14g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 5A |
